Manual P/N 820-1193 Rev D 4/12

ATTENTION: Please take a few minutes to thoroughly read

this user’s guide which should be saved for future reference

and passed on to any subsequent owner.

Smoke Alarm

User’s Guide

Models: i12020ACA i12040ACA P12040CA

SINGLE AND/OR MULTIPLE

STATION SMOKE ALARM

120 V AC Direct Wire

NOTE: The model i12040ACA smoke alarm has a low battery HUSH feature.

If the alarm is sounding a low battery warning chirp, you can silence

this chirp for approximately 13 hours by pressing the Test/Hush button.

1. Introduction

Models i12020ACA, i12040ACA and P12040CA

Thank you for purchasing this smoke alarm. It is an important part of

your family’s home safety plan. You can trust this product to provide

the highest quality safety protection. We know you expect nothing less

when the lives of your family are at stake.

Please take a few minutes to thoroughly read this alarm manual, and

save it for future reference. Teach children how to respond to the

alarms, and that they should never play with the unit.

If you have any questions about the operation or installation of your

alarm, please call our toll free Consumer Hotline at 1-800-880-6788.

Image 1C will help you determine the correct location of safety products

that will help make your home a safer place.

IMPORTANT: Read all instructions before installation and keep

this manual near the alarm for future reference.

Do not try to repair the smoke alarm yourself. Refer to the

instructions in Warranty section for service.

Contents of This User’s Guide

1. Introduction

2. Installation

3. Operation

4. Maintenance

5. Fire Safety

6. Warranty

Kidde Canada Inc., P.O. Box 40, Apsley, ON K0L 1A0

Consumer Hotline: 1-800-880-6788

www.kiddecanada.com

Made in China. Patents Pending

1. Introduction

2. Installation

3. Operation

4. Maintenance

5. Fire Safety

6. Warranty

2. Installation

This unit is suitable as a Single Station and/or Multiple Station alarm

(interconnects with up to 24 devices), and has a five-year limited

warranty.

IMPORTANT: Kidde alarms and accessories CAN ONLY BE

interconnected with other Kidde alarms and accessories as well

as specified brands and models of interconnect compatible

alarms. Connection of Kidde products to a non-specified

manufacturer’s interconnect system, or connection with non-

specified equipment from another manufacturer into an existing

Kidde system could result in nuisance alarming, failure to alarm,

or damage to one or all of the devices in the interconnect

system. Refer to the User’s Guide supplied with each Kidde

product for interconnect compatible models, brands, and devices.

This alarm is interconnect compatible with the following alarms and

accessories:

Smoke alarms: 1235CA, 1275CA, 1276CA, i12020CA, i12020ACA,

i12040CA, i12040ACA, i12060CA, i12060ACA, PE120CA, P12040CA,

Pi2000CA, Pi2010CA, KN-SMFM-I-CA

Smoke/CO alarms: KN-COSM-IBCA, KN-COSM-ICA, KN-COPE-ICA

CO alarms: KN-COB-ICB-CA, KN-COB-IC-CA, KN-COP-IC-CA

Relay modules: SM120X, CO120X

Strobe Light: SL177i

Refer to respective manuals for specific application information.

Models i12020ACA and i12040ACA are designed to detect products of

combustion using the ionization technique. They contain 0.9 microcurie

of Americium 241, a radioactive material. Distributed under U.S. NRC

License No. 32-23858-01E. Manufactured in compliance with U.S.

NRC safety criteria in 10 CFR 32.27. The purchaser is exempt from any

regulatory requirements. Do not try to repair the smoke alarm yourself.

Refer to the instructions in Warranty section for service.

WARNING: Removal of the smoke alarm battery and

disconnecting or loss of AC power will render the smoke alarm

inoperative.

ELECTRICAL RATING: 120 V AC, 60 HZ, 80 mA maximum per alarm

(maximum 80 mA for originating unit with 24 devices interconnected).

2. Installation

Recommended Locations

• Locate the first alarm in the immediate area of the bedrooms.

Try to monitor the exit path, as the bedrooms are usually

farthest from the exit. If more than one sleeping area exists,

locate additional alarms in each sleeping area (Image 1A).

• Locate additional alarms to monitor any stairway as stairways act

like chimneys for smoke and heat.

• Locate at least one alarm on every floor level (Image 1B).

• Locate an alarm in every Sleeping Room.

• Locate an alarm in every room where electrical appliances are

operated (i.e. portable heaters or humidifiers).

• Locate an alarm in every room where someone sleeps with the

door closed. The closed door may prevent an alarm not located

in that room from waking the sleeper.

• Smoke, heat, and combustion products rise to the ceiling and

spread horizontally. Mounting the smoke alarm on the ceiling in

the center of the room places it closest to all points in the room.

Ceiling mounting is preferred in ordinary residential construction.

• When mounting an alarm on the ceiling, locate it at a minimum

of 10 cm (4”) from the side wall (Image 2A).

• When mounting the alarm on the wall, use an inside wall with

the top edge of the alarm at a minimum of 10 cm (4”) and a

maximum of 30.5 cm (12”) below the ceiling (Image 2A).

• Put smoke alarms at both ends of a bedroom hallway or large

room if the hallway or room is more than 9.1 m (30’) long.

• For mobile home installation, select locations carefully to avoid

thermal barriers that may form at the ceiling. For more details,

see Mobile Homes.

2. Installation

• Install smoke alarms on sloped, peaked or cathedral ceilings

following the mounting guidelines outlined in image 2B and 2C.

Smoke alarms in rooms with ceiling slopes greater than 0.3 m in

2.4 m (1 foot in 8 feet) horizontally shall be located on the high

side of the room (Image 2B and 2C).

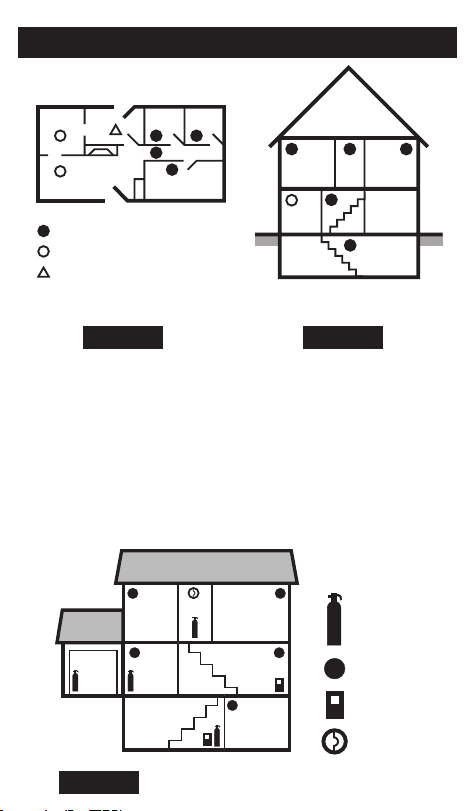

DINING

ROOM

LIVING

ROOM

Required Smoke Alarms

Ionization Type Smoke Alarm with

Hush® Control or Photoelectric Type

Smoke Alarms for Additional Pr

otection

KITCHEN BEDROOM

BEDROOM

LIVING

ROOM KITCHEN

BEDROOMBEDROOM HALL

BASEMENT

SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN

IMAGE 1A IMAGE 1B

BEDROOM

FAMILY ROOM

WORKSHOPBASEMENT

KITCHEN

HALL

GARAGE

MASTER

BEDROOM

FIRE

EXTINGUISHERS

SMOKE

ALARMS

CARBON

MONOXIDE

ALARMS

TALKING

SMOKE/CO

ALARM

TOTAL HOME PROTECTION

IMAGE 1C

2. Installation

Install Smoke Alarms on tray-shaped ceilings (coffered ceilings) on the

highest portion of the ceiling or on the sloped portion of the ceiling

within 30.5 cm (12”) vertically down from the highest point (Image 2D).

Locations to Avoid

• Do not install within 0.9 m (3’) of the following: The door to a

kitchen, or a bathroom that contains a tub or shower, forced air

supply ducts used for heating or cooling, ceiling or whole house

ventilating fans, or other high air-flow areas.

• Do not place the alarm where drapes or other objects will block

the sensor. Smoke must be able to reach the sensor to accurately

detect conditions.

• Do not install in peaks of vaulted ceilings. In this area install as

shown in images 2B and 2C.

• Install at least 30.5 cm (12”) away from fluorescent lights as

electronic noise may cause nuisance alarms.

• Keep out of insect infested areas. Avoid excessively dusty, dirty or

greasy areas. Dust particles may cause nuisance alarms or failure

to alarm.

• Extreme temperatures may affect the sensitivity of the alarm.

Do not install in areas where the temperature is colder than

4.4°C (40°F) or hotter than 37.8°C (100°F), such as garages and

unfinished attics.

• Do not install in areas where the relative humidity (RH) is greater

than 85%. Very humid areas, with moisture or steam, can cause

nuisance alarms.

• Avoid placing ionization smoke alarms in kitchen areas. Normal

cooking may cause nuisance alarms. If a kitchen alarm is desired, it

should have an alarm silence feature or be a photoelectric type.

• Do not place in the garage. Particles of combustion are present

when you start your automobile.

• Smoke alarms are not to be used with detector guards unless the

combination (alarm and guard) has been evaluated and found

suitable for that purpose.

2. Installation

NOT IN

THIS AREA

ANYWHERE IN

THIS AREA

0.9 m (3’) 0.9 m (3’)

HORIZONTAL DISTANCE

FROM PEAK

NOT IN

THIS AREA

ANYWHERE IN

THIS AREA

0.9 m (3’)

MINIMUM

BEST

PLACEMENT

STAGNANT AIR

MINIMUM

10 cm (4”)

NEVER

HERE

ACCEPTABLE

PLACEMENT

30.5 cm (12”)

MAXIMUM

CEILING

10 cm (4”)

ANYWHERE IN

THIS AREA

30 cm (12”)

SIDE WALL

IMAGE 2A

IMAGE 2B

IMAGE 2C

IMAGE 2D

Mobile Homes

Modern mobile homes have been designed to be energy efficient. Install

smoke alarms as recommended in Recommended Locations and

Image 2A.

In older mobile homes that are not well insulated compared to present

standards, extreme heat or cold can be transferred from the outside

to the inside through poorly insulated walls and roof. This may create

a thermal barrier that can prevent the smoke from reaching an alarm

mounted on the ceiling. In such units, install the smoke alarm on an

inside wall with the top edge of the alarm at a minimum of 10 cm (4”)

and a maximum of 30.5 cm (12”) below the ceiling (Image 2A).

If you are not sure about the insulation in your mobile home, or if you

notice that the outer walls and ceiling are either hot or cold, install the

alarm on an inside wall. For minimum protection, install at least one

alarm close to the bedrooms. For additional protection, see Image 1A.

WARNING: Test your smoke alarm operation after R.V. or mobile

home vehicle has been in storage, before each trip and at least

once a week during use.

Wiring

CAUTION! Turn off the main power to the circuit before wiring

the alarm.

• This smoke alarm should be installed on a CSA listed or recognized

junction box. All connections should be made by a qualified

electrician and all wiring used shall be in accordance with articles

210 and 300.3(B) of the U.S. National Electrical Code ANSI/NFPA

70, NFPA 72 and/or any other codes having jurisdiction in your

area. The multiple station interconnect wiring must be run in the

same raceway or cable as the AC power wiring to the alarms.

In addition, the resistance of the interconnect wiring shall be a

maximum of 10 ohms.

• The appropriate power source is 120 Volt AC Single Phase

supplied from a non-switchable circuit which is not protected by a

ground fault interrupter.

• The alarm should not be operated on power derived from a

square wave, modified square wave or modified sine wave

inverter. These power sources produce high peak voltages that

will damage the alarm.

2. Installation

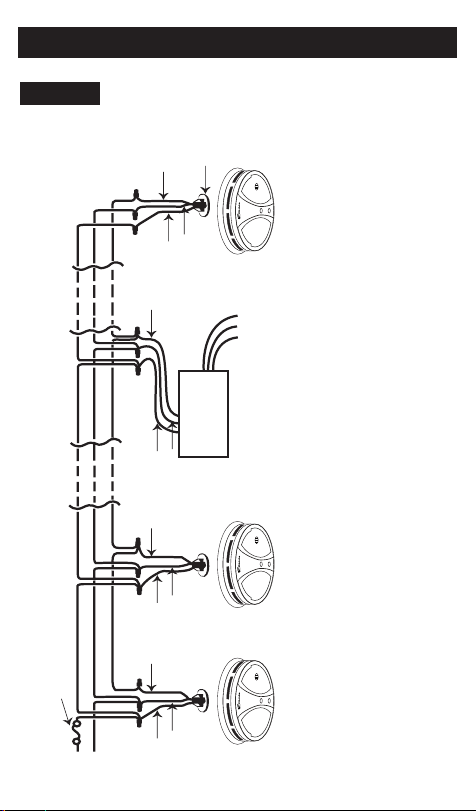

• For alarms that are used as single station, DO NOT CONNECT THE

RED WIRE TO ANYTHING. Leave the red wire insulating cap in

place to make certain that the red wire cannot contact any metal

parts or the electrical box.

• When alarms are interconnected, all interconnected units must be

powered from a single circuit.

• A maximum of 24 Kidde devices may be interconnected in a

multiple station arrangement. The interconnect system should not

exceed the NFPA interconnect limit of 12 smoke alarms and/or 18

alarms total (smoke, heat, carbon monoxide, etc.) With 18 alarms

interconnected, it is still possible to interconnect up to a total of 6

remote signaling devices and/or relay modules.

IMPORTANT: Kidde alarms and accessories CAN ONLY BE

interconnected with other Kidde alarms and accessories as well as

specified brands and models of interconnect compatible alarms.

Connection of Kidde products to a non-specified manufacturer’s

interconnect system, or connection with non-specified equipment

from another manufacturer into an existing Kidde system could

result in nuisance alarming, failure to alarm, or damage to one

or all of the devices in the interconnect system. Refer to the

User’s Guide supplied with each Kidde product for interconnect

compatible models, brands, and devices.

• When mixing models which have battery backup with models

without battery backup, be advised that the models without

battery backup will not respond during an AC power failure.

• For more information about compatible interconnect units and

their functionality in an interconnect system, visit our web site at:

www.kiddecanada.com

• The maximum wire run distance between the first and last unit in

an interconnected system is 305 m (1000’).

• Image 3 illustrates interconnection wiring. Improper connection will

result in damage to the alarm, failure to operate, or a shock hazard.

• Make certain alarms are wired to a continuous (non-switched)

power line. NOTE: Use standard CSA listed household wire (as

required by local codes) available at all electrical supply stores and

most hardware stores.

FUSE OR CIRCUIT BREAKER

WHITE

RED

BLACK

QUICK

CONNECTOR

KIDDE

Relay Module

# SM120X

Optional Accessory

WHITE

RED

BLACK

WHITE

RED

BLACK

WHITE

RED

BLACK

Live

Neutral

2. Installation

INTERCONNECT WIRING

IMAGE 3

WIRES ON ALARM HARNESS

Black Connected to hot side of AC line.

White Connected to neutral side of AC line.

Red Connected to interconnect lines (red wires) of other units in a multiple station set-up.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kidde Rauchmelder Handbücher

Kidde

Kidde I9070 Bedienungsanleitung

Kidde

Kidde DY29 Bedienungsanleitung

Kidde

Kidde KF1 Bedienungsanleitung

Kidde

Kidde i9010CA Bedienungsanleitung

Kidde

Kidde Optica KC2-OS Montageanleitung

Kidde

Kidde 1296 Bedienungsanleitung

Kidde

Kidde P1235CA Bedienungsanleitung

Kidde

Kidde PI9010 Bedienungsanleitung

Kidde

Kidde PE9 Bedienungsanleitung

Kidde

Kidde PE910UK Bedienungsanleitung

Kidde

Kidde 123I Montageanleitung

Kidde

Kidde PI9000CA Bedienungsanleitung

Kidde

Kidde I9040RV Bedienungsanleitung

Kidde

Kidde TRUSENSE SMOKE 3050-VAS10 Bedienungsanleitung

Kidde

Kidde 0918LL Bedienungsanleitung

Kidde

Kidde Fyrewatch 0913 Bedienungsanleitung

Kidde

Kidde AirSense Stratos Micra 25 Bedienungsanleitung

Kidde

Kidde WFPCO Bedienungsanleitung

Kidde

Kidde 0910UK Bedienungsanleitung

Kidde

Kidde 976 Bedienungsanleitung

Kidde

Kidde KN-SMFM-i Bedienungsanleitung

Kidde

Kidde PI2010 Bedienungsanleitung

Kidde

Kidde 19HI Bedienungsanleitung

Kidde

Kidde P9050 Bedienungsanleitung

Beliebte Rauchmelder Handbücher anderer Marken

x-sense

x-sense SD19-W Bedienungsanleitung

BRK electronic

BRK electronic First Alert P1010 Bedienungsanleitung

FireAngel

FireAngel Thermoptek ST-622 Bedienungsanleitung

teko

teko Astra-42A Bedienungsanleitung

Safetec

Safetec SDS-2/6 Betriebsanleitung

Siemens

Siemens PE-11C Bedienungsanleitung

System Sensor

System Sensor DH500ACDC Bedienungsanleitung

Resolution Products

Resolution Products RE612 CryptiX Bedienungsanleitung

First Alert

First Alert PC900V Bedienungsanleitung

Eminent

Eminent EM6590 E-Domotica Bedienungsanleitung

Ei Electronics

Ei Electronics Ei Ei168RC Bedienungsanleitung

Carrier

Carrier Kidde Quell Q301 Bedienungsanleitung

VESDA

VESDA VLF-500 Bedienungsanleitung

ELRO

ELRO FS8110 Bedienungsanleitung

Heiman

Heiman SMOKI NS-626PHS Bedienungsanleitung

Regin

Regin SDD-S65 Bedienungsanleitung

Family Gard

Family Gard FG225 Bedienungsanleitung

Greystone

Greystone DSD120 Bedienungsanleitung
