Kieback&Peter FBM034 Technische Daten
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, [email protected]
2.50-30.034-31-EN | 2019-11-04
FBM034, FBM034W
Product Description J

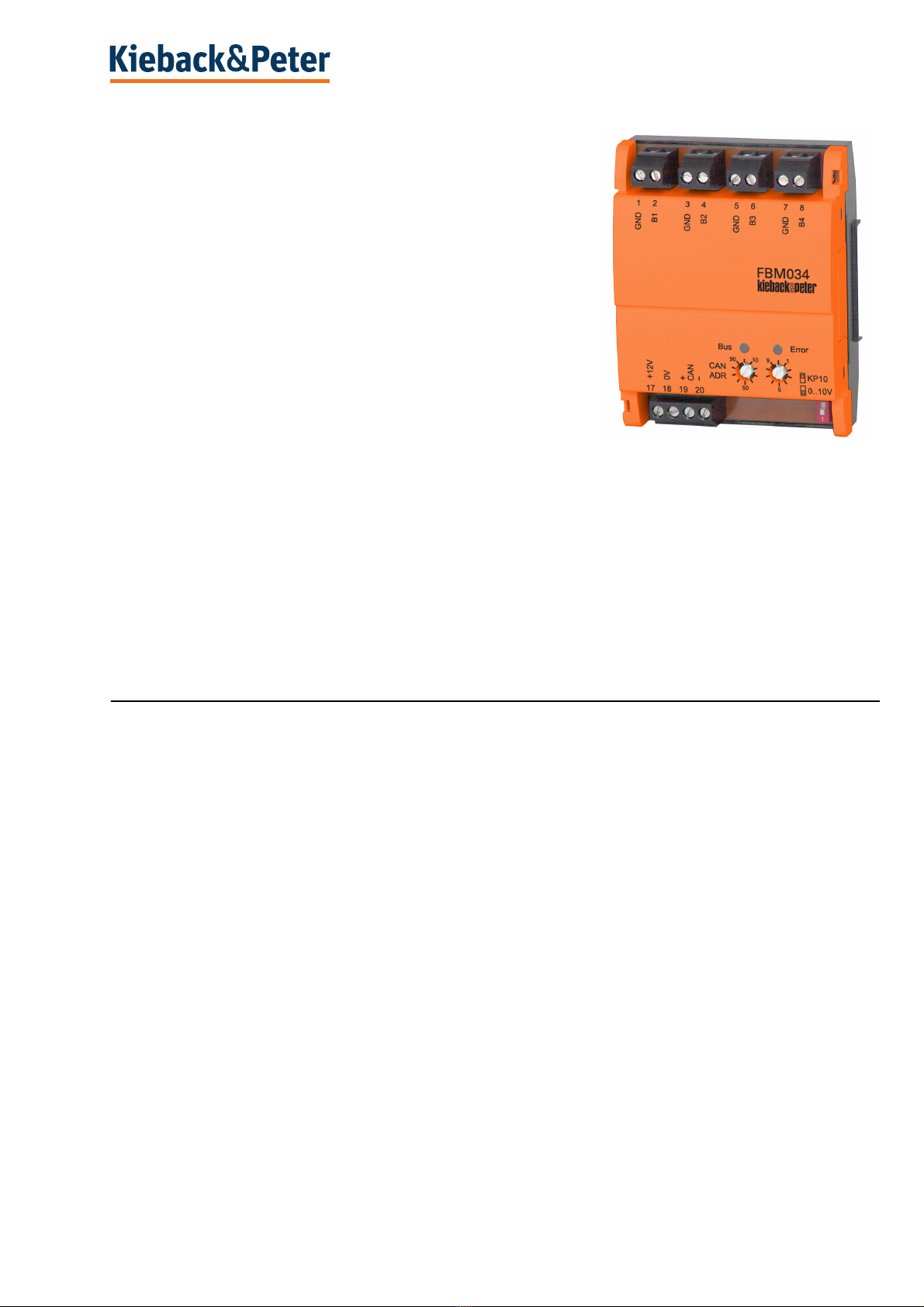

FBM034 and FBM034W Fieldbus Input Modules
Application
With four analog inputs, fieldbus input modules FBM034 und
FBM034W record the signals of remote devices in DDC3000 and
DDC4000 controllers.
The analog inputs can be set to either DC 0–10 V or KP10. LEDs
are used for communication monitoring.
Data is transferred between the controller and the input module
over the fieldbus.
Content Page
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories .........................................................................................................................................................4
Dimensions ..........................................................................................................................................................4
Connection.............................................................................................................................................................5
Installation..............................................................................................................................................................6
Mounting ................................................................................................................................................................6
Mounting the Cascade Plug.................................................................................................................................7
Removal.................................................................................................................................................................8
Commissioning ......................................................................................................................................................8
Function/Operation ..............................................................................................................................................9
LED Display for Bus/Error....................................................................................................................................9
Product Description
FBM034, FBM034W
J
Page 2 / 10
2.50-30.034-31-EN | 2019-11-04
Important Information Regarding Product Safety
Safety Instructions
This data sheet contains information on installing and commissioning the product "FBM034,
FBM034W". Each person who carries out work on this product must have read and understood this
data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further
information from the supplier or manufacturer.
If the product is not used in accordance with this data sheet, the protection provided will be impaired.
Applicable regulations must be observed when installing and using the device. Within the EU, these
include regulations regarding occupational safety and accident prevention as well as those from the
VDE (Association for Electrical, Electronic & Information Technologies). If the device is used in other
countries, it is the responsibility of the system installer or operator to comply with local regulations.
Mounting, installation and commissioning work on the devices may only be carried out by qualified
technicians. Qualified technicians are persons who are familiar with the described product and who
can assess given tasks and recognize possible dangers due to technical training, knowledge and
experience as well as knowledge of the appropriate regulations.
Legend
WARNING
Indicates a hazard of medium risk which can result in death or severe bodily injury if it is not avoided.
CAUTION
Indicates a hazard of low risk which can result in minor or medium bodily injury if it is not avoided.
!CAUTION
Indicates a hazard of medium risk which can result in material damage or malfunctions if it is not
avoided.
NOTE
Indicates additional information that can simplify the work with the product for you.
Notes on Disposal
For disposal, the product is considered waste from electrical and electronic equipment (electronic
waste) and must not be disposed of as household waste. Special treatment for specific components
may be legally binding or ecologically sensible. The local and currently applicable legislation must be
observed.
FBM034, FBM034W
Product Description J
Page 3 / 10 2.50-30.034-31-EN | 2019-11-04
Item
Technical Data
Sensor types
FBM034 Fieldbus input module with four analog inputs.The inputs can be set to DC 0–10
V or temperature measuring elementKP10
FBM034W Like FBM034, but with Z175
Nominal voltage DC 12 V ±20 % / 40 mA; 0.48 VA
Inputs 4 analog inputs can be selected; see the “Sensor types” table
For four inputs with DC 0–10 V, Ri>300 k
or four temperature sensors with measuring element KP10
Interface CAN; fieldbus 2000 m, 20 kBd
Address switch Two rotary switches for addressing from 01 to 63
Display 2 LEDs Green BUS LED: Flashing = fieldbus data transmission
Red error LED: Fieldbus error
Switch Input selection for four inputs with DC 0–10 V or four inputs with mea-
suring element KP10.
Overvoltage category III
Rated impulse voltage 800 V
Level of contamination 2
How It Works Type 1
Degree of protection IP20 (IP65 when installed in Z175 wall-mounted enclosure)
Housing Plastic housing, 4 HP
Ambient temperature 0 °C..45 °C
Ambient humidity 20%..80% r.h., non-condensing
Installation On standard TH 35 x 7.5 rails for installation in the control panel or
the wall-mounted enclosure.
Weight FBM034 0.13 kg; FBM034W 0.8 kg
Sensor type Value range
0 V.. 10 V 0%..100%
KP10 -50 °C...150 °C
Product Description
FBM034, FBM034W
J
Page 4 / 10
2.50-30.034-31-EN | 2019-11-04
Accessories
Dimensions
Not included in delivery.
Z179 Cascade plug
Multiple FBM0xx modules can be connected using the cascade
plug. In this manner, the modules are supplied even when there are-
inactive modules within the chain.
Connected fieldbus lines: DC 12 V, DC 0 V; CAN bus (+, -) A maxi-
mum of 5 modules can be connected in cascade.
Z175 Empty housing for wall mounting (4 HP/IP65)
WxHxD mm 174x94x69
Included in delivery with FBM034W
71,8
90
35
FBM034, FBM034W
Product Description J
Page 5 / 10 2.50-30.034-31-EN | 2019-11-04
Connection
!CAUTION
The GND wiring specified in the wiring diagram (Y GND, K GND, B GND) must be observed.
Incorrect GND wiring may lead to errors in measurement.
FBM034W
KP10 KP10 KP10 KP10
1467823 5
17 18 19 20
GND
B1
GND
B2
GND
B3
GND
B4
+
GND
+
+
+
0V
0V
0V
0V
0V
+12V
CAN +
CAN -
B1..B4: KP10
B1..B4: 0..10V=
KP10
0..10V
KP10
0..10V
19
18
17
DDC3000
20
12V DC
-
+
17 18 19 20
0V
+12V
CAN +
CAN -
19
18
DDC4000
20
12V DC
-
+
CAN 1
39
38
DDC4000
40
CAN 2
FBM034
FBM034W
FBM034
Product Description
FBM034, FBM034W
J
Page 6 / 10
2.50-30.034-31-EN | 2019-11-04
Installation
!CAUTION
This product description describes specific settings and functions of the FBM034x. In addition to
these instructions, observe the product descriptions of other system components, such as DDC
controller DDC4000, BMR or DDC420.
!CAUTION
Switching on the power supply of unparameterized products can lead to unforeseen consequences
such as malfunctions or material damage.
Switch on the power only after the device has been configured by the commissioning technician.
Fieldbus
When connecting the fieldbus, use a cable of at least type JY(St)Y 2x2x0.8 Lg: two x two wires,
twisted to a pair with plastic insulation and an electrostatic shield with a wire diameter of at least
0.8 mm. Use a stranded pair of wires for the data lines (+ and -) and another free wire for the ground
connection (0).
At the end of the fieldbus (furthest point from the DDC controller), install a terminating resistor of
about 180 ohms between both data lines (+ and -). The terminating resistor is included with the DDC
controller.
The maximum cable length for the Fieldbus is 2000 m.

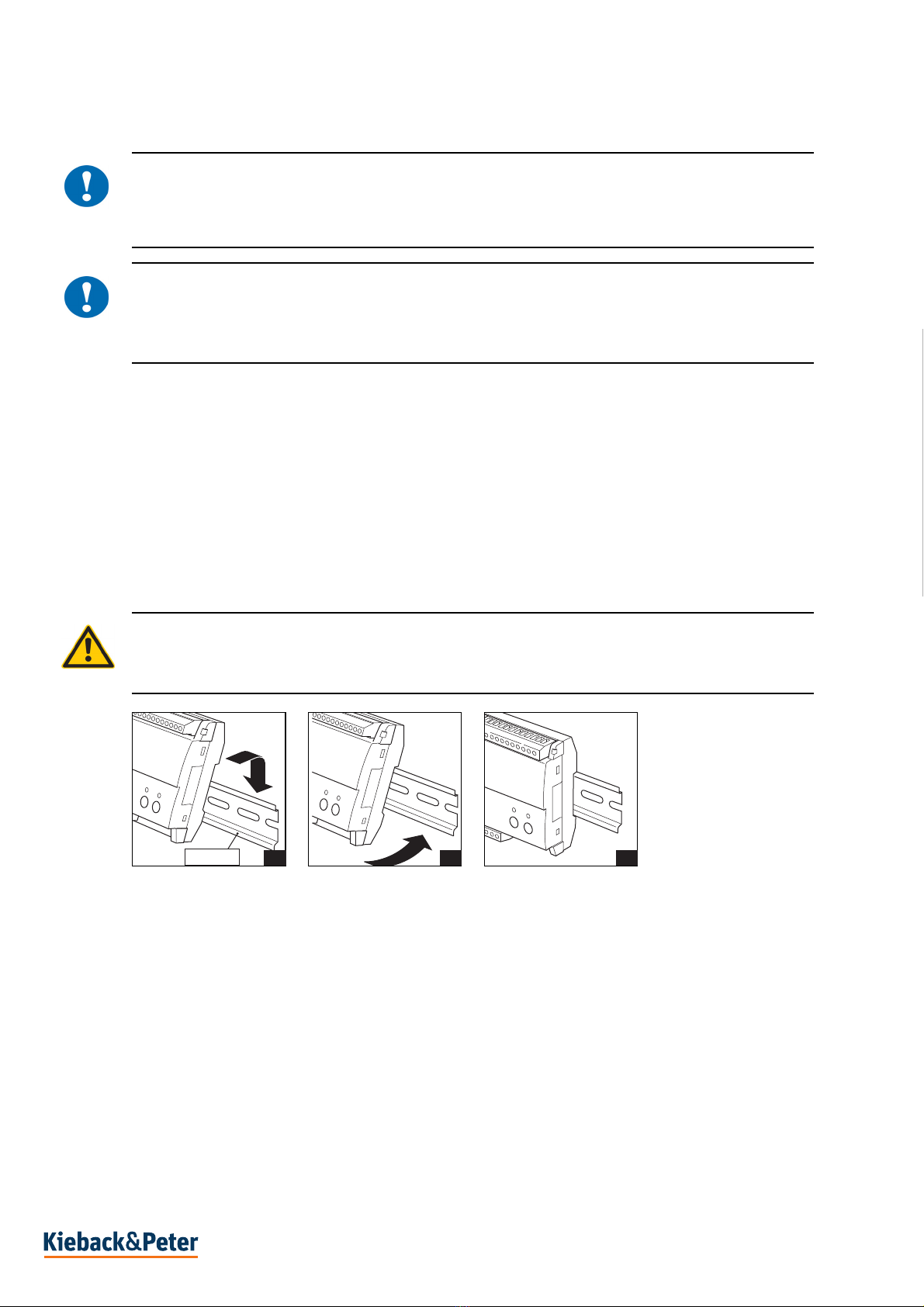

Mounting
WARNING
Contact with live parts of electrical domestic installation can cause death due to electric shock.
Mounting/removal may only be carried out when power is switched off.
TH 35-7.5 1 2 3
FBM034, FBM034W
Product Description J
Page 7 / 10 2.50-30.034-31-EN | 2019-11-04
Mounting the Cascade Plug
■Remove the covers of the devices that are to be cascaded by releasing the catches using the two
slots that are provided and lifting off the covers.
■Snap the device base onto the standard rail and slide the units together.
■Break out the perforated areas for the insertion of the cascade plug.
■Connect the cascade plug.
■Replace the device hoods.
1
2
34
Product Description
FBM034, FBM034W
J
Page 8 / 10
2.50-30.034-31-EN | 2019-11-04
Removal
Commissioning
!CAUTION
Commissioning by switching on the supply voltage may occur only after the commissioning
technician/engineer has finished configuring the DDC and has set the bus address.
■Configuration is described in the DDC controller project planning documentation.
■Before switching on the supply voltage, check the electric installation and the device connections.
■After configuring the device and switching on the supply voltage, check the functions of the module
and the connected inputs and outputs.
1 2 3 4
5 6
FBM034, FBM034W
Product Description J
Page 9 / 10 2.50-30.034-31-EN | 2019-11-04
Function/Operation
1 Green LED
2 Red LED
3 Address switch – address setting 01 to 63
4 Measuring range switch inputs can be set to 0–10 V or KP10
Setting the address
Address settings: 01 to 63
LED Display for Bus/Error
Example: 15
1
2
3
4
Green LED (1) Red LED (2) Meaning Cause
Off Off Module not in operation ■No operating voltage or operating
voltage too low
On On Module in operation, but
there is a bus error
■Bus line short circuit (with respect to
ground or each other)
■Bus lines mixed up
■Bus line(s) interrupted
■Module not registered
Flickers Flashes Address error ■Outside of address range (01–63)
■Address assigned multiple times
Flickers On Module logging on
Flickers Off Module OK, bus activity
Product Description
FBM034, FBM034W
J
Page 10 / 10
2.50-30.034-31-EN | 2019-11-04
