3.5 CUBIC FEET PORTABLE CEMENT MIXER

INSTRUCTION MANUAL

MODEL: KC-15CM

WARRANTY INFORMATION

2-YEAR LIMITED WARRANTY

FOR THIS CEMENT MIXER

KING CANADA TOOLS

OFFERS A 2-YEAR LIMITED WARRANTY

FOR NON-COMMERCIAL USE.

PROOF OF PURCHASE

Please keep your dated proof of purchase for warranty and servicing purposes.

REPLACEMENT PARTS

Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit

part numbers listed in this manual for all part orders where applicable.

LIMITED TOOL WARRANTY

King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the

original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from

defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence

or accidents, repairs done by an unauthorized service center, alterations and lack of maintenance. King Canada shall in no event be

liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.

To take advantage of this limited warranty, return the product at your expense together with your dated proof of purchase to an

authorized King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our

authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if

any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the

warranty period.

NOTE TO USER

This instruction manual is meant to serve as a guide only. Specifications and references are subject to change without prior notice.

KING CANADA INC. DORVAL, QUÉBEC, CANADA H9P 2Y4

www.kingcanada.com

GENERAL & SPECIFIC

SAFETY INSTRUCTIONS

VOLTAGE WARNING: Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same

as that specified on the nameplate of the tool. A power source with voltage greater than that for the specified tool can result in SERIOUS

INJURY to the user - as well as damage to the tool. If in doubt DO NOT PLUG IN THE TOOL. Using a power source with less voltage

is harmful to the motor.

1. KNOW YOUR TOOL

Read and understand the owners manual and labels affixed to the

tool. Learn its application and limitations as well as its specific

potential hazards.

2. GROUND THE TOOL.

This tool is equipped with an approved 3-conductor cord and a

3-prong grounding type plug to fit the proper grounding type

receptacle. The green conductor in the cord is the grounding wire.

NEVER connect the green wire to a live terminal.

3. KEEP GUARDS IN PLACE.

Keep in good working order, properly adjusted and aligned.

4. REMOVE ADJUSTING KEYS AND WRENCHES.

Form habit of checking to see that keys and adjusting wrenches

are removed from tool before turning it on.

5. KEEP WORK AREA CLEAN.

Cluttered areas and benches invite accidents. Do not leave tools

or pieces of wood on the machine while operating.

6. AVOID DANGEROUS ENVIRONMENT.

Don’t use power tools in damp or wet locations or expose them to

rain. Keep work area well lit and provide adequate surrounding

work space.

7. KEEP CHILDREN AND VISITORS AWAY.

All visitors should be kept a safe distance from work area.

8. MAKE WORKSHOP CHILD-PROOF.

Use padlocks, master switches or remove starter keys.

9. USE PROPER SPEED.

A tool will do a better and safer job when operated at the proper

speed.

10. USE RIGHT TOOL.

Don’t force the tool or the attachment to do a job for which it was

not designed.

11. WEAR PROPER APPAREL.

Do not wear loose clothing, gloves, neckties or jewelry (rings,

watch) because they could get caught in moving parts. Non-slip

footwear is recommended. Wear protective hair covering to

contain long hair. Roll up long sleeves above the elbows.

12. ALWAYS WEAR SAFETY GLASSES.

Always wear safety glasses (ANSI Z87.1). Everyday eye-glasses

only have impact resistant lenses, they are NOT safety glasses.

Also use a face or dust mask if cutting operation is dusty.

13. DON’T OVERREACH.

Keep proper footing and balance at all times.

14. MAINTAIN TOOL WITH CARE.

Keep tools sharp and clean for best and safest performance.

Follow instructions for lubricating and changing accessories.

15. DISCONNECT TOOLS.

Before servicing, when changing accessories or attachments.

16. AVOID ACCIDENTAL STARTING.

Make sure the switch is in the ‘’OFF’’ position before plugging in.

17. USE RECOMMENDED ACCESSORIES.

Consult the manual for recommended accessories. Follow the

instructions that accompany the accessories. The use of improper

accessories may cause hazards.

18. NEVER STAND ON TOOL.

Serious injury could occur if the tool tips over. Do not store

materials such that it is necessary to stand on the tool to reach

them.

19. CHECK DAMAGED PARTS.

Before further use of the tool, a guard or other parts that are

damaged should be carefully checked to ensure that they will

operate properly and perform their intended function. Check for

alignment of moving parts, breakage of parts, mounting, and any

other conditions that may affect its operation. A guard or other

parts that are damaged should be properly repaired or replaced.

20. NEVER LEAVE MACHINE RUNNING

UNATTENDED.

Turn power ‘’OFF’’. Don’t leave any tool running until it comes to a

complete stop.

SPECIFIC SAFETY RULES FOR CEMENT MIXERS

To prevent serious injury, read and follow these safety warnings :

1. Do not attempt to use this cement mixer until you are totally

familiar with how to operate it safely. Read instruction manual for

details.

2. Make sure cement mixer is properly grounded.

3. Do not insert hands or shovel into rotating drum.

4. Do not perform any setup work while cement mixer is operating.

5. Always wear safety glasses/face shield while operating this

cement mixer.

6. Always disconnect cement mixer from power source before

performing any maintenance or repairs.

7. Operators should not wear loose clothing, jewelry or unrestrained

hair styles while using this cement mixer.

8. Do not move cement mixer while motor is running or with cement

in drum.

9. Do not exceed 220 lbs drum capacity.

10. Block tires before use.

11. Use only on flat, level surface.

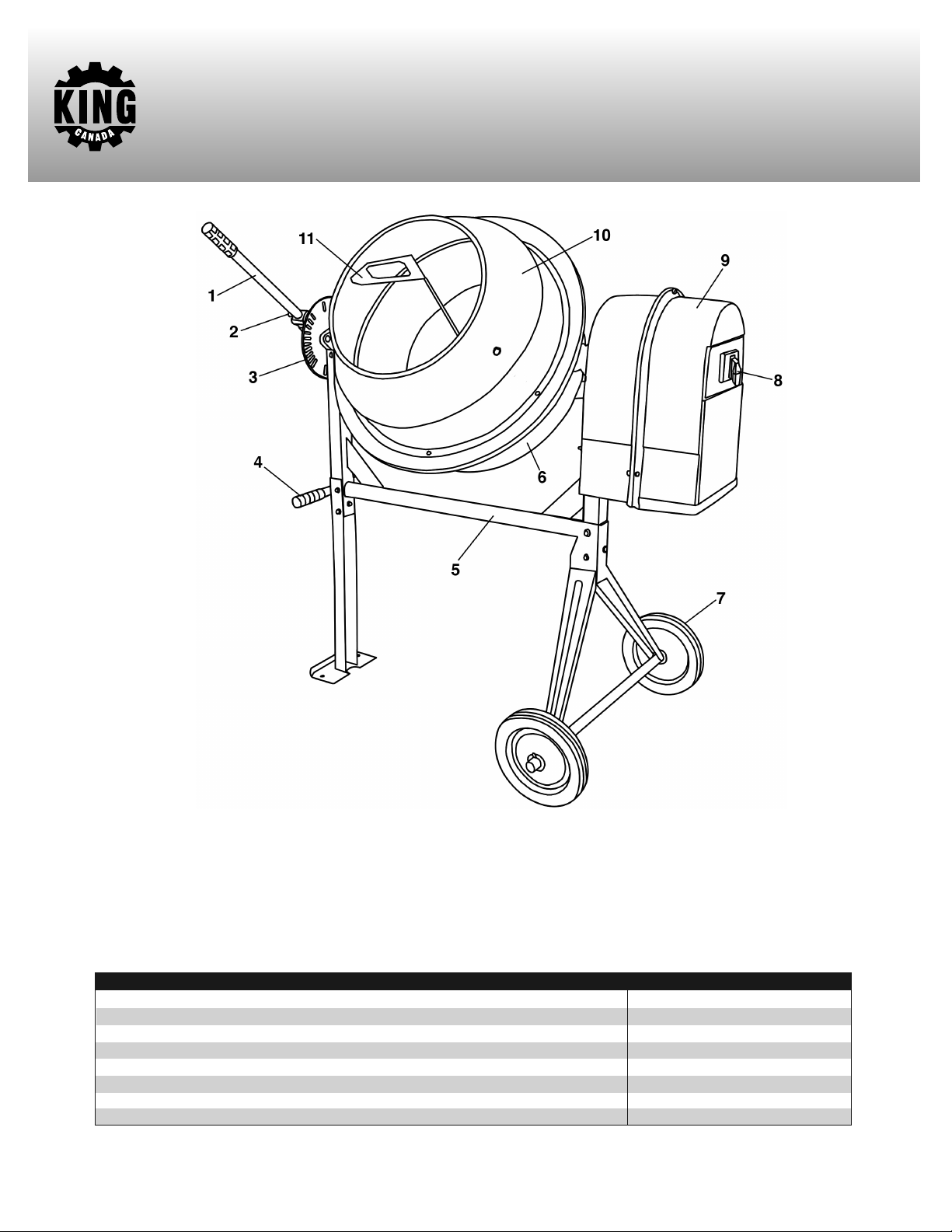

GETTING TO KNOW YOUR

PORTABLE CEMENT MIXER

1. Drum tilting lever

2. Tiliting lever spring tension adjustment bolt

3. Tilting lever angle control plate

4. Lifting handle (1 of 2)

5. Frame

6. Lower drum

7. 9” wheel (1 of 2)

8. On/Off switch with removeable key

9. Motor housing & cover

10. Upper drum

11. Mixing paddle (1 of 2)

MODEL KC-15CM

Drum capacity 3.5 cu.ft.

Drum opening 15”

Drum speed 32 RPM

Motor 1/3 HP

Amperage (running/peak) 3.35 Amp. / 10.7 Amp.

Voltage 120V, 1 phase, 60 Hz

Dimensions (LxWxH) 46” x 27-3/4” x 57-3/8”

Weight 115 lbs

POWER SUPPLY

WARNING: YOUR MACHINE MUST BE CONNECTED TO A 110-120V,

15-AMP CIRCUIT BREAKER. FAILURE TO CONNECT IN THIS WAY

CAN RESULT IN INJURY FROM SHOCK OR FIRE.

GROUNDING

This machine must be grounded. If it should malfunction or breakdown,

grounding provides a path of least resistance for electric current, to

reduce the risk of electric shock. This machine is equipped with a cord

having an equipment-grounding conductor and grounding plug. The

plug must be plugged into an appropriate outlet that is properly installed

and grounded in accordance with all local codes and ordinances.

Your machine must be properly grounded. Not all outlets are properly

grounded. If you are not sure if your outlet is properly grounded, have it

checked by a qualified electrician.

WARNING: TO MAINTAIN PROPER GROUNDING, DO NOT REMOVE

OR ALTER THE GROUNDING PRONG IN ANY MANNER.

WARNING: IF NOT PROPERLY GROUNDED, THIS MACHINE CAN

CAUSE ELECTRICAL SHOCK, PARTICULARLY WHEN USED IN

DAMP LOCATIONS. TO AVOID SHOCK OR FIRE, IF THE POWER

CORD IS WORN OR DAMAGED IN ANY WAY, HAVE IT REPLACED

IMMEDIATELY.

110-120V OPERATION

As received from the factory, your machine is ready to run for 110-120V

operation. This machine is intended for use on a circuit that has an

outlet and a plug which looks like the one illustrated in Fig.1.

WARNING: DO NOT USE A TWO-PRONG ADAPTOR FOR THEY ARE

NOT IN ACCORDANCE WITH LOCAL CODES AND ORDINANCES.

NEVER USE IN CANADA.

EXTENSION CORDS

The use of any extension cord will cause some loss of power. Use the

following table to determine the minimum wire size (A.W.G-American

Wire Gauge) extension cord. Use only 3-wire extension cords which have

3-prong grounding type plugs and 3-hole receptacles which accept the

tool’s plug.

For circuits that are further away from the electrical circuit box, the wire size

must be increased proportionately in order to deliver ample voltage to the

motor. Refer to Fig.2 for wire length and size.

ELECTRICAL INFORMATION

WARNING!

ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN

SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE CEMENT MIXER DISCONNECTED FROM THE

POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY!

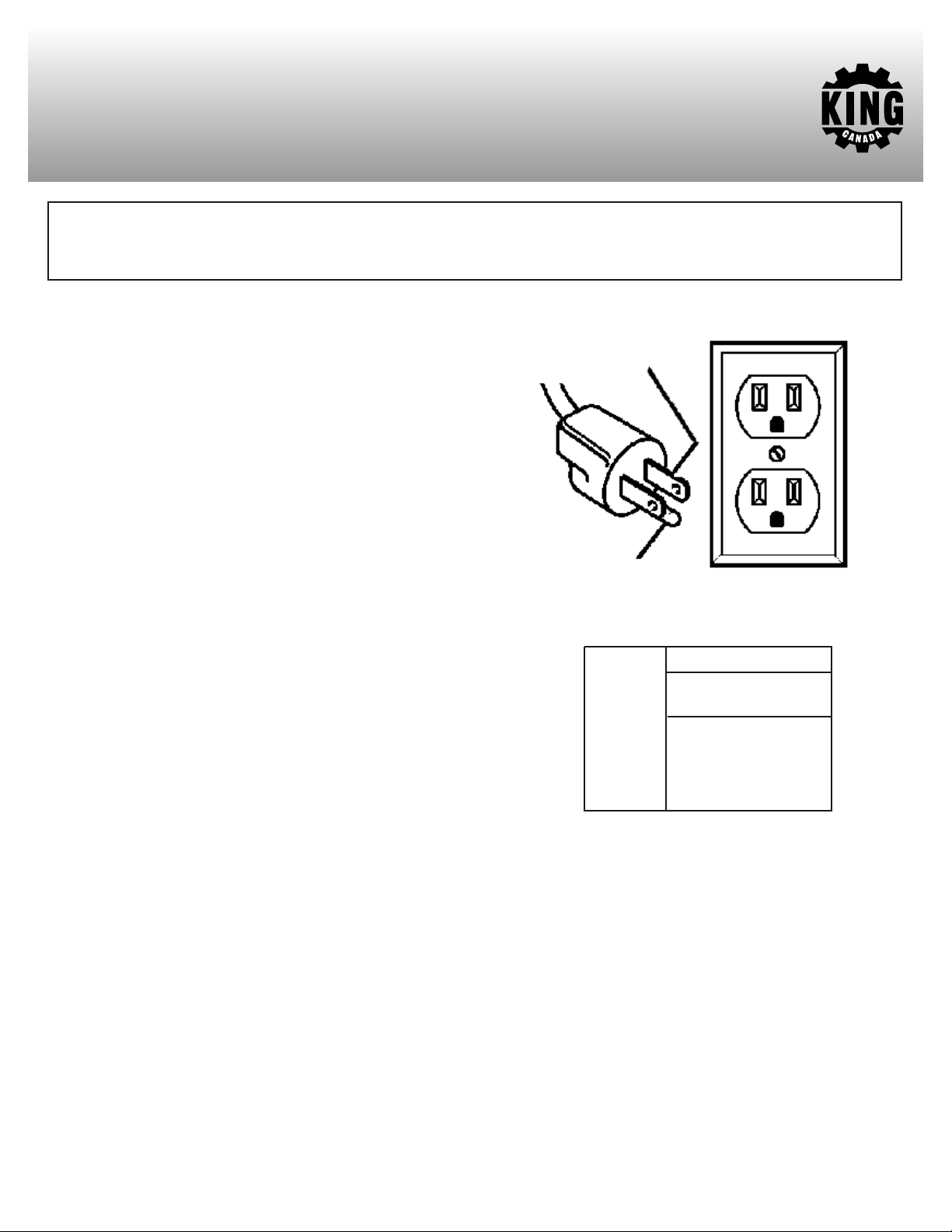

FIGURE 1

120V GROUNDED OUTLET

GROUNDING

PLUG

CURRANT

CARRYING

PRONGS

FIGURE 2

Tool’s

Amperage

Rating

3-6

6-8

8-10

10-12

12-16

Cord Size in A.W.G.

Cord Length in Feet

25 50 100 150

18 16 16 14

18 16 14 12

14 12 --

ASSEMBLY

FIGURE 3

UNPACKING

Due to modern mass production techniques, it is unlikely that your King Canada cement

mixer is faulty or that a part is missing. If you find anything wrong, do not operate until the

parts have been replaced or the fault has been rectified. Failure to do so could result in

serious personal injury.

Carefully lift all loose parts from the carton and place them on a level work surface.

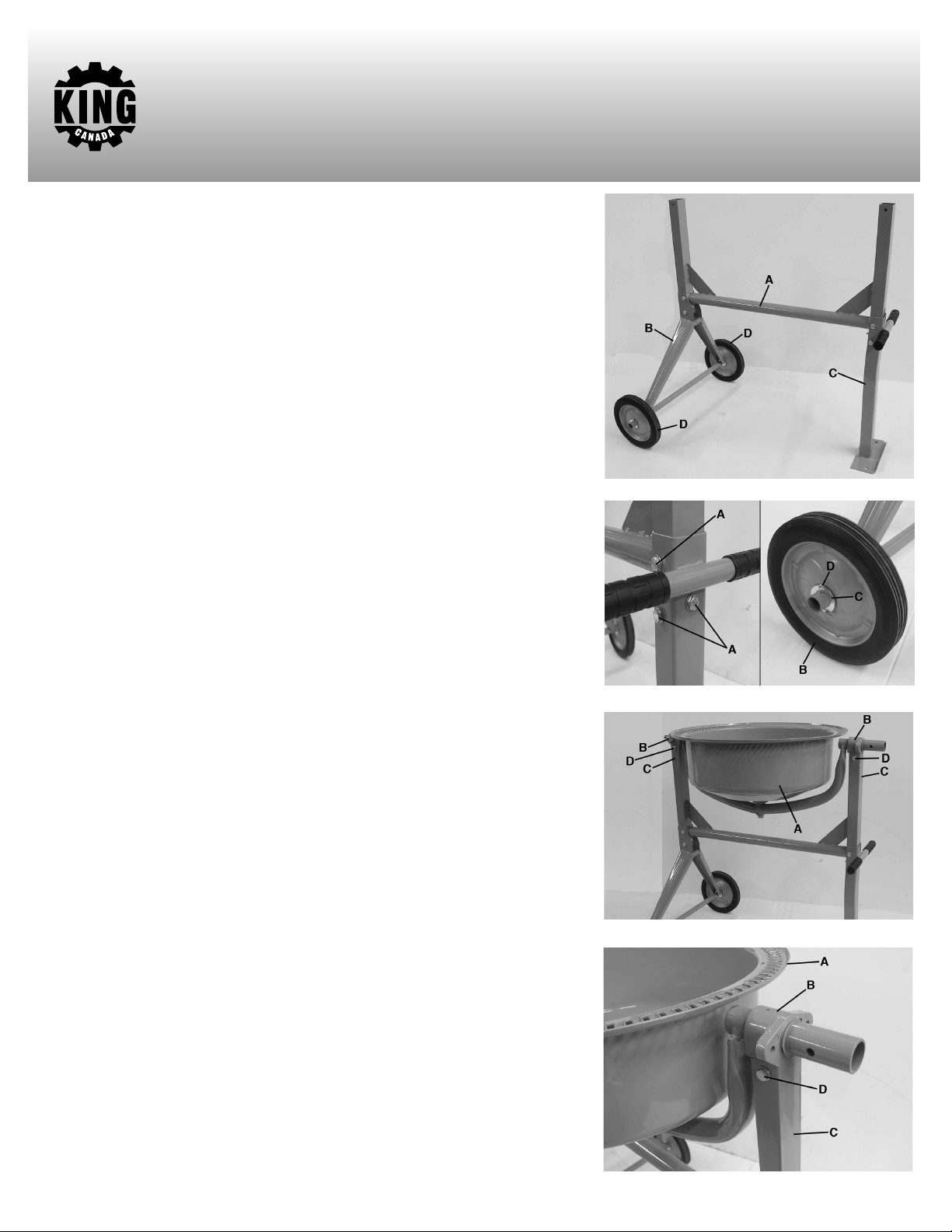

Assembling Support Stand & Wheels

1. Place the horizontal support (A) Fig.3 into the wheel bracket (B) so that the bolt holes

line up.

2. Secure the support and wheel bracket together using 3 long hex. bolts, washers and

flange hex. nuts. Tighten with a wrench (not included).

3. Place support bracket (C) Fig.3 over the horizontal support (A) so that the bolt holes

line up.

4. Secure them together using 3 long hex. bolts, washers and flange hex. nuts (A) Fig.4.

Tighten with a wrench (not included).

5. Place Stand upright.

6. To install the wheels (D) Fig.3. First slide 2 large washers onto each wheel bracket

shafts, then slide a wheel (B) Fig.5, another washer (C), then insert a cotter pin (D) into

the bracket’s axle hole and split the ends. Repeat for the second wheel.

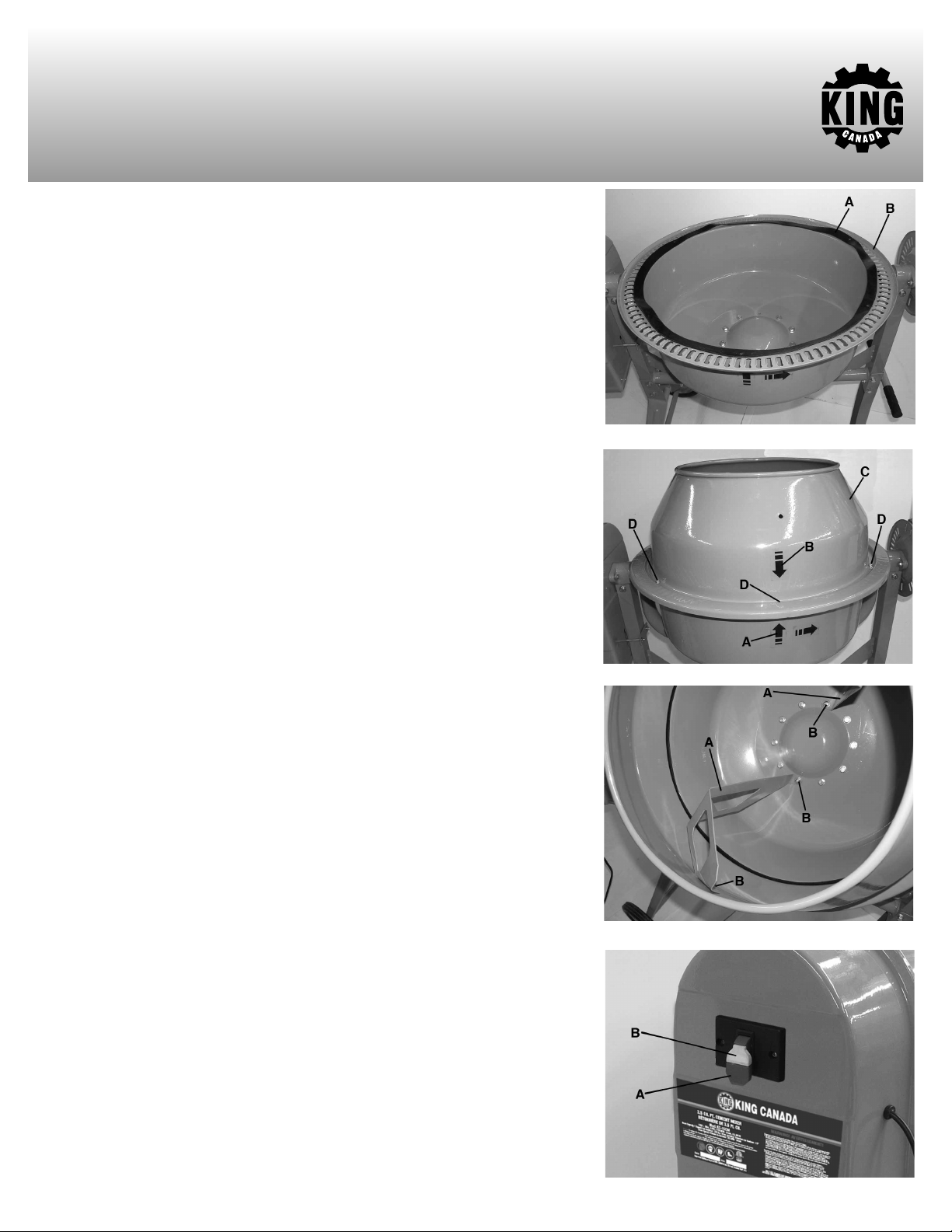

Assembling Lower Drum to Support Stand

1. With assistance, lift the lower drum assembly (A) Fig.5 & 6, insert both supporting arms

(B) into the top of the stand posts (C).

2. Secure the supporting arms to the stand posts using 2 long hex. bolts, washers and

flange hex. nuts (D) Fig.6. Tighten with a wrench (not included).

FIGURE 4

FIGURE 5

FIGURE 6

ASSEMBLY

FIGURE 7

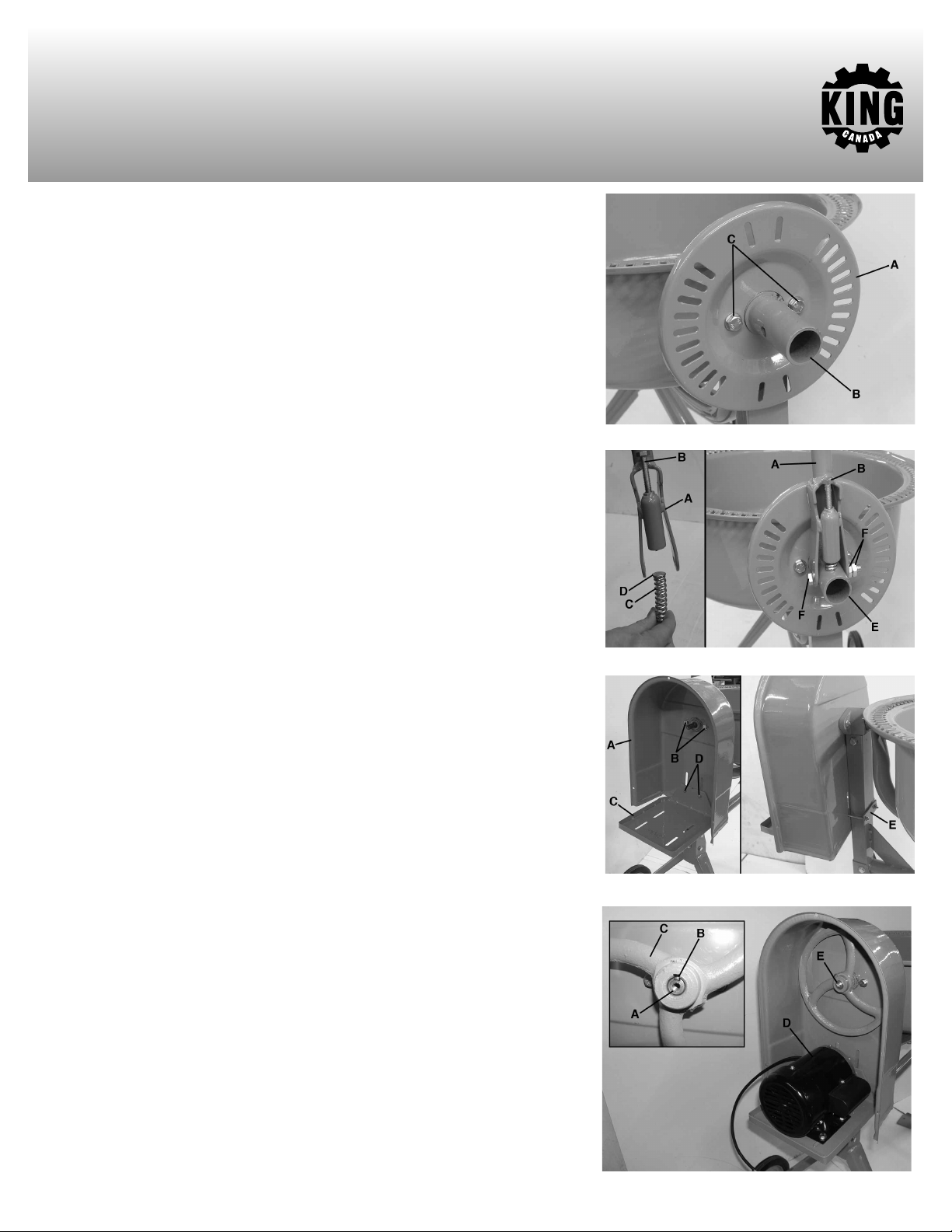

Assembling Tilt Lever

1. Install the tilting lever angle control plate (A) Fig.7 to the support bracket shaft (B) using

2 short hex. bolts, washers and flange hex. nuts (C).

2. In order to install the tilting lever assembly, first locate the tilting lever (A) Fig.8 and

loosen the hex. bolt (B). Insert spring (C) and flat round plate (D) inside the tilting lever.

3. Then install the tilting lever (A) to the support bracket shaft (E) using a thick and long

hex. bolt, 2 washers and 2 hex. nuts (F). Tighten with a wrench (not included).

4. Once the tilting lever assembly is installed, adjust the tilting lever spring tension by

tightening the hex. bolt (B), tighten and test the lever action, the tilting lever must be

able to re-engage the angle plate with moderate resistance.

Assembling Motor Housing, Motor Plate, Drum Pulley & Motor

1. Install the motor housing (A) Fig.9 to the pinion shaft side of the support bracket using

2 short hex. bolts, washers, and flange hex. nuts (B).

2. Install the motor plate (C) Fig.9 to the motor housing (A) using 2 long thin hex. bolts,

washers, flange hex. nuts (D) and fixing plate (E) as shown in Fig.9. Only hand

tighten hardware since the motor plate will be adjusted up or down later.

3. Clean the pinion shaft (A) Fig.10 of all plastic protective material and other debris. Also

clean out any debris from the motor pulley’s hub. Position shaft retaining key (B) into

the pinion shaft slot.

4. Smear a few drops of lubricating oil on the pinion shaft and squarely push the large

drum pulley (C) onto the pinion shaft so that the groove in the pulley engages the shaft

retaining key. The pulley should be flush with the step on the pinion shaft.

WARNING! Do not hammer the drum pulley onto the pinion shaft. Doing so can damage

the unit and possibly lead to a loose fitting belt.

5. Place the motor (D) Fig.10 onto the motor plate.

6. Loosely bolt the motor to the motor plate using 4 short hex. bolts, washers and flange

hex. nuts. Only hand tighten hardware since the motor will be adjusted forward or

backward later.

7. Once the drum pulley is pushed in all the way, secure the pulley to the pinion shaft

using a thin pan head screw, spring washer and washer (E) Fig.10.

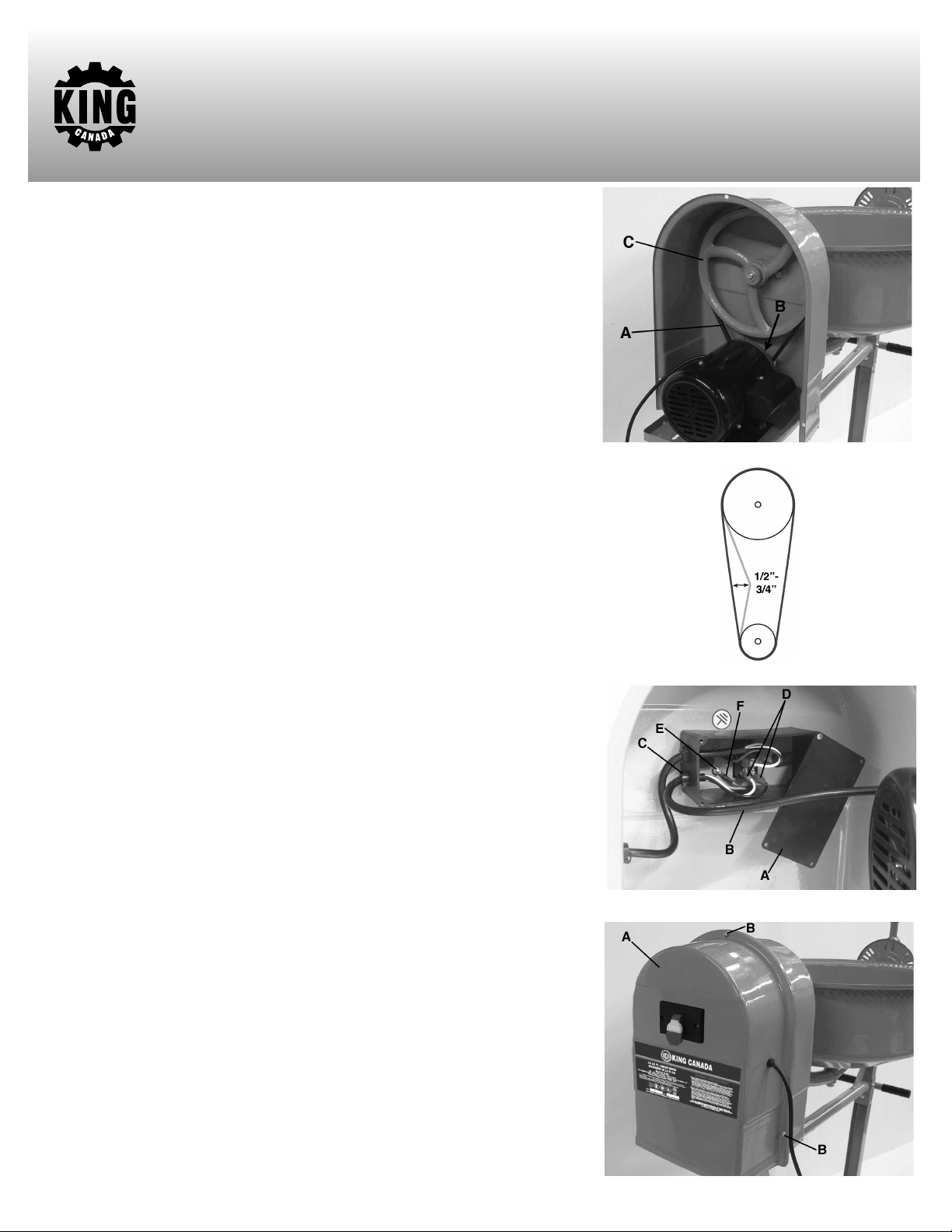

FIGURE 8

FIGURE 9

FIGURE 10

ASSEMBLY

FIGURE 11

Assembling V-belt

1. Position the V-Belt (A) Fig.11 around the motor pulley (B) and then over the drum

pulley (C). It may be neccessary to lift the motor plate in order to place V-belt around

the pulleys. Then push the motor inward until it is directly under the drum pulley.

Tighten the motor hardware to secure the motor.

2. Push the motor and motor plate downward until the v-belt tension is tight. When

proper V-Belt tension is achieved, tighten the motor plate hardware to secure the motor

position.

3. Check if motor and V-belt turns correctly. Hand turn the drum pulley and verify that

motor pulley and drum pulley do not rub against any other part. Adjust motor location

as needed.

Proper V-Belt Tension

1. Press on the center of the longest span on the belt with moderate finger pressure. Then

measure the deflection distance, the distance that the belt moved. The belt should

deflect anywhere from 1/2” to 3/4”. See Fig.12.

2. If the belt deflects too much, tighten belt by loosening the motor mounting bolts and

moving the motor away from the other pulley slightly. Secure motor mounting bolts and

retest tension.

3. If the belt deflects too little, loosen the motor plate bolts and lift it upward. Secure motor

mounting plate and retest tension.

Wiring Motor Cord to Switch

WARNING! Make sure power cord is disconnected from power source before attempting

to wire electrical wires to switch.

The motor cord is not wired to the switch. The motor cord black & white wire connectors

must be connected to the switch, the green ground wire must be secured to the motor

housing cover. To wire motor cord to switch, follow these instructions;

1. Locate the motor housing cover. Unscrew and remove 3 small pan head screws and

slide the switch box cover (A) Fig.13 out of the way.

2. Position the motor housing cover close enough to the motor so the motor cord (B) can

reach the switch box. Insert the 3 motor cord wires into the switch box and secure

motor cord to switch box using a strain relief wire clamp (C).

3. Then connect the black and white wire connectors (D) to the bottom terminals on the

switch. Either wire connector can be connected to either terminal.

4. Undo the top grounding hex. nut (E) and secure green ground wire (F) to screw.

5. Secure the switch box cover (A) using the same 3 pan head screws removed in step 1.

Installing Motor Housing Cover

1. Mount the motor housing cover (A) Fig.14 to the motor housing using 3 medium sized

pan head screws, washers and flange hex. nuts (B).

CAUTION! Make sure that the power cord from the motor to the switch does not come in

contact with any moving parts.

FIGURE 12

FIGURE 13

FIGURE 14

FIGURE 15

Assembling Drum Gasket & Upper Drum Cover

1. Place the rubber gasket (A) Fig.15 onto the lower drum (B) as shown. Line up the

rubber gasket mounting holes with the ones on the lower drum. It is recommended to

use a gasket sealer (not included) to fix the rubber gasket to the lower drum. The

rubber gasket must be set flat to ensure proper seal.

2. Turn the lower drum so the vertical arrow (A) Fig.16 is facing you. Then position and

align the vertical arrow (B) of the upper drum (C) with the arrow on the lower drum,

lower upper drum onto lower drum making sure the mounting holes align in both.

3. Insert six pan head screws (D) into each mounting hole. Fasten drums together using

washers and flange hex. nuts.

Assembling Mixing Paddles Inside Drum

1. Mount both mixing paddles (A) Fig.17 inside the assembled drum as shown.

2. Fasten paddles to drum using 4 short hex. bolts, washers, and flange hex. nuts (B).

OPERATION

Operational Guidelines

1. Place the cement mixer on a solid, even and level surface.

2. Connect the power cord to an electric outlet (or properly rated grounded three prong

extension cord).

3. Fill up half of the drum with pre-mix cement and water.

4. Adjust the drum angle by pulling outward on the tilting control handle, make sure the

locking pins are no longer engaged and then pull the tilting control handle until the

desired angle is reached. To secure it into position, re-engage the locking pins.

5. Flip the switch (A) Fig.18 upwards to the “ON” (I) position.

6. Once the cement is mixed, tilt drum and dump material. The material gets dumped

while the drum rotates.

WARNING! Do not attempt to move the cement mixer when it is full and/or in operation.

Do not turn cement mixer “Off” while full of cement.

7. When finished, flip the switch (A) downwards to the “OFF” (O) position and disconnect

the power cord. To prevent unauthorized use, pull out the safety key (B) from the

switch.

8. Tilt the drum as far down as possible to drain all fluids from drum. Clean, then store

indoors and out of children’s reach. Refer to maintenance instructions on the following

page.

FIGURE 16

FIGURE 17

ASSEMBLY & OPERATION

FIGURE 18

MAINTENANCE & TROUBLESHOOTING

MAINTENANCE

1. Place the cement mixer on a solid, even and level surface.

2. Connect the power cord to an electric outlet (or properly rated grounded three prong extension cord).

3. Before each use, inspect the general condition of the cement mixer. Check for loose hardware, misalignment or binding of moving parts,

cracked or broken parts, damaged electrical wiring, damaged or cracked V-belt, and any other condition that may affect its safe operation.

4. After Use, immediately wash out all debris from the inside and outside of the cement mixer. Scrub the inside of the drum with a long handled

bristle brush for best results. Wipe external surfaces of the cement mixer with clean cloth.

5. DO NOT apply water in or around the motor housing or motor housing cover.

6. PERIODICALLY recheck all fasteners and other connections for tightness.

WARNING! If the supply cord of this power tool is damaged, it must be replaced only by a qualified service technician.

Belt Inspection & Tensioning

The V-belt must be retightened after the first 25 hours of use. To test the tension, follow these steps.

1. Remove the motor housing cover.

2. Examine V-belt for cracks, tears in the backing, or other damage. Replace V-belt if damaged.

3. Check and adjust V-belt tension. Press on the center of the longest span on the belt with moderate finger pressure. Then measure the

deflection distance, the distance that the V-belt moved. The belt should deflect anywhere from 1/2” to 3/4”. See Fig.12.

Problem

Tool will not start.

Tool operates slowly.

Excessive noise or rattling.

Overheating/Overloading.

Corrective action

1. Cord not connected.

2. No power at outlet.

3. Internal damage or wear.

1. Extension cord too long or wire size too

small.

1. Belt loose (slipping) or too tight (bearing

damage).

2. Internal damage or wear.

1. Running at 100% load for extended time.

2. Blocked motor housing vents.

3. Motor being strained by long or small

diameter extension cord.

Corrective action

1. Check that cord is plugged in.

2. Check power at outlet. If outlet is unpowered, turn off

tool and check circuit breaker. If breaker is tripped,

make sure circuit has the correct capacity for the tool

and circuit has no other loads.

3. Have technician service tool.

1. Eliminate use of extension cord. If an extension cord is

needed, use shorter/heavier gauge cord. See

Electrical Information section.

1. Properly tension belt.

2. Have technician service tool.

1. Allow for lighter no-load intervals.

2. Wear ANSI-approved safety goggles and NIOSH

approved dust mask/respirator while blowing dust out

of motor using compressed air.

3. Eliminate use of extension cord. If an extension cord is

needed, use one with the proper diameter for its length

and load. See Electrical Information section.

PARTS DIAGRAM & PARTS LISTS

Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.

Inhaltsverzeichnis

Andere King Canada Mischer Handbücher

King Canada

King Canada KC-15CM-2 Bedienungsanleitung

Beliebte Mischer Handbücher anderer Marken

Bosch

Bosch GRW 9 Bedienungsanleitung

MULTIQUIP

MULTIQUIP Whiteman WM45E Leitfaden

KitchenAid

KitchenAid KSM7581BZ0 Kurzanleitung

Jay-Lor

Jay-Lor 5050 Bedienungsanleitung

Sunbeam

Sunbeam FPSBSM210X Bedienungsanleitung

MULTIQUIP

MULTIQUIP Whiteman MC94S Leitfaden

Thinky

Thinky ARE-250 Bedienungsanleitung

Midas

Midas XL4 Bedienungsanleitung

bianco

bianco PURO 4 Bedienungsanleitung

Paso

Paso DAG9200 Bedienungsanleitung

Sima

Sima SFX-9A Bedienungsanleitung

better chef

better chef IM-815WC Montageanleitung

ALLEN & HEATH

ALLEN & HEATH GR1 Bedienungsanleitung

Lacor

Lacor 69083 Technisches Datenblatt

M-Audio

M-Audio Midiman SAM Bedienungsanleitung

Buffalo

Buffalo CP921 Bedienungsanleitung

Pentair

Pentair HYPRO Cleanload 3376-0870 Betriebsanleitung

Cuisinart

Cuisinart SM50WHE Bedienungsanleitung
