KINGSONG KS-S18 Bedienungsanleitung
KS-S18
User Manual
WARNING
Eletric unicycle is designed for the outdoors and short distance personal
transport.
SAFETY IS THE NUMBER ONE PRIORITY!
PLEASE RIDE UNDER LOCAL LAW!
The user manual below is a quick and convenient guide of safety & item
functions/features to end user. We can’t ensure all types of situation
emergency are covered. Therefore, we STRONGLY remind you to read
this guide very carefully, and ride with attention to ensure your safety.
Riding like all outdoor activities comes with it’s risks. You risk seroius
danger and injury if you fall, collide or lose of control when riding,
please ride with caution and at your own risk.
Thanks you for purchasing King Song smart electric unicycle!
Contents
1. Product Details-----------------------------------------------------------01
2. Safety --------------------------------------------------------------------08
3. Features -----------------------------------------------------------10
4.Precautions and Preparation -------------------------------------------11
5. Battery ------------------------------------------------------------------14
6. Care and Maintenance -------------------------------------------------15
7. Warranty----------------------------------------------------------------16
1
1. Product Detail

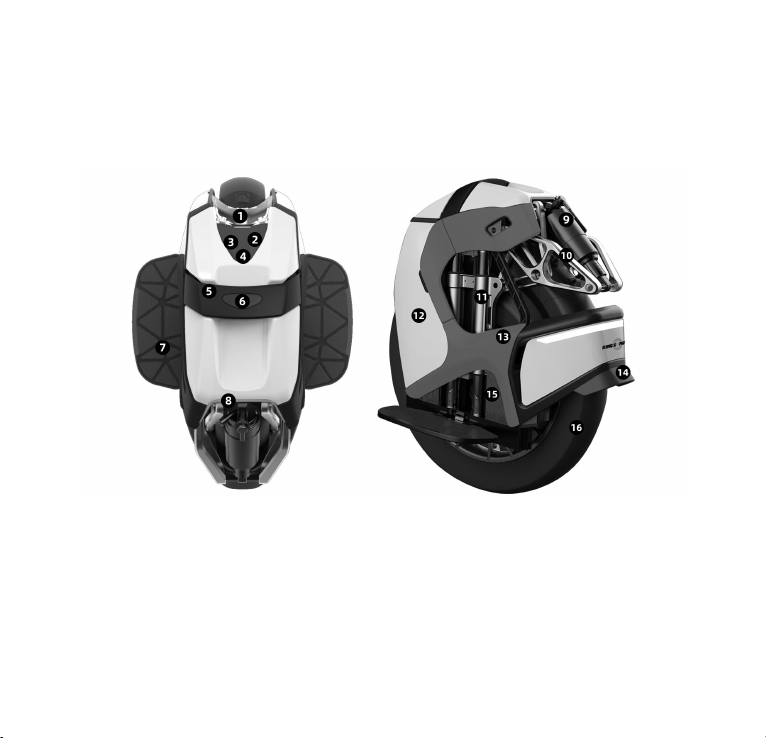

1.1 Diagram: KS-S18
1. Headlight
2. USB Port
3. Charger Port
4. Power Button
5. Trolley Handle
6. Trolley Handle Button
7. Pedal
8. Brake Light
9. Suspension
10. Suspension Support Frame
11. Slide/Lower
12. Outer Shell
13. Padding
14. Mud Flap
15. Battery
16. Tire
2
1.2 Specifications
Model NO
KS-S18
Top Speed
Full speed unlocked after 10km. Max speed of 50km/h
(Factory alarm settings: Level 1- 18km sound alarm
Level 2- 19km sound alarm Level 3- Sound alarm with
tiltback).
Mileage
Around 90~100km
Maximum Grade
Around 35°
Battery
Rated Power: DC 74V
Top Charging Voltage: DC 84V
Rated Capacity: 1110Wh
Smart BMS with balance and protect overshoot / over
discharge / overcurrent / short circuit / overheating
function, support monitoring the battery conditions via
KingSong APP
Operating Temperature
-10℃/+60℃
Max Load
120kg
Charger Voltage
Input AC 80~240 V / Output DC 84V、1.75A/2.5A
Charging Time
1110Wh: about 10h 1.5A / about 6h 2.5A
3
Rated Power
2200w
Max Power
5000w
Color
White / Rubber Black
Dimension & Weight
Dimension
657-557mm(H) * 530mm(L) * 200mm(W)
Package Size
630 * 295 * 750(mm)
Suspension Specification
200-57 Air suspension
Suspension Specification
Using a variable lever the wheel has dampening travel
distance of 100mm, which is transferred to the rear
spring suspension with a travel distance of 57mm.
Pedal Altitude (from ground)
210-110mm
Tire Size
18inch Diameter 3.0" inch
Weight
1110wh around 25kg
Port
Charging port、Switch port、Light sensor port、
USB discharge port
Light Up Displays
Rear light housing displays battery level, braking and
turning signals all in one unit
4
Protective Measures
Lift Sensor
Lift sensor accurately senses and determines when
wheel is lifted off the ground to stop tire rotation.
Roll Protection
45° left and right side. ( Motor stalls when over 45° )
Place the machine vertically on the ground will restart
automatically, no need to restart manually.
Speed Limit Protection
Beep alarm or voice alarm when exceed limit speed
Low Battery Protection
Low battery protection activated on 30% battery, speed
will decreases linearly; when the battery is lower than
5%, voice alarm for charge, when battery at 0%, the front
part of the pedal will rise to decelerate until full stop
Higher Temperature
Protection
When the motherboard reaches 80℃it will result
tilt back. When the motor reaches 120℃it will result in tilt
back.
Alarm & Features
Switch On/Off
Short press power key: turn on
Long press: hear a click then turn off
5
Battery Indicate
Led shows battery level when EUC power on at rest
Hardware Features
Main board
he motherboard is designed with a 4 layer structure,
allowing for better stability performance. 12 large
individual TO-247 imported MOS to sufficiently support
the 2200W motor. MOS is attached to the aluminum
body frame of the wheel for better heat dissipation.
Bluetooth
Bluetooth 4.0. Allowing strong stable data transmission
USB Output
Quick charge 3.0
Front Light
2*5w light high beam with 2*4w short beam. Double the
strength of the 16x, providing excellent illumination at
night.
Temperature System
Temperature of the motherboard is continuously closely
monitored to ensure rider safety.
Handle
Aluminum constructed handle designed for ergonomic
pushing of the wheel or lifting of the wheel.
Motor
Higher power 2200w motor that provides a maximum
torque of 140N.m providing fast acceleration
6
Suspension System
Unique X shaped suspension system. Racing level
suspension provides the ultimate support and shock
absorption
Package
Standard Accessories
1x Charger, 1x Manual, 1x Pump, 1x Warranty card,
1x QC certificate
1.3 Features
1.3.1 Sports Bike inspired design. Aerodynamics with air intake
system. Aggressive curvature design.
1.3.2 Variable Linkage dampening air suspension system using
200-57 suspension.
a. X shaped suspension travel of 100mm.
b. Suspension is interchangeable and allows for personal
modification and custom ride style.
c. Adjustable air suspension system from on to off. Off state still
reacts to big bumps but will ride similar to a wheel without
suspension.
7
d. Rotary switch for sensitivity adjustment.
e. Different pressurization can be adjusted to according to rider
weight.
1.3.3 Padding designed in cooperation with Kujirolls.
1.3.4 User Experience focused ergonomic design to connect wheel
with rider.
1.3.5 12 MOS design connected to aluminum body frame for fast
heat dissipation without the need of fan.
1.3.6 Headlights are 2 times stronger to the 16X with 2*5w (high
beam) and 2*4w (short beam) with automatic sensor to switch
between modes.
1.3.7 Ergonomic handle designed for pushing and lifting which can
be hidden inside body frame when not in use.
1.3.8 First ever high performance wheel with limited wiring with all
key components housed on PCB.
1.3.9 Rear light displaying battery level, braking and turning signals
all within one singular unit.
1.3.10 21700 Battery system for better; efficiency to space ratio.
