KitchenAid KUDS25SHAL1 Bedienungsanleitung

DOOR AND PANEL PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

6-99 Litho in U.S.A. (rle) Part No. 4172166

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT9743822

Instructions

Installation

LIT9744391

Energy Guide

LIT9744039

Guide, Use&Care

Tech Sheet

LIT9744033

English

LIT9744034

French

2 302868 Screw

3 9742964 Stiffener,

Door

4 Panel Front

3379375 Black Model

3379376 White Model

3379377 Almond Model

8054178 Biscuit Model

5 Access Panel

& Clip Assembly

(Includes Items 11 & 12)

9744392 Black Model

9744393 White Model

9744394 Almond Model

9744395 Biscuit Model

6 9743986 Spring, Door (2)

7 3373234 Bushing, Spring

Door (2)

8 Toe Panel

(Includes Item 11)

9744147 Black Model

9744148 White Model

9744149 Almond Model

8054181 Biscuit Model

9 9743788 Frame,Door

10 9743825 Insulation

11 3379326 Insulation

12 3378123 Clip, Grounding

13 3367670 Screw (2)

14 9744140 Seal, Toe Panel

15 3400803 Screw (2)

21 8054188 Barrier,

Lower Vent

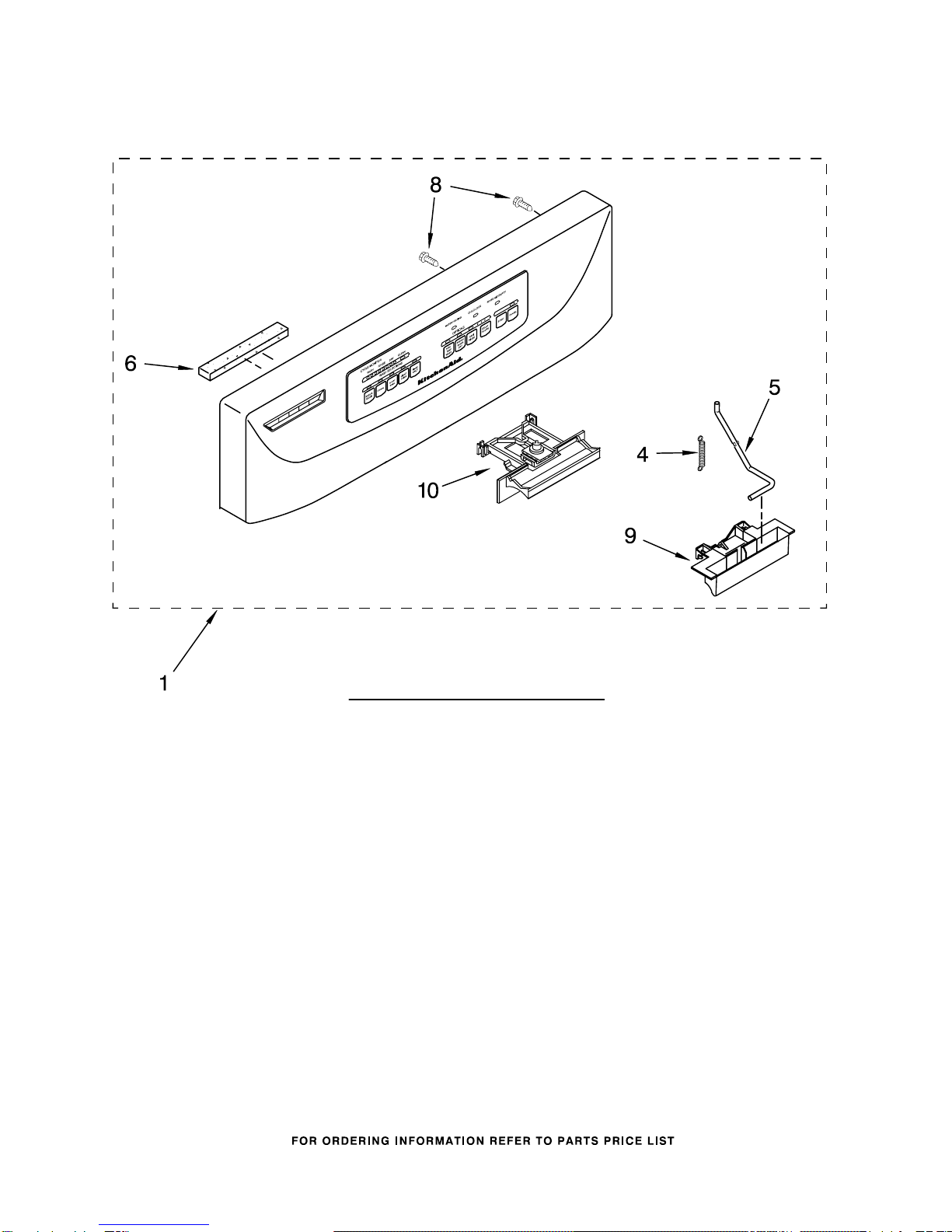

CONTROL PANEL PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 Console Asm.

includes Active

Overlay & Insert

9744112 Black Model

9744113 White Model

9744114 Almond Model

9744115 Biscuit Model

4 9743573 Spring, Handle

5 9743572 Link, Handle

6 9743412 Sponge, Vent

8 3369051 Screw (4)

9 Handle, Latch

9743903 Black Model

9743904 White Model

9743905 Almond Model

9743906 Biscuit Model

10 3380655 Latch Lever Asm.

DOOR AND LATCH PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

DOOR AND LATCH PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 9743399 Knob, Dispenser

2 3369325 Switch

3 3369051 Screw, Door

4 3380654 Latch, Bolt Assy.

(Includes Item 2)

5 3400404 Screw

6 9742353 Inner Door

Mastic Assembly

(Also Includes

Items 7, 9 & 10)

7 9743542 Seal, Door

Lower

8 9742770 Vent Assembly

(Also Order Item 9)

9 9742782 Gasket, Vent

10 9742780 Deflector, Vent

(Also Order

Item 9)

11 9744335 Dispenser,

Assembly

12 9743450 Shield,

Dispenser

13 9742623 Bracket, Controls

15 9743487 Guide, Door

16 9743486 Bracket,

Dispenser (2)

19 9744031 Control,

Electronic

20 3177991 Screw (2)

22 9743451 Fuse Thermal

Electronic

24 9743154 Dispenser,

Wiring Harness

25 9742397 Sound Absorber

26 9742852 Sensor, Rinse Aid

27 3376405 Elbow, Harness

30 9744027 Wiring Harness

Main

33 3400700 Screw (6)

35 9743806 Seal,

Console/door

LOWER WASHARM AND STRAINER PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 9742947 Wash Arm Assembly

2 9742945 Nut, Washarm

3 9742646 Strainer (Coarse)

4 9742946 Bearing, Radial

5 3376846 Seal, Sprayarm

HEATER PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 9743495 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 9743039 Nut, Heater

Element

4 9743166 Pod, Terminal

Heater

FILL AND OVERFILL PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 9741999 Control, Overfill

Assembly

(Also Order

Item 14)

2 9742727 Hose, Inlet

3 9744288 Water Inlet

Assembly

(Includes

Items 4 & 5)

4 9742787 Gasket

5 9742786 Bezel, Inlet

6 301958 Clamp, Hose

7 9744284 Fill Valve

Assembly

8 304392 Screw

9 9744360 Flapper

10 3935667 Screw

11 9743413 Switch, Overfill

Control

12 9741997 Standpipe,

Overfill

13 4161670 Gasket, Flat

14 9741998 Nut, Standpipe

15 9743070 Float & Retainer

Assembly

16 4171116 Lever, Overflow

Switch

UPPER WASH AND RINSE PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 3378147 Seal, Sprayarm

2 3400031 Screw

3 9742989 Sprayarm, Upper

(Also Order

Item 1)

5 9742994 Mount, Tiered

6 3378144 Tube, Connector

7 3378145 Holder, Water

Inlet Funnel

9 9743473 Connector

(Includes Items

13, 14 & 15)

10 9744135 Feed Tube

Assembly

13 9743475 Washer

14 9740848 Screw

15 9743474 Gasket, Connector

16 9742953 Seal, Tube

17 9743194 Mount, Top

Upper Sprayarm

24 9743958 Tube (3rd level)

25 3379369 Wash Asm.,

(3rd level)

TUB AND FRAME PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

TUB AND FRAME PARTS

For Models: KUDS25SHBL1, KUDS25SHWH1, KUDS25SHAL1, KUDS25SHBT1

(Black) (White) (Almond) (BISCUIT)

4172166

Illus. Part

No. No. DESCRIPTION

1 9744192 Tub Assembly

3 9743590 Door Seal

4 9742788 Plug Tub (2)

5 9743468 Wheel & Mount

Assembly

(Also Order

Item 6)

6 9743002 Gasket, Bracket

Mounting

7 3378056 Tub Stiffener

8 3400003 Screw (8)

9 9743149 Rear Support

Assembly

10 343641 Screw

11 9742610 Connector

Tub To Brace

12 90767 Screw (2)

13 304392 Screw

14 3370389 Screw (2)

15 302819 Wheel Leg

16 3374849 Leveler, Leg

17 9743488 Spacer, Tank - RH

18 9743489 Spacer, Tank - LH

19 3378131 Terminal Box

20 3369138 Screw

21 300068 Cover, Terminal

Box

22 3400014 Screw

23 3378128 Washer

24 3370307 Strain, Relief

25 9743460 Trim Strip, Tub

26 304666 Retainer, Push (2)

27 9742789 Corner Trim, Tub

28 9742661 Shield, Sound

Tub

29 9742648 Bracket,

Thermostat

30 661566 Thermostat

31 9742722 Strike, Latch

32 3379938 Pad, Friction

33 3370225 Screw, Ground

46 3380871 Switch, Pressure

47 3380785 Hose, Pressure

Switch

48 3380943 Clamp, Hose (2)
