KitchenAid KUDU03FTPA0 Bedienungsanleitung

DOOR AND PANEL PARTS

For Model: KUDU03FTPA0

(Panel Ready)

DISHWASHER

3−08 Litho in U.S.A. (els) Part No. W10129009 Rev. B

UNDERCOUNTER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10111124

Energy Guide

8574093 Guide, Use & Care

W10077824

Guide, Consumer

Reference

W10082651

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

4 8535133 Panel, Front

5 Access Panel

8573255 Black

6 8269016 Clip, Grounding

7 8531882 Screws, Bag

Door Assembly

8 Toe Panel

(Includes Item

6 & 9)

8558252 Black

W10073550

Insulation,

Toe Panel

10 302868 Screw

11 304392 Screw

12 3400071 Screw

CONTROL PANEL PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

Illus. Part

No. No. DESCRIPTION

W10078070

Console Assembly

(Includes Insert)

2 8524447 Cable, Ribbon

3 8546546 Clip, BI−Metal

W10111537

User Interface

5 661663 BI−Metal

6 3369051 Screw (6)

W10077360

Latch Assembly

8 8575276 Control,

Electronic

W10134019

Switch, Door

DOOR AND LATCH PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8530900 Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10078202

Wiring Harness

12 8281154 Screw (6)

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

15 8531865 Shield,

Dispenser

LOWER WASHARM AND STRAINER PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

Illus. Part

No. No. DESCRIPTION

W10077965

Wash Arm Assembly

W10077899

Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

W10077898

Hub, Lower

Sprayarm

(Also Order

Item 3)

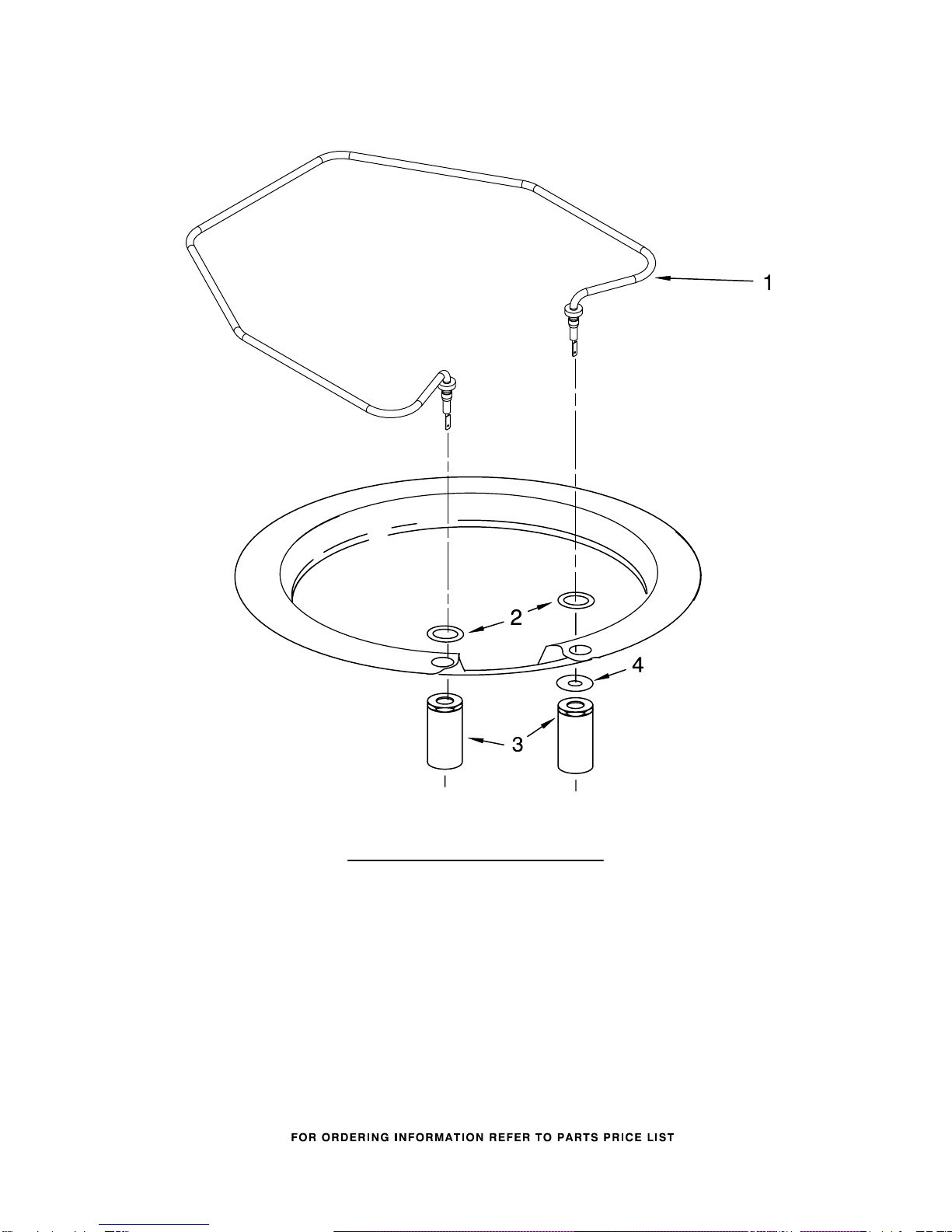

HEATER PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

FILL, DRAIN AND OVERFILL PARTS

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Clamp, Hose

16 8531022 Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

TUB AND FRAME PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

Illus. Part

No. No. DESCRIPTION

W10053130

Tub Assembly

2 8574123 Barrier, Moisture

Undercounter

W10112096

Door Seal

4 8270119 Plug Tub (2)

5 8269110 Seal, Cabinet

6 8573061 Strain Relief

7 8270021 Mount, Door

Balance

8 3367670 Screw

9 8269145 Bracket,

Undercounter

10 3400074 Screw (2)

11 3400924 Retainer, Push−in

12 3370389 Screw (2)

13 8268977 Wheel Leg

14 8524584 Leveler, Leg

15 8524474 Wheel, door

Balance

16 8270020 Spring, Door

Balance

17 8545574 Absorber, Sound

18 3400892 Screw

19 8268991 Cover, Terminal

Box

20 8535568 Link, Door

Balance

21 8268582 Insulator, Sound

22 304666 Retainer, Push (2)

23 8269016 Clip, Grounding

24 8573239 Shield, Sound

Tub

25 9742648 Bracket,

Thermostat

26 661566 Thermostat

W10077370

Strike, Latch

28 8572661 Actuator Assembly

29 8559844 Motor, Wax

PUMP AND MOTOR PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

PUMP AND MOTOR PARTS

For Model: KUDU03FTPA0

(Panel Ready)

W10129009

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

9 8535760 Motor Assembly

10 3400217 Screw

11 8268391 Screen, Separation

W10084107

Sump & Motor

Assembly

(Includes

Item 13)

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

18 8535759 Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10082647

Optical Water

Indicator

24 8535474 Capacitor

25 8534946 Shield,

Capacitor

26 8531018 Washer
