KitchenAid 5KSMFGA Bedienungsanleitung

Food Grinder Attachment

5KSMFGA

EN Use & Care manual 2

DE Gebrauchs- und Pegeanleitung 9

FR Manuel d’utilisation et d’entretien 15

IT Manuale d’uso e manutenzione 21

NL Gebruiks- en

onderhoudshandleiding

ES Manual de uso y cuidado 33

PT Manual de utilização e

manutenção

EL Εγχειρίδιο Χρήσης και Φροντίδας 45

SV Handbok för skötsel och

användning

NO Håndbok for bruk og vedlikehold 57

FI Käyttö- ja huolto-opas 63

DA Vejledning til anvendelse og

vedligehold

IS Notenda & Meðhöndlunar

handbók

RU Руководство по эксплуатации и

уходу

PL Instrukcja obsługi i konserwacji 87

CS Návod k použití a údržbě 93

TR Kullanım ve Bakım kılavuzu 99

AR  1

W11337078A_01_EN.indd 1 4/9/2019 2:11:21 PM

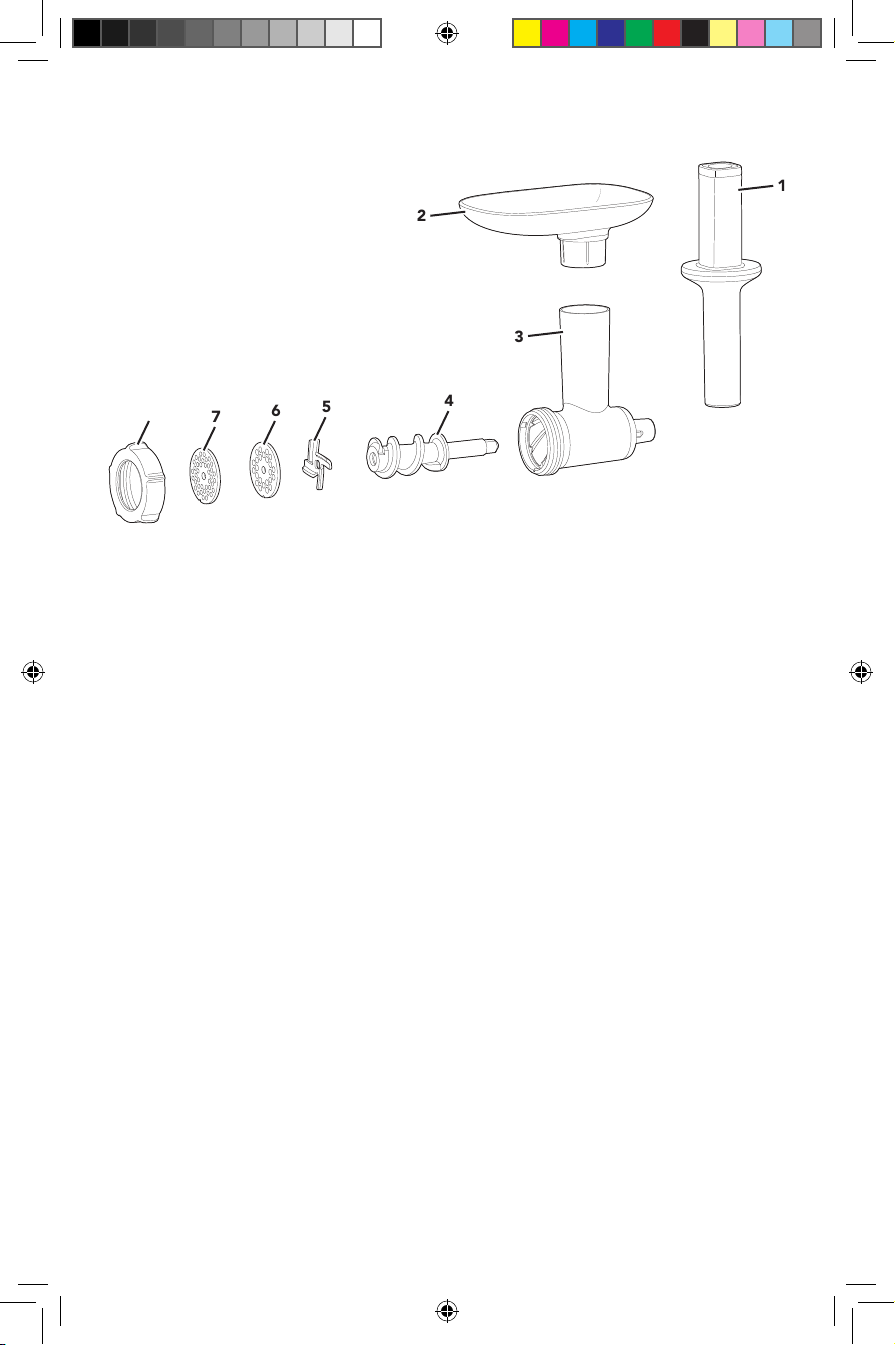

PARTS AND FEATURES

1. Food Pusher

2. Removable Tray

3. Main Housing

4. Grind Screw

5. Blade

6. Coarse (6 mm) Grinding Plate

7. Fine (4.5 mm) Grinding Plate

8. Collar

W11337078A_01_EN.indd 2 4/9/2019 2:11:26 PM

ENGLISH

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions. Misuse of appliance may result in personal injury.

2. European Union only: Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved. Children shall not play with the

appliance.

3. European Union only: This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

4. Turn the appliance off, unplug from outlet and detach the attachment from the

appliance before cleaning and when not in use. Turn the appliance off and make

sure the motor stops completely before putting on or taking off parts.

5. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

6. Children should be supervised to ensure that they do not play with the appliance.

7. Do not use the appliance outdoors.

8. Check the Main Housing for the presence of foreign objects before using.

9. Avoid contacting moving parts. Keep ngers out of discharge opening.

10. Never leave the appliance unattended while it is in operation.

11. The use of attachments not recommended or sold by KitchenAid may cause re,

electric shock, or injury.

12. Never feed food by hand. Always use the Food Pusher.

13. Blades are sharp. Handle carefully.

14. Do not use ngers to scrape food away from the discharge disc while appliance

is operating. Cut-type injury may result.

PRODUCT SAFETY

W11337078A_01_EN.indd 3 4/9/2019 2:11:28 PM

DISPOSAL OF PACKING MATERIAL

The packing material is 100% recyclable and is marked with the recycle symbol .

The various parts of the packing must therefore be disposed of responsibly and in

full compliance with local authority regulations governing waste disposal.

PRODUCT SAFETY

SAVE THESE INSTRUCTIONS

15. Refer to the “Care and Cleaning” section for instructions on cleaning the

surfaces in contact with food.

16. Also see the Important Safeguards section included in the Stand Mixer Use and

Care guide.

17. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, ofces and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments”.

ASSEMBLING THE ATTACHMENT

Before ﬁrst use, clean all parts and accessories (see “Care and Cleaning” section).

Sharp Side

Insert the Grind Screw into the Main

Housing securely.

Place the Blade over the end of the Grind

Screw.

PRODUCT USAGE

GUIDE TO GRINDING

NOTE: None of the parts and accessories of this KitchenAid Food Grinder attachment

(model 5KSMFGA) are compatible with the parts and accessories of the KitchenAid Metal

Food Grinder Attachment or previous KitchenAid Food Grinder Attachment (models

5KSMMGA, 5FGA, 5SSA, 5FVSP, 5FVSFGA, 5FPPA, 5KSMFPPA, 5GSSA, 5KSMGSSA,

5KN12AP) and vice versa.

USE THESE

PARTS

WITH THESE

PARTS

SUGGESTED

USES SPEED

Fine (4.5 mm)

Grinding Plate Blade Cooked meats for spreads, hard cheeses

(e.g. Parmesan), bread crumbs) 4

Coarse (6 mm)

Grinding Plate Blade Raw meats for burgers and chili,

vegetables for salsas and sauces 4

W11337078A_01_EN.indd 4 4/9/2019 2:11:28 PM

ENGLISH

PRODUCT USAGE

Tab

Notch

Place the desired Grinding Plate over the

Blade, matching the notch of the plate

with the tab on the bottom of the Main

Housing.

Place the Collar on the Main Housing,

turning clockwise by hand until secured but

not tightened.

ASSEMBLING THE ATTACHMENT TO THE STAND MIXER

Turn the Stand Mixer off and unplug.

Remove the attachment hub cover.

Insert the attachment shaft Housing into

the attachment hub.

Tighten the Stand Mixer attachment hub

knob until the attachment is completely

secured to the Stand Mixer.

3 4

W11337078A_01_EN.indd 5 4/9/2019 2:11:29 PM

PRODUCT USAGE

GRINDING WITH THE FOOD GRINDER

Cut food into small strips or pieces sized to

ﬁt into the feed tube.

Turn the Stand Mixer to Speed 4 and feed

food into the feed tube using the food

pusher.

Feed Tube

WARNING

Rotating Blade Hazard

Always use food pusher.

Keep fingers out of openings.

Keep away from children.

Failure to do so can result in amputation or cuts.

CARE AND CLEANING

Dishwasher-safe parts, top rack only: Collar,

Removable Tray, and Food Pusher.

The following parts should be hand-

washed only, using warm, soapy water and

drying thoroughly: Main Housing, Grind

Screw, Grinding Plates, and Blade.

NOTE: Blades are sharp. Handle carefully.

W11337078A_01_EN.indd 6 4/9/2019 2:11:32 PM

ENGLISH

KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.

PRODUCT WARRANTY

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT

DAMAGES.

For any questions, or to find the nearest Authorised KitchenAid Service Centre in

your country, please find our contact details below.

Number for general questions:

For more information, visit our website at:

www.KitchenAid.co.uk

www.KitchenAid.eu

CUSTOMER SERVICE

PRODUCT REGISTRATION

Length of Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For:

Europe, Middle East

and Africa:

5KSMFGA

Two years full

warranty from

date of purchase.

The replacement parts

and repair labour

costs to correct

defects in materials or

workmanship. Service

must be provided by an

Authorised KitchenAid

Service Centre.

A. Repairs when Stand Mixer

attachment is used for

operations other than normal

household food preparation.

B. Damage resulting from

accident, alterations,

misuse, abuse, or installation/

operation not in accordance

with local electrical codes.

W11337078A_01_EN.indd 7 4/9/2019 2:11:32 PM

W11337078A_01_EN.indd 8 4/9/2019 2:11:32 PM
