KoamTac KDC185 Bedienungsanleitung

QG_KDC185_20211020

KDC185

116 Village Blvd, Suite 305, Princeton, NJ 08540 USA

T: + 1-609-256-4700 F: +1-609-228-4373

[email protected] www.koamtac.com

KDC185

Quick Guide

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p1

Contents

Product Introduction ............................................................................................................................................. 2

1.1 KDC185 Diagram ........................................................................................................................................... 2

1.2 How to turn on and off .................................................................................................................................. 3

Pairing (Bluetooth or NFC).................................................................................................................................... 3

2.1 Bluetooth Profiles Explained......................................................................................................................... 3

2.2Bluetooth Pairing a KDC185 to your smart device with special barcodes ................................................ 4

2.3 Bluetooth Pairing a KDC185 to your smart device with NFC (Android Only) ........................................... 5

Usage...................................................................................................................................................................... 6

3.1 Using Keyboard Wedge (HID Keyboard) ..................................................................................................... 6

3.2 Using KTSync –Android/iOS ........................................................................................................................ 6

3.3 Using KTSync Keyboard –Android............................................................................................................... 8

3.4 Using KTSync Keyboard –iOS ...................................................................................................................... 9

3.5 Using other Developed Applications with SDK –Android/iOS ............................................................... 10

Product Specifications......................................................................................................................................... 11

Social Distancing Feature ................................................................................................................................... 12

5.1 Social Distancing Feature Parameters........................................................................................................ 12

5.2 Enabling the Social Distancing Feature via the KDC Menu ..................................................................... 12

5.3 Enabling the Social Distancing Feature via Social Distance Barcodes.................................................... 13

5.4 Enabling the Social Distancing Feature via the KTSync application........................................................ 15

5.5 Examples of Social Distance Alerts & Social Distance Alert Data............................................................ 16

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p2

Product Introduction

The KDC185 Bluetooth barcode scanner is a 2D Imager Bluetooth Barcode Data Collector supporting

Bluetooth Low Energy (BLE) v5.0. The KDC185 can be used stand-alone, or with a KDC185 Ring Trigger or

Finger Trigger Safety Glove to create a wearable solution.

1.1 KDC185 Diagram

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p3

1.2 How to turn on and off

Refer to the figure in section 1.1 to locate the SCAN and DOWN buttons.

Note: The trigger on the Ring Scanner and Finger Trigger Glove work as SCAN buttons.

a) Press and hold the SCAN + DOWN buttons simultaneously for 3 seconds.

b) The KDC will beep when it is turned ON.

c) Press and hold the SCAN + DOWN buttons simultaneously for 3 seconds again to turn off

the KDC.

Pairing (Bluetooth or NFC)

Connecting your KDC using Bluetooth is made easy with the below pairing barcodes.

If using an Android device, pairing via NFC is even easier: just approaching the KDC to the back of the host

device’s NFC area is enough for pairing. For more details, see section 2.3

2.1 Bluetooth Profiles Explained

a. HID Profile: Allows one-way Bluetooth communication with an Android, iOS, or Windows

host device. The KDC only transmits data to the host device.

b. SPP Profile: Allows two-way Bluetooth communication. The KDC transmits data to the

host device and the host device can transmit data back to the KDC.

Note:HID inputs data directly into an application. SPP requires the KOAMTAC SDK to

input data into an application. To gain access to the SDK, please complete the form here:

https://www.koamtac.com/sdk/

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p4

2.2 Bluetooth Pairing a KDC185 to your smart device with special barcodes

Bluetooth Profile & Pairing

#1. HID-BLE & Pairing (Android, iOS, Windows, Mac)

#2. SPP-BLE & Pairing (Android, iOS, Windows, Mac)

a. Navigate to the Bluetooth setting on the host device and ensure that Bluetooth is both

enabled and searching for devices.

b. Using the KDC, scan the pairing barcode above that corresponds to your desired

Bluetooth profile. If you are unsure which Bluetooth profile is right for you, please refer

to Chapter section 2.1.

•If you use an Android, iOS, Windows, or Mac device and desire an HID connection,

then scan barcode #1 above.

•If you desire an SPP connection for any device, then scan barcode #2 above.

c. In HID Profile, check the list of available Bluetooth devices on your host device. From the

list, select the KDC185 listed by serial number in brackets that matches the serial number

found on the back side of the KDC185. KDC185 will beep upon connection and display

“Bluetooth Connected” on its screen. Now it is ready to use.

d. In SPP Profile for non-iOS, check the list of available Bluetooth devices on your host

device. From the list, select the KDC18 5 listed by serial number in brackets that matches

the serial number found on the back side of the KDC185. KDC185 will beep upon

connection and display “Bluetooth Connected” on its screen, but you should launch

KTSync or your application and select KDC185 within the application to complete the

connection. Now it is ready to use.

e. In SPP Profile for iOS, the KDC is NOT listed on your host device, so you should launch

KTSync or your application and select the KDC185 listed by serial number in brackets that

matches the serial number found on the back side of the KDC18 5. KDC185 will beep upon

connection and display “Bluetooth Connected” on its screen. Now it is ready to use.

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p5

2.3 Bluetooth Pairing a KDC185 to your smart device with NFC (Android Only)

This feature applies only to Android. KDC may be paired in either HID or SPP only.

a. Navigate to the NFC setting on the host device and ensure that Bluetooth is both

enabled and searching for devices.

b. On the KDC, make sure NFC pairing is enabled by navigating to KDC MENU →BLE

Config →NFC Pairing →Enabled →Save & Exit.

c. On the KDC, select the pairing profile by navigating to KDC MENU →BT Config →

Connect Device →Select HID or SPP →Save & Exit.

Or, select the profile using the special barcodes below:

a. Approach the NFC area on the back of the host device with the KDC to complete pairing.

Select Bluetooth Profile

#1. HID Profile (Android Only)

#2. SPP Profile (Android Only)

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p6

Usage

3.1 Using Keyboard Wedge (HID Keyboard)

This option is only available using Bluetooth connection with HID profile.

Once the KDC is paired with the host, open any application with a text field and tap on the text field. Scan any

barcode and it will populate in the text field.

3.2 Using KTSync –Android/iOS

You can use KTSync to utilize your KDC alone or with a native application. This is only available using a

Bluetooth connection with SPP or MFi.

a) Download and install KTSync from the Google Play Store or the Apple App Store.

b) Open KTSync and tap on the “Connect” option on the bottom left to view a list of available devices.

(Fig. 1)

c) From the device list, select your KDC –ensuring that the serial number displayed in brackets matches

the serial number on the back of your KDC. (Fig. 2)

d) Upon successful connection, KTSync will display “Connected” next to the name of your KDC at the top

of the application. (Fig. 3)

e) To test your connection, scan any barcode. If the connection is successful, the barcode data will display

on the screen. (Fig. 3)

< Fig. 1 > < Fig. 2 > < Fig. 3 >

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p7

In Always-pairing mode, an application can connect to a KDC without reading a pairing barcode, so the

connection procedure is a little different.

a) In the KTSync app, tap the Connect icon at the bottom left of the app.

b) In KTSync, tap “Start BLE Scanning” in the top right.

c) In KTSync, check the list of found devices.

d) In KTSync, tap the KDC185 listed by serial number in brackets followed by [BLE] that matches the serial

number found on the back side of the KDC185. The format will look like this, KDC185[xxxxxx] [BLE],

where xxxxxx is the serial number.

e) The KDC185 will beep upon connection and display “Bluetooth Connected” on its screen. Now it is

ready to use.

< Fig. 4>

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p8

3.3 Using KTSync Keyboard –Android

Once your KDC is connected to KTSync, you can use your KDC as a keyboard.

a) While KTSync is running in the background, navigate to Settings > Language & Input > Virtual

Keyboard > Manage keyboards

b) Tap on “KTSync Keyboard” to enable it.

c) Change “KTSync Keyboard” to the default keyboard. (Fig. 5)

To switch back to the previous keyboard, simply change the default keyboard again. Or, when a text field is

selected swipe down from the top of the screen to bring up the notification panel. Select ‘choose input

method’ and you can select the default keyboard from here. (Fig. 6)

< Fig. 5 > < Fig. 6 >

KDC185

Quick Guide

See Reference Manual for more detailed information

Visit store.koamtac.com to purchase additional KDCs and accessories.

QG_KDC185_20211020 p9

3.4 Using KTSync Keyboard –iOS

Once your KDC is connected to KTSync, you can use your KDC as a keyboard.

a) Navigate to the iPhone/iPad/iPod Settings > General > Keyboard > Keyboards > Add New Keyboard...

> Select the KTSync keyboard to be added. (Fig. 7)

b) Select the KTSync Keyboard and toggle the switch to Allow Full Access. (Fig. 8)

< Fig. 7 > < Fig. 8 >

c) Open the application you want to scan into and tap on the screen, so the on-screen keyboard appears.

d) Press and hold the globe icon located to the left of the spacebar.

e) Select the KTSync Keyboard and begin scanning. (Fig. 9)

< Fig. 9 >

Note: The KDC must be connected to KTSync & the KTSync keyboard must be selected for this to work.

Inhaltsverzeichnis

Andere KoamTac Barcode-Lesegerät Handbücher

KoamTac

KoamTac KDC470Ci Bedienungsanleitung

KoamTac

KoamTac KDC100 Bedienungsanleitung

KoamTac

KoamTac KDC100 Bedienungsanleitung

KoamTac

KoamTac KDC 470 Bedienungsanleitung

KoamTac

KoamTac KBM-XP67 Bedienungsanleitung

KoamTac

KoamTac KDC20 Bedienungsanleitung

KoamTac

KoamTac KDC480 Series Bedienungsanleitung

KoamTac

KoamTac KDC 470 Bedienungsanleitung

KoamTac

KoamTac KDC20 Bedienungsanleitung

KoamTac

KoamTac KDC30 Bedienungsanleitung

KoamTac

KoamTac KDC470 UHF Bedienungsanleitung

KoamTac

KoamTac KDC480 QG Bedienungsanleitung

KoamTac

KoamTac KDC20 Bedienungsanleitung

KoamTac

KoamTac KDC100 Bedienungsanleitung

KoamTac

KoamTac KDC100 Bedienungsanleitung

KoamTac

KoamTac KDC200 KDC250 Bedienungsanleitung

KoamTac

KoamTac KDC80 Bedienungsanleitung

KoamTac

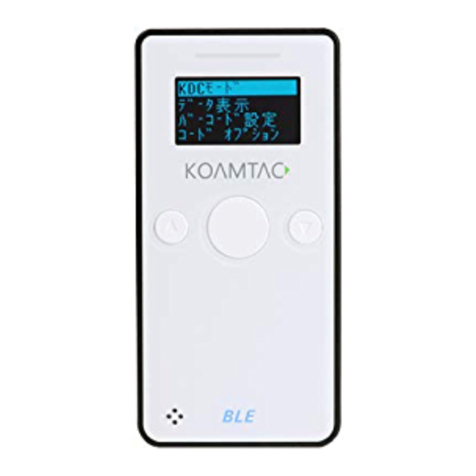

KoamTac KDC280 Benutzerhandbuch

KoamTac

KoamTac KDC200 KDC250 Betriebsanleitung

KoamTac

KoamTac KDC180 QG Bedienungsanleitung

KoamTac

KoamTac KDC100 Betriebsanleitung

KoamTac

KoamTac KDC100 Betriebsanleitung

KoamTac

KoamTac KDC100 Bedienungsanleitung

KoamTac

KoamTac KDC 470 Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung
