FLOODLIGHT
MODEL #KFL 124B-03
Español p. 11
2
TABLE OF CONTENTS
Product Specications...................................................................................... 2
Package Contents............................................................................................3
Safety Information............................................................................................4
Preparation....................................................................................................... 5
Operating Instructions...................................................................................... 6
Care and Maintenance.....................................................................................7
Troubleshooting................................................................................................ 8
Warranty...........................................................................................................8
PRODUCT SPECIFICATIONS
COMPONENT SPECIFICATION
Rated voltage 24 V d.c.
Illumination 1,700 Lumen
3
PACKAGE CONTENTS
D
FG
A
B
C E

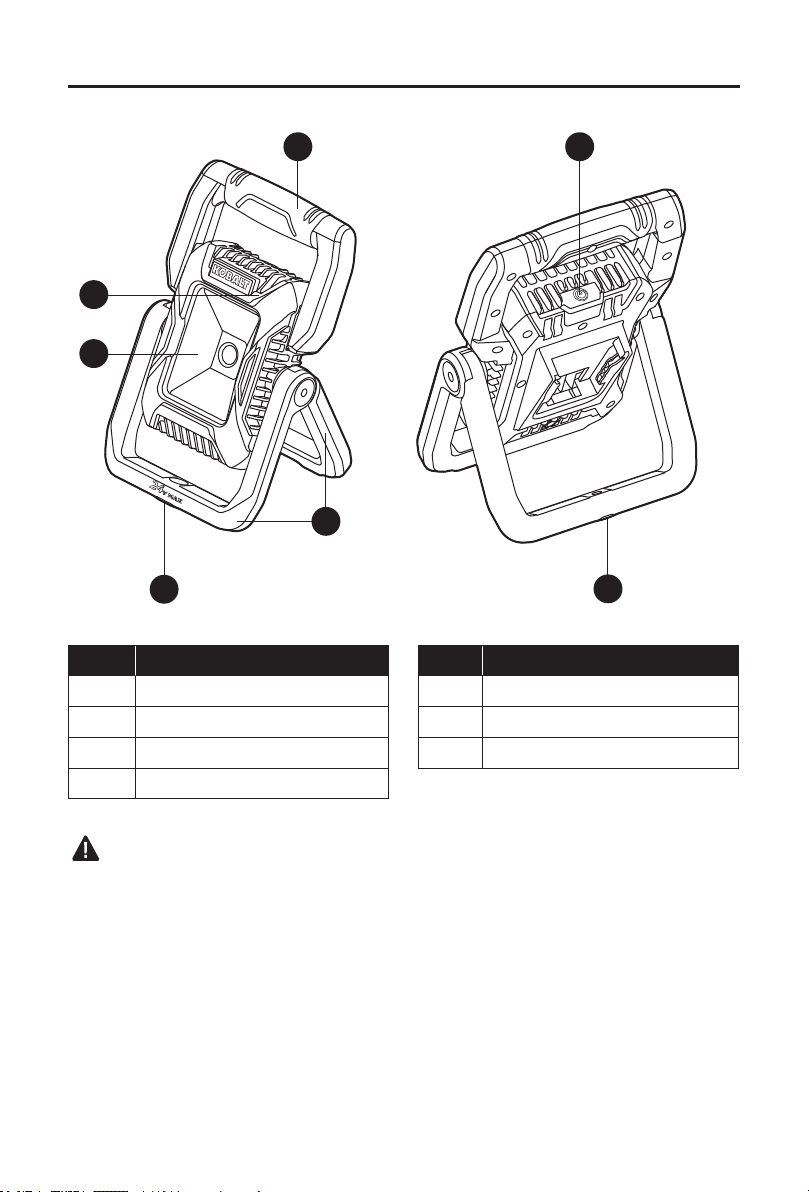

PART DESCRIPTION PART DESCRIPTION
A Light head E ON/OFF switch
B Transparent cover F Tripod mount 5/8 in. - 11UNC
C Carry handle G Tripod mount 1/4 in.
D Pedestal
WARNING
• Remove the tool from the package and examine it carefully. Do not discard the carton or any
packaging material until all parts have been examined.
• If any part of the tool is missing or damaged, do not attach the battery pack or use the tool
until the part has been repaired or replaced. Failure to heed this warning could result in
serious injury.
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or operate
this product. If you have any questions regarding the product, please call customer service at
1-888-3KOBALT, 8 a.m. - 8 p.m., EST, Monday - Friday.
Know the Tool
To operate this tool, carefully read this manual and all labels afxed to the tool before using it.
Keep this manual available for future reference.
Important
This tool should be serviced only by a qualied service technician.
Read All Instructions Thoroughly
Some of the following symbols may be used on this tool. Please study them and their meaning.
Proper interpretation of these symbols will allow you to operate the tool better and more safely.
SYMBOL DEFINITION SYMBOL DEFINITION
V Volts n0No-load Speed
Direct Current RPM Revolutions per Minute
WARNING - To reduce
the risk of injury, user
must read instruction
manual
A danger, warning or caution. It
means “Attention! Your safety is
involved.”
IMPORTANT SAFETY INSTRUCTION
INSTRUCTION PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS.
WARNING
• When using electric appliances, basic precautions should always be followed,
including the following:
• Read all the instructions before using the appliance.
• Only use attachments recommended or sold by manufacturer.
• To reduce the risk of injury, close supervision is necessary when an appliance is used
near children.
• Do not use outdoors.
• To reduce the risk of electrical shock, do not put the oodlight and battery pack in
water or other liquid. Do not place or store appliance where it can fall or be pulled into a
tub or sink.
• For use only with battery pack models KB 124-03, KB 224-03, KB 424-03 or KB 524-03.
• Use only the charger supplied by the manufacturer to recharge batteries.
• Read all safety warnings, instructions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock,
re and/or serious injury.
5
SAFETY INFORMATION
Save all warnings and instructions for future reference
• Know your oodlight. Read the operator’s manual carefully. Learn the applications
and limitations, as well as the specic potential hazards related to this tool. Following
this rule will reduce the risk of electric shock, re or serious injury.
• Do not use outdoors. This oodlight is intended for household use only. Using it
outdoors may increase the risk of electric shock or re.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not work with the cordless oodlight in hazardous areas.
• Do not direct the light beam at persons or animals and do not stare into the light
beam yourself (not even from a distance). Avoid direct eye exposure. The oodlight can
cause ash blindness.
• Do not use the oodlight in road trafc. The cordless oodlight is not approved for
illumination in road trafc.
• Disconnect the battery pack from the oodlight before making any adjustments,
changing accessories, or storing power tools, etc.
• Do not permit children to use the oodlight; it is not a toy. Children can unintentionally
blind themselves or other persons.
• The lens gets very hot during use. To reduce the risk of burns, do not touch hot lens.
To reduce the risk of re, keep away from combustible materials while in operation.
• Recharge batteries only with the charger specied by the manufacturer. A charger
that is suitable for one type of battery pack may create a risk of re when used with another
battery pack.
• Use only with specically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
• When battery pack is not in use, keep it away from other metal objects like paper
clips, coins, keys, nails, screws, or other small metal objects, that can make a
connection from one terminal to another. Shorting the battery terminals together may
cause burns or a re.
• The battery can be damaged by pointed objects such as nails or screwdrivers or
by force applied externally. An internal short circuit can occur and the battery can burn,
smoke, explode or overheat.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
• The oodlight is ruggedly constructed. It should, however, be handled with care.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
• Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
SAVE THESE INSTRUCTIONS
6
PREPARATION
Know Your Floodlight
Before attempting to use the oodlight, familiarize yourself with all of its operating features and
safety requirements.
WARNING
• Do not allow familiarity with the tool to cause carelessness. Remember that one careless
moment is enough to cause severe injury. Before attempting to use any tool, be sure to
become familiar with all of the operating features and safety instructions.
• Do not attempt to modify this tool or create accessories not recommended for use with this
tool. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possibly serious personal injury.
7
OPERATING INSTRUCTIONS

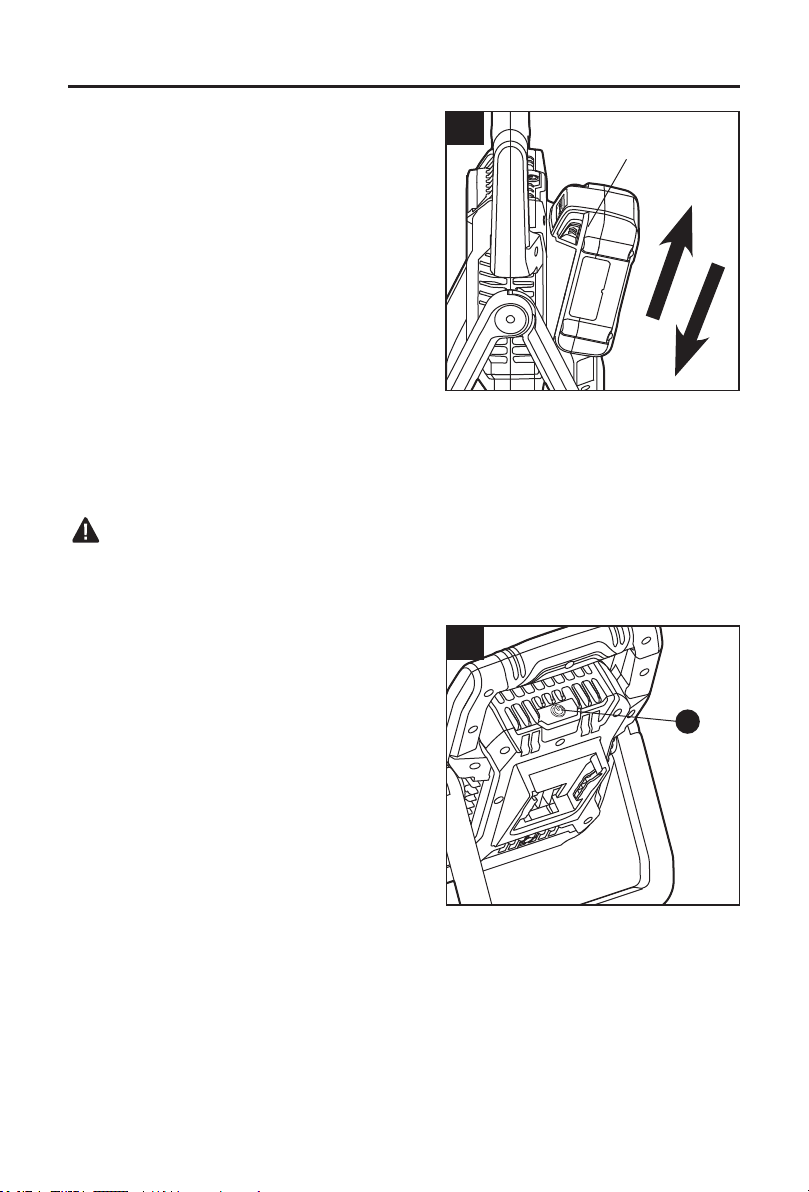

1. To Attach Battery Pack
a. Align the raised portion on the battery pack
with the grooves on the bottom of the tool, then
slide the battery pack onto the tool as shown.
b. Make sure that the battery-release buttons on
the battery pack snap into place and the battery
pack is secured to the tool before beginning
operation.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on the battery pack
aligns with the groove on the tool and the latches
snap into place properly. Improper assembly of
the battery pack can cause damage to internal
components.
To Detach Battery Pack
a. Press the battery-release buttons to release the battery pack.
b. Pull forward on the battery pack to remove it from the tool.
WARNING
• Battery tools are always in operating condition. Therefore, always remove the battery from
the tool when the tool is not in use or when carrying the tool at your side.
2. ON/OFF Switch
a. To turn the oodlight ON, press the ON/OFF
switch (E). The oodlight will be turned on at
maximum brightness.
b. To reduce the brightness, press the ON/OFF
switch again.
c. To turn it OFF, press the ON/OFF switch.
NOTICE: Do not continue to press the ON/OFF
switch after the oodlight has been automatically
switched off. The battery can be damaged.
1Battery release
buttons
2
E
8
OPERATING INSTRUCTIONS
3. Upright Position
Carefully swivel the pedestal away from the body and place the oodlight on the oor or other
stable surface. Ensure that it has a rm footing.
4. Swiveling the Light Head
The light head can be swiveled a maximum 180°,
in 30-degree increments, to suit the application.
5. Fastening to an Optional Tripod
You may use the tripod mount (F, G) to screw the oodlight onto an optional tripod that has
5/8 in. - 11UNC threading or 1/4 in. threading (sold separately).
Thread the cordless oodlight onto the tripod. Ensure that the oodlight is securely mounted to
the tripod.
CARE AND MAINTENANCE
All maintenance should only be carried out by a qualied service technician.
Cleaning
Before cleaning or performing any maintenance, remove the battery from the tool. For safe and
proper operation, always keep the tool and its ventilation slots clean.
Always use only a soft, dry cloth to clean the transparent plastic cover; never use detergent or
alcohol. Always wear safety goggles when cleaning tools with compressed air.
180
° 0°
30°
4
9
Printed in China
TROUBLESHOOTING
WARNING
• Press the ON/OFF button to switch off the oodlight, and remove battery from the tool before
performing troubleshooting procedures.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The oodlight does
not work.
1. Low battery capacity. 1. Recharge the battery.
2. The oodlight has
stopped working to
protect internal circuits.
2. Turn off the oodlight, wait for the
tool and battery to cool down, then
start the tool again.
WARRANTY
For 5 years from the date of purchase, the power tool is warranted and for 3 years from date of
purchase the battery & charger are warranted for the original purchaser to be free from defects
in material and workmanship. This guarantee does not cover damage due to abuse, normal
wear, improper maintenance, neglect, unauthorized repair/alteration, or expendable parts and
accessories expected to become unusable after a reasonable period of use.
If you think your product meets the above guarantee criteria, please return it to the place of
purchase with valid proof of purchase and the defective product will be repaired or replaced at
no charge. This guarantee gives you specic legal rights, and you may also have other rights
that vary from state to state.
