KOBE RA92 Series Fehlerbehebungshandbuch

KOBE Range Hoods

Premium Series

RA92 SQ6-XX Series

Model No.:

RA9230SQ6-XX (30”)

RA9230SQ6-DC30-XX (30”)

RA9230SQ6-DC46-XX (30”)

RA9236SQ6-XX (36”)

RA9236SQ6-DC30-XX (36”)

RA9236SQ6-DC46-XX (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

customer.service@koberangehoods.com.

NO RETURN, NO REFUND, NO EXCHANGE IF:

1.PRODUCT HAS BEEN INSTALLED

2.KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3.MISSING ORIGINAL PACKAGING MATERIAL

ANDOR PARTS


[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.........................................................................1
COMPONENTS OF PACKAGE.......................................................................................3
INSTALLATION ...............................................................................................................4
OPERATING INSTRUCTIONS........................................................................................7
MAINTENANCE ............................................................................................................10
SPECIFICATIONS.........................................................................................................11
MEASUREMENTS & DIAGRAMS.................................................................................12
PARTS LIST..................................................................................................................14
CIRCUIT DIAGRAM......................................................................................................16
TROUBLE SHOOTING.................................................................................................17
WARRANTY..................................................................................................................18
WARRANTY INFORMATION FORM.............................................................................20

 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING.

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-related construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE

This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not hold responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1) Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2) Always turn hood ON when cooking.

3) Use high setting on cooking range ONLY when necessary.

4) Do not leave cooking range unattended when cooking.

5) Always use cookware and utensils appropriate for the type and amount of food prepared.

6) Use this unit only in the manner intended by the manufacturer.

7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8) Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

1) SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

2) NEVER PICK UP A BURNING PAN –You May Get Burned.

3) DO NOT USE WATER, including wet dishcloths or towels –a steam blast will result.

4) Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

1) Extinguish any open flame.

2) Do not try to turn on the lights or any type of appliance.

3) Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped

the fluorescent light bulb contains small amount of mercury, which must

be recycled or disposed of according to Local, State, and Federal Code.

COMPONENETS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

{A} KOBE Range Hood (with RA092DC-1)

{B} Warranty Registration Card

{C} Quick Reference Guide

{D} Baffle Filter x 2 (30” hood)

x 3 (36” hood)

{E} Hood Mounting Bracket

{F} 6” Round Plastic Collar

{G} Duct Cover Mounting Bracket

{H} Screws Package

{I} Wire Cap x 3

{J} Screws Package

{A}

{B} {C}

{D} {E}

{F} {G}

{H} {I}

{J}

Extension Duct Cover RA0930DC

(Included in RA92 SQB6-DC30-XX ONLY)

{K} Duct Cover Extension

Model No.: RA0930DC

{K}

Extension Duct Cover RA0946DC

(Included in RA92 SQB6-DC46-XX ONLY)

{L} Duct Cover Extension

Model No.: RA0946DC

{L}

•FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com

OR CONTACT KOBE RANGE HOODS AT (626) 775-8880.

Knob attached to baffle filter

*Pre-installed

3/16” x 3/8” (6 PCS)

Wire caps (3)

M4 x 1-1/2” (5)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to

Hood Bottom (Minimum 26” to 30”)

D = Height of Hood

E = Height of Duct Cover [F –D]

F = Height of the Hood Installation

[A –(B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFULY WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

Preparation Before Installation

Figure 1

Figure 2

Figure 3

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from the

hood to the outside. Refer to Figure 1.

- A straight, short vent run will allow the hood to

perform more efficiently.

- Try to avoid as many transitions, elbows, and long

run as possible. This may reduce the performance

of the hood.

- Temporarily wire the hood to test for proper

operation before installing. If the hood does not

operate, check the circuit breaker or house fuse.

If the hood is still not working, disconnect power

supply and check the continuity of all wire

connections.

- Peel protective film off the hood (if any).

- Use duct tape to seal the joints between pipe

sections.

- If necessary, prepare back wall frame with cross

framing lumber for secure installation. Using

references on Table 1 and measurements on page

12-13, decide the level of the lumber. Refer to

Figure 2.

Hood Installation

CAUTION: USE HAND TOOLS ONLY. DO

NOT OVER TIGHTEN SCREWS. IT MAY

CAUSE DAMAGE TO THE HOOD.

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the

power in an electric range at the main

electrical box. SHUT OFF THE GAS BEFORE

MOVING A GAS RANGE. And use a protective

covering to protect cooktop and/or

countertop from damage.

1. Using references on Table 1 and measurements

on page 12-13, mark the leveling point of the hood.

Position mounting screws (provided) on the wall,

leaving 1/8” away from the wall as shown in

Figure 3.

2. Align Hood-Mounting Bracket to the three screws

on the wall and hook hood into place. Tighten

screws to secure the hood to the wall.

CAUTION: MAKE SURE THE HOOD IS

SECURED BEFORE RELEASING.

Wiring to Power Supply

Figure 4

Figure 5

Figure 6

THIS RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE BY

QUALIFIED ELECTRICIAN IN ACCORDANCE

WITH ALL APPLICABLE NATIONAL AND

LOCAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE

PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED

ON ACCIDENTALLY.

3. If hood is operating normally, connect three wires

(black, white and green) to house wires and cap

with wire connectors.

4. Store wires in the wiring box.

Ductwork Installation

5. Use steel pipe to connect the exhaust on the hood

to the ductwork. Use duct tape to make all joints

secure and air tight.

Duct Cover Installation

6. Mark the position of the Duct Cover-Mounting

Bracket {G}. Use reference Efrom Table 1 and

measurements on page 12-13. Attach and secure

Duct Cover-Mounting Bracket {G} with two screws

(provided). Refer to Figure 4.

NOTE: Inner duct cover will cover the Duct

Cover-Mounting Bracket.

7. Position the entire duct cover up onto the hood.

8. Secure the inner duct cover with two (3/16” x 3/8”)

screws {H} to the Duct Cover-Mounting Bracket

{G}. Shown in Figure 5.

9. Secure the outer duct cover with four (3/16” x 3/8”)

screws {H} to the Hood Mounting Bracket.

Install / Uninstall Accessories

10.Place the baffle filters underneath the hood.

(Figure 6)

Final Assembly

11.Turn power ON in control panel. Check all lights

and fan operation.

12.Leave this Installation Instructions and Operation

Manual for the homeowner.

Attach Together

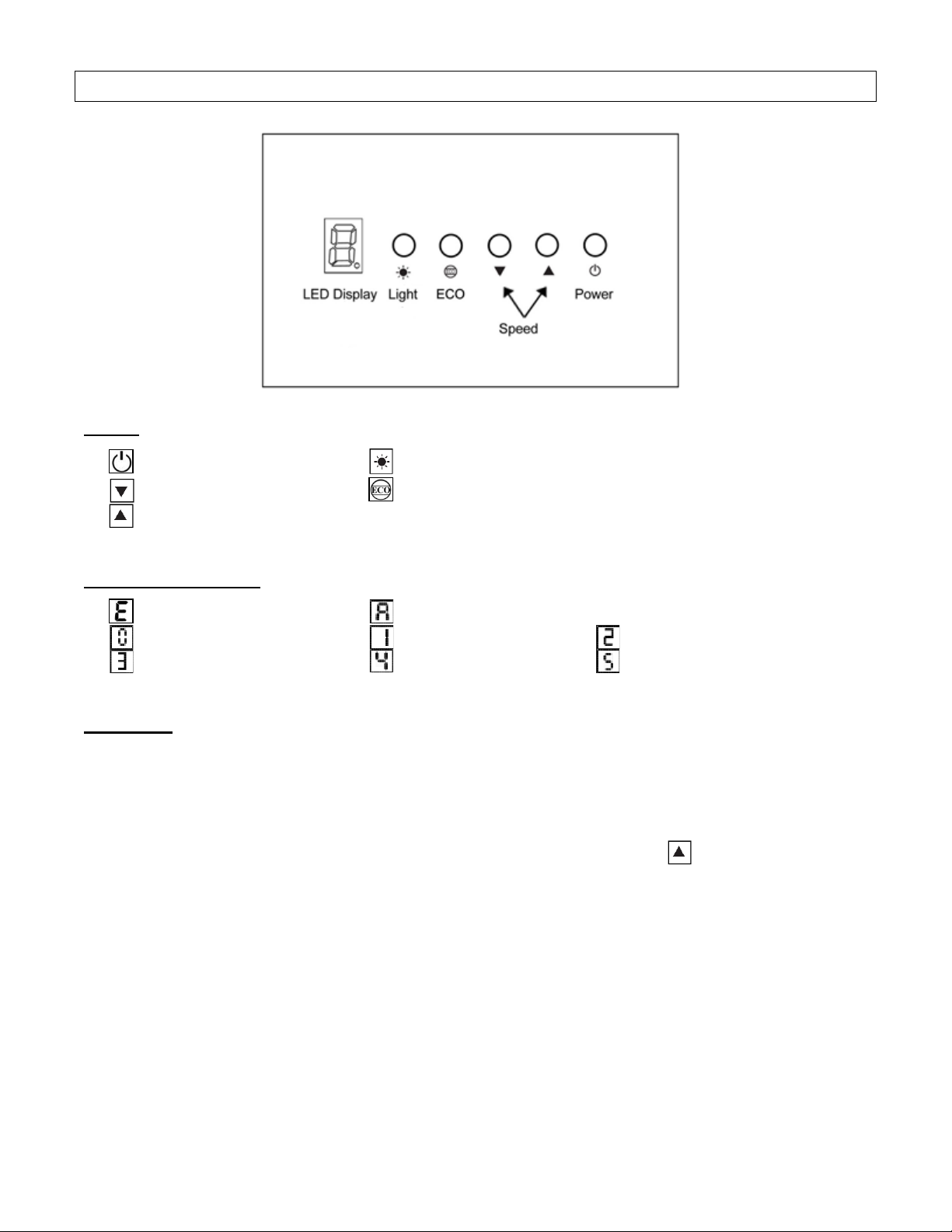

OPERATING INSTRUCTIONS

Button

Power

Light

Decrease Fan Speed

ECO Mode

Increase Fan Speed

LED Display Indicator

ECO Mode Icon

Auto Mode Icon

QuietMode™

Speed #1

Speed #2

Speed #3

Speed #4

Speed #5

Auto Mode

•The hood has advanced built-in flame and temperature sensors. When the sensor detects the

presence of a flame or fire, the hood will turn on automatically.

PLEASE NOTE: FOR THE BUILT-IN FLAME SENSORS, IT WILL ONLY FUNCTION WITH GAS

RANGES.

•To turn On/Off Auto Mode, press and hold the Increase Fan Speed button . LED Display will show

“A” when the Auto Mode is on. When you turn off the Auto Mode, it will default to fan speed 3.

oWhen the Auto Mode is on, only the light control and ECO Mode will work because

everything else is set to Auto. You need to turn off the Auto Mode in order to manually use

the Power and Speed Controls.

oLights and ECO Mode can work independently and can still be turned on manually even if

Auto Mode is activated.

•The hood will automatically turn on to QuietMode™ when detecting a flame or fire, it will adjust to the

higher and lower speeds automatically depending on the temperature differential of ~7°F degrees**

between the hood and the surrounding environment.

**Please note: ~7°F degrees vary depending on the condition of your environment and stove/range

you use.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KOBE Dunstabzugshaube Handbücher

KOBE

KOBE OVS-CHX8130SQB-40 Montage- und Bedienungsanleitung

KOBE

KOBE RAX28 SQB-2 Gebrauchs- und Pflegehandbuch

KOBE

KOBE IN-027 Series Fehlerbehebungshandbuch

KOBE

KOBE RA9430SQB-1 Gebrauchs- und Pflegehandbuch

KOBE

KOBE CX1842GS-8 Fehlerbehebungshandbuch

KOBE

KOBE RA3830SQD Fehlerbehebungshandbuch

KOBE

KOBE IS22 SQB-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CXX8130QF-GBK-1 Bedienungsanleitung

KOBE

KOBE CH-101 Series Fehlerbehebungshandbuch

KOBE

KOBE IS2336SQ Fehlerbehebungshandbuch

KOBE

KOBE IS2430GSQB-1 Fehlerbehebungshandbuch

KOBE

KOBE CHX3830SQBD-3 Fehlerbehebungshandbuch

KOBE

KOBE IN26 SQB-650-5 Series Fehlerbehebungshandbuch

KOBE

KOBE CH7930SQ Fehlerbehebungshandbuch

KOBE

KOBE CHX81 SQB-1 Bedienungsanleitung

KOBE

KOBE CH77 SQB-1 Series Fehlerbehebungshandbuch

KOBE

KOBE IN28 SQP Series Fehlerbehebungshandbuch

KOBE

KOBE INX26 SQB-700-3 Series Fehlerbehebungshandbuch

KOBE

KOBE CHX9136SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE OVS-CHX9130SQB-40 Fehlerbehebungshandbuch

KOBE

KOBE RA3830SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE Brillia RAX9430SQB-1 Fehlerbehebungshandbuch

KOBE

KOBE IS2236SQB-DC16-1 Fehlerbehebungshandbuch

KOBE

KOBE INX2930SQBF-500-1 Fehlerbehebungshandbuch

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
