Contents

Caution

Safety Information

Names of each part

Accessories

Front View

Back View

3-4

5-6

Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Sound menu

3. Channel menu

4. Feature menu

Specifications

Trouble shooting

Smart TV

8-14

10-11

12-13

5. Setup menu

Multimedia Operation 15-17

Recording Operation 18-20

21-33

Caution

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling center.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle

is intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

directives.

Safety Information

To ensure reliable and safe operation of this equipment, please read carefully all the

instructions in this user guide, especially the safety information below.

Electrical safety

vTo prevent overload, don't share the same mains supply socket with too many other

items of equipment.

- Do not place any connective wires where they may be stepped on or tripped over.

- Do not place heavy items on the leads, which may damage them.

- Hold the Mains plug, not the wires, when removing from a socket.

- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial

(if outdoor) and mains power from the supply.

- Do not allow water or moisture to enter the TV . Do NOT use in wet

or moist areas such as bathrooms, steamy kitchens or near swimming pools.

v8]TT\PMXT]OW]\QUUMLQI\MTy, and seek professional help if:

- the mains plug or cable is damaged.

- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.

- anything accidentally penetrates the ventilation slots.

- the set does not work normally.

- Do NOT remove the safety covers. There are no user serviceable parts inside.

You may invalidate the warranty. Qualified personnel only are permitted to service

this apparatus.

- To avoid battery leakage, remove exhausted batteries from the remote control

handset, or when not using for along period.

- Do NOT break open or throw exhausted batteries on a fire.

Physical safety

v,W67T block ventilation slots in the back cover. You may place the TV in a cabinet,

but ensure at least 5cm (2") clearance all around the unit.

v,W67T tap or shake the TV screen, you may damage the internal circuitry. Take good

care of the remote control, do not drop it or allow it to come into contact with liquids.

v<WKTMIV\PM<>][MI[WN\LZaKTW\P,W67<][M[WT^MV\[WZpetrol based fluids. For

stubborn stains, you may use a damp soft cloth with diluted detergent.

Remote Control

Names of each part

Front View

INPUT: Display the input source menu.

MENU: Display/exit the OSD menu.

CH+/-: Scan through channels.

VOL+/-: Adjust the volume.

POWER: Turn on/standby the TV set.

INPUT MENU CH+ CH- VOL+ VOL- POWER

INPUT

1 2 5

VGA

Headphone out

Mini YPbPr

USB1

1POWER PC-IN

Vdieo

L/R in

Coax

HDMI1/2 8

Names of each part

Back View

POWER

Recovery

RJ45

SD card

USB3

USB2

USB2/3

RJ45

Recovery

PC-IN

Headphone out COAX

USB1

Mini

YPbPr VIDEO L in R in RF

INPUT

EPG

SUBTITLE

AUDIO

NICAM/A2

ABC/123

ASPECT

Rec.list

PVR TV/Radio FAV

NOTIFICATION

LIST

POWER

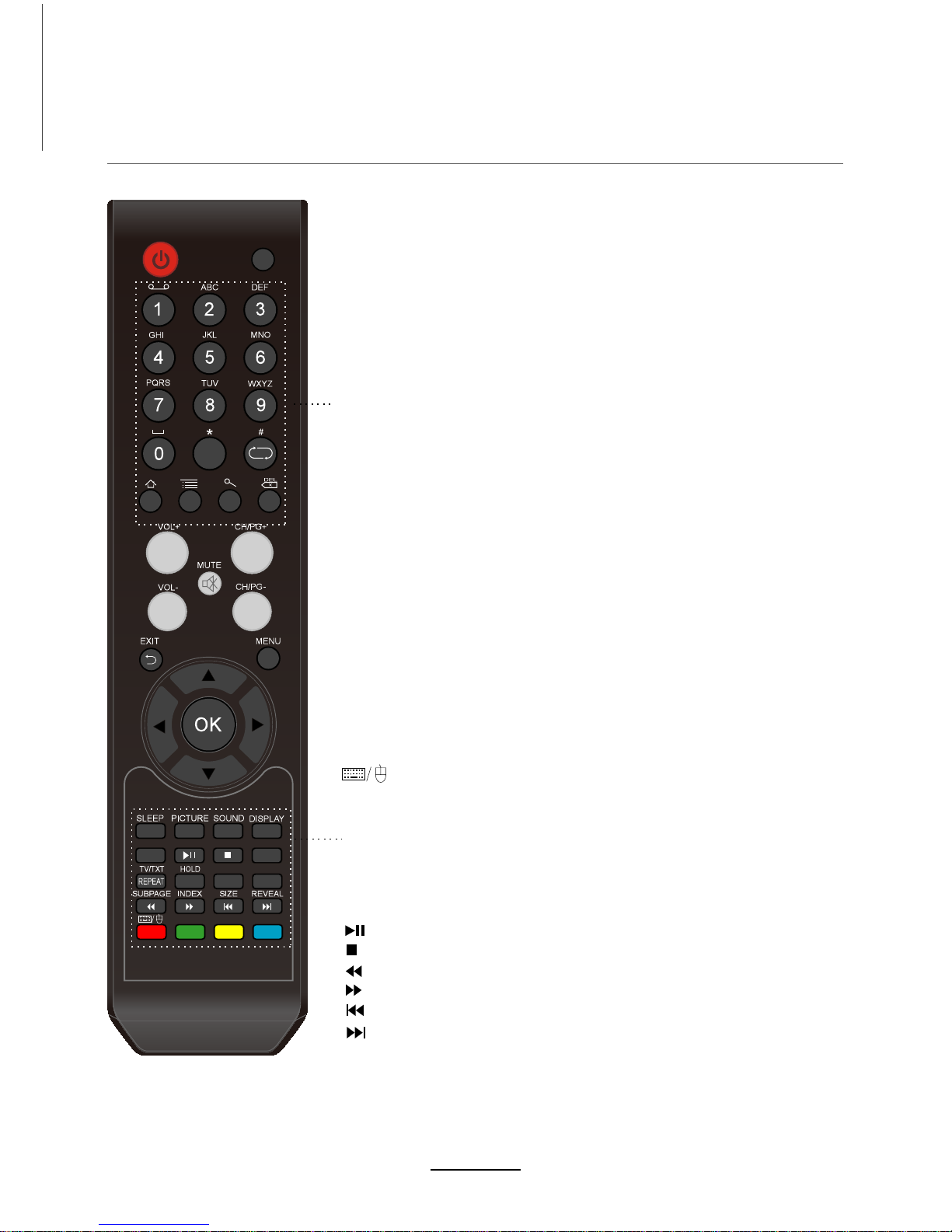

INPUT: Press to display the input source menu.

: Turn the TV on/standby.

NUMBER BUTTONS

Press 0-9 and -/-- to select a TV channel directly when you

are watching TV.

FAV: Display the favorite program list.

Return to the previous channel viewed.

MUTE: Press to mute the sound, press again or press

VOL+ to unmute.

CURSOR KEYS OK

Allows you to navigate the on-screen menus and adjust the

system settings to your preference.

MENU: System setup menu.

EXIT: Exit the OSD menu.

EPG: To show the Electronic Program Guide during no-menu

state onl

PVR: To start record function.

TV/Radio: To switch to TV or Radio state in DTV mode.

y in DTV mode.

CH+/- : Scan through channels.

VOL+/- : Adjust the volume.

Remote Control

INPUT

EPG

SUBTITLE

AUDIO

NICAM/A2

ABC/123

ASPECT

Rec.list

PVR TV/Radio FAV

NOTIFICATION

LIST

TV/TXT: Turn off

HOLD: Hold or carry on the current subpage.

/on the Teletext display.

SIZE: Press to see top half of page double size,

Press again to see the bottom

half of page

REVEAL: Reveal any hidden text.

double size. Press again for normal size.

SUBPAGE: Press to enter subpages, press again to cancel.

INDEX: Go to index.

NICAM/A2: TV Nicam/A2 select.

Color Buttons: S

: Switch to keypad/mouse or remote control.

ABC/123: Switch to digital numbers or letters.

SUBTITLE: Turn on/off the subtitle display in DTV mode.

hort cuts-follow the coloured links in the text.

Play/Pause program.

Stop program.

Fast reverse.

Fast forward.

Previous chapter.

Next chapter.

Buttons for Android

PICTURE: Select the picture mode.

SOUND: Select the sound mode.

SLEEP: Standby timer.

DISPLAY : Means information, to display brief information

concerning the current channel or disc you are watching.

Rec.list: Display the record list.

AUDIO: Change the audio language in DTV mode.

ASPECT: Cycles among screen display modes.

Repeat: Repeat playing the title or chapter.

Remote Control

button to select the function item, press / OK button to enter

Basic Operation

Power on/off

1. Connect to the power supply with the power adaptor.

2. -To turn on the TV

Press POWER button on the TV or remote control.

-To turn off the TV

Press POWER button on the TV or remote control.

Input Source select

Press INPUT button on the TV set or remote control to display the

input source menu, and use CH+/- button on the TV set or button

on remote control to select the input source, press OK button on the

remote control to enter.

Note: Before you select the input source, make sure the

connections are prepared.

Basic OSD Menu operation

Main menu: Picture Sound Channel Feature Setup

Submenu

(Picture menu

for example)

Hint---you should operate

Press MENU button to display the OSD menu as below:

Use / button to select the main menu, and press / OK button to enter the submenu.

In the submenu, use

the setup menu, then press / button to adjust, or press / to select and press OK /

/ button to confirm.

* (Press MENU / button to return to the upper menu.)

* (Press EXIT button to exit the menu display.)

Note1: Only when you input the suitable signal, the relevant items can be activated

Note2: Please operating the OSD menu according to hint on the bottom of the banner.

the OSD menu according

to the hint.

DTV

YPBPR

HDMI1

HDMI2

Smart TV

ATV

Media

OSD Menu

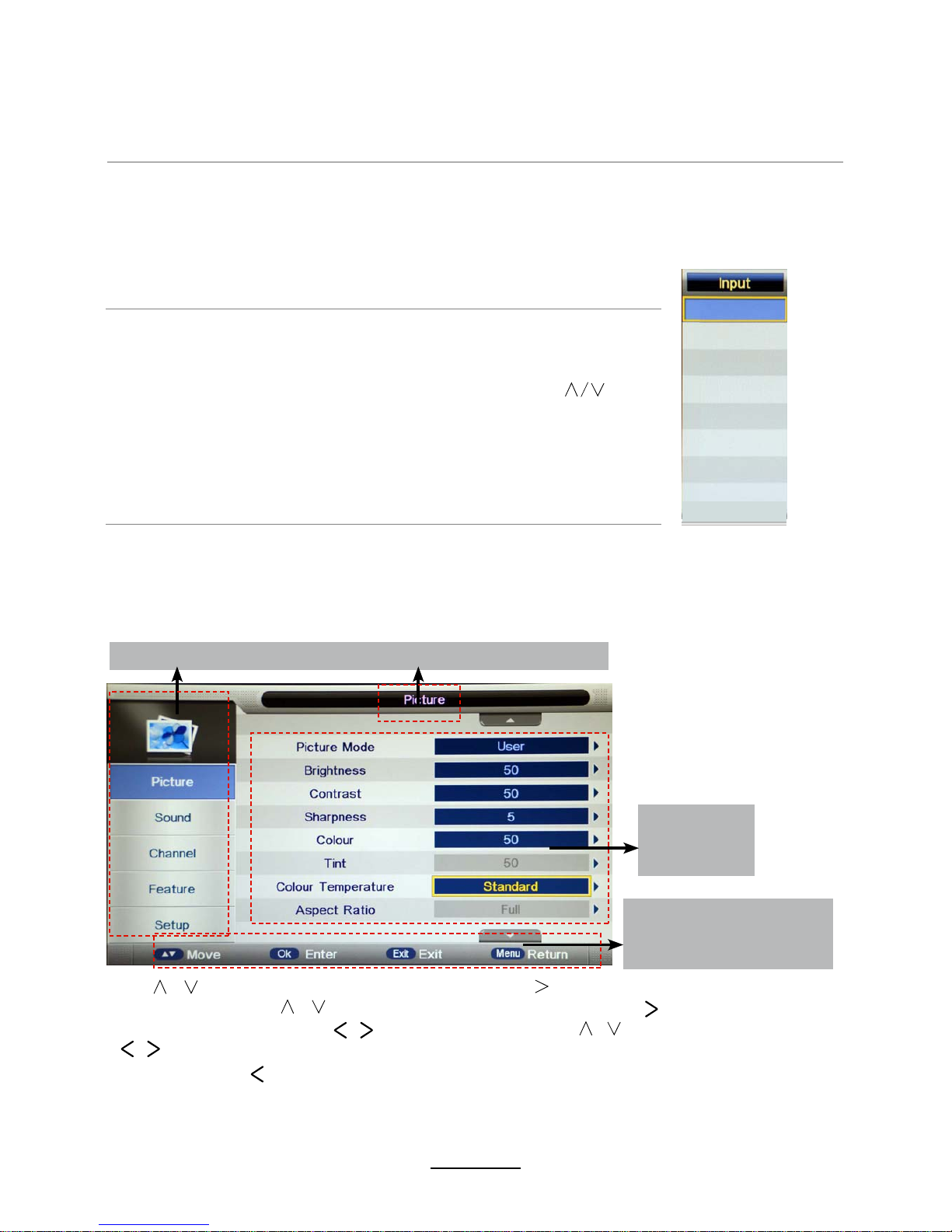

1. Picture menu

Description

Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User.

Brightness: Adjust image black level.

Contrast: Adjust image contrast.

Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode).

Colour: Adjust image colour from black and white.

Colour Temp.: Select an optimum colour temperature mode to suit your eyes for viewing from

Warm, Cool, Standard.

Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction

option to reduce the video noise level between Off, Low, Middle and High.

Tint: Control the tint ( NTSC mode only).

Aspect Ratio: Change the aspect for the screen from 4:3,16:9,Zoom1,Zoom2.
