Kogan 9 RT9210 Series Bedienungsanleitung

(KALED65RT9210SVA)

SERIES 9 RT9210

65" SMART HDR 4K UHD LED TV

QUICK START GUIDE

COMPONENTS

A Kogan 65” Smart HDR

4K UHDLED TV

B Remote control

C Stand (x2)

D Bm4 x 18mm screw (x6)

E AAA battery (x2)

F Quick-start guide

G Warranty card

B C D

E G

NOT INCLUDED

Phillips head screwdriver, antenna cable, broadband internet connection.

REMOTE CONTROL OVERVIEW

Figures 0-9 are used to directly input

channel number

Press to display Electronic Program Guide

and select the favorite channel

Increase the volume

Decrease the volume

Increase the program

Decrease the program

Displays the OSD(On Screen

Display) menu

To confirm the choice with

program the highlighted menu

item

Press to start recording the program

EPG

IN FO

VOL +

VOL

CH +

Google Assistant

Press to info the source and channel’s info

Switches the TVbetween on and standby

mode

Mute or restore TV sound

Display/Select signal source

options

Microphone hole

REMOTE CONTROL OVERVIEW

Press these buttons to select items

Press these buttons to select and

adjust items

Accesso diretto a Amazon Prime

Video

To open app homepage

Go back to the previous step

Press to exit the OSD menu Press to play the video and press again to

pause the video

Press these buttons according

Press to fast forward in USB mode

Press to fast reverse in USB mode

Hold on or off for current page display

Press to change the language when

playing the stream which contains

multi-language

to different prompts

Press to enter Teletext when play the

program

AUDIO

SU BT

SUBT

EX IT

BA CK

Displays the home screen

Connects to NETFLIX for viewing

online TVshows and films(internet

connection required).

Connects to YouTube (internet

connection required).

BM4X18 (6 PCS)

Spread cushioning flat to lay the TV on. This will help to prevent damage.

Insert three 18 mm screws for each stand, and use Phillips head screwdriver

(not supplied) to tighten.

BEFORE YOU GET STARTED

1. Stand assembly

a. Attach stands to base of TV.

2. Remote control assembly

a. Open the battery compartment cover on the back side.

b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings

(+ / -) of the batteries with the diagram inside the compartment.

c. Replace battery compartment cover.

2a2b2c

ASSEMBLY AND INSTALLATION

Antenna cable

(not supplied)

3. Connect to antenna

a. Connect an antenna cable (not supplied) via the 'ANT' input port at the back

of the TV.

b. Ensure the antenna cable is also connected to a working antenna,either via

an antenna wall socket in your home, or directly.

4. Turning TV on

Plug the power cord into a suitable power outlet, then press the POWER ( )

button on the remote control, making sure to aim it at the sensor at the front of

the TV. Alternatively, you can press the power button on the lower side of the

back panel on the TV.

Press the POWER ( ) button on the remote control to enter standby mode.

To power down the TV completely, unplug the power cord from the power

outlet.

Do not leave your set in standby mode for long periods of time. If you will

not use the TV for a long time, it is recommended to unplug the set from

both the power outlet and aerial.

TURNING TV OFF

Antenna

wall socket

INITIAL INSTALLATION

The first time you switch the TV on, the initial step screen appears which guides you through the initial

proces.Please according to the Text Tips to inish initial installtion.

1. Initial Installation

1. 1 Language select

>Press / remote control to select the language option,then click【OK】to confirm.

Quickly set up your TV with your Android phone? (Continue/skip) Steps:

1.2

1. On your Android Phone, open the Pre-installed app "Google".

2. Type or say, "Ok Google, set up my device".

3. Tap the model name on the list.

Configure the network

>Select wired or wireless to connect to internet.

>If you select skip,it could be performed in homepage or settings menu.

Google Account Sign in

1.3

1.4

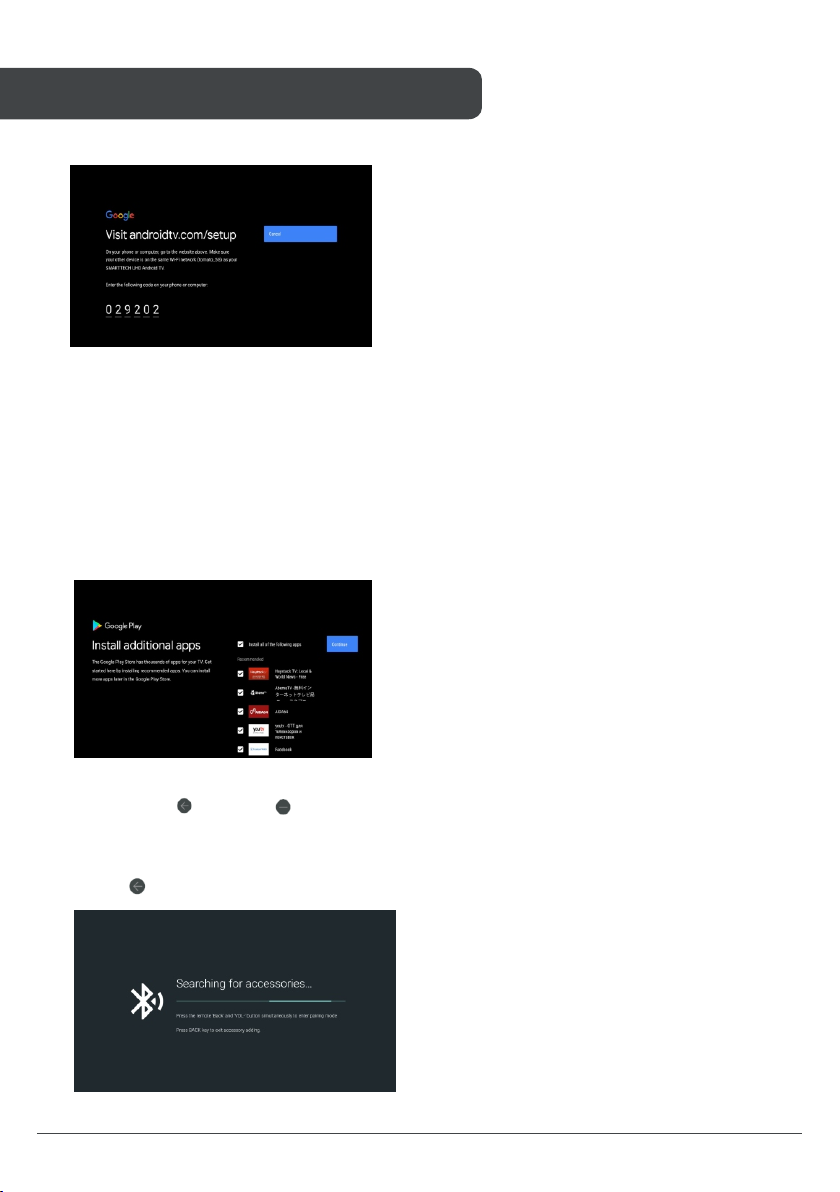

->Use your phone or computer:

1. Visit androidtv.com/setup on your phone or computer, Make sure your other device is on the same

Wi-Fi network as your Android TV ™

INITIAL INSTALLATION

2.Enter the display code on your phone or computer

->Use your remote:

Use the remote to enter your Google account and password to sign in to Google account.

In these steps you will setup the Terms of Service,Location,Help improve Android, Google Assistant and

additional Google functions.

Select install or un-install he recommended apps and Google apps by using this process.

->Press "Continue" to the next setting page.

Google setting

1.5

Play Auto Installs

1.6

1.7 Pairing Bluetooth Remote

-> Press'BACK 'and ' VOL- ' simultaneously on remote control to enter the Bluetooth pairing mode.

The Indicator light on remote control will flash when enter the pairing mode.

-> Press【OK】to begin pairing.

-> Press on remote control to skip the pairing mode.

INITIAL INSTALLATION

Country select

1.8

1.9

1.10

1.11

1.12

1.13

->Press / on remote control to select the country option,then click【OK】to confirm.

Set the TV password for Parental Controls,"0000" is invalid.

Select TV mode(Home/Retail)

Home mode is optimized for efficient energy usage for home use.

Retail mode is optimized to store demo with fixed settings.

Chromecast built-in™

Select On/Off to make Chromecast built-in available.

TV Channel Setting

->Select Antenna/Cable/Satelite to scan TV channel.

->If you select skip, the channel scan could be performed in menu.

Setup completed and Disclaimer Terms
