Kogan KALED32DVDWC Bedienungsanleitung

KALED32DVDWC

USER MANUAL

Specifications

Trouble shooting

DVD Operation 18-26

Contents

Caution

Safety Information

Names of each part

Accessories

Front View

Back View

3-4

5-6

Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Sound menu

3. Channel menu

4. Lock menu

8-13

10-11

5. Setup menu

Multimedia Operation 14-16

Recording Operation 17

Caution

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling center.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle

is intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

directives.

Safety Information

To ensure reliable and safe operation of this equipment, please read carefully all the

instructions in this user guide, especially the safety information below.

Electrical safety

vTo prevent overload, don't share the same mains supply socket with too many other

items of equipment.

- Do not place any connecting wires where they may be stepped on or tripped over.

- Do not place heavy items on the cables, which may damage them.

- Hold the Mains plug, not the cable, when removing from a power socket.

- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial

(if outdoor) and mains power from the supply.

- Do not allow water or moisture to enter the TV . Do NOT use in wet

or moist areas such as Bathrooms, steamy kitchens or near swimming pools.

v8]TT\PMXT]OW]\QUUMLQI\MTy, and seek professional help if:

- the mains plug or cable is damaged.

- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.

- anything accidentally penetrates the ventilation slots.

- the set does not work normally.

- Do NOT remove the safety covers. There are no user serviceable parts inside.

You may invalidate the warranty. Qualified personnel only are permitted to service

this apparatus.

- To avoid battery leakage, remove exhausted batteries from the remote control

handset, or when not using for along period.

- Do NOT break open or throw exhausted batteries on a fire.

Physical safety

v,W67T block ventilation slots in the back cover. You may place the TV in a cabinet,

but ensure at least 5cm (2") clearance all around the unit.

v,W67T tap or shake the TV screen, you may damage the internal circuitry. Take good

care of the remote control, do not drop it or allow it to come into contact with liquids.

v<WKTMIV\PM<>][MI[WN\LZaKTW\P,W67<][M[WT^MV\[WZpetrol based fluids. For

stubborn stains, you may use a damp soft cloth with diluted detergent.

Remote Control

Names of each part

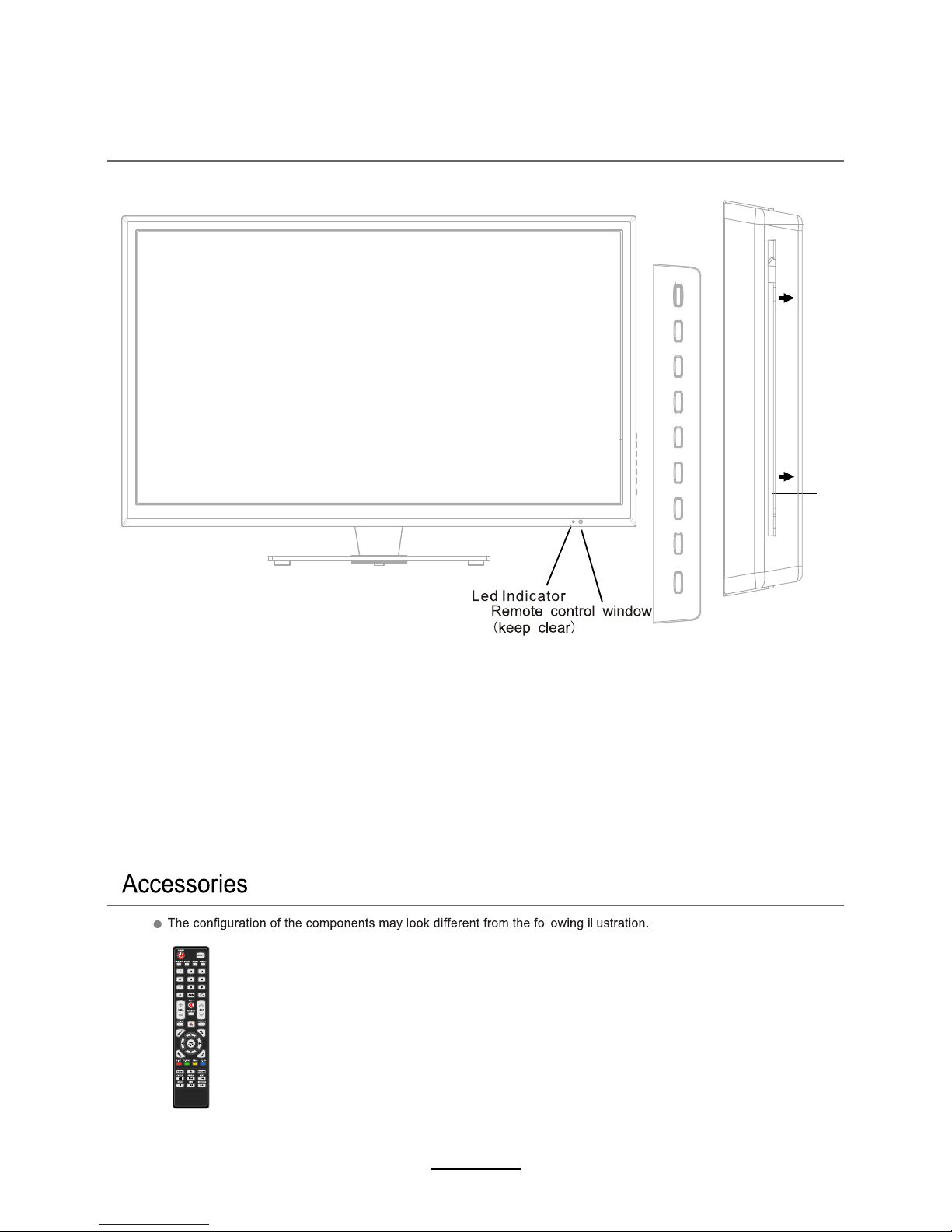

Front View

INPUT: Display the input source menu.

MENU: Display/exit the OSD menu.

CH+/-: Scan through channels.

VOL+/-: Adjust the volume.

POWER: Turn on/standby the TV set.

Insert a 12cm

disc according to

the label.

PLAY:

EJECT:

Play/pause the disc playing.

Eject / Close the disc.

INPUT MENU CH+ CH- VOL+ VOL- POWER

PLAY EJECT

Insert disc with label side towards back

VGA

Headphone out

YPbPr

Video

L/R Audio in

PC-IN

USB

Coax

HDMI1/2/3

Names of each part

Back View

USB

HDMI1

HDMI2 HDMI3

1 5 6

POWER

INPUT

PICTURE ASPECT

MUTE

SOUND SLEEP

SUBTITLE

CH.LIST

REC.LIST

123

456

789

DISPLAY

EPG

TV/RADIO

FAV

VOL CH

TV/TXT

CANCEL REVEAL

NICAM/A2

INDEX

HOLD SIZE SUBPAGE

EXIT

REC

D.SET D.MENU D.LAND.SUB

POWER

INPUT: Press to display the input source menu.

: Turn the TV on/standby.

PICTURE: Select the picture mode.

SOUND: Select the sound mode.

SLEEP: Standby timer.

ASPECT：Change the screen display mode.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you

are watching TV.

Return to the previous channel viewed.

FAV: Display the favorite program list.

MUTE: Press to mute the sound, press again or press

VOL+ to unmute.

SUBTITLE: Turn on/off the subtitle display in DTV mode

CH / : Scan through channels.

VOL+ /- : Adjust the volume.

REC.LIST: Record List.

REC : Press to start recording inDTV mode.

NICAM/A2: TV Nicam/A2 select.

DISPLAY: Press to display the current mode’s information.

EPG: To show the Electronic Program Guide during no-menu

state only in DTV mode.

CURSOR KEYS OK

Allows you to navigate the on-screen menus and adjust the

system settings to your preference.

MENU: System setup menu.

EXIT: Exit the OSD menu.

CH.LIST: Display the channel list.

D.SET: DVD system setup.

D.SUB: Turn on/off the subtitle display in DVD mode.

D.LAN: Select DVD disc language.

D.MENU: DVD play list/Disc menu.

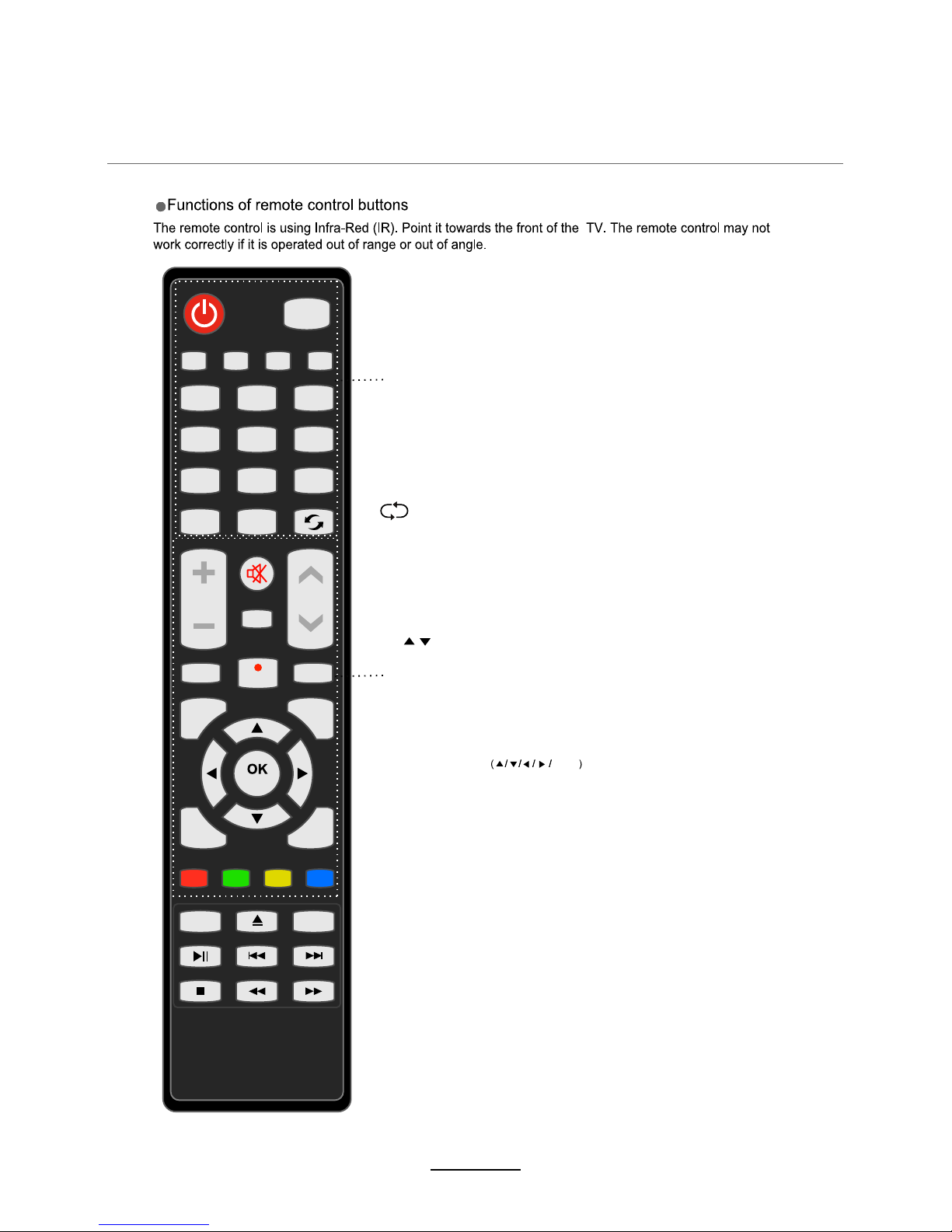

Remote Control

POWER

INPUT

PICTURE ASPECT

MUTE

SOUND SLEEP

SUBTITLE

CH.LIST

REC.LIST

123

456

789

DISPLAY

EPG

TV/RADIO

FAV

VOL CH

TV/TXT

CANCEL REVEAL

NICAM/A2

INDEX

HOLD SIZE SUBPAGE

EXIT

REC

D.SET D.MENU D.LAND.SUB

Stop program.

Previous chapter.

Next chapter.

Play/Pause program.

Load/eject DVD disc.

Fast reverse.

Fast forward.

TV/TXT: Turn off/on the Teletext display.

TV/RADIO：To switch to TV or Radio state in DTV mode.

CANCEL: Cancel the Teletext display.

REVEAL: Reveal any hidden text.

INDEX: Go to index.

HOLD: Hold or carry on the current subpage.

SIZE: Press to see top half of page double size,

Press again to see the bottom

half of page double size. Press again for normal size.

SUBPAGE: Press to enter subpages, pressagain to cancel.

Remote Control

button to select the function item, press / OK button to enter

Basic Operation

Power on/off

1. Connect to the power supply with the power adaptor.

2. -To turn on the TV

Press POWER button on the TV or remote control.

-To turn off the TV

Press POWER button on the TV or remote control.

Input Source select

Press INPUT button on the TV set or remote control to display the

input source menu, and use CH+/- button on the TV set or button

on remote control to select the input source, press OK button on the

remote control to enter.

Note: Before you select the input source, make sure the

connections are prepared.

Basic OSD Menu operation

Press MENU button to display the OSD menu as below:

Use / button to select the main menu, and press / OK button to enter the submenu.

In the submenu, use

the setup menu, then press / button to adjust, or press / to select and press OK /

/ button to confirm.

* (Press MENU / button to return to the upper menu.)

* (Press EXIT button to exit the menu display.)

Note1: Only when you input the suitable signal, the relevant items can be activated

Note2: Please operating the OSD menu according to hint on the bottom of the banner.

Main menu


Sound

Lock System

Setup

Channel

Submenu

(Picture menu

for example)

Hint---you should operate the OSD menu according to the hint.

OSD Menu

1. Picture menu

Description

Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and Personal.

Brightness: Adjust image black level.

Contrast: Adjust image contrast.

Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode).

Saturation: Adjust image colour from black and white.

Colour Temp.: Select an optimum color temperature mode to suit your eyes for viewing from

Warm, Cool, Standard.

Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction

option to reduce the video noise level between Off, Weak, Medium and Strong.

Hue: Control the tint ( NTSC mode only).

Aspect Ratio: Change the aspect for the screen from 4:3,Full, Zoom1, Zoom2.
