Kogan XU9220 Bedienungsanleitung

50” SMART HDR 4K LED TV

QUICK START GUIDE

SERIES 9 XU9220

(KALED50XU9220STA)

50” SMART HDR 4K LED TV

QUICK STARTGUIDE

SERIES 9 XU9220

(KALED50XU9220STA)

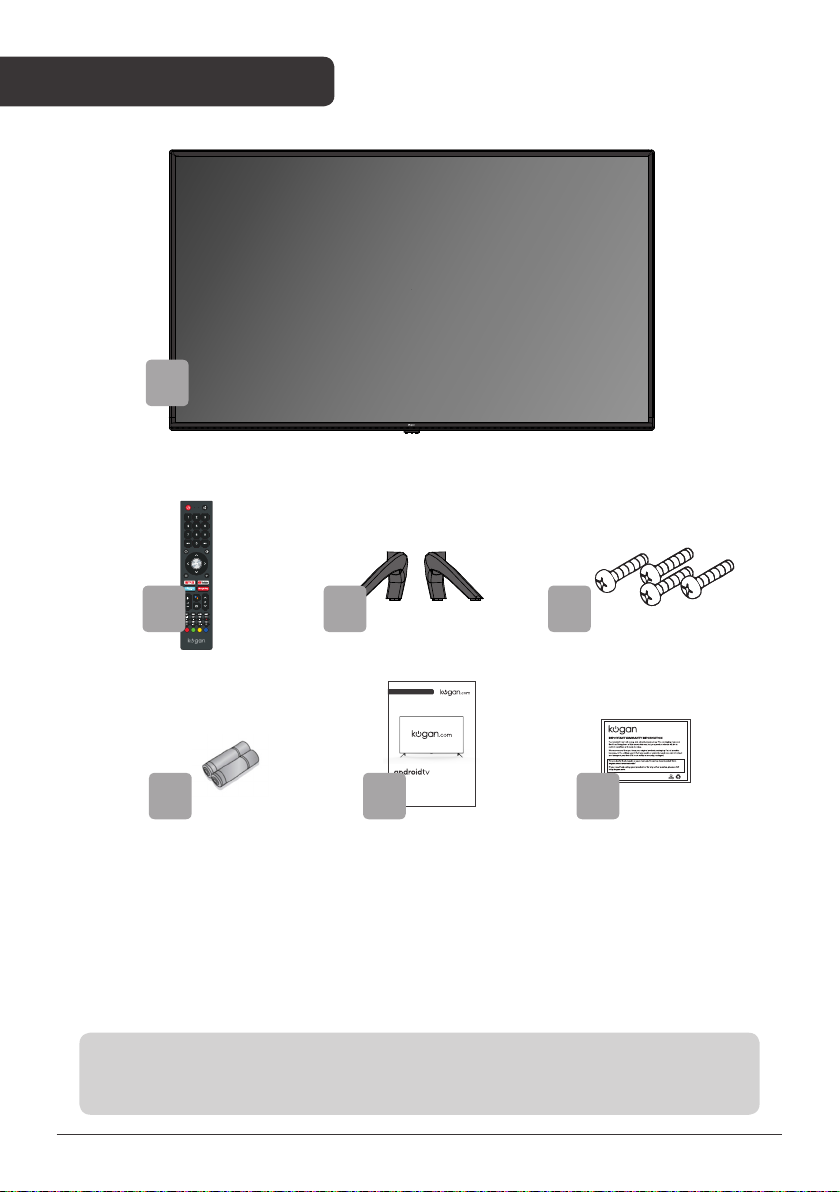

COMPONENTS

A Kogan 50” Smart

B Remote control

C Stand (x2)

D M4 x 20mm screw (x4)

E AAA battery (x2)

F Quick-start guide

G Warranty card

B D

NOTINCLUDED

Phillips head screwdriver, antenna cable, broadband internet connection.

HDR 4K LED TV

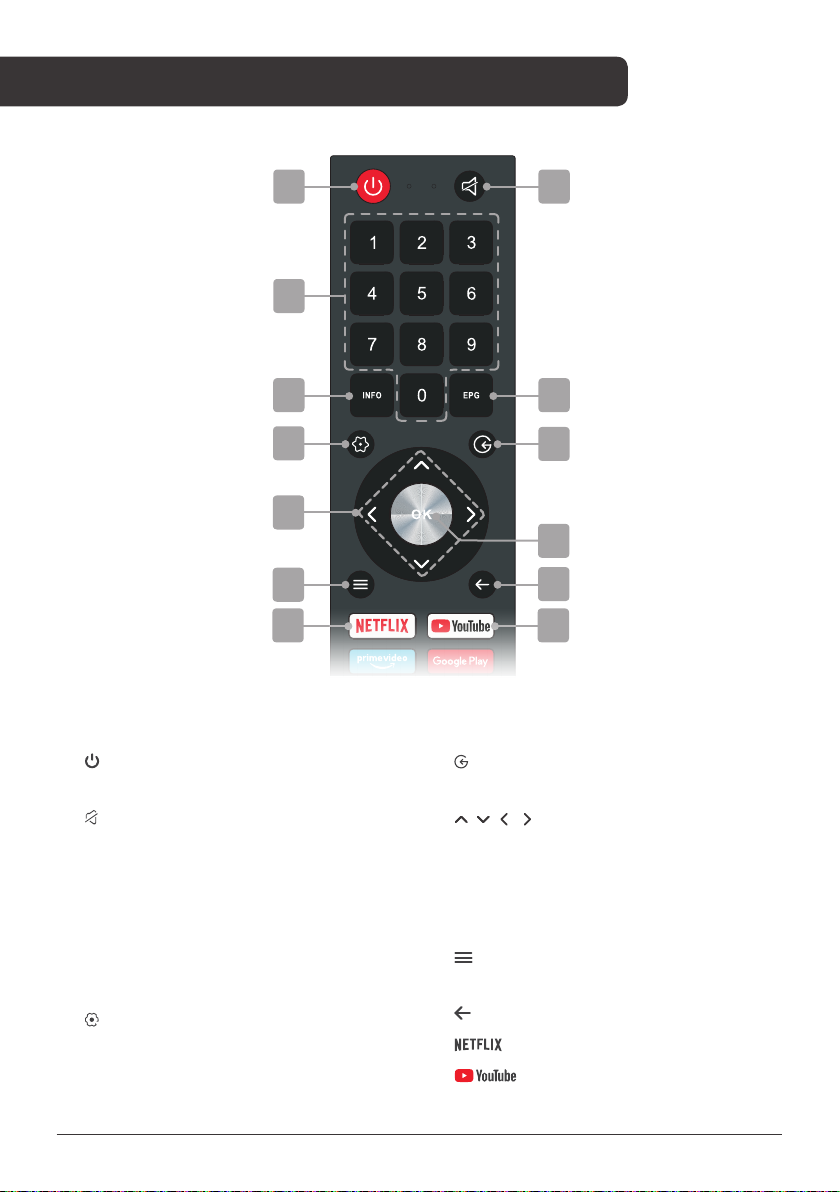

REMOTE CONTROL OVERVIEW

1 Power, press to enter or exit

2 Mute to toggle sound on/o

standby mode

to select channels

INFO displays the current program

information

EPG Electronic Program Guidein DTV

mode

Device preferences to display

3 Number buttons

Source displays the list of input

source channels.

or input passwords

/// Direction buttons for

navigating menus and settings

OK Enter select the current item

or conﬁrm selection, display Channel

list in DTV mode

sound and picture options

Quick Menu to display TV options

with optional, adjustable settings

Back to the previous menu

to open app homepage

10 11

14 to open app homepage

15 to open app homepage

Google Assistant to launch the

built-in virtual assistant for voice

commands

+- Volume to adjust the volume

up or down

Program to scroll channels

Home to access the home page

Audio to select available

languages and audio channels.

Subtitles to select subtitles

Teletext to show/hide Teletext

(Teletext not available in Australia

or New Zealand)

Start playback in media mode;

MIX mode in teletext

II Pause in media/PVR mode;

Timeshifunction in DTV mode

Stop in media/PVR mode;

Hold teletext page on display,

Record in DTV mode;

Change size of teletext screen

Reverse playback rapidly in

Subtitle mode, or

Submenu

Advance playback rapidly in

Cancel teletext but not exit

Skip to previous in media mode;

Index page

Skip to next in media mode;

Reveal hidden information in

Colour buttons for navigational use

within apps

press again to release

media mode;

some teletext pages

media mode;

14 15

USB Press to switch to the USB source.

SUBT

BEFORE YOU GET STARTED

Spread cushioning flat to lay the TV on. This will help to prevent damage.

1. Stand assembly

a. Attach stands to base of TV, ensuring ‘L’ and ‘R’ markings on the TV

and stands match.

b. Insert two 20mm screws for each stand and use Phillips head

screwdriver (not supplied) to tighten.

a. Open the battery compartment cover on the back side.

b. Insert two 1.5V AAA size batteries, making sure to match the polarity

markings (+ / -) of the batteries with the diagram inside

the compartment.

c. Replace battery compartment cover.

2a 2b 2c

ASSEMBLY AND INSTALLATION

2. Remote control assembly

4. Turning TV on

Plug the power cord into a suitable power outlet, then press the

POWER ( ) button on the remote control, making sure to aim it at the

sensor at the front of the TV. Alternatively, you can press the power

button on the lower side of the back panel on the TV.

3. Connect to antenna

a. Connect an antenna cable (not supplied) via the ‘ANT’ input port at

the back of the TV.

b. Ensure the antenna cable is also connected to a working antenna,

either via an antenna wall socket in your home, or directly.

TURNING TV OFF

Press the POWER ( ) button on the remote control to enter standby mode.

To power down the TV co m p l e tely, unplug the pow e r cord f rom the pow e r

outlet.

Do not leave your set in standby mode for long periods of time. If you will

not use the TV for a long time, it is recommended to unplug the set from

both the power outlet and aerial.

Antenna

wall socket

Antenna cable

(not supplied)

ANT

When turning the TV on for the first time, the Welcome screen will

appear. Use the , and OK buttons to navigate the following options.

Bluetooth

Your Android TV remote control has bluetooth capabilities. Follow the

onscreen prompts to pair the remote with the TV. This will allow you to

use voice commands with your remote via the Google Assistant button.

Language

Select your menu language.

Quickly set up with Android phone

If you have an Android smartphone, you can easily transfer your phone’s

Wi-Fi network and Google account to your TV. If not, select ‘Skip’.

Select Wi-Fi network

Your Android TV will automatically scan for wireless networks nearby.

Ensure the TV is within range of your wireless modem or router, and have

your password handy. Follow the prompts to input your password and

connect your TV to your selected network.

If you’d prefer to connect an Ethernet cable to connect to the internet,

simply insert the cable (not supplied) to the ‘LAN’ input port at the back

of the TV (4b), and ensure that it is correctly connected to the internet.

Google Account sign-in

Linking your Google Account to your Android TV will allow you to install

new apps from the Play store, as well as receive recommendations,

movies, and more from Google.

Te r m s o f S e r v i c e

This page will allow you to read each of the Google Terms of Service,

Location

Grant permission for your Android TV to detect your location. You can

adjust these permissions at any time from Settings.

Help improve Android

Grant permission for your Android TV to detect your location to

automatically send diagnostic information to Google.

FIRST TIME SETUP

Following these options, the

‘ANT’ input

‘LAN’ input

Auto Tuning screen will appear. Ensure you

have an antenna cable connected to the ‘ANT’ input port at the back of

the TV (4a).

The auto tuning function will search for and save all available free-to-air

TV channels. After confirming your settings (the default will be set for

Australia), the process will automatically begin. The number of searched

channels will be displayed on the screen.

When setup is complete, you will be able to access the Home page.

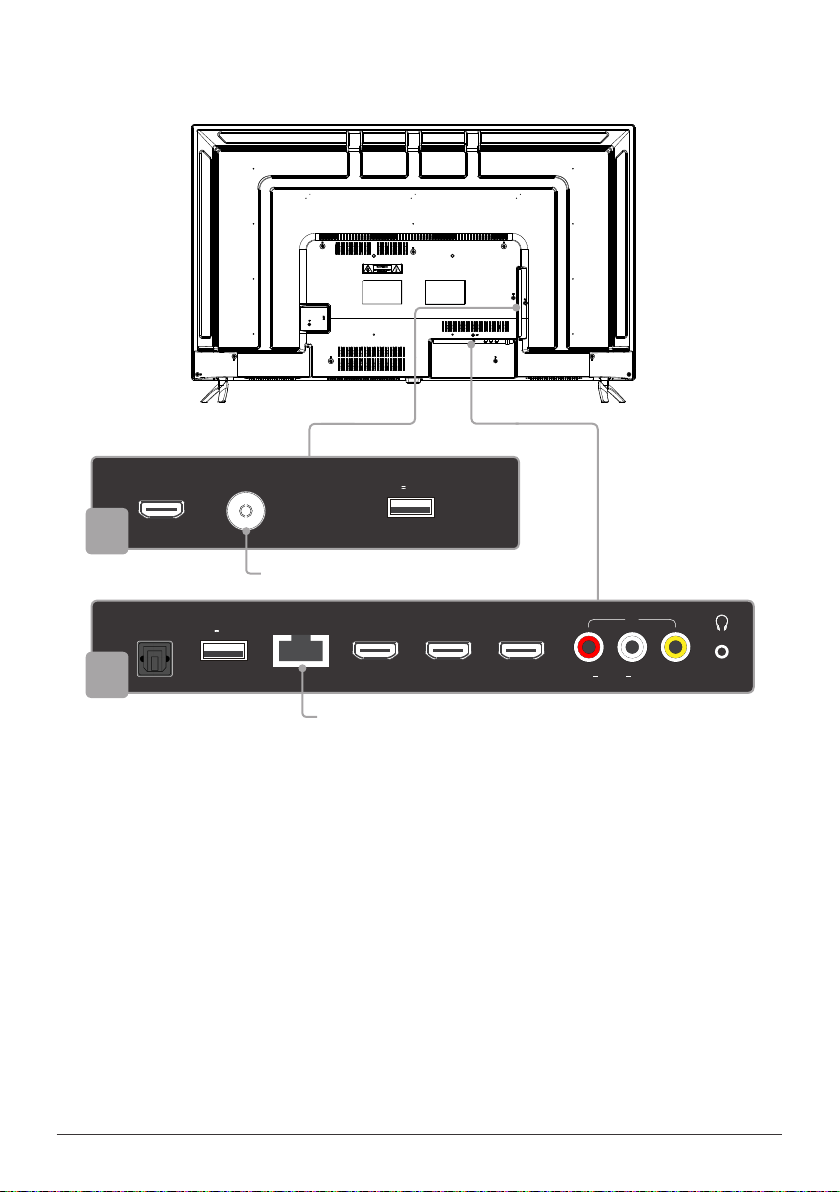

HDMI 1 (ARC)

ANT USB 2.0

(5V 500mA)

DIGITAL

AUDIO OUT

USB 2.0

(5V 500mA)

LAN HDMI 2HDMI 3HDMI 4 AV

R AUDIO L VIDEO

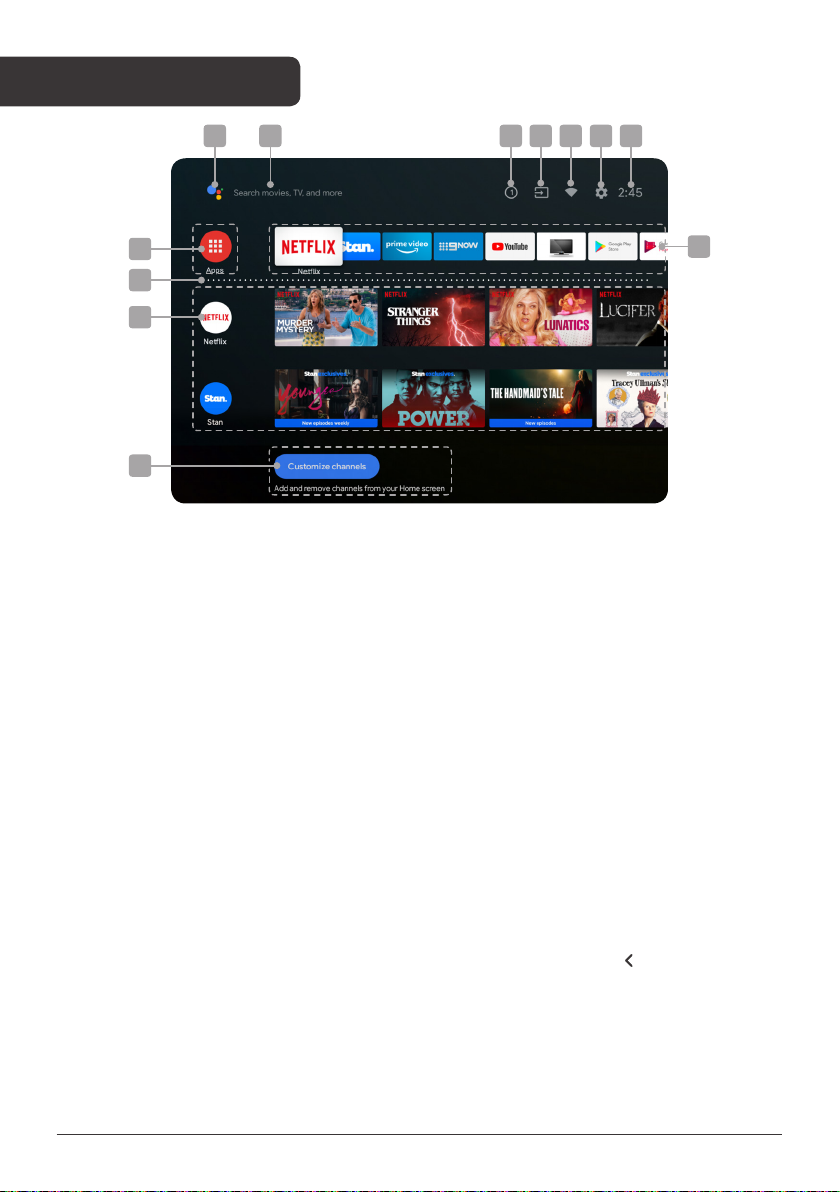

HOME PAGE

1 3 4 52 6 7

1 Google Assistant

Click to launch the built-in virtual

assistant, which will begin listening

for voice commands. Give it a try, ask

“What’s the weather today?”

2 Text search

Enter text manually to search TV apps.

3 System notiﬁcations

This option will only appear when

notiﬁcations are present.

4 Source

Access free-to-air channels (‘DTV’)

or other input source channels.

5 Internet connection

This will display as a Wi-Fi or LAN icon,

depending on your connection. Select

for connectivity options.

6 Settings

Access the global settings menu.

7 Clock

Time and date settings can be adjusted

in the global settings.

8 Apps

Access the App Centre to display all

installed apps. Free-to-air channels can

be accessed under the ‘Live TV’ option.

9 Favourites list

A customisable list of apps available at

a single click.

10 Play next

Displays the program you are watching

or have queued to play next. You can

add to this list by long pressing the OK

button, then selecting “Add to play

next”. If the play next queue is empty, it

will not be shown on the home page.

11 Pinned channels

Show the program list of pinned

channels. The order of this list can be

adjusted by pressing from the channel

icon and selecting the “<>” icon. Empty

channels will not be shown on the home

page.

12 Customise channels

Add or remove pinned channels from

the home page.

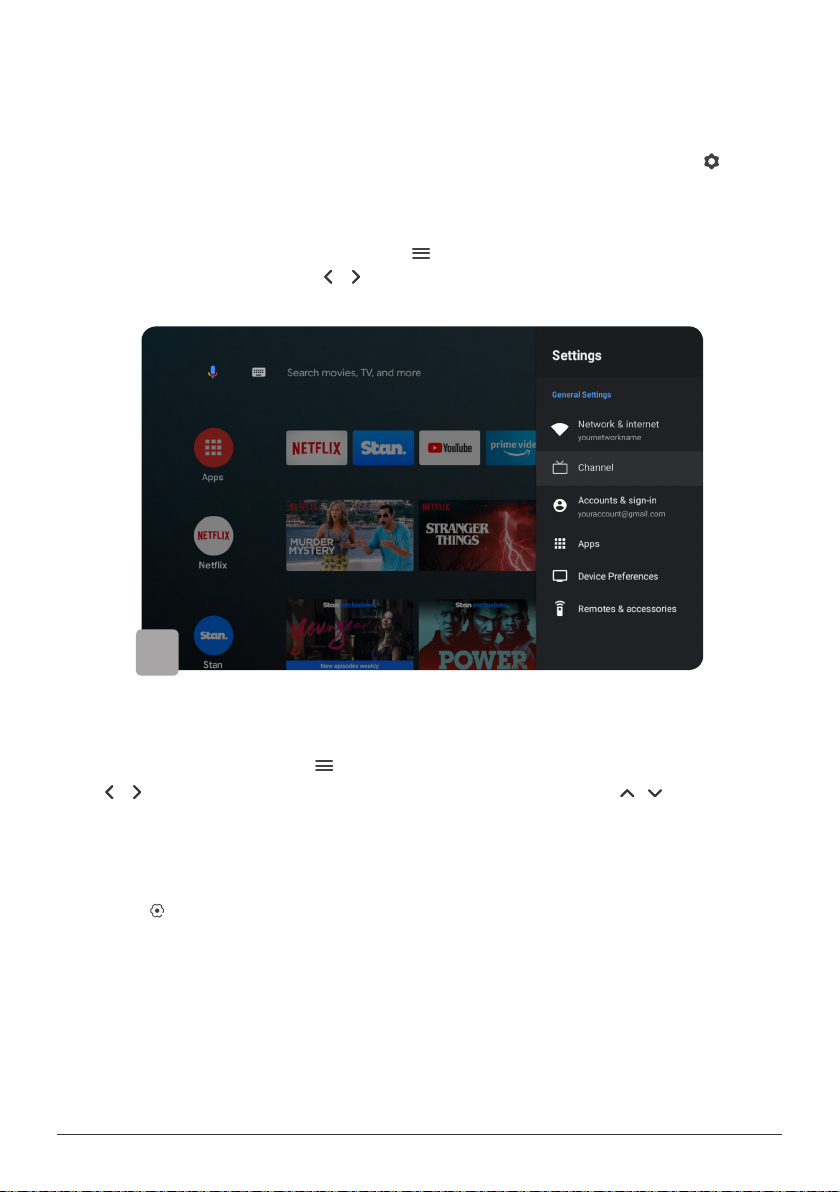

To ac ce ss th e g lo ba l sett in gs m en u , si mp ly na v i g a t e to the ‘ ’ icon

on the Home screen. Here you will find all of the adjustable options for

Android TV’s interface, connectivity, and apps.

Options for your TV (picture, aspect ratio, speakers, etc) can be

accessed by pressing the button on your remote control.

Use / buttons to navigate through the submenus, and / buttons to

access Channel and Recording/Time Shift options.

SETTINGS

uick enu

Quick Menu

In DTV mode you can also press the

(5a)

Global settings

button on your

remote control and use the / buttons to navigate to the Settings

option.

Device preferences

To open the device options submenu directly during live TV playback,

press the Device preferences button on your remote control.
