Kohler K-1737-K1 Montageanleitung
Installation and Care Guide
Steam Adapter Kit / Steam Head for DTV+
K-1737-K1, K-1838-K1,
K-5548-K1, K-5549-K1
Français, page ″Français-1″
Español, página ″Español-1″
1235393-2-C
IMPORTANT INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
WARNING: When using this unit, basic precautions should
always be followed:
DANGER: Risk of electrocution. Disconnect the electricity
to the working area at the main breaker panel before
performing these installation steps.
WARNING: Risk of personal injury. If you become
uncomfortable while taking a steam bath, you should turn off
the unit. Cool off with the shower, open the door, or exit the
unit.
WARNING: Risk of allergic reaction. Before adding any
oils, aromatic therapies, or skin care products to the
aromatherapy well, make sure they will not cause an allergic
reaction to the user.
WARNING: Risk of personal injury. This steam bath may
not be suitable for use if you are pregnant, have a heart
condition, have high blood pressure, have circulatory
problems, are under the influence of alcohol, are taking drugs
or are under the care of a physician. A steam bath can put
undue stress on the body, as does any hot bath, shower, or
sauna.
WARNING: Risk of personal injury. DO NOT consume
alcoholic beverages or take medications/drugs prior to or
when using the steam bath. Alcohol and drugs affect mental
judgement, greatly increase the risk of hyperthermia, and
inhibit bodily functions such as heartbeat and respiration,
resulting in potentially dangerous effects.
WARNING: Risk of injury to children. Do not allow
children to use this unit unless they are closely supervised at
all times. The steam generator is not designed to be used by
children.
WARNING: Risk of scalding. Do not touch the steam head
during operation. The steam head is hot during operation.
WARNING: Risk of personal injury or property damage.
Avoid coming in contact with the water tank and/or steam
discharge line while the steam generator is operating or
1235393-2-C 2 Kohler Co.
IMPORTANT INSTRUCTIONS (cont.)
shortly after shutdown. Wear eye protection and protective
clothing when servicing the steam generator. The steam
generator operates at high temperatures.
NOTICE: Use this unit only for its intended use as specified in this
manual. DO NOT use attachments not recommended by Kohler Co.
NOTICE: Follow all plumbing, electrical, and building codes.
_________________________________________________________________
Operation with DTV+
To connect the steam adapter to the DTV+ system, the K-99695
system controller is required.
The provided data cable is used to connect the steam adapter to
the system controller.
Refer to the ″DTV+ System Layout″section in this guide.
Before Operating the System For the First Time:
Download and install the latest software for connected components.
This may take an hour or more to complete based on system
configuration and internet connection speed. Do not disconnect the
power from any component during software download and
installation.
Tools and Materials
Silicone
Sealant
Drill w/ 3/8", 7/16", &
2-1/2" Hole Bit
(match bit to wall material) Sealant
Tape
Socket Wrench
with 1" Socket
Pipe Nipples
Kohler Co. 3 1235393-2-C
Before You Begin
WARNING: Risk of personal injury. A user interface must
be located within the steam enclosure to allow temperature
regulation and control of the steam flow.
NOTICE: Do not locate the user interface on the same wall as the
steam head(s).
NOTICE: The temperature sensor must be located on the wall
opposite the steam head(s).
If possible install the steam generator(s) and K-99695 system
controller before beginning this installation.
Locate the steam head 6″(152 mm) above the floor and 4-1/2″
(114 mm) from the inside of the threshold.
If two steam heads are used, there must be at least 12-1/2″(318
mm) between the center of each hole. The steam heads do not
need to be located in the same area.
Locate the steam head(s) as far away as possible from any shower
seating area.
Locate the temperature sensor on the wall 5″(127 mm) down
from the ceiling.
Make sure there is adequate clearance between the steam lines
and any surrounding surfaces, or apply appropriate insulation to
the steam lines.
Temperature
Sensor
Steam
Head
Shower
6"
(152 mm)
Bath
Steam
Head
5"
(127 mm)
6"
(152 mm)
5"
(127 mm) 4-1/2"
(114 mm)
Min
Threshold
6"
(152 mm)
From Floor
Temperature
Sensor
1235393-2-C 4 Kohler Co.

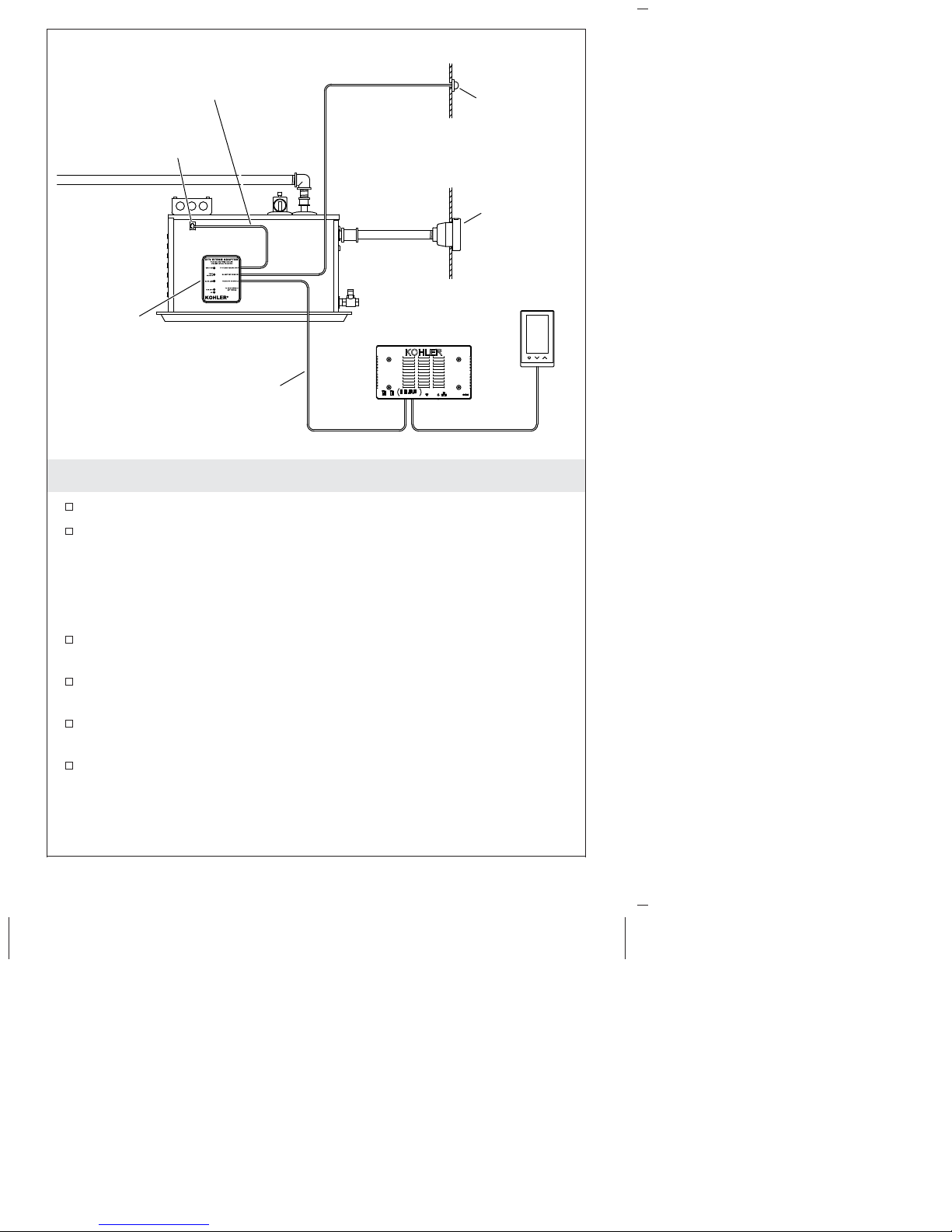

1. DTV+ System Layout
The K-99695 system controller powers the interface(s) and controls the
steam generator and other system components.
Determine the locations of all required components.
A 25’ (7.6 m) data cable is provided to connect the steam adapter
to the controller. If the steam generator is not within 25’ (7.6 m) of
the controller, add a telephone-style extension cable.
Before Operating the System For the First Time:
Download and install the latest software for connected components.
This may take an hour or more to complete based on system
configuration and internet connection speed. Do not disconnect the
power from any component during software download and
installation.
Temperature
Sensor
Steam
Generator
Steam
Adapter
Router
Interface
(Up to Three)
Controller
AC
Power
Digital
Valve(s) Steam
Head
Component
Cable
Connections
25' (7.6 m) Data Cable
Kohler Co. 5 1235393-2-C
2. Prepare the Site
NOTE: This section continues the installation described in the
steam generator installation instructions. Refer to the steam
generator installation instructions for more information, if needed.
NOTE: If two steam heads are used, there must be at least 12-1/2″
(318 mm) between the center of each hole. The steam heads do not
need to be located on the same wall. Two steam heads can be
mounted on different walls to improve steam distribution.
Install the finished wall.
Drill or cut a 2-1/2″(64 mm) hole centered around the elbow in
the wall.
Mark the temporary pipe nipple at the finished wall surface.
Remove the temporary pipe nipple from the elbow.
Finished
Wall
1/2" NPT
Elbow
2-1/2"
(64 mm)
Mark the temporary nipple
at the finished wall.
1235393-2-C 6 Kohler Co.
3. Install the Steam Head(s)
NOTICE: Do not obstruct the steam head with shut-off valves,
plugs, or caps.
Subtract 1-1/4″(32 mm) from the marked length on the
temporary nipple to determine the appropriate nipple size.
Choose a nipple length within 1/8″(3 mm) of the appropriate
size.
Apply thread sealant to one end of the nipple and thread into the
housing until hand-tight.
Apply thread sealant to the other end of the nipple.
Position the gasket onto the housing so it will sit between the
finished wall and the housing flange.
Usea1″socket to thread the housing into the elbow.
Make sure the gasket is compressed to achieve a good seal
around the housing.
If needed, use an appropriate sealant to achieve a watertight seal.
Press the steam head into the housing with the well positioned at
the top.
Steam Head
Housing
Flange
Well
Apply
thread
sealant.
Apply thread
sealant.
Subtract 1-1/4"
(32 mm) from the
marked length.
X
X
Elbow
Gasket
Kohler Co. 7 1235393-2-C
4. Install the Temperature Sensor
IMPORTANT! Do not locate the temperature sensor directly above
the steam head. Locate the temperature sensor on the wall opposite
the steam head.
IMPORTANT! Make a drip loop in the temperature sensor wire to
prevent moisture from following the wire to the steam generator.
Make sure the power is turned off at the main breaker panel
before proceeding.
Locate the temperature sensor on the wall 5″(127 mm) down
from the ceiling, on the wall opposite the steam head.
Drill a 3/8″(K-1737-K1, K-1838-K1) or 7/16″(K-5548-K1,
K-5549-K1) hole at the selected location.
IMPORTANT! Do not pinch, nail, wedge, or use undue force when
handling the sensor wire. Any damage may result in temperature
sensor failure.
Insert the temperature sensor wire through the drilled hole.
Route the wire behind the wall to the steam generator location.
Apply a small bead of silicone sealant to the back of the sensor
housing. Do not let any sealant contact the sensor probe.
Press the sensor firmly onto the wall.
Temporarily secure the sensor in place with tape.
Allow the silicone sealant to cure before use.
Sensor
5" (127 mm)
From Ceiling
Drip Loop
Back View
Apply silicone
sealant.
Apply silicone
sealant.
Drilled Hole
1235393-2-C 8 Kohler Co.
Install the Temperature Sensor (cont.)
Loop the cable through the ferrite on the adapter end of the cable,
and snap the ferrite closed. Use the cable tie provided to encircle
and lightly secure the looped cable and ferrite.
Kohler Co. 9 1235393-2-C
5. Install the Adapter – Single Steam Head
Remove the adhesive backing from the steam adapter.
Mount the adapter firmly to the side of the steam generator.
NOTICE: Do not pinch, nail, wedge, or use undue force when
handling the silver crossover cable. Any damage may result in
adapter failure. If the adapter is not installed immediately, protect
the cable ends with tape or other shielding material.
Connect the 10″(254 mm) silver or 16″(406 mm) white crossover
cable to the steam adapter and the steam generator.
Connect the temperature sensor wire to the corresponding port
on the steam adapter.
Connect the data cable to the steam adapter and route the cable
to the controller installation location.
Install the terminator into the ″Optional″port on the steam
adapter.
10" (254 mm) Silver
or 16" (406 mm) White
Crossover Cable
Steam
Adapter
Interface
Controller
25' (7.6 m)
Data Cable
Steam
Head
Temperature
Sensor
Control Cable
Input (Location
Varies By Model)
1235393-2-C 10 Kohler Co.
