68" x 32" freestanding BubbleMassage™air bath w/ music

K-2595-G2M

Features

•Streams music by pairing wirelessly with your smart phone,

tablet, iPod, or other Bluetooth®*-enabled device.

•Two hidden speakers installed in the sides of the bath.

•Includes complete audio system: two speakers, amplifier, all

installation cords.

•Airjets release thousands of bubbles that surround, support,

and massage the body.

•Variable-speed blower lets you adjust massage intensity to

18 levels.

•Freestanding design creates a striking focal point in your

bathing area.

•Integral lumbar support.

•Slotted overflow allows for deep soaking.

•Automatic and manual purge cycles remove residual water

from air channels after use.

•Coordinates with other products in the Archer collection.

•Syncs with devices enabled with BLUETOOTH®wireless

technology including smartphones, MP3 players, tablets, and

laptops located up to 33 feet away.*

Hydrotherapy

•BubbleMassage™.

Installation

•Reversible drain.

•Freestanding.

•End ledge allows for deck-mounting capabilities for faucets.

•Install amplifier within shroud or remotely.

•Music system utilizes 120V plug.

Required Products/Accessories

K-7271 Brass Slotted Overflow Bath Drain

K-7272 PVC Slotted Overflow Bath Drain

Codes/Standards

ASME A112.19.7/CSA B45.10

CSA B45.5/IAPMO Z124

UL 1795

KOHLER®Plastic Baths and

Receptors Lifetime Limited

WarrantyKOHLER®Hydrotherapy

Components Five-Year Limited

Warranty

See website for detailed warranty information.

The BLUETOOTH®word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Kohler Co. is under license.

Other trademarks and trade names are those of their respective owners.

1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

5-29-2021 17:36 - US

Archer®

68" x 32" freestanding BubbleMassage™air bath w/ music

K-2595-G2M

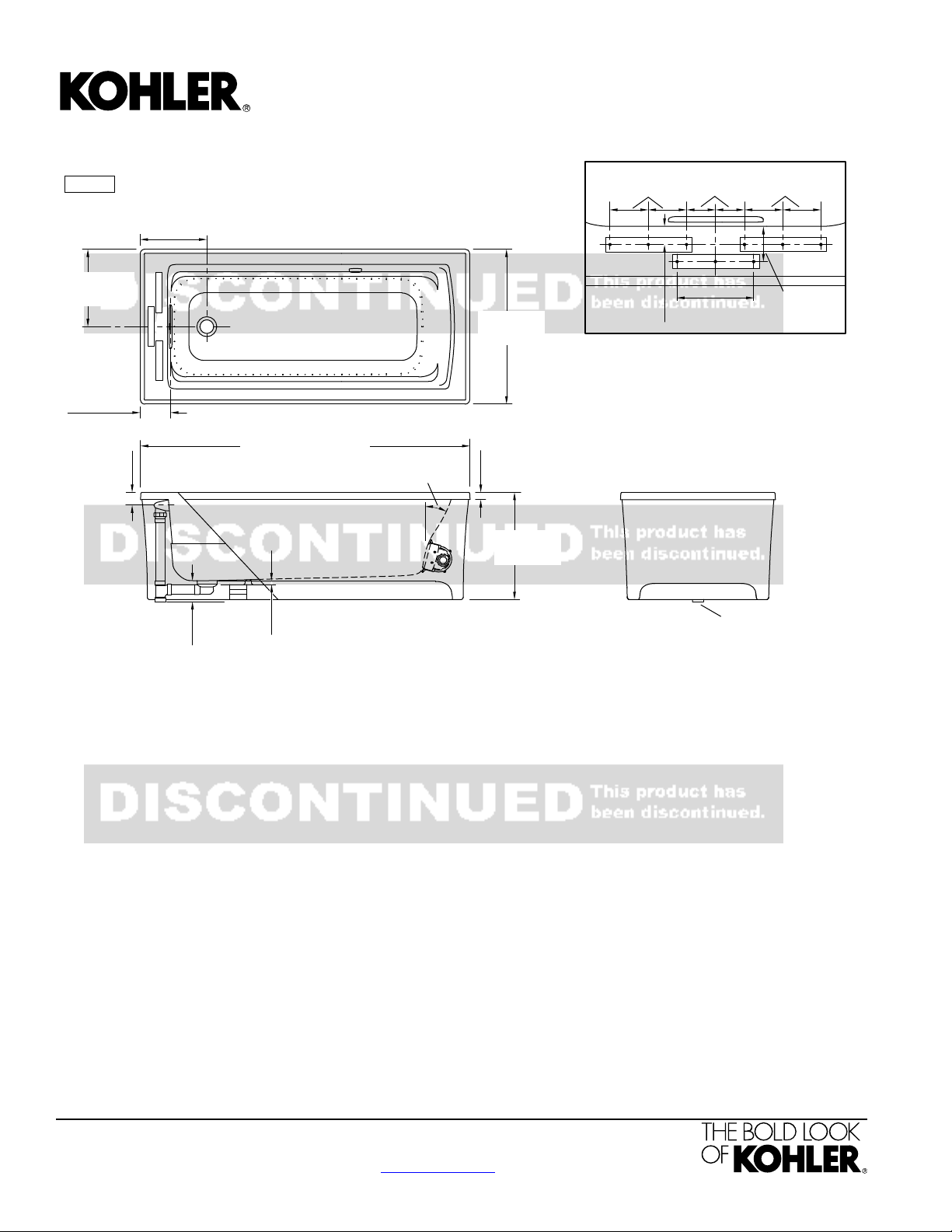

Recommended Faucet Hole Location

(203 mm)

(76 mm) 3-5/8"

(92 mm)

(102 mm) 3"

(76 mm) 4"

(102 mm)

31-3/4"

(806 mm)

22"

(559 mm)

1-1/2"

(38 mm)

Recommended Faucet Location

Lumbar

Angle 24°

1-1/2"

Bath Drain

3-15/16"

(100 mm)

(25 mm)

2-5/8"

(67 mm)

6-3/16"

(157 mm)

13-3/4"

(349 mm)

16"

(406 mm)

67-3/4" (1721 mm)

No change in measurements if connected with drain illustrated. (K-7272)

Required Electrical Service

One dedicated circuit required, protected with Class A Ground-

Fault Circuit-Interrupter (GFCI). Outside North America, this

device may be known as a Residual Current Device (RCD).

Blower, Amplifier: 120 V, 15 A, 60 Hz

Technical Information

All product dimensions are nominal.

Installation: Freestanding

Drain location: End

Basin area, bottom: 51-1/16" x 19-11/16" (1297 mm x

500 mm)

Basin area, top: 58-9/16" x 25-5/16" (1487 mm x

643 mm)

Weight: 100 lbs (45.4 kg)

Minimum floor load: 44.2 lbs/ft²(215.8 kg/m²)

Water depth: 15-1/16" (383 mm)

Water capacity: 65 gal (246.1 L)

Template: Footprint, 1265460, not required, not

included

Electrical component

rating:

Blower: 120 V, 5 A, 60 Hz

Amplifier: 100-240 V, 1.2 A, 50/60 Hz

Bluetooth®range: 33 ft (0.8 m)

Notes

Measure your actual product for rough-in

details.

Install this product according to the installation

instructions.

The hot water supply should be 70% of the

capacity of the bath or greater. Installations will

vary.

Provide one grounded electrical outlet within

24" (610 mm) of each component.

This bath is designed for freestanding

installation only.

Included amplifier can be located within

the bath shroud or in a remote location

(recommended). For rough-in details, reference

the amplifier Specification Sheet for additional

information.

If installing a rim-mount faucet, make sure there

is no interference above or below the deck

before drilling any holes.

1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

5-29-2021 17:36 - US
