Konftel 50 Bedienungsanleitung

Conference phones for every situation

US English

Quick Guide

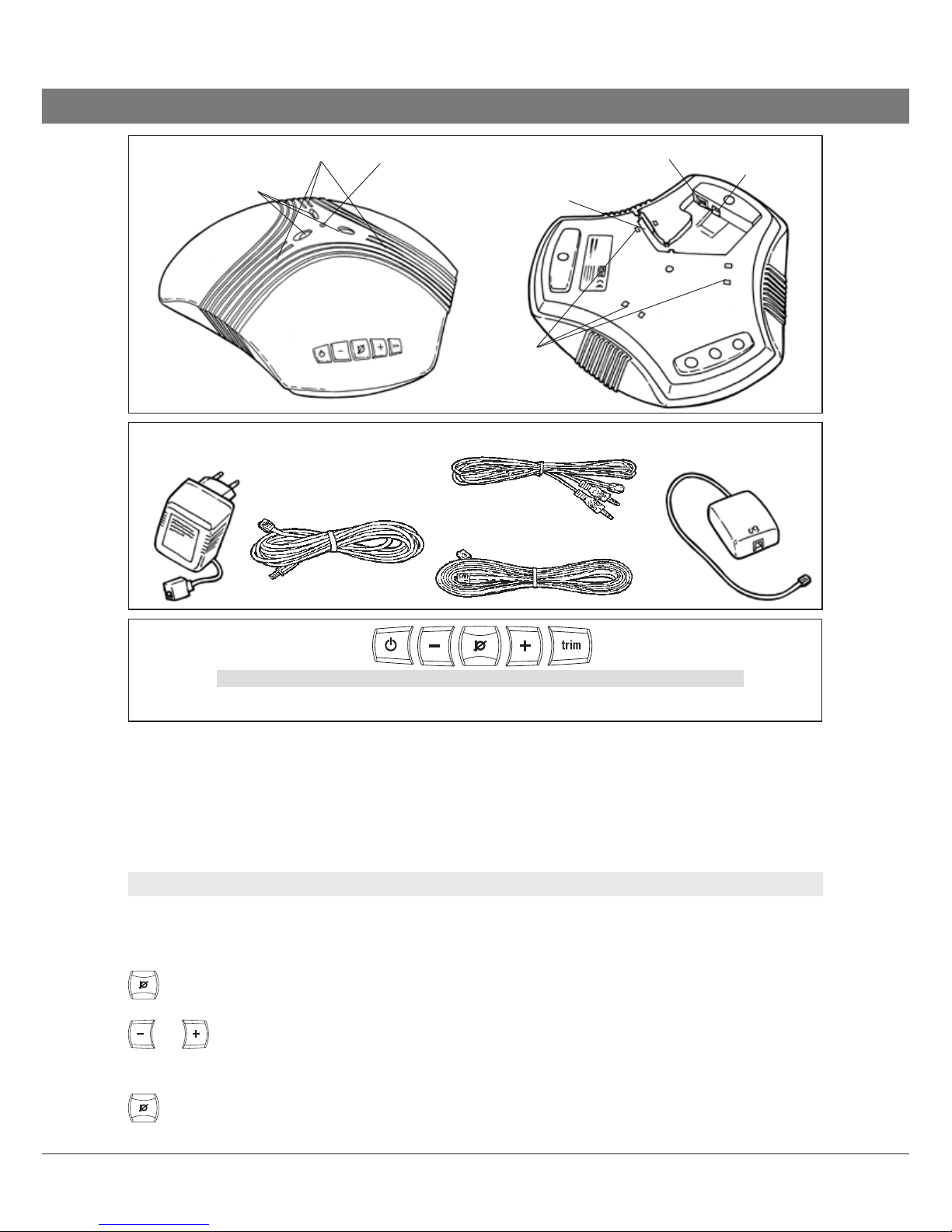

Konftel 50 Conference Unit

secs

Microphone, 360°

sound recording

Three LEDs

Green – microphone on

Red – microphone off

On/off

Answers

a call

Reduces

speaker volume

Mute

Switches off

the microphone

Increases

speaker volume

Trim

Tunes

the sound quality

Connection cable computer, 4 ft (1.5m)

(Konftel 50–computer)

Connection cable electricity, 19 ft (6m)

(Konftel 50–plug adapter)

Plug adapter

Connection cable electriity

–mains socket

Switchbox

(Konftel 50–telephone

handset)

Cable duct

Power supply

Line connection

Connection cable telephone, 9 ft (3m)

(Konftel 50–switchbox)

Holes for

wall bracket

Three speakers

DESCRIPTION

Konftel 50 converts a system, DECT or cell telephone into a conference telephone using

OmniSound®, Konftel’s unique technology for optimal sound quality. Konftel 50 can also be

connected to a computer and accessed using communication software, e.g. Skype®. The

handbook and Konftel’s website www.konftel.com offer suggestions for various accessories and

applications.

Adjusting the microphone sensitivity

The microphone volume can be adjusted during the call, but to avoid disturbing

the call, it may be best to adjust it during a test call after the telephone has been

paired.

Press and hold the mute button for 3 seconds until the LEDs start to ﬂash and

you hear a tone.

Increase the microphone volume using +and reduce it using –.

Adjust the microphone volume one level at a time until you can hear well in the

other end. Please note that too high a level may cause echoes and feedback.

Press the mute button to conclude setting the selected microphone volume.

1 2 3

19ft (6m) 9ft (3m)

Konftel 50

Plug adapter

Switchbox

19in (0.5m)

CONNECTION TO SYSTEM TELEPHONE

Connecting

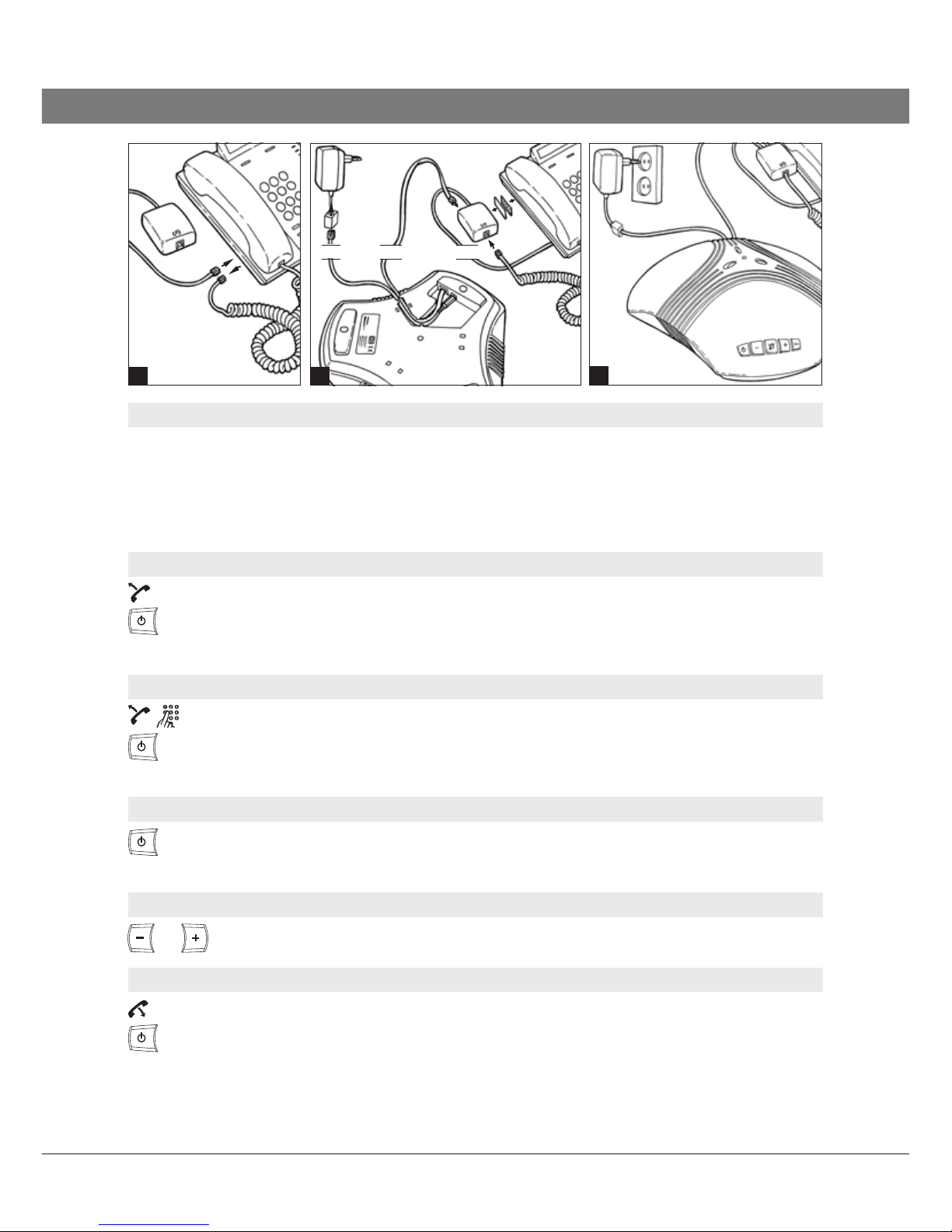

Connect Konftel 50 to the telephone via the switchbox as per the picture above.

Plug Konftel 50 in using the power adapter as shown in the picture.

Make a test call to check that everything works and to adjust the microphone

setting.

Answering a call

Answer the call using the telephone in the normal way.

Press the on/off button to switch on Konftel 50 and change to a speaker call.

The telephone headset is now disconnected.

Making a call

Lift the handset and dial the number.

Press the on/off button to switch on Konftel 50 and change to a speaker call.

The telephone headset is now disconnected.

Transferring a call between Konftel 50 and a telephone

Press the on/off button to switch off Konftel 50 and transfer the call back to

the telephone.

Adjusting the speaker volume

Increase the speaker volume using +and reduce it using -.

Ending a call

Hang up the handset.

Press the on/off button to switch off Konftel 50.

MIC-IN

LINE-OUT

Computer/sound

card

Konftel 50

Connection cable

computer, 4 ft (1.5m)

Plug adapter

Pink

Green

Connection cable

electricity, 19 ft (6m)

CONNECTION TO COMPUTER

Connecting

Konftel 50 functions as a speaker and microphone for all PCs. It can be connected

using a cable to the computer’s soundcard, or via a USB adapter (accessory). See

the handbook for more information on the last connection method.

Connect in the order speciﬁed below.

Connect Konftel 50 to the sound card using the accompanying Y-cable as per

the picture.

LINE OUTPUT ----------- OUT (Green)

MICROPHONE INPUT - IN (Pink)

Plug Konftel 50 in using the power adapter as shown in the picture.

Start the computer and switch on Konftel 50 (on/off).

Check and adjust the computer’s sound and volume settings. Please note

that you may need to adjust the microphone and speaker volume in both the

computer’s settings and on Konftel 50.

Using Konftel 50 with a computer

You can use Konftel 50 for programs that communicate over the Internet (e.g.

Skype). You make, answer and end calls in the program. Konftel 50 functions as a

speaker and microphone when it is switched on.

Bottom of Konftel 50

Plug adapter

Mobile or wireless telephone

(DECT)

Mobile phone cable, 4 ft (1.5m)

Mains outlet 110V

(230V in Europe)

Connection cable electricity, 19 ft (6 m)

Connecting

The Konftel 50 can be connected to a GSM or wireless DECT telephone using an

accessory cable, as illustrated. Cables are available for most models on the market.

Visit www.konftel.com for more information on accessories.

Plug Konftel 50 in using the power adapter as shown in the picture.

Connect the telephone to Konftel 50 as shown in the picture.

Adjust the microphone and speaker volume in the same way as when connect-

ing to system telephones.

Use

See “Connection to system telephone”.

CONNECTING TO A MOBILE OR DECT TELEPHONE

3124-61-001 rev B

Developed by Konftel AB

Box 268, SE-901 06 Umeå, Sweden

Phone: +46 90 706 489 Fax: +46 90 131 435

E-mail: info@konftel.com Web: www.konftel.com

Konftel is a leading company within speaker communication and audio technology. We develop

and sell products and technology for telephone conferences based on cutting-edge expertise wit-

hin acoustics and digital signal processing. Characteristic of our products is that all conference

telephones provide the same high quality audio technology – OmniSound®– providing crystal clear

sound. Read more about Konftel and our products on www.konftel.com.
