CMP-2DTO3DCONV
2D to 3D video converter
2
1 Introduction
Welcome to the 3D Converter Box User Manual.
To get the best results from the 3D Converter Box, it is recommended that you first read this
manual.
2 Components and Contents
2.1 New 3D Converter Box Components
3D Converter Box
Power Supply
3D Glasses
Remote Control
HDMI Cable
3
2.2 Other Components that are Required
A Regular HD TV with at least one HDMI input
An existing HDMI Cable
Blu-ray Player, Set-Top-Box, Media player etc.
2.3 Converter Box – Front Panel
4
2.4 Converter Box – Back Panel

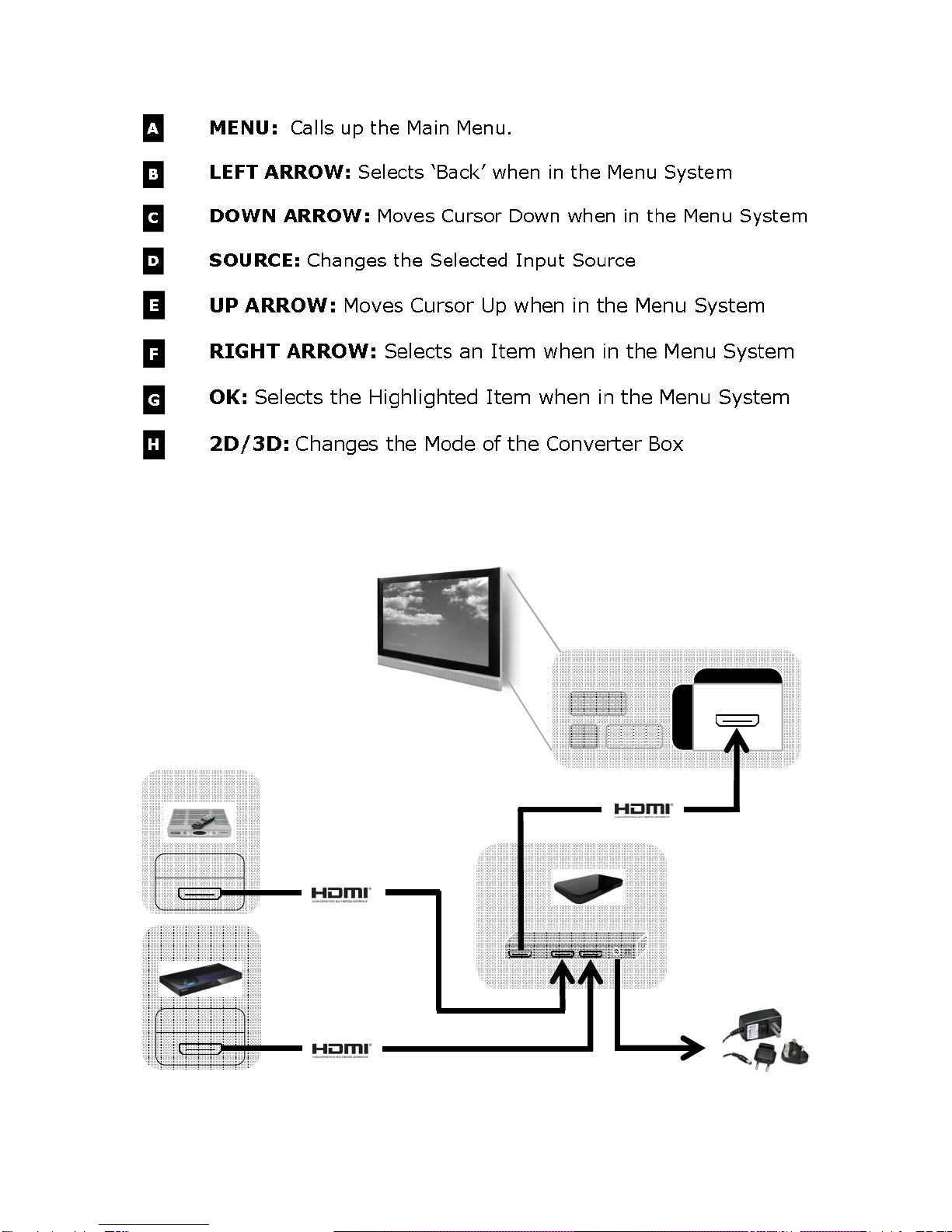

2.5 Converter Box – Remote Control
A
B
C
D
E
F
G
H
5
3 Installation
3.1 Connection Diagram – The View After Installation
Converter Box
HDMI IN
1
Set Top Box
HDMI OUT
Blu Ray Player
HDMI OUT
TV
HDMI
OUT
HDMI
IN
HDMI
IN
21
6
The 3D Converter Box supports Hot-Plugging of Devices. Devices can be connected in any order
and at any time. Follow the procedure below carefully to step through and view each stage of the
installation.
Please refer to the Appendix for more advanced connectivity options which handle multichannel
audio and other compressed audio formats.
3.2 Step 1: Connect the 3D Converter Box Power Cable

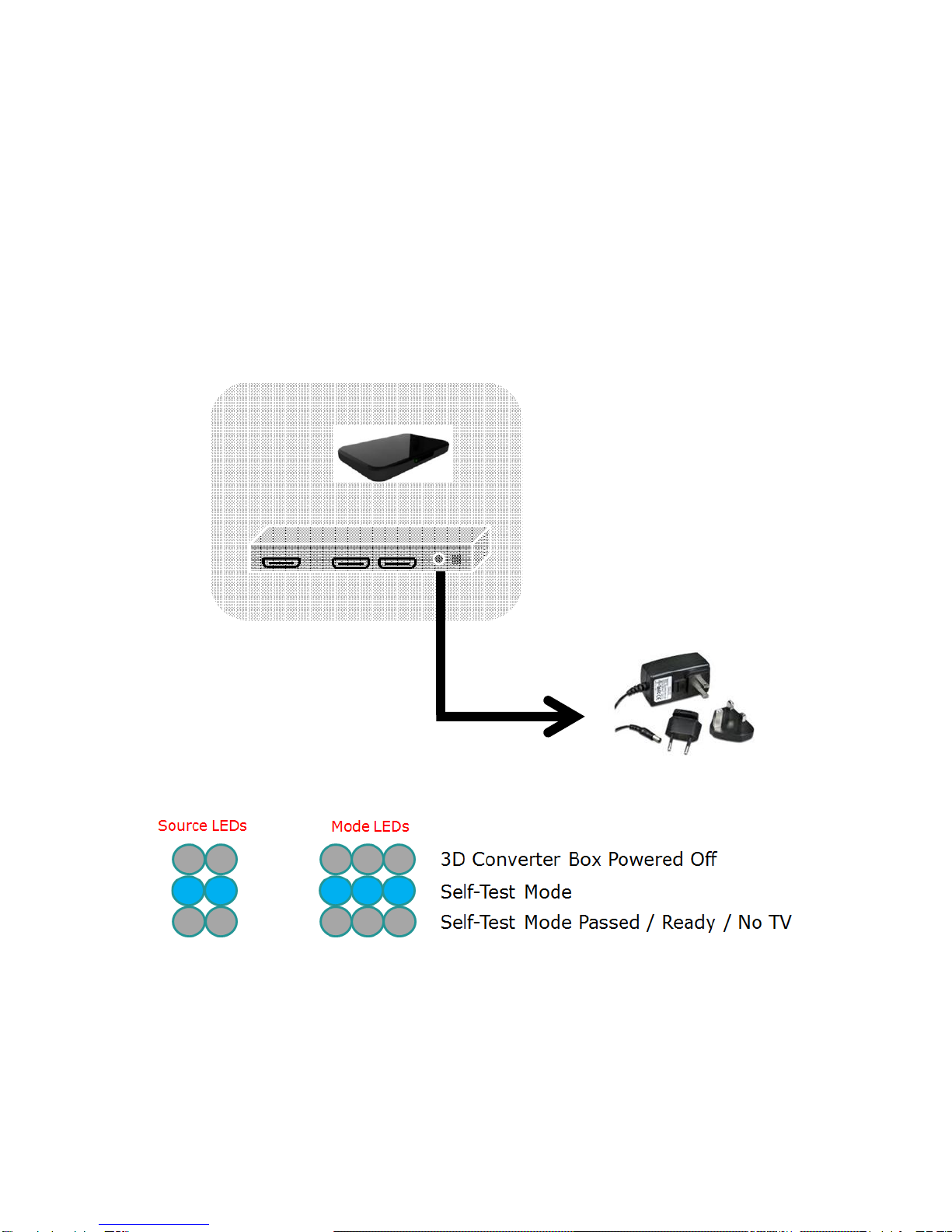

1. Disconnect all cables and leads from the 3D Converter Box. Note that all LEDs on the
Front Panel of the 3D Converter Box are off.
2. Connect the 3D Converter Box power cable to the 3D Converter Box and plug in to a
mains outlet.
Converter Box
HDMI
OUT
HDMI
IN
HDMI
IN
21
3. All of the LEDs will light up briefly (self-test mode) and then they will turn off.
Your 3D Converter Box is now plugged in and functioning. It is now time to connect your TV!
7
3.3 Step 2: Connect the 3D Converter Box Output to your TV
1. Connect one end of the first HDMI Cable to the “HDMI Out” port of the 3D Converter Box.
2. Connect the other end of this first HDMI Cable to one of the HDMI input channels on your
TV.
Converter Box
HDMI IN
1
TV
HDMI
OUT
HDMI
IN
HDMI
IN
21
3. Switch on your TV and change the video source to this particular HDMI Input channel on
the TV.
4. Note that the first Source LED lights up.
8

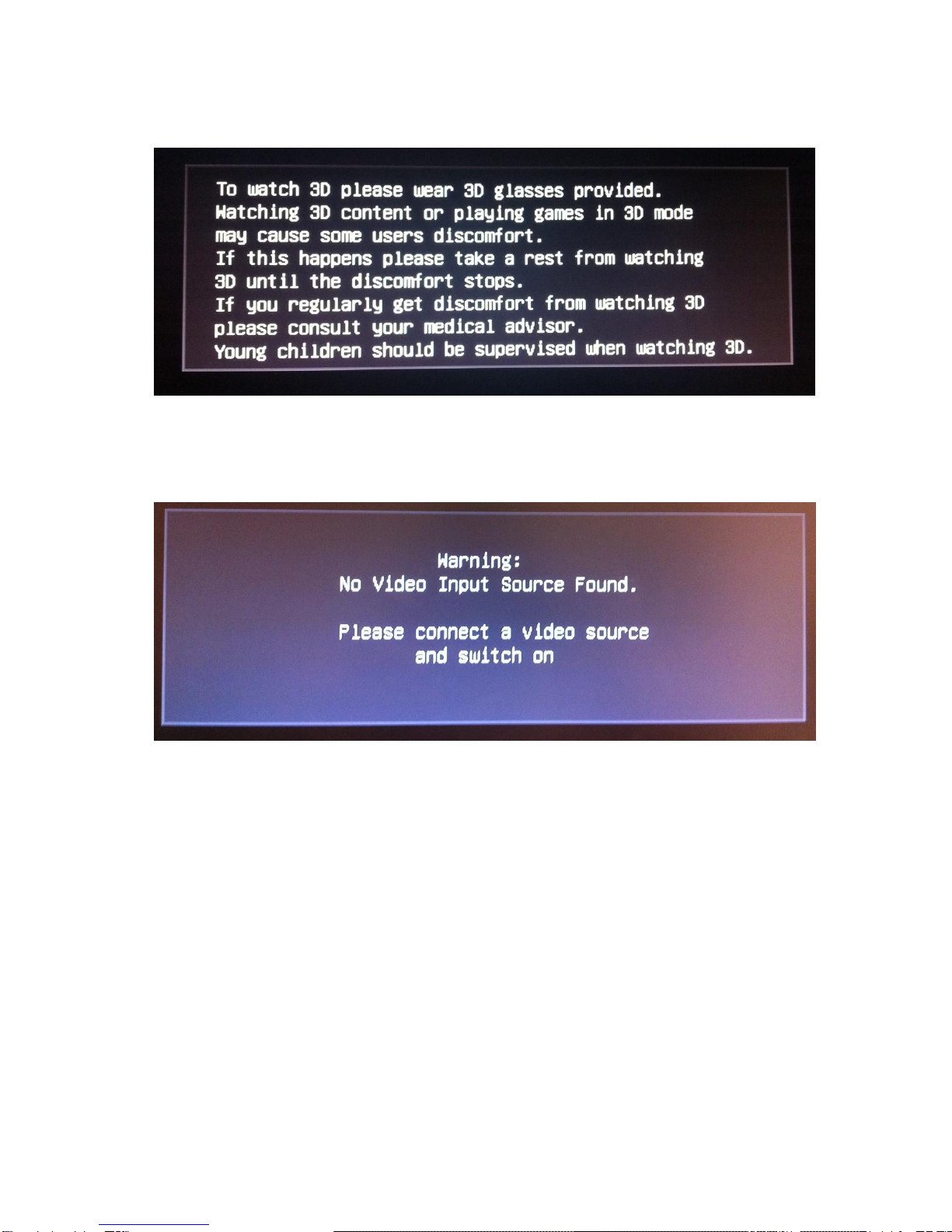

5. On your TV note that a 3D Startup Message screen will appear immediately.
Note that you can skip the 3D Startup Message screen by pressing “OK” on your remote
control.
6. The screen will then show a message saying that ‘No Video Input Source Found’.
Your TV is now connected. It is now time to connect a Video Source!
3.4 Step 3: Connect the 3D Converter Box Input Device
1. Connect one end of the second HDMI Cable to the HDMI Output port of your DVD
Player, Set-Top-Box, Gaming Device or other video device.
2. Leave the input device switched off
3. Connect the other end of this second HDMI Cable to the “HDMI 1” input port of the 3D
Converter Box.
9
Converter Box
HDMI IN
1
Set Top Box
HDMI OUT
TV
HDMI
OUT
HDMI
IN
HDMI
IN
21

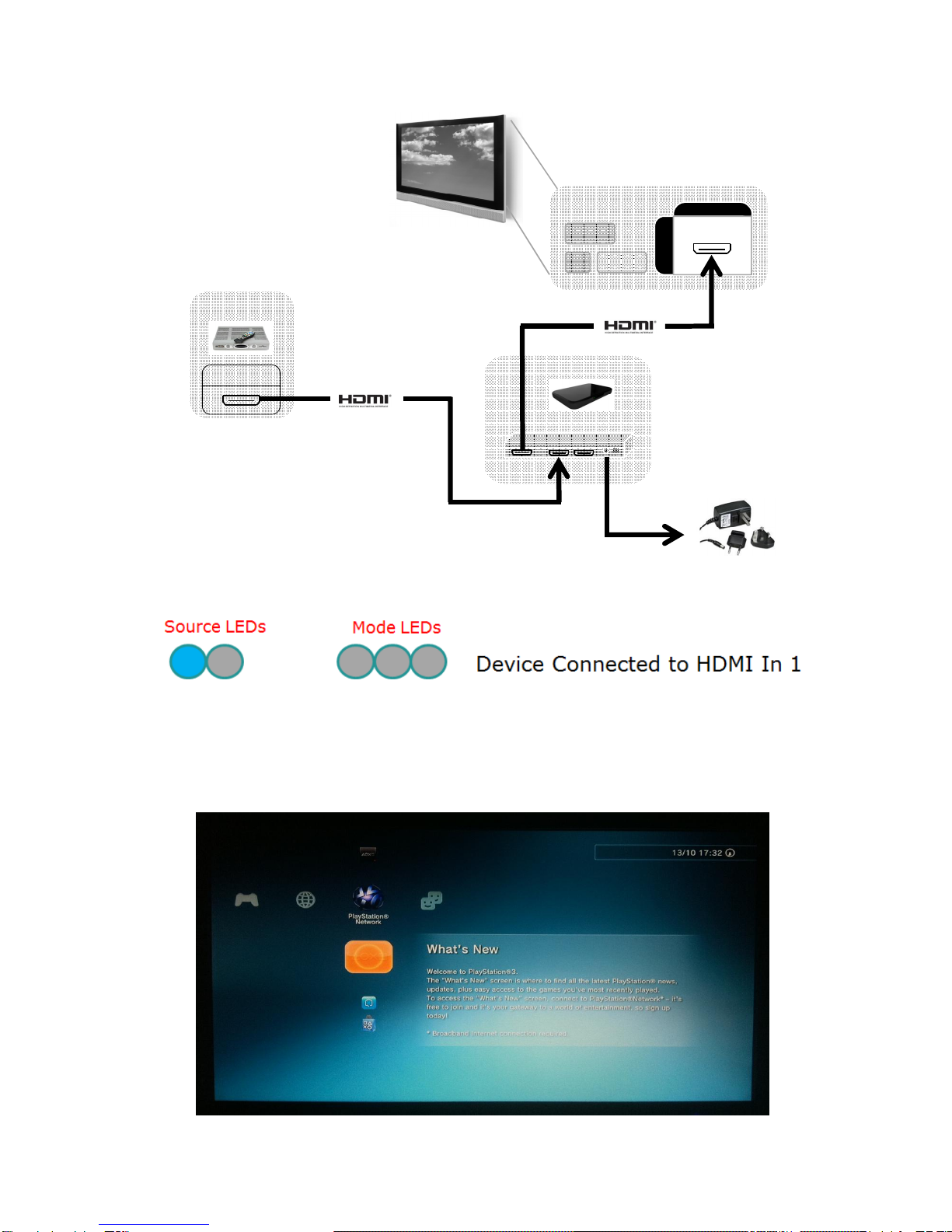

4. Note the LEDs show:
5. Note the On-Screen Message remains as follows:
6. Switch on this Input Video Device.
7. The video from the source device will now appear on the screen.
10
Your 3D Converter Box is now connected and installed correctly and ready for action!
3.5 Step 4: Determining the Current Status of the Converter Box
At any time when using the 3D Converter Box press “OK” on the remote control to display the
information screen.
This will show the current HDMI source that is selected, the mode of operation and the input and
output resolutions of the converter box.
