Kramer FC-21ETH Bedienungsanleitung

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

FC-21ETH, FC-22ETH and

FC-24ETH

Ethernet Controller

P/N: 2900-300221 Rev 4

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

4Defining the FC-21ETH, FC-22ETH and FC-24ETH Ethernet Controllers 6

4.1 Defining the FC-21ETH Ethernet Controller 6

4.2 Defining the FC-22ETH Ethernet Controller 8

4.3 Defining the FC-24ETH Ethernet Controller 10

5Initial Configuration and Use Overview 12

5.1 Configuring the FC-21ETH, FC-22ETH and FC-24ETH 13

5.2 Configuring a Virtual Port on the PC 14

5.3 Configuring an Ethernet Connection on the PC 14

6Connecting the FC-21ETH, FC-22ETH and FC-24ETH 15

6.1 Connecting via Ethernet 17

6.2 Connecting to the Ethernet Controller via RS-232 21

6.3 Connecting to a Controlled Device via the RS-485 Port 21

7Remote Operation via the Web Pages 23

7.1 Browsing the FC-24ETH Web Pages 23

7.2 Connected Clients Page 25

7.3 Device Settings Page 26

7.4 Communication Page 27

7.5 Serial Port Settings Page 28

7.6 Security Page 29

7.7 Logs Page 31

7.8 About Us Page 32

8Configuring and Maintaining the FC-21ETH, FC-22ETH and FC-24ETH 33

8.1 Selecting the RS-232 or RS-485 Serial Port 33

8.2 Terminating the RS-485 Bus 33

8.3 Activating DHCP 34

8.4 Resetting to the Factory Default Settings 34

8.5 Upgrading the Firmware 34

9Technical Specifications 35

9.1 Data Handling Performance 36

9.2 Example Bandwidth Calculation 36

10 Default Communication Parameters 37

11 Kramer Protocol 3000 38

11.1 Kramer Protocol 3000 – Syntax 38

11.2 Kramer Protocol 3000 – Command List 41

11.3 Kramer Protocol 3000 – Detailed Commands 42

11.4 Parameters 54

Contents

Figures

Figure 1: FC-21ETH Ethernet Controller Front Panel 6

Figure 2: FC-21ETH Ethernet Controller Rear Panel 7

Figure 3: FC-22ETH Ethernet Controller Front Panel 8

Figure 4: FC-22ETH Ethernet Controller Rear Panel 9

Figure 5: FC-24ETH Ethernet Controller Front Panel 10

Figure 6: FC-24ETH Ethernet Controller Rear Panel 11

Figure 7: Connecting the FC-24ETH for Initial Configuration 12

Figure 8: Configuring a Remote Connection 14

Figure 9: Connecting the FC-24ETH Ethernet Controller 16

Figure 10: Local Area Connection Properties Window 18

Figure 11: Internet Protocol Version 4 Properties Window 19

Figure 12: Internet Protocol Version 6 Properties Window 19

Figure 13: Internet Protocol Properties Window 20

Figure 14: General Info Page 24

Figure 15: Connected Clients Page 25

Figure 16: Device Settings Page 26

Figure 17: Communication Page 27

Figure 18: Serial Port Settings Page 28

Figure 19: Security Page 29

Figure 20: Security Confirmation Popup 29

Figure 21: Authentication Required Popup 30

Figure 22: Security Activated Page 30

Figure 23: Logs Page 31

Figure 24: About Us Page 32

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer FC-21ETH, FC-22ETH or

FC-24ETH Ethernet Controller, which is ideal for the following typical applications:

 Use with Ethernet/RS-232 interfaces and/or Ethernet/RS-485 interfaces

Getting Started

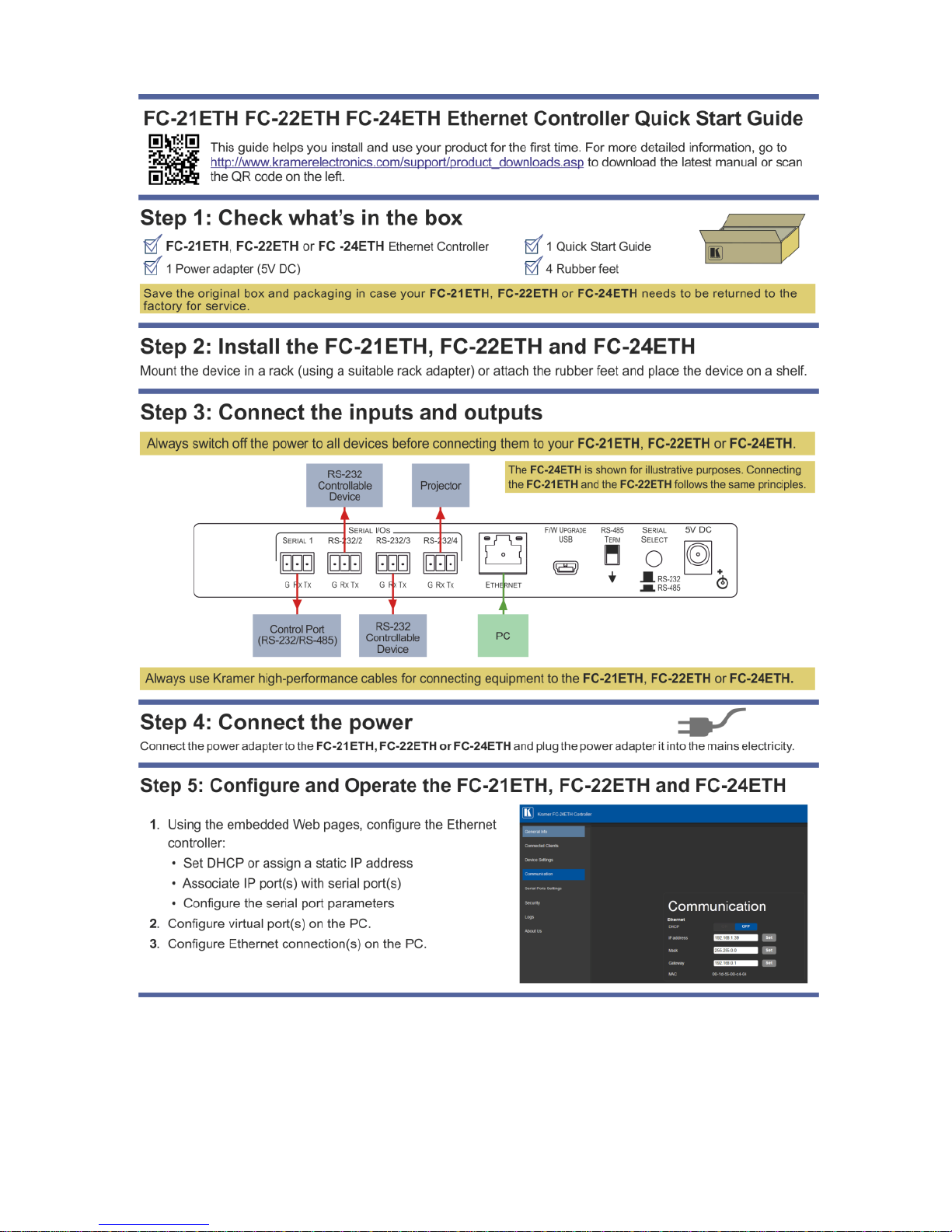

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

 Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)Do not secure the cables in tight bundles

or roll the slack into tight coils

 Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

 Position your Kramer FC-21ETH, FC-22ETH and FC-24ETH away from

moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall

before installing

Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

Overview

3 Overview

The FC-21ETH, FC-22ETH and FC-24ETH are a family of high-performance,

easy-to-use, bidirectional hardware and software interface systems for controlling

RS-232 and/or RS-485 controllable machines via an Ethernet LAN, as well as via

the Internet.

These Ethernet to serial controllers bridge the gap between Ethernet

infrastructures and serial communication devices by offering bidirectional Ethernet

to serial conversion. All setup and maintenance of the devices is done from built-in

Web pages which are accessible using any common Web browser. All devices

offer one RS-232/RS-485 dual-use serial port.

In particular, the FC-21ETH, FC-22ETH and FC-24ETH:

 Offer network connectivity that lets you connect a Kramer (or other) device

via its RS-232 or RS-485 port to an Ethernet LAN

 Let you control up to three RS-232 devices and one RS-485 device (model

dependent) via Ethernet from a PC

 Let you control a device from multiple Ethernet points (PCs or remote

controllers), via a LAN or the Internet

 Include Windows® based Virtual Port software for setting up virtual ports on

a PC

 Support Internet-based, remote firmware upgrades

 Can be rack mounted in a 1U rack space with the optional rack adapters

More specifically, the FC-21ETH, FC-22ETH and FC-24ETH feature:

 One RS-232/RS-485 port (FC-21ETH), one RS-232 and one RS-232/RS-

485 port (FC-22ETH), three RS-232 and one RS-232/RS-485 ports

(FC-24ETH)

 An Ethernet LAN connection

 Static or dynamic (DHCP) IP addressing

 A USB port for upgrading the firmware

Overview

 A 5V DC power supply

 A compact Kramer TOOLS™ enclosure (FC-21ETH, FC-22ETH) or

MegaTOOLS™ enclosure (FC-24ETH) which can be mounted side by side

in a 19-inch rack using suitable rack adapters

The FC-21ETH, FC-22ETH and FC-24ETH include the Virtual Serial Port Manager

(Kramer VSPM) for compatibility with applications based on COM-port

communication. The virtual serial port:

 Makes the FC-21ETH, FC-22ETH and FC-24ETH compatible with all

Windows®-based applications which require a physical COM port. This

includes all versions of K-Router and other Kramer control applications. It

lets you operate all RS-232 and RS-485 controllable devices via an Ethernet

LAN using their existing PC software

 Operates like a physical COM port, that is, a logical COM port that behaves

like a standard hardware COM port. In reality, it transparently reroutes the

data using the TCP/IP network to the FC-21ETH, FC-22ETH or FC-24ETH

interface via a virtual connection which you can emulate over the Ethernet or

Internet

 Can be created in any quantity on your PC and does not occupy a physical

serial port

Defining the FC-21ETH, FC-22ETH and

FC-24ETH Ethernet Controllers

4 Defining the FC-21ETH, FC-22ETH and

FC-24ETH Ethernet Controllers

4.1 Defining the FC-21ETH Ethernet Controller

Figure 1 defines the front panel of the FC-21ETH.

Figure 1: FC-21ETH Ethernet Controller Front Panel

Feature

Function

ON LED

Lights green when the unit is on

ETHERNET

LEDs

CONNECTED

Lights yellow when the Ethernet port is connected

DATA

Flashes green when data is transferred over the Ethernet

link

SERIAL

LEDs

RS-232

Lights green when RS-232 is selected

RS-485

Lights green when RS-485 is selected

Flashes red when the serial port is transmitting data

Flashes green when the serial port is receiving data

DHCP

ON LED

Lights green when DHCP is selected

Button

Press to toggle the selection between DHCP and static IP

addressing, (see Section 8.3)

FACTORY DEFAULT Button

Press and hold while power-cycling the device to reset to

factory default parameters, (see Section 10)
