Kramer T10F-22M Bedienungsanleitung

The Kramer T10F-22M Inner Frame

Congratulations on purchasing your Kramer T10F-22M Inner Frame for the TBUS-10XL Table

Connection bus.

The T10F-22M Inner Frame includes:

•An opening for a MegaTOOLS®or

DemiTOOLS®device

•2 power socket openings

•1 blank insert

•1 pass-through insert

•2 TOOL brackets

Note that you can install the optional T-2INSERT (P/N: 80-00006699) inside

a single power socket opening.

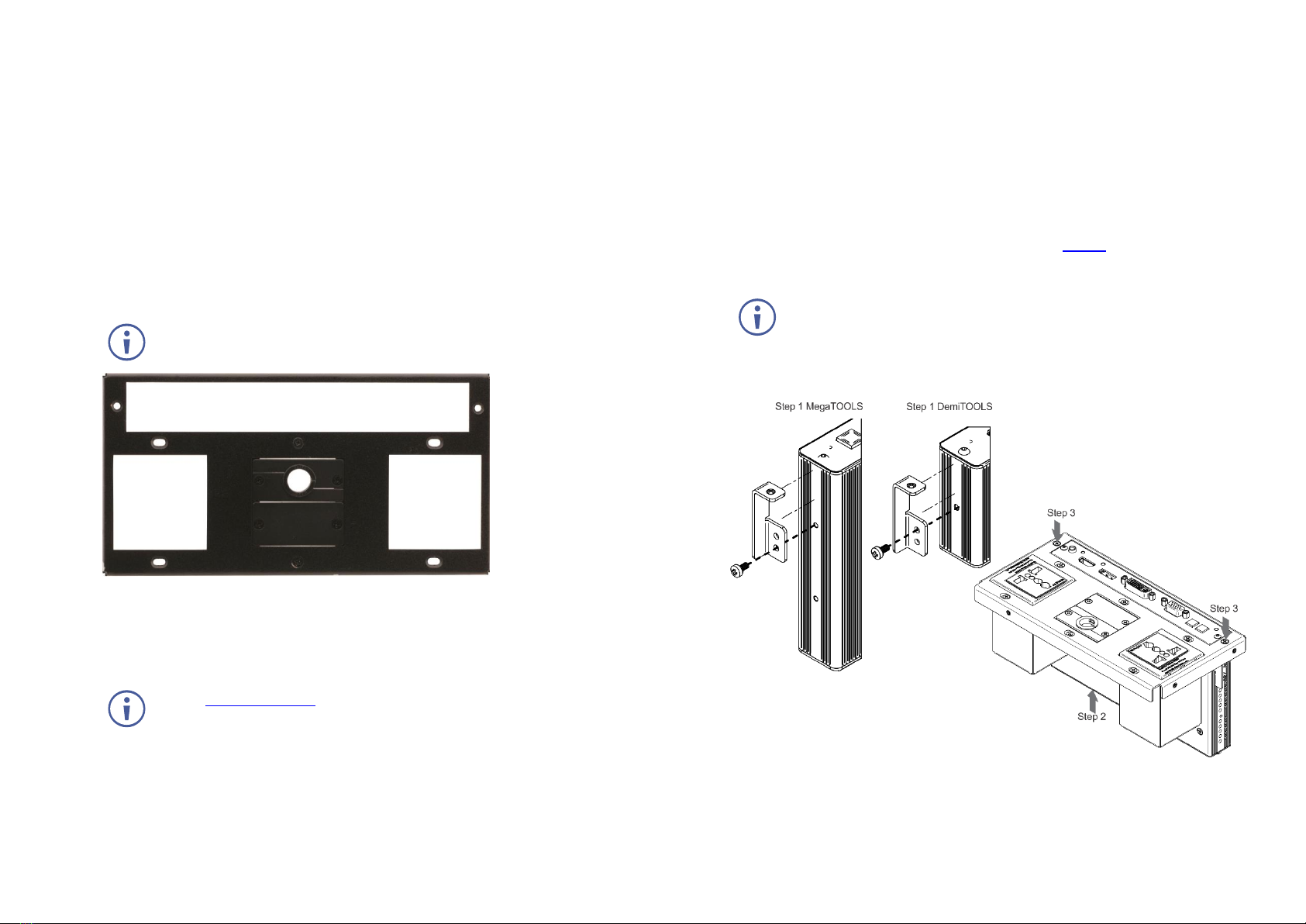

Figure 1: T10F-22M Inner Frame (P/N: 80-000028)

Installing the Wall Plate Inserts

Before installing the inner frame, you need to install wall plate inserts.

Go to www.kramerAV.com to check for up-to-date user manuals and the

complete list of Kramer wall plate inserts and module connectors.

You can rearrange or remove any of the blank inserts mounted on the inner frame and replace

them with Kramer wall plate inserts or connector modules for interfacing A/V type signals.

To mount a Kramer insert or connector module:

1. Unscrew the two screws that fasten the blank insert tothe inner frame and remove the

blank insert.

2. Place the required Kramer wall plate insert over the opening, insert the two screws to fix

the Kramer insert in place, and tighten them.

Installing MegaTOOLS or DemiTOOLS Devices

To install a MegaTOOLS or DemiTOOLS device, as shown in Figure 2:

1. Fasten one of the supplied TOOL brackets to each side of the device.

Make sure to insert the screw into the correct hole.

2. Insert the device, from underneath, through the MegaTOOLS/DemiTOOLS opening.

3. Fasten the screws (one on each side) through the inner frame holes and TOOL brackets.

Figure 2: Installing a MegaTOOLS or DemiTOOLS Device

Installing the Inner Frame

To install the T10F-22M inner frame:

1. Place the assembled inner frame inside the TBUS-10XL enclosure.

2. Set the required height using your fingers to bring the inner frame to the desired position,

and then screw and tighten it in place using the height adjustment screws supplied with the

inner frame.

Connecting the Cables

When replacing blank inserts with connector inserts (for example, VGA, audio, HDMI and so on):

1. Insert the cables to their appropriate connectors from underneath.

2. Secure the cables to the tie holes on the TBUS-10XL.

Do not secure the cables too tightly or too loosely. Leave a small amount of slack.

After the TBUS-10XL is connectedto mains power and the proper cables, it is ready for use.

Adjusting the Height of the Inner Frame

If needed, you can adjust the inner frame to one of the several possible heights to accommodate

large or bulky cables. To adjust, perform the following:

1. Remove the height adjustment screws, while supporting the frame from underneath with

your fingers.

2. Raise or lower the connecting surface to the required height, insert thescrews, and tighten

them in place.

KR AME R E LE C T RON IC S L TD.

Installation

Instructions

MODEL:

T10F-22M

Inner Frame

For the latest information on our products and a list of Kramer

distributors, visit our Web site where updates to this user manual may be

found.

We welcome your questions, comments, and feedback.

Web site: www.kramerAV.com

E-mail: info@KramerAV.com

P/N: 2900-300225 Rev 2

P/N:

2900-300225

Rev:

SAFE TY WARNING

Disconnect the unit from the power

supply before opening and servicing
