Krautzberger MP-520 Bedienungsanleitung
Article No. 200-0216, 200-0330
Translation of the original operating instructions
T-Dok-397-GB-Rev.2
GB Diaphragm pump MP-520
Operating instructions
Thank you for selecting a Krautzberger product.
This product has been manufactured following state-of-the-art manufacturing procedures and
extensive quality assurance measures. We promise you a product of the highest quality.
If you have questions, requests or suggestions, please contact us. We are always glad to assist
you.
Information about the operating manual
This manual provides important information on how to work with the device safely and efficiently.
The manual is part of the device and must always be kept in the immediate proximity of the device
so that it is accessible to the personnel at all times.
The personnel must have read and understood this manual before starting any work. Compliance
with all specified safety information and instructions is a basic requirement for safe working condi-
tions.
In addition, the local occupational safety regulations and general safety rules apply for the area of
application of the device.
Due to optional finishing variants, it is possible that the figures shown in this operating manual
deviate from your device.
Information about explosion protection
Many of our competitors have been marking their products with the Ex symbol as a matter of prin-
ciple for some time now.
At Krautzberger we do not do that.
We engineer and manufacture our products in line with currently applicable directives.
If the labelling on the product is required, it is affixed to the product as the result of the necessary
analysis of ignition sources. If no labelling is affixed, the analysis of ignition sources and previous
experience with the assessment of the suitability of products for use in a potentially explosive area
have shown that the product described in this operating manual does not represent a potential
source of ignition, with the exception of an electrostatic charge.
Taking into account the potential equalisation (provided by proper earth connection), the use in an
area at risk for explosions is permitted in accordance with the currently valid directives.
[email protected], www.krautzberger.com
GB–2
Table of contents
1 Function and identification................................................................................................ 5
1.1 Function....................................................................................................................... 5
1.2 Identification................................................................................................................. 5
2 Safety and responsibility................................................................................................... 7
2.1 Symbols in this manual................................................................................................ 7
2.2 Personnel requirements............................................................................................... 8
2.3 Personal protective equipment.................................................................................... 9
2.4 Responsibility of the owner........................................................................................ 10
2.5 Intended use.............................................................................................................. 10
2.6 Predictable misuse.................................................................................................... 10
2.7 General safety instructions........................................................................................ 11
2.8 Residual risks............................................................................................................ 12
2.9 Course of action in an emergency............................................................................. 13
3 Transport, storage, and packaging................................................................................. 14
3.1 Transport................................................................................................................... 14
3.2 Storage...................................................................................................................... 14
3.3 Packaging.................................................................................................................. 14
4 Menu.................................................................................................................................. 15
5 Installation and disassembly........................................................................................... 16
5.1 Safety......................................................................................................................... 16
5.2 General installation information................................................................................. 17
5.3 Installing the diaphragm pump................................................................................... 18
5.4 Connecting the diaphragm pump............................................................................... 19
5.5 Dismantling the diaphragm pump.............................................................................. 21
6 Operation........................................................................................................................... 24
6.1 Safety......................................................................................................................... 24
6.2 General information about the start-up...................................................................... 26
6.3 Shut-down.................................................................................................................. 26
6.4 Start-up...................................................................................................................... 27
7 Maintenance...................................................................................................................... 28
7.1 Safety......................................................................................................................... 28
7.2 General maintenance information.............................................................................. 29
7.3 Maintenance schedule............................................................................................... 29
7.4 Clean the diaphragm pump....................................................................................... 30
7.5 Replace valve parts................................................................................................... 31
7.6 Replace the diaphragm.............................................................................................. 33
Diaphragm pump MP-520 ENGLISH
Article No. 200-0216, 200-0330
GB–3
8 Troubleshooting............................................................................................................... 35
8.1 Customer Care.......................................................................................................... 35
8.2 Troubleshooting table................................................................................................ 36
8.3 Work for clearing faults.............................................................................................. 37
9 Spare parts........................................................................................................................ 40
9.1 Spare parts................................................................................................................ 40
10 Accessories...................................................................................................................... 41
11 Disassembly and disposal............................................................................................... 42
11.1 Safety....................................................................................................................... 42
11.2 Disassembly............................................................................................................ 42
11.3 Disposal................................................................................................................... 42
12 Technical data................................................................................................................... 44
12.1 General specifications............................................................................................. 44
12.2 Material delivery properties...................................................................................... 44
12.3 Dimensions.............................................................................................................. 45
13 Declaration of conformity................................................................................................ 46
14 Notes.................................................................................................................................. 47
15 Index.................................................................................................................................. 50
Operating instructions T-Dok-397-GB-Rev.2
[email protected], www.krautzberger.com GB–4
1 Function and identification
1.1 Function
The MP-520 is an air-operated diaphragm pump.
By changing the pressure in the air supply, the conveying capacity of the diaphragm pump can be
seamlessly regulated.
As soon as the set material pressure has been reached, the diaphragm pump switches off auto-
matically. The material pressure is maintained until material is extracted at the extraction point.
The diaphragm pump switches on automatically and keeps the set material pressure constant.
It is optimally suited for conveying paints, oils, etc.
1.2 Identification
Scope of delivery Model Product number
Diaphragm pump MP-520 200-0216
Diaphragm pump MP-520 - PTFE-coated 200-0330
Operating instructions T-Dok-397
Diaphragm pump MP-520 ENGLISH
Article No. 200-0216, 200-0330
GB–5
Serial number

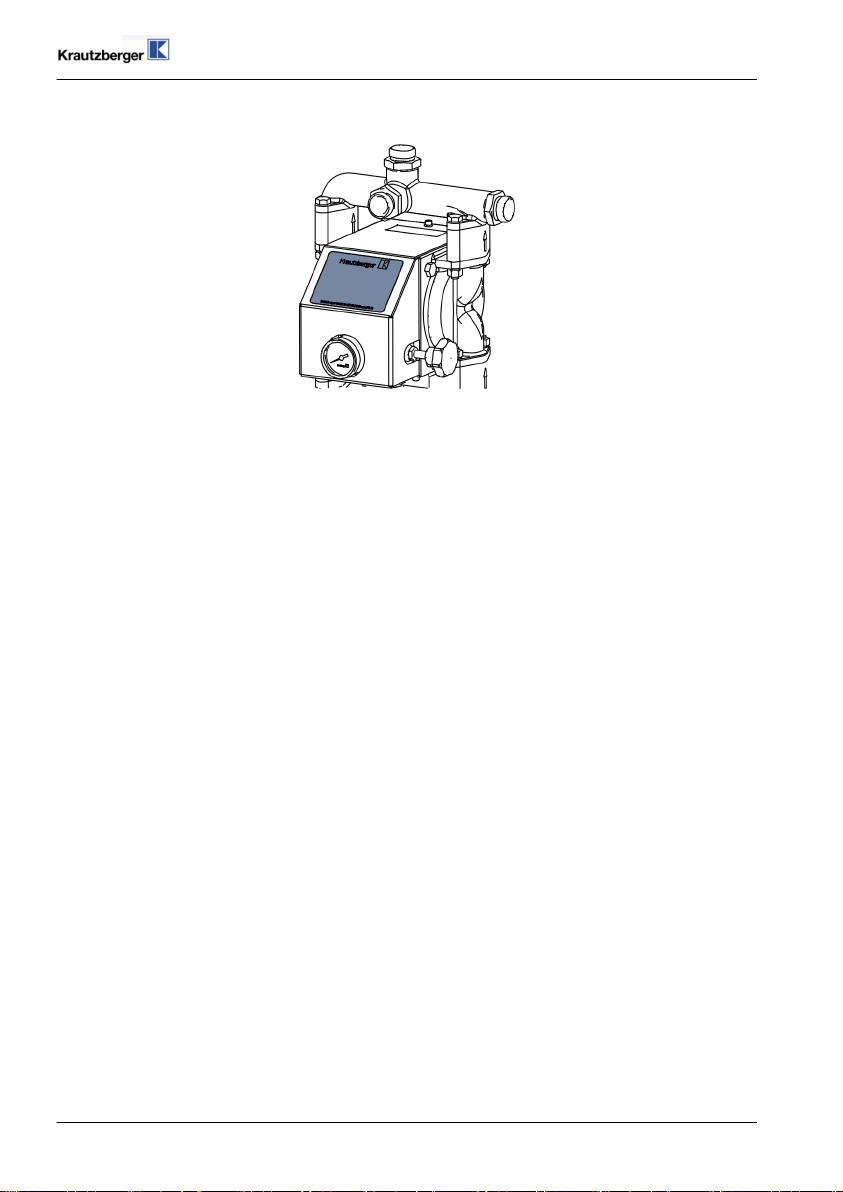

Fig. 1: Serial number
The serial number ( Fig. 1) of the diaphragm pump is located on the front. It serves as a unique
identifier.
Operating instructions T-Dok-397-GB-Rev.2
[email protected], www.krautzberger.com GB–6
2 Safety and responsibility
2.1 Symbols in this manual
Safety information
This manual uses symbols to identify safety information. The safety information is preceded by
signal words that indicate the severity of the hazard.
DANGER!
This combination of symbol and signal word indicates an immediate dangerous situation,
which will cause death or severe injuries if it is not averted.
WARNING!
This combination of symbol and signal word indicates a possibly dangerous situation which
can cause death or severe injuries if it is not averted.
CAUTION!
This combination of symbol and signal word indicates a possibly dangerous situation which
can cause slight injuries if it is not averted.
NOTICE!
This combination of symbol and signal word indicates a possibly dangerous situation which
can cause property and environmental damage if it is not averted.
ENVIRONMENT!
This combination of symbol and signal word indicates potential environmental hazards.
Safety information in operating instructions
Safety information can refer to specific, individual operating instructions. Such safety information is
embedded in the operating instructions so that it does not disrupt the reading flow during the exe-
cution of the action. The signal words described above are used.
Diaphragm pump MP-520 ENGLISH
Article No. 200-0216, 200-0330
GB–7
Example:
1. Loosen screw.
2.
CAUTION!
Pinching hazard at the cover!
Carefully close cover.
3. Tighten screw.
Special safety instructions
The following symbols are used in safety instructions to draw the attention to special hazards:
Warning signs Type of danger
Warning – hot surface.
Warning – danger zone.
Tips and recommendations
This symbol highlights useful tips and recommendations as well as information for efficient
and fault-free operation.
Additional identifications
The following symbols are used in this manual to highlight operating instructions, results, lists, ref-
erences, and other elements:
Identification Explanation
Step-by-step operating instructions
ðResults of procedural steps
References to sections in this manual and other applicable docu-
ments
Lists without specified sequence
[Pushbutton] Operating elements (e.g. buttons, switches), display elements
(e.g. signal lights)
‘Display’ Screen elements (e.g. buttons, assignment of function keys)
2.2 Personnel requirements
Operating instructions T-Dok-397-GB-Rev.2
[email protected], www.krautzberger.com GB–8
This manual identifies the qualifications of the personnel for the different scopes of work as listed
below:
Qualified personnel
Due to their specialised professional training, knowledge, and experience as well as knowledge of
the industry-specific standards and regulations, qualified personnel are in a position to perform
assigned tasks and to identify and avert potential risks on their own.
Specialised personnel
Due to their specialised professional training, knowledge, and experience as well as knowledge of
the industry-specific standards and regulations, qualified personnel are in a position to perform
assigned tasks and to identify and avert potential hazards on their own.
Trained electrician
Due to specialised professional training, knowledge and experience as well as knowledge of the
industry specific standards and regulations, a trained electrician is able to carry out work on the
electrical systems and to identified and avert potential risks on his/her own.
The trained electrician has completed specialised training for the specific work environment where
he/she works and knows the relevant standards and regulations.
User
The user is familiar with the basic regulations on occupational safety and accident prevention.
2.3 Personal protective equipment
Personal protective equipment is used to protect persons from impacts on their occupational health
and safety.
The personnel must wear personal protective equipment while carrying out the different tasks and
while working with the device.
The selection of the protective equipment depends on the coating material that is used. To
ensure the proper selection of personal protective equipment, the information provided by the
spray material manufacturer indicated on the safety data sheet must be adhered to.
Description of the personal safety equipment recommended by Krautzberger
The personal safety equipment and clothing is described below:
Diaphragm pump MP-520 ENGLISH
Article No. 200-0216, 200-0330
GB–9
Protective equipment:
nProtective clothing
nEar protection
nLight respiratory protection
nSafety goggles
nProtective gloves
nSafety shoes
nSafety helmet
2.4 Responsibility of the owner
Owner
The owner is the person, who directly operates the machine for commercial or economical pur-
poses or who allows a third-party to use/apply it and who is responsible for the legal product stew-
ardship for the protection of the user, the personnel or third parties.
Owner responsibilities
The machine is used in an industrial environment. The owner of the machine is therefore subject to
the obligations as stipulated by the Occupational Health and Safety Act.
In addition to the safety information in this manual, the country-specific safety, accident prevention
guidelines and environmental protection regulations, applicable at the site of implementation of the
machine must be adhered to.
Furthermore, the owner is responsible for making sure that the machine is always in perfect tech-
nical condition. Therefore, the following applies:
nThe owner must ensure that the maintenance intervals described in this operating manual are
adhered to.
nThe owner must have all safety equipment checked regularly for functionality and complete-
ness.
2.5 Intended use
The MP-520 diaphragm pump is a pump operated with compressed air and is used exclusively:
nfor the conveying of liquid and low-viscosity coatings from non-pressurised storage con-
tainers.
nfor the supply of material to spray guns. automatic spray guns, metering devices and similar.
It is mainly used for painting and coating procedures.
The intended use also includes the compliance with all the information in this manual.
2.6 Predictable misuse
Any use beyond the intended use or any other use constitutes misuse.
nOnly carry out the installation and start-up in accordance with the steps described in these
operating instructions.
nAlways observe the applicable country-specific safety, accident prevention, occupational
safety, and environmental protection regulations for the area of use for the diaphragm pump.
Operating instructions T-Dok-397-GB-Rev.2
[email protected], www.krautzberger.com GB–10
Andere Handbücher für MP-520
1
Inhaltsverzeichnis
Andere Krautzberger Wasserpumpe Handbücher
Krautzberger
Krautzberger MP-520 Bedienungsanleitung
Krautzberger
Krautzberger MP-100 Bedienungsanleitung
Krautzberger
Krautzberger MP-560 Bedienungsanleitung
Krautzberger
Krautzberger MP-400 Bedienungsanleitung
Krautzberger
Krautzberger MP-400 Bedienungsanleitung
Krautzberger
Krautzberger MP-400 Bedienungsanleitung
Beliebte Wasserpumpe Handbücher anderer Marken
Sykes AmeriPumps
Sykes AmeriPumps GP100M Fehlerbehebungshandbuch
DUROMAX
DUROMAX XP WX Series Bedienungsanleitung
BRINKMANN PUMPS
BRINKMANN PUMPS SBF550 Bedienungsanleitung
Franklin Electric
Franklin Electric IPS Bedienungsanleitung
Xylem
Xylem e-1532 Series Bedienungsanleitung
Milton Roy
Milton Roy PRIMEROYAL Bedienungsanleitung
