LOW-PRESSURE PUMP

EOS 02-C85

Disassembly / Reassembly

TRANSLATION FROM THE ORIGINAL MANUAL

IMPORTANT : Before assembly and start-up, please read and clearly understand all the

documents relating to the equipment (professional use only).

THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT

PRIOR NOTICE.

KREMLIN - REXSON

150, avenue de Stalingrad

93 245 - STAINS CEDEX – France



: 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16

www.kremlin-rexson.com

KREMLIN REXSON - 1 - N° : 578.035.110-UK-1403

CAUTION :

Before any action on the pump, shut off the compressed air supply and

depressurize the systems.

FLUID SECTION OR AIR MOTOR REPLACEMENT

The pump is manufactured under the ATEX agreement and can not be modified.

KREMLIN REXSON will not be held responsible for any failure to comply with that

instruction.

Guards (air motor cover, coupling shields, housings …) have been designed for

safe use of the equipment.

The manufacturer will not be held responsible for bodily injury or failure and / or

damage to property due to removal or partial removal of the guards.

Position the air motor piston in a high position before shutting off the compressed air and before

depressurizing the system.

Disassemble the pump from its bracket and put aside the pump.

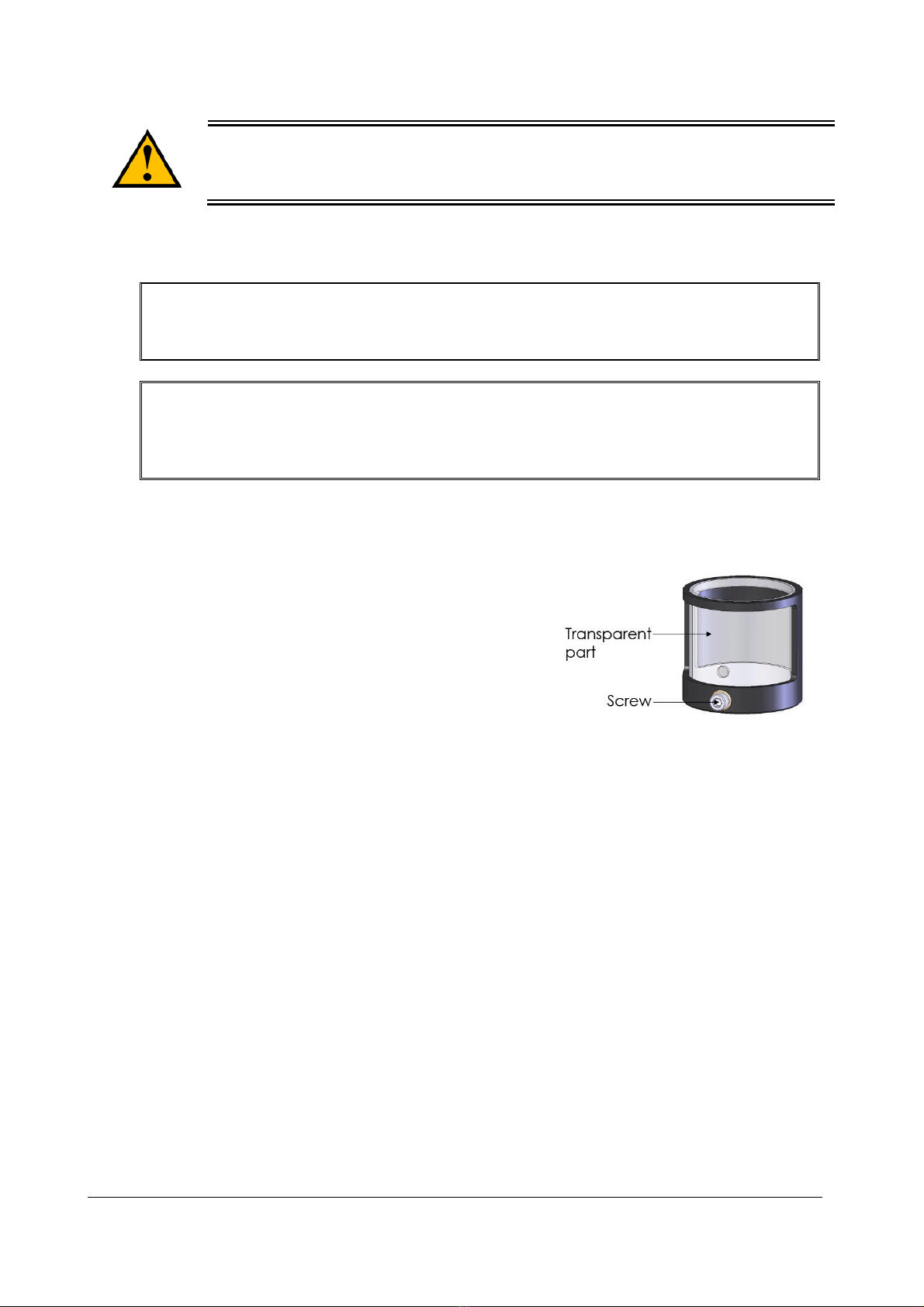

Unscrew the screw located on the protection housing with

an Allen wrench of 5. Slide the transparent part of the

protection housing to access to the parts of the coupling.

Extract the pin and the coupling axis. Disassemble the air motor from the fluid section.

When changing the air motor :

Put aside the pump air equipment. Assemble it on the new air motor.

Place the protection housing on the material flange of the fluid section, assemble the air motor and

the fluid section with the coupling axis and the pin, the rods and the nuts.

Slide the transparent part of the protection housing to close it. Align the hole located on the

transparent part of the protection housing and the srew of the protection housing. Screw the screw

with an Allen wrench of 5 to fix the protection housing.

Position the whole on the wall mounted unit.

When changing the fluid section :

Place the protection housing on the material flange of the new fluid section, assemble the air motor

and the fluid section with the coupling axis and the pin, the rods and the nuts.

Slide the transparent part of the protection housing to close it. Align the hole located on the

transparent part of the protection housing and the srew of the protection housing. Screw the screw

with an Allen wrench of 5 to fix the protection housing.

Position the whole on the wall mounted unit.

KREMLIN REXSON - 2 - N° : 578.035.110-UK-1403

MOTOR

MOTOR VALVE

Disassemble the cover (15) by removing the 3 M6 nuts (26).

Unscrew motor valve (14) by holding driving-rod (12).

Reinstall the new motor valve (14) and block it on the driving-rod (12) by means of the two flat parts

located at its end.

Reinstall cover (15) with its 3 nuts (26) maximum screwing torque : 4mN / 2.95 ft/lbs

Before reassemblying the different components :

- Clean the parts with the appropriate cleaning solvent.

- Install new seals if it is necessary after having lubricated them with PTFE grease.

- Install new parts if it is necesssary.

KREMLIN REXSON - 3 - N° : 578.035.110-UK-1403

FLUID SECTION

Index Instructions Description Part number

PTFE grease "TECHNILUB" grease

(10 ml) 560.440.101

Graphite grease Graphite grease box

(1 kg / 2.204 lb) 560.420.005

SUCTION VALVE

Unscrew suction valve body (16) from the cylinder.

The ball (17) is secured on the seat by means of a circlips (19).

Reinstall suction valve assembly and check if seal (3) is not worn or damaged.

EXHAUST VALVE

Unscrew cylinder (2) and pull it downwards.

Unscrew nut (13) by holding fluid piston rod (7).

Check if valve seal (11) and fluid valve (12) are not worn or damaged.

A 1

A 2

A 1

A 2

A 1

A 1 A 2

A 1

A 2

KREMLIN REXSON - 4 - N° : 578.035.110-UK-1403

CARTRIDGE

Unscrew cylinder (2) and pull it downwards.

Separate motor piston rod (7) by removing connecting pin (33) with cotter pin (34).

Remove circlips (6) located in the pump body cup (1) and pull cartridge (4) downwards.

Reassembly :

Insert piston rod (7) into the new cartridge (4) - from the top to the bottom - to avoid damaging the

seal.

Install piston rod with new cartridge assembly in pump body (1).

Install the cartridge by means of the circlips (6).

When remounting the other parts, be certain seals are installed.

Before reassemblying the different components :

- Clean the parts with the appropriate cleaning solvent.

- Install new seals if it is necessary after having lubricated them with PTFE grease.

- Install new parts if it is necesssary.
