KS-MINI-5P/8P

10/100 SOHO Switches

User’s Guide

DOC.070524-KSMINI-5P/8P

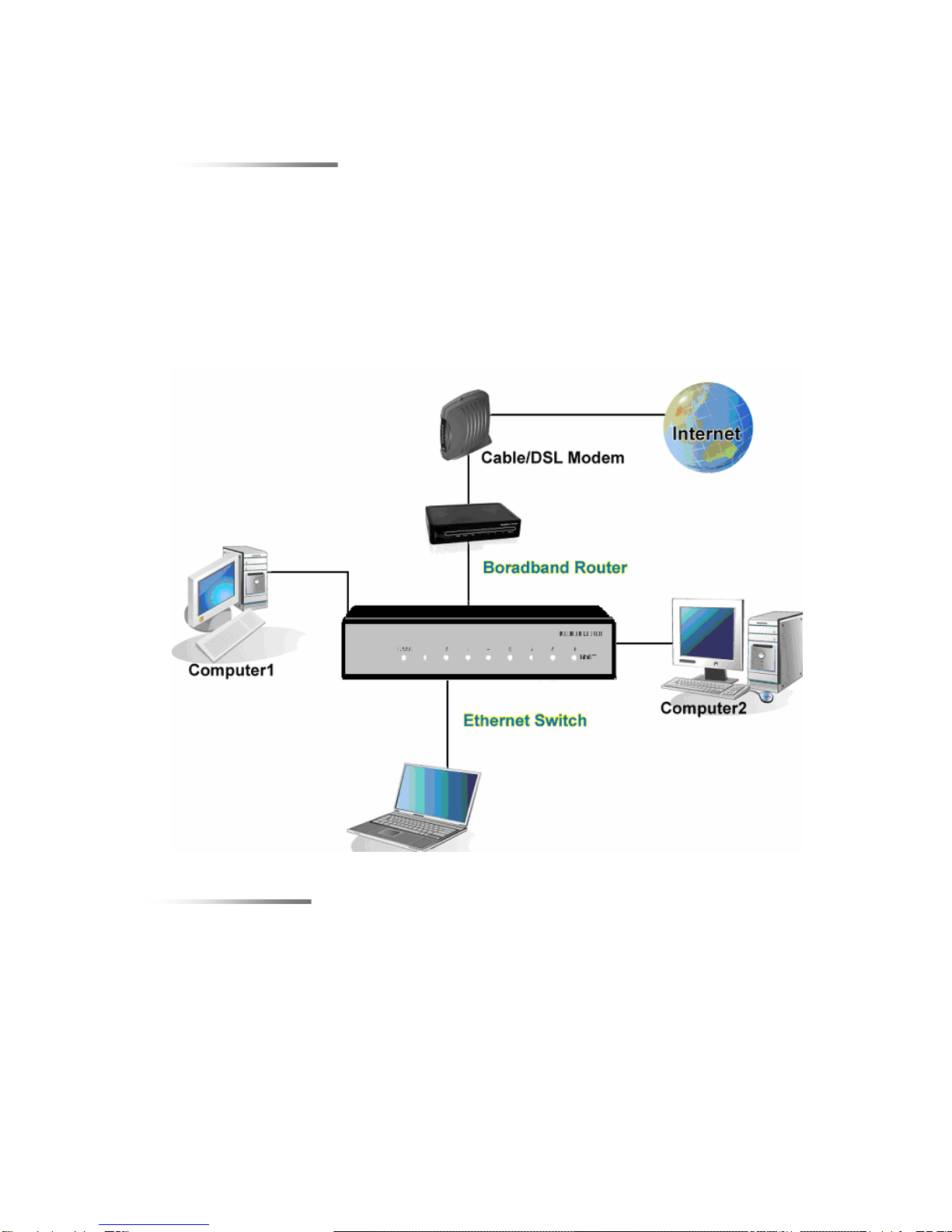

1. Introduction

The 10BASE-T/100BASE-TX Switches which are high-performance Fast

Ethernet switches designed for the network core. It provides 5/8

10BASE-T/100BASE-TX ports that can significantly improve the performance

of your network’s backbone, and deliver the throughput needed to support a

broad range of advanced network applications. With Fast Ethernet Switches

high performance bandwidth, it provides the quickest solution to meeting the

growing demands on your network’s limited resources.

2. Features

zCompact size.

z5/8-port 10/100 Mbps auto-MDI/MDI-X.

zSecure store and forward switching scheme.

zAuto correction of reverse twisted pair polarity.

zAll ports support half/full duplex, Nway auto negotiation.

zAll ports support 802.3x flow control for protection against data loss.

3.Package Contents

zUser guide.

zPower adapter.

z10/100Mbps Ethernet Switch.

4. Hardware Introduction

4.1 Front Panel

POWER LED

This LED light is on when power is present.

5 Port LED

Indicates the status of each of the 5 ports.

8 Port LED

Indicates the status of each of the 8 ports.

Speed 100 Mbps LED

A green LED indicates the speed is 100 Mbps.

Link/Activity LED

There is a link when the LED light is lit, there is an activity when the

LED blinks.

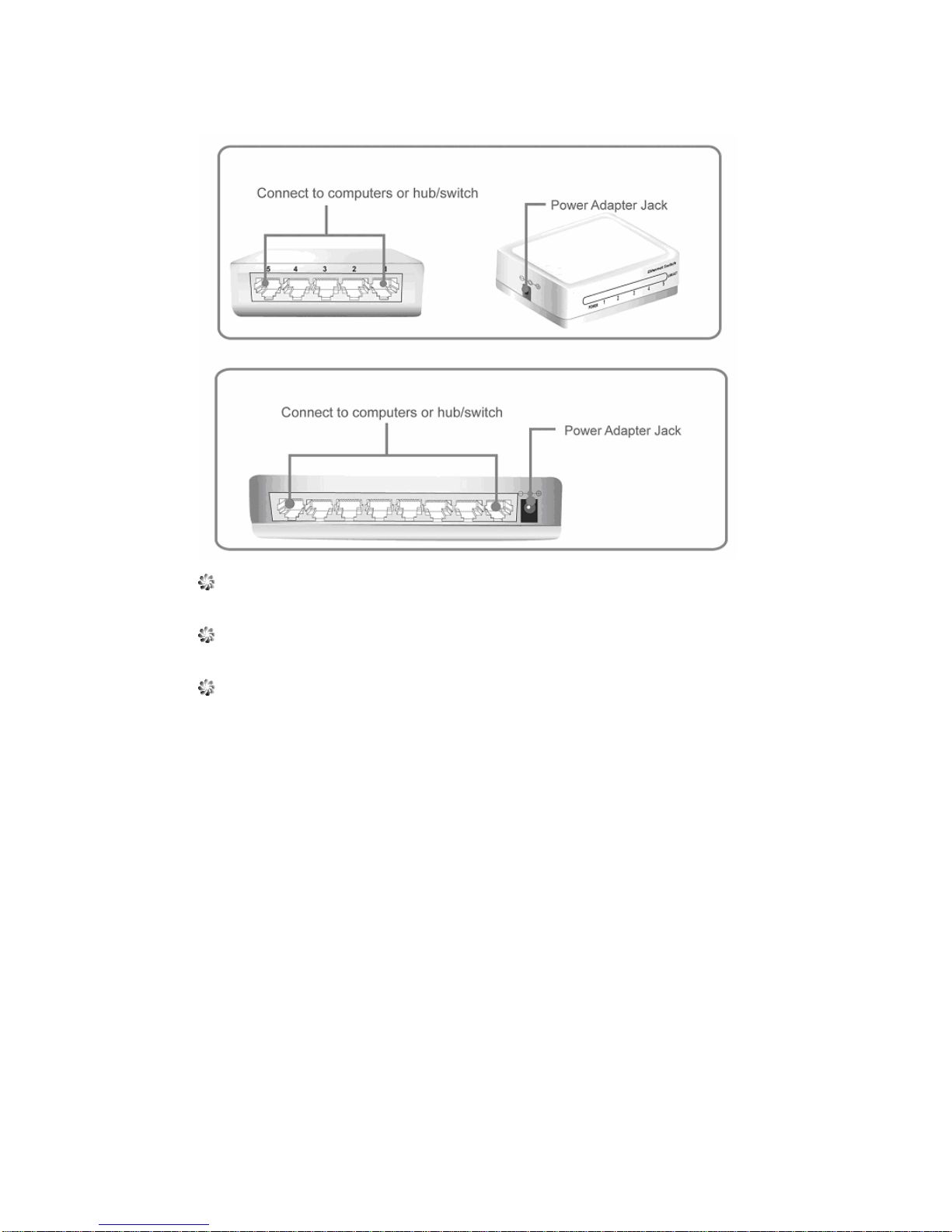

4.2 Rear Panel

DC-input

connect power adapter

5 Port Switch

connect computers, hub’s, switches or other devices.

8 Port Switch

connect computers, hub’s, switches or other devices.

Specifications

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Flow Control

Data Transfer Rate

- Ethernet : 10Mbps (half-duplex)

20Mbps (full-duplex)

- Fast Ethernet : 100Mbps (half-duplex)

200Mbps (full-duplex)

Interface 10/100Mbps Auto-MDI/MDI-X Ports

Diagnostic LED Power, Link / ACT, 100Mbps

Power Input DC 5V / 800mA

Dimension 5 Port Switch 78 x 98 x 28mm

8 Port Switch 109 x 155 x 33mm

Operating Temperature 0°C ~ 40° C

Operating Humidity 10% ~90% RH, Non-condensing

EMI Certification FCC Class B / CE Class B

5. FCC Warning

This equipment has been tested and found to comply with the regulations

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with this

user’s guide, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the

interference at his own expense.

zReorient the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit in a different room

that to which the receiver is connected.

zConsult the dealer or an experienced radio/TV technician for help.

6. CE Mark Warning

This is a Class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.
