Kuat NV 2.0 Bedienungsanleitung

NV™

2.0

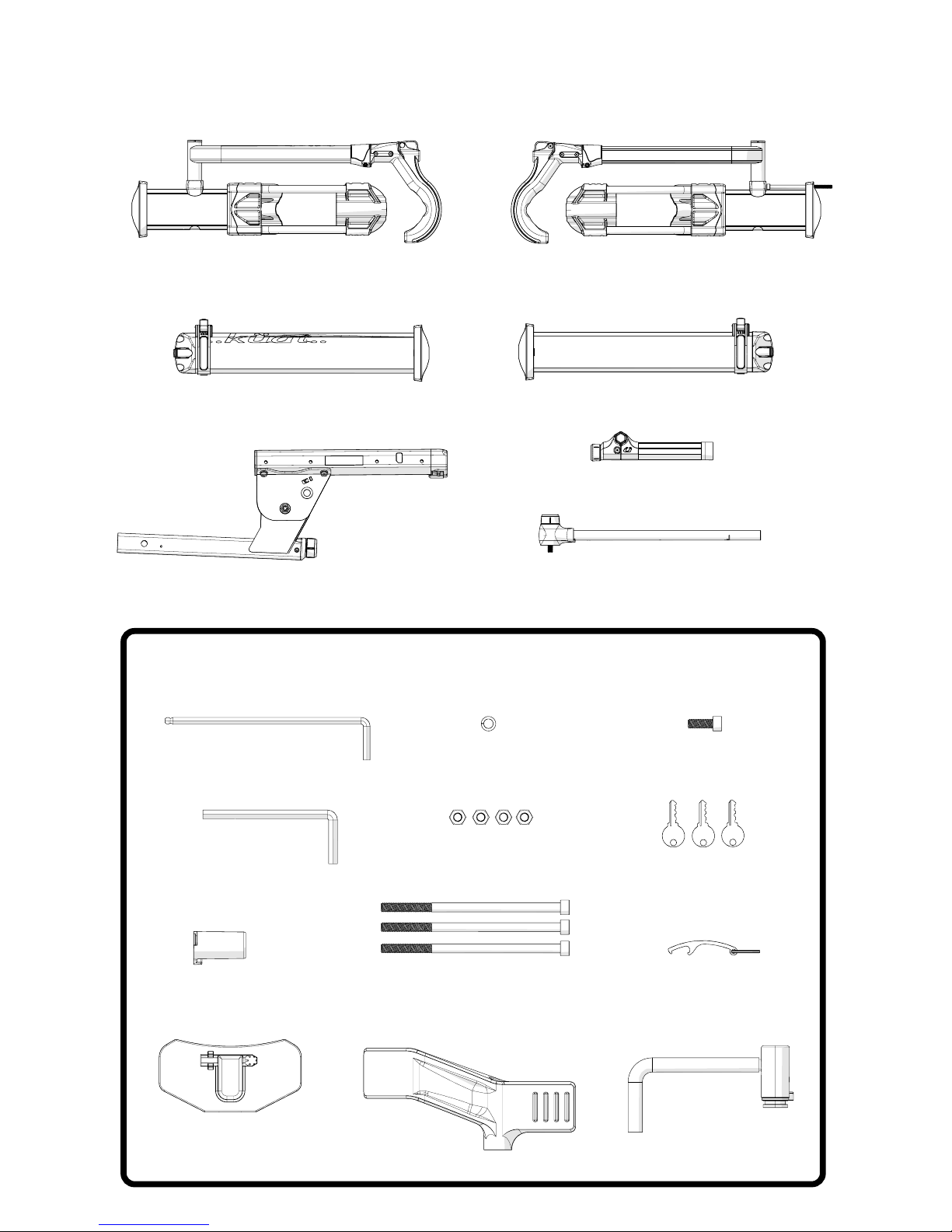

Parts:

Outer Front Tire Tray Inner Front Tire Tray

Outer Rear Tire Tray Inner Rear Tire Tray

Pivot Assembly

Included in the parts box:

Trail Doc™Clamp

Trail Doc™Post

6mm Allen Wrench

8mm Allen Wrench

End Cap Plug

4x M8 Nut

3x M8x160 Bolts

M6 Lock Washer M6x22 Bolt

3x Keys

Bottle Opener

Key-chain

Rear End Cap Pivot Lever Hitch Pin and Lock

Rear End Cap

STEP 2. Insert rear end cap.

Part Needed:

STEP 1. Throw the end cap lever open to release

the Trail Doc™Post and pull the Trail Doc™Post

completely out from the rear of the center-beam.

STEP 3. Align the trays with the holes on the cen-

ter-beam by matching the coordinating labels. Then

alternate between bolts to tighten.

3x M8x160 Bolts4x M8 Nut

Parts Needed:

NOTE: The trays with the “..Küat..” Logo will be

farthest from the hitch. Performing this step with the

rack upside down will ease assembly.

NOTE: This tray has the

M8x160 bolt pre-installed.

STEP 4. Press the pivot lever onto the corre-

sponding keyed shaft. Then tighten the bolt with the

lock washer to secure the pivot lever.

Parts Needed:

M6 Lock Washer M6x22 Bolt Pivot Lever

NOTE: When positioning the

pivot lever there should be about

1in(25.4mm) of space between

the lever and the tray.

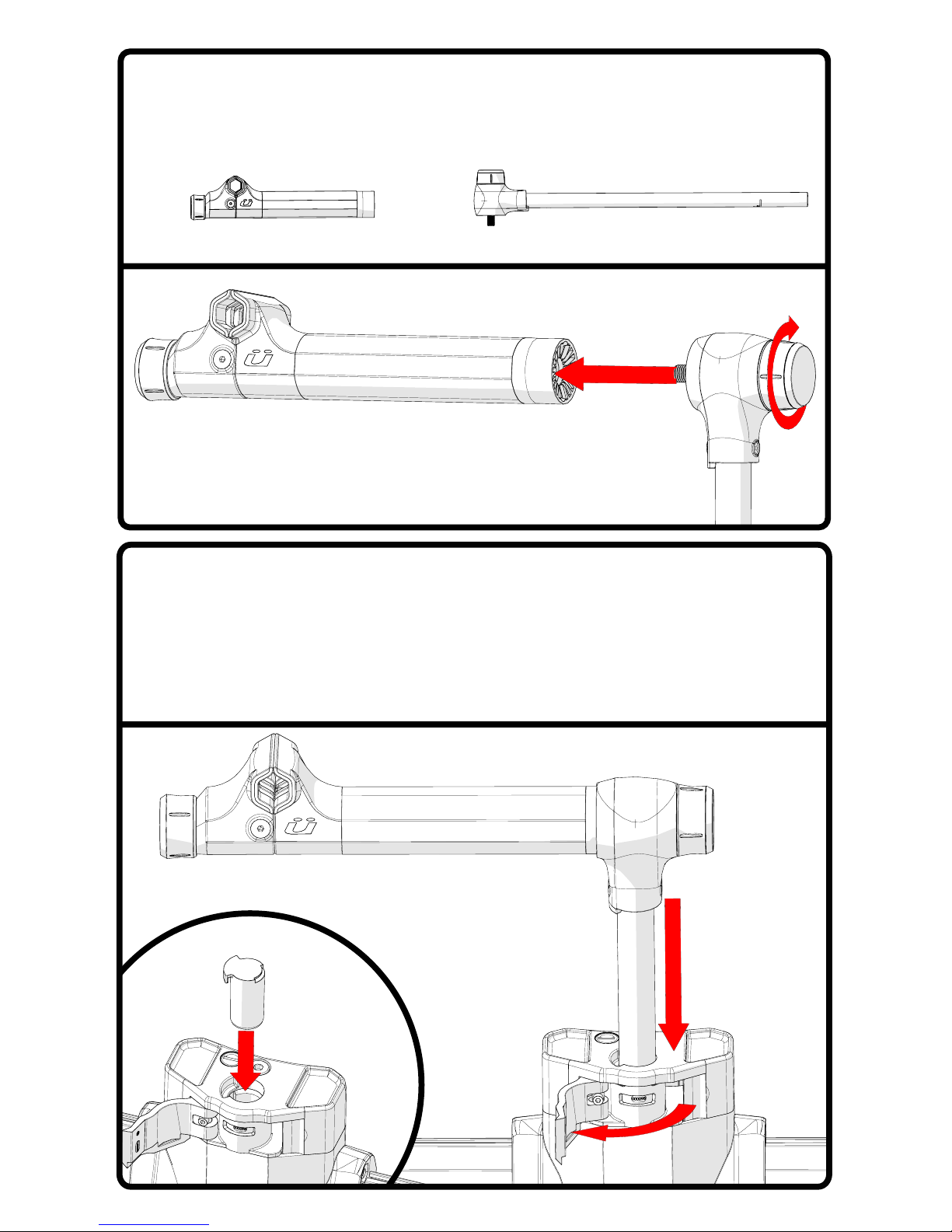

STEP 5. Thread the Trail Doc™clamp onto the

Trail Doc™post.

Parts Needed:

Trail Doc™Clamp Trail Doc™Post

STEP 6. Open the lever on the end cap and insert

the Trail Doc™.

NOTE: Use the end cap plug to keep debris out

when the Trail Doc™is not installed. The tension on

the lever can be adjusted using a 3mm allen wrench.

STEP 7. Insert the rack into the hitch receiver and

align the hitch pin holes, then insert the hitch pin and

lock. Push or pull the rack in the hitch receiver to

remove rattle caused by the hitch pin and turn the

knob until tight.

Parts Needed:

Hitch Pin and Lock

Loading bicycles:

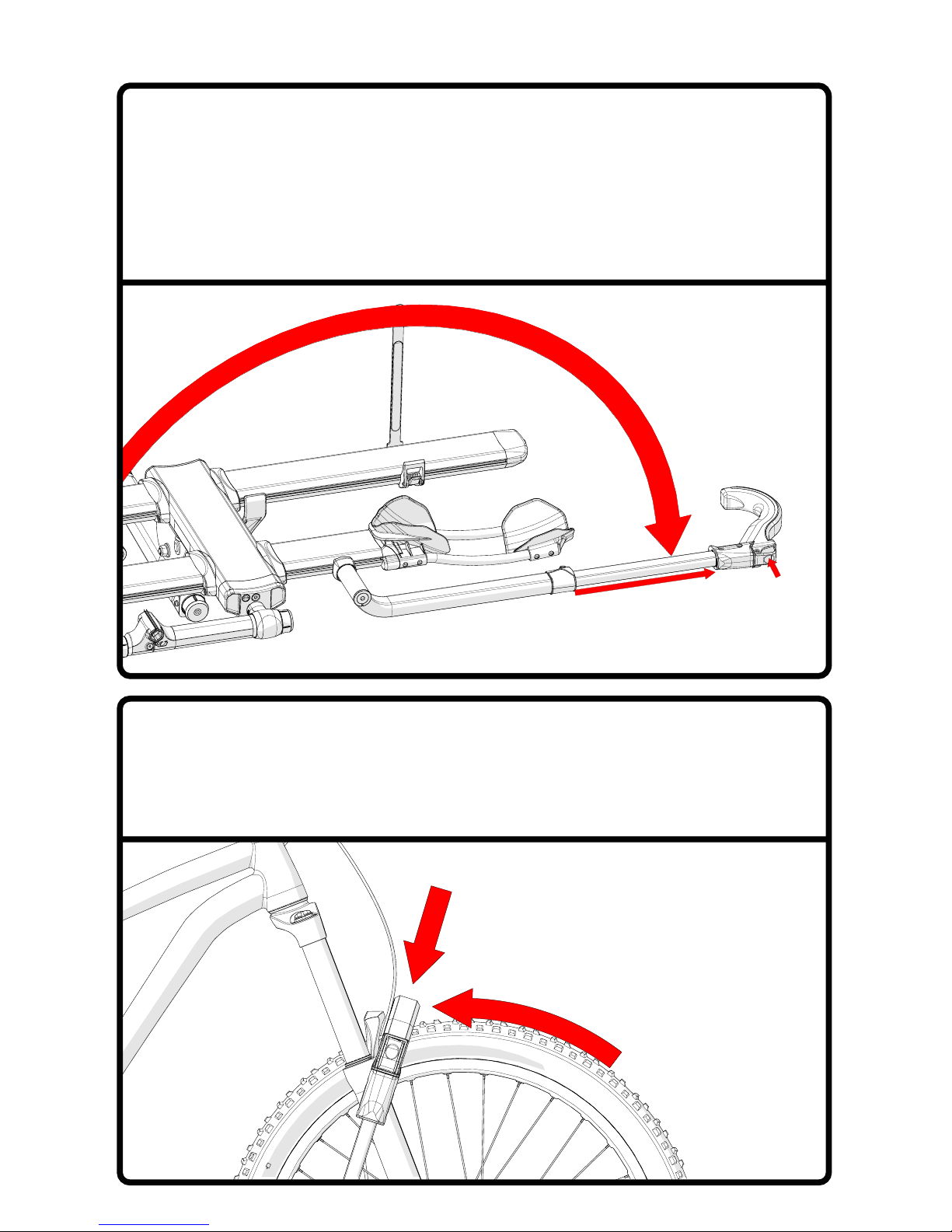

STEP 1. Rotate the tire hook outward. Press the

button and extend the hook.

NOTE: When not in use keep the tire hook rotated

inward to avoid damage.

STEP 2. Set the bicycle on the rack and place the

hook as close to the bicycle’s front fork as possible,

then ratchet the hook down onto the tire.

NOTE: Proper placement of the

tire hook is critical to securing

the bicycle to the rack.

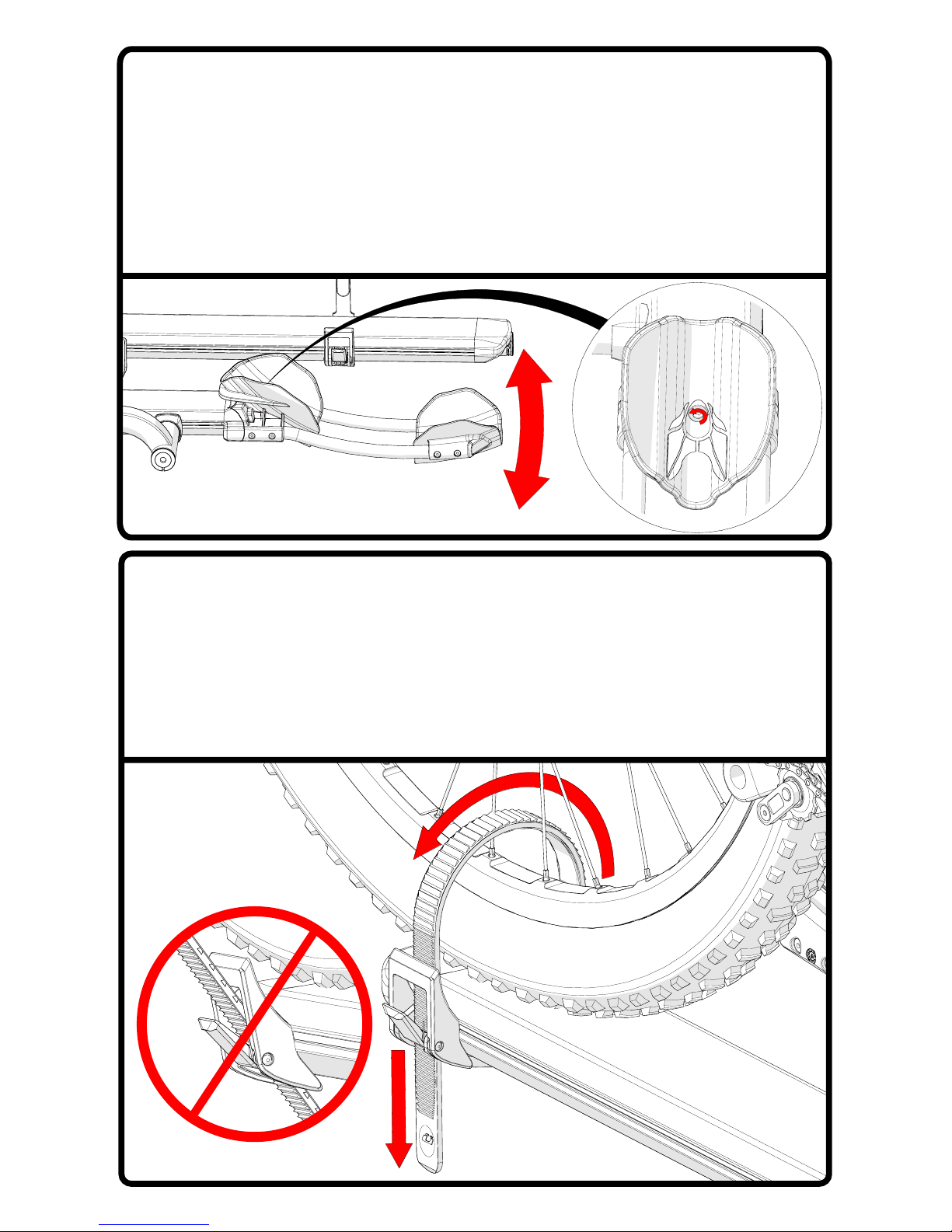

NOTE: To adjust for bicycle t issues loosen the

front cradle bolt with an 8mm allen wrench (Do not

fully remove the bolt). Once loose, move the cradle to

one of three positions; up, center, or down. Tighten

the bolt to secure the cradle in position.

Failure to re-tighten bolt can lead to loss of bike.

STEP 3. Feed the rear tire strap through the

rear tire and behind the tire retention tab, then pull

through the ratchet pawl until the rear tire is secure.

NOTE: Failure to properly feed and tighten the

strap can lead to loss of bike.

STEP 4. Pull the lock and cable completely out

from the rear tire tray.

NOTE: When re-inserting the lock cable into the

rack there should be a positive engage between the

cable and the magnet in the back of the tray.

STEP 5. Loop the cable through the rear triangle

and insert the lock tip into the lock found on the

cable.

NOTE: Each lock cable is designed to lock a single

bicycle. Do not lock the two cables together.
