Kubota B2420 Bedienungsanleitung

CONTENTS

ASSEMBLY INSTRUCTIONS ..................................................................................... 1

TO THE DEALER..................................................................................................... 1

SAFETY ................................................................................................................... 1

UNPACKING AND CHECKING PARTS .................................................................. 2

Unpacking Iron Crate........................................................................................................ 2

The Accessories Packaged Together with Tractor........................................................... 2

Contents of Accessory Case ............................................................................................3

Contents of Nylon Bag Attached with the Accessory Case ..............................................5

ASSEMBLY.............................................................................................................. 5

Removing the Battery ....................................................................................................... 5

Unpacking the 3-Point Link...............................................................................................5

Mounting the Right and Left Fenders ...............................................................................5

Installing the Lever Grip.................................................................................................... 6

Attaching the ROPS..........................................................................................................6

Attaching the 3-Point Hitch Assembly...............................................................................6

Attaching the Tail Light ..................................................................................................... 7

Attaching the ROPS Cover...............................................................................................8

Attaching the Front Combination Light and Rearview Mirror ............................................ 8

Attaching the License Light and Trailer Electrical Outlet ..................................................9

Mounting the Front Hitch ................................................................................................10

Attaching the Steering Wheel ......................................................................................... 11

Attaching the Seat ..........................................................................................................11

Attaching the PTO Cover................................................................................................13

Hoisting the Tractor ........................................................................................................13

Attaching the Front Tires ................................................................................................14

Attaching the Rear Tires................................................................................................. 14

Hooking Up the Battery................................................................................................... 15

CHECKING THE HYDRAULIC CONTROL LEVER PERFORMANCE.................. 16

CHECKING LIST FOR INSPECTION AFTER ASSEMBLY................................... 17

1ASSEMBLY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS

TO THE DEALER

1. This manual contains procedures intended to assist

the dealer in unpacking and assembling the product

before delivering to the customer.

The customer's purchase is based on confidence in

both the product and your store. Observe the

procedures in this manual to assemble and adjust

equipment for your customer's safety and satisfaction.

When fully assembled, check function of each part and

feature.

2. The following safety alert symbol marks and

indications are found throughout this manual in steps

where particular attention is required so as to ensure

your safety and to avoid product damage. Observe

the instructions in these warnings where indicated.

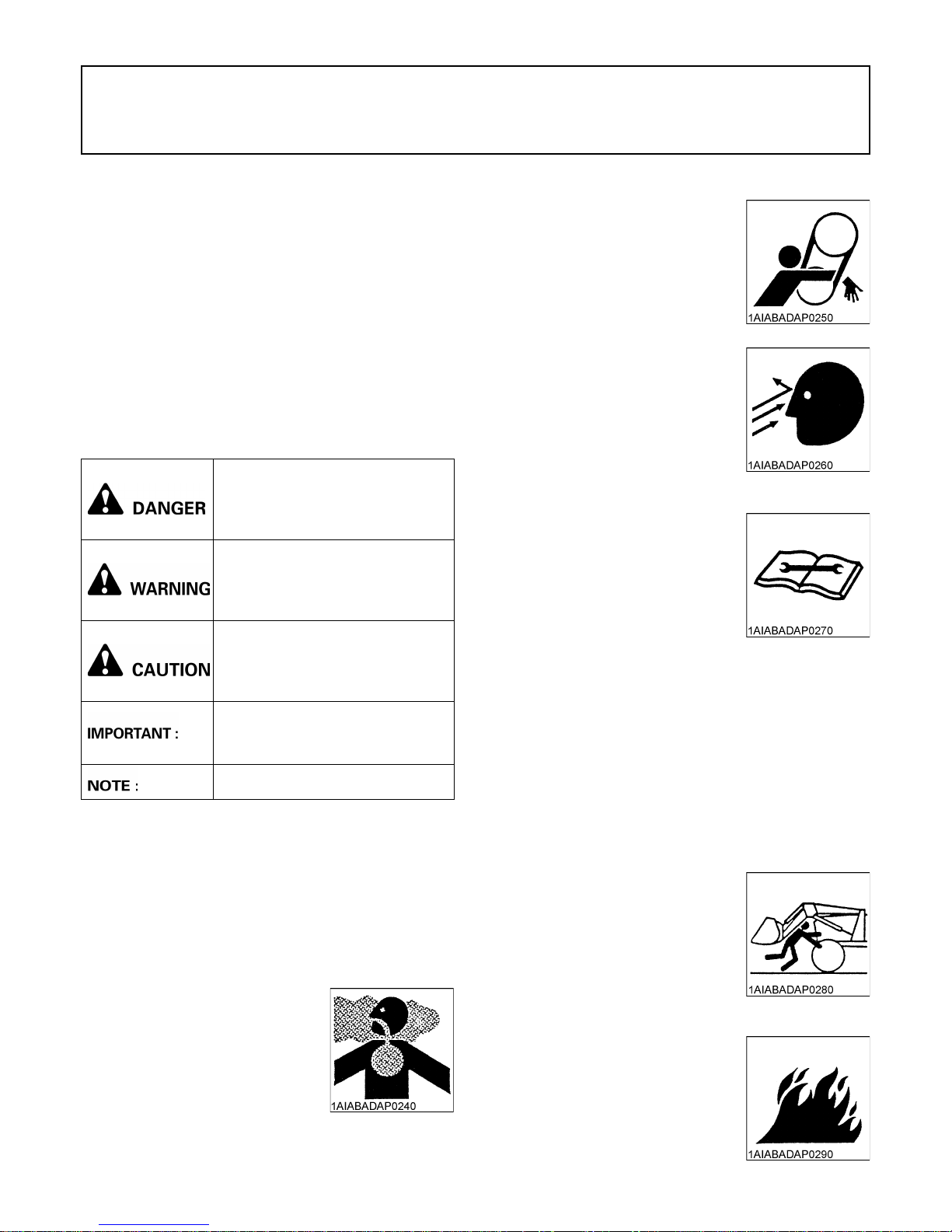

SAFETY

To prevent accidents, read through the following items

before starting work, and always regard safety when

working. It is your responsibility to ensure your safety on

the job.

1. Preparations

(1) Select a work site which is level, has sufficient

space, and is not close to dangerous objects.

(2) Avoid poorly ventilated

rooms.

Asphyxiation from exhaust

fumes is always a possibility

that accompanies running an

engine.

(3) Working clothes which may

be pinched or caught in the

equipment must not be worn.

Loose clothing can cause

serious injury or death.

(4) Always wear a mask and

protective goggles during

work when dust or flying

debris may be thrown by

equipment.

2. Assembly and adjustments

(1) Before assembling

equipment, read the

assembly instructions for the

product to become familiar

with the equipment and

procedures.

(2) Use only adequate and

required equipment, tools

and instruments (e.g. torque

wrench, battery hydrometer

and etc.).

(3) Set the parking brake and

block wheels to prevent

machine (or tractor)

movement.

(4) Lower the attachment or

implement to the ground

before assembling or

adjusting equipment.

(5) Before working under

suspended or raised

equipment, support the

equipment or attachment

and utilize the valve lock to

prevent the machine from

falling or moving out of place.

(6) Keep fire from cigarettes,

matches or other ignition

sources away from fuel, oil,

antifreeze and other

flammable materials.

Indicates an imminently

hazardous situation which, if not

avoided, will result in death or

serious injury.

Indicates a potentially

hazardous situation which, if not

avoided, could result in death or

serious injury.

Indicates a potentially

hazardous situation which, if not

avoided, may result in minor or

moderate injury.

Indicates that equipment or

property damage could result if

instructions are not followed.

Gives helpful information

ASSEMBLY INSTRUCTIONS2

3. After assembly check

(1) Before operating or test driving the equipment,

read and understand the operator's manual.

(2) Once the equipment is fully

assembled, select a safe

place for a test run. Prevent

onlookers from approaching

the equipment.

To avoid personal injury or

death:

ADo not start engine or

operate levers from

anywhere other than the

seat.

To avoid personal injury:

ADo not bypass-start the

equipment. Short circuiting

the starter terminal runs the

risk that the equipment will

start operating or moving

unexpectedly.

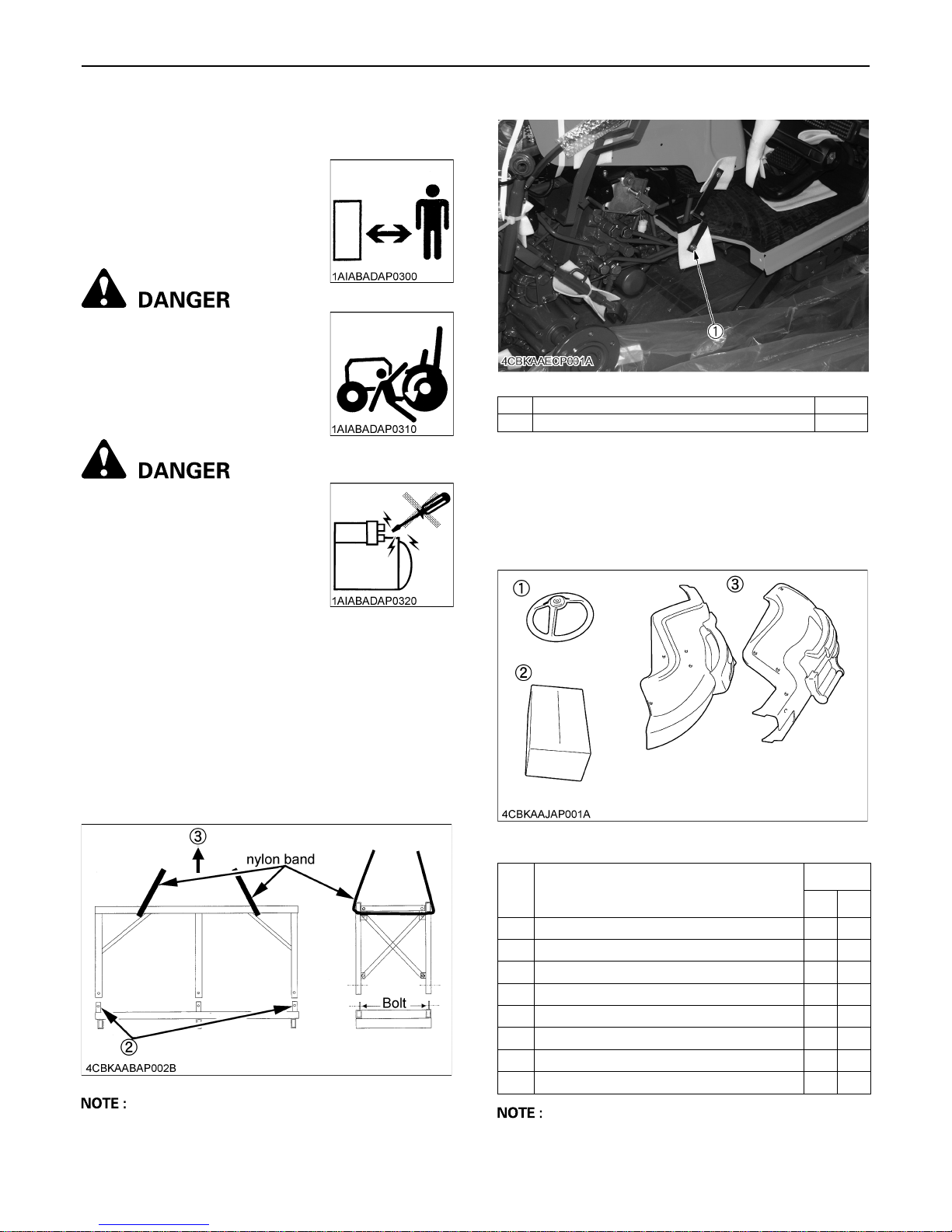

UNPACKING AND CHECKING PARTS

BUnpacking Iron Crate

1. Cut off the vinyl ropes that secure the top of the ROPS

to the iron crate.

2. Take the 4 pieces of bolts (M10 x 1.25) out of both side

of the iron crate.

3. Tie up the iron crate with a nylon band and lift up with

a hoist or fork lift. (Be careful not to damage the

tractor.)

AFender (LH and RH) mounting bolts (1) will be used

again. Handle them with care.

BThe Accessories Packaged Together with

Tractor

ROPS parts (4) to (8) are not shown below, so see the

parts list of ROPS instruction manual.

A : Rear mount type ROPS / B : Mid mount type ROPS

AFRONT / REAR TIRES and SEAT are not included in

crate.

No. DESCRIPTION UNIT

1 BOLT (M8 x 20) for FENDER 2

No. DESCRIPTION UNIT

1 STEERING WHEEL 1 1

2 ACCESSORY CASE 1 1

3 FENDER (LH, RH) 1 1

4 CENTER FRAME (UPPER) - 1

5 CENTER FRAME (LH, RH) - 2

6 CENTER FRAME (LOWER) - 1

7 REAR FRAME (UPPER) 1 1

8 REAR FRAME (LH, RH) 2 2

3ASSEMBLY INSTRUCTIONS

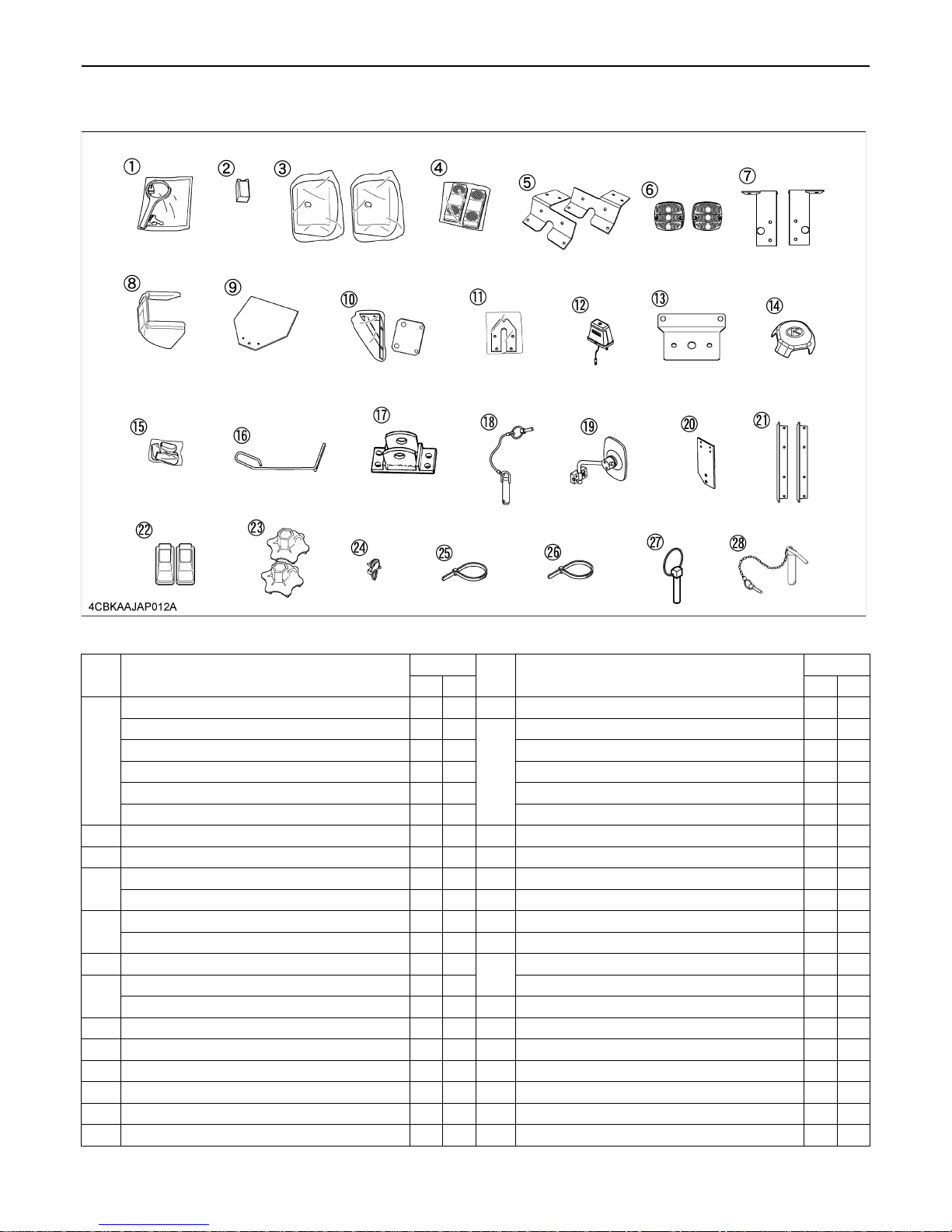

BContents of Accessory Case

A : Rear mount type ROPS / B : Mid mount type ROPS

No. DESCRIPTION UNIT No. DESCRIPTION UNIT

AB AB

OPERATOR'S MANUAL 1 1 14 PAD (STEERING) 1 1

WARRANTY STATEMENT 1 1

GRIP (ORANGE 83) 1 1

ASSEMBLY INSTRUCTIONS 1 1 GRIP (YELLOW 63) 1 1

FILTER WRENCH 1 1 GRIP (BLACK 63) 1 1

SLOW BLOW FUSE (50A) 1 1 GRIP (ORANGE 63) 1 1

STARTER KEY 2 2 LEVER GRIP (MAIN GEAR SHIFT) 1 1

2 CLUTCH SPACER 1 1 16 HOLDER (TOP LINK) 1 1

3 COVER (FENDER TAIL) 2 2 17 HITCH (FRONT) 1 1

4LIGHT ASSY. (COMB. REAR RH) 1 1 18 PIN ASSY. (FRONT HITCH) 1 1

LIGHT ASSY. (COMB. REAR LH) 1 1 19 REARVIEW MIRROR 1 1

5STAY (TAIL COVER RH) 1 1 20 STAY (REARVIEW MIRROR) 1 1

STAY (TAIL COVER LH) 1 1 21 SEAT UPPER SUPPORT 2 2

6 LIGHT ASSY. (COMB. FRONT) 2 2 22 COVER (ROPS RH) 1 1

7STAY (FRONT WINKER RH) 1 1 COVER (ROPS LH) 1 1

STAY (FRONT WINKER LH) 1 1 23 HUB, WHEEL ASSY. 2 2

8 COVER (PTO) 1 1 24 CORD CLAMP 2 2

9 LICENSE LIGHT HOLDER 1 1 25 CORD BAND 1 1

10 LICENSE HOLDER STAY 1 1 26 CORD BAND 2 2

11 STAY (TRAILER SOCKET) 1 1 27 SET PIN 2 2

12 LIGHT ASSY. (LICENSE) 1 1 28 DRAWBAR PIN ASSY. 1 1

13 STAY (LICENSE LIGHT) 1 1

4 ASSEMBLY INSTRUCTIONS

ABolt, Nut and Tool

A : Rear mount type ROPS / B : Mid mount type ROPS

No. DESCRIPTION UNIT No. DESCRIPTION UNIT

AB AB

FRONT TIRE ACCESSORIES

SPRING, WASHER (9/16) - 4

NUT (M12) 12 12 NUT (9/16-18UNF) - 4

SPRING WASHER (M12) 12 12 SET, BOLT ROPS - 2

PLAIN WASHER (M12) 12 12 HEX. BOLT (M16 x 80) - 2

HUB ACCESSORIES PLAIN, WASHER (M16) - 2

BOLT (M16 x 95) 2 2 LOCKING, NUT (M16) - 2

COTTER (2) 2 2 SEMS, BOLT (M14 x 30) - 4

COTTER (1) 2 2 SEMS, BOLT (M12 x 35) - 4

SPRING WASHER (M16) 2 2 SEMS, BOLT (M12 x 45) - 4

NUT (M16) 2 2 HEX. BOLT (M12 x 35) - 8

WHEEL TUBE PIN 2 2 SPRING LOCK, WASHER (M12) - 8

SPRING PIN 2 2 HEX. NUT (M12) - 8

NUT (M14) 12 12 PTO COVER ACCESSORIES

SPRING WASHER (M14) 12 12 26 BOLT (M8 x 25) 4 4

PLAIN WASHER (M14) 12 12 LICENSE PLATE ACCESSORIES

SEAT ACCESSORIES

BOLT (M8 x 20) 3 3

26 BOLT (M8 x 20) 5 5 NUT (M8) 1 1

BOLT (M8 x 30) 4 4 PAN HEAD SCREW (M5 x 16) 2 2

TAIL COVER STAY ACCESSORIES FLANGE NUT (M5) 2 2

26 BOLT (M8 x 20) 2 2 PAN HEAD SCREW (M5 x 10) 2 2

FRONT WINKER ACCESSORIES PAN HEAD SCREW (M5 x 30) 3 3

26 BOLT (M8 x 25) 4 4 SPRING WASHER (M5) 5 5

REAR ROPS ACCESSORIES NUT (M5) 5 5

BOLT (M12 x 35) 10 - FENDER ACCESSORIES

PLATE, CONNECTOR 1 -

RUBBER CUSHION 2 2

SET, BOLT ROPS 2 - BOLT (M8 x 30) 2 2

HEX. BOLT 2 - COLLAR (CUSHION) 2 2

LOCKING, NUT 2 - NUT (M8) 2 2

BOLT (3/8-24UNF x 1) 4 - FRONT HITCH ACCESSORIES

SPRING, WASHER (9/16-18UNF) 4 - 26 BOLT (M12 x 35) 4 4

MID ROPS ACCESSORIES NUT (M12) 4 4

BOLT (M12 x 35) - 10 REARVIEW MIRROR ACCESSORIES

BOLT (9/16-18UNF x 3-1/4) - 4 26 FLANGE BOLT (M6 x 25 BLACK) 4 4

PLAIN, WASHER (M14) - 4

5ASSEMBLY INSTRUCTIONS

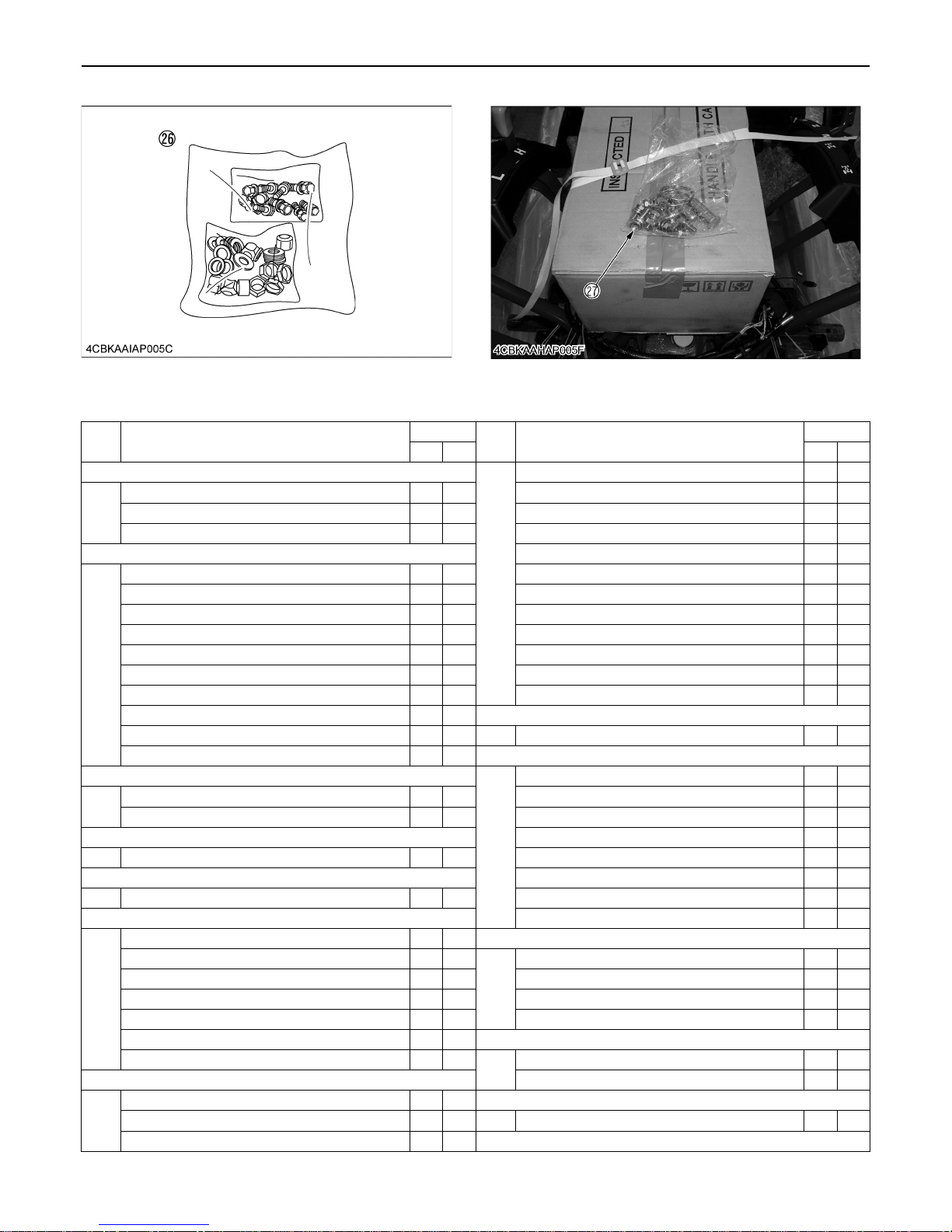

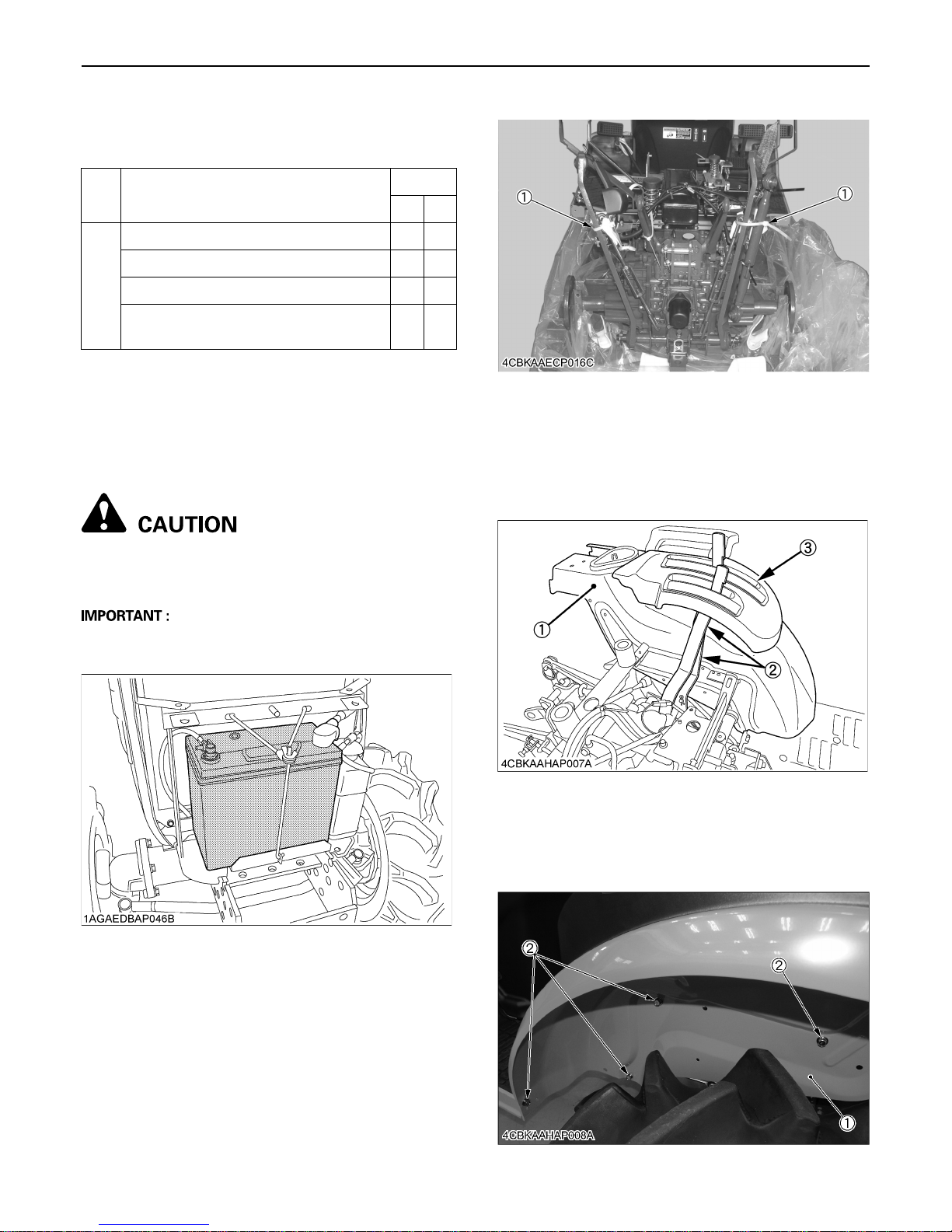

BContents of Nylon Bag Attached with the

Accessory Case

A : Rear mount type ROPS / B : Mid mount type ROPS

ASSEMBLY

BRemoving the Battery

Take out the battery.

Charge the battery as indicated in the operator's manual.

To avoid personal injury:

AThoroughly read the Operator's manual before

charging.

AInsufficient charging will cause the battery to run down

quickly, resulting in premature battery failure.

BUnpacking the 3-Point Link

1. Cut off the wires and release the three-point link.

2. Disconnect the lower link (1) from the three-point link

shaft.

3. Remove the collar (2) from the three-point link shaft.

BMounting the Right and Left Fenders

1. Move the left-side two levers of the tractor to the low

position.

2. Tilt the front of the left-hand fender (1), insert the two

levers (2) in the lever guide (3).

3. For the right-hand fender, insert the lever in the lever

guide.

4. Secure the fender (LH and RH) (1) with the eight M8

bolts (2).

No. DESCRIPTION UNIT

RING 2 2

JOINT PIN 2 2

BOLT (M8 x 20) for FENDER 8 8

3-POINT HITCH LOWERING

SPEED KNOB 11

ASSEMBLY INSTRUCTIONS6

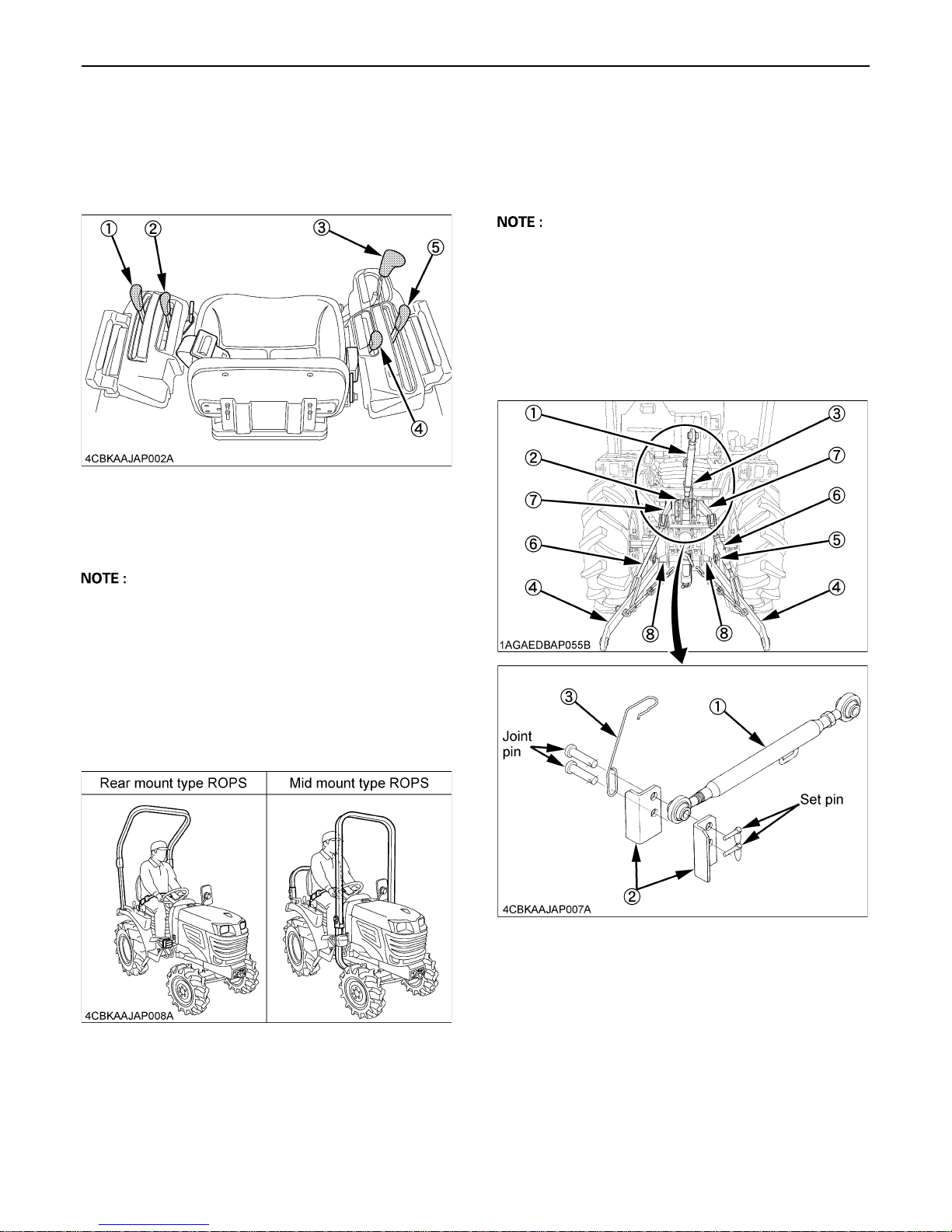

BInstalling the Lever Grip

Install the lever grips onto the control levers. See the

figure.

AApply rubber-bonding adhesive to the lever before

installing the lever grips to permanently secure them.

BAttaching the ROPS

Remove the ROPS accessories from the crate and mount

on the body as shown in the figure below. For details of

the mounting procedure, see the ROPS assembly

instructions, and assemble correctly.

BAttaching the 3-Point Hitch Assembly

1. Attach the top link (1) and top link holder (3) to the top

link bracket (2) with the joint pin and set pin.

Set the top link (1) to the top link holder (3).

AThe upper hole on the top link bracket (2) is normally

used for mounting.

2. Insert the collar (8) (3-point hitch) onto the left and right

of the 3-point hitch shaft (5).

3. Insert the lower link (4) onto the 3-point hitch shaft (5).

4. Attach the lift rod (6) to the lift arm (7).

5. Grease all screws and rotating parts of the 3-point

hitch until movement is smooth.

(1) Orange 83

(2) Yellow 63

(3) Lever grip (main gear shift)

(4) Orange 63

(5) Black 63

7ASSEMBLY INSTRUCTIONS

BAttaching the Tail Light

1. Attach the tail light (1) to the tail light cover (2).

2. Attach the tail light stay (3) to the tail light cover (2) with

the nuts (4) and tighten them.

3. Insert the cord clamp (5) into the hole of tail light stay

and attach the rear combination light cables (6) to the

cord clamp (5).

4. [Rear mount type ROPS]

Install the tail light assembly (1) and license holder

stay (2) at the left rear of the tractor with the step bolt

(3), rubber cushion (4), M8 x 20 bolt (5), and M8 nuts

(6).

[Mid mount type ROPS]

Install the tail light assembly (1) at the left rear of the

tractor with the step bolt (3), rubber cushion (4), and

M8 nuts (6).

5. Install the tail light assembly (1) with the step bolt (2),

rubber cushion (3), and M8 nut (4) to the right rear of

the tractor.

6. Connect the rear combination light cables to the wire

harness cables with the 4-P coupler (1). (Both sides)

7. Insert the cord clamp of wire harness (1) into the hole

(A) of fender (RH and LH).

ASSEMBLY INSTRUCTIONS8

BAttaching the ROPS Cover

Insert the ROPS cover (1) onto the ROPS frame (2).

Be sure the cutting face of the ROPS cover is towards the

inside of the tractor as shown below.

BAttaching the Front Combination Light

and Rearview Mirror

[Rear and Mid mount type ROPS]

1. Loosen the cord band (1), draw out the combination

light wire harness (2) only. Secure the other wire

harness with the cord band in position.

2. Pass the combination light wire harness inside of the

center pillar (3). Take the combination light wire

harness out of the hole of the center pillar. [LH side

only]

[Rear mount type ROPS]

3. Attach the front winker stay LH (1) and rearview mirror

stay (2) with the M8 x 25 bolts (3).

4. Attach the front winker stay RH with the M8 x 25 bolts

(3).

5. Attach the front combination lights (4) and wire

harness (5) to the front winker stay with the star

washers (6) and M6 nuts (7). [Both sides]

AInstall the front turn signal / hazard light at the upper

position.

6. Connect the combination light cable (8) to the wire

harness (9). [Both sides]

AInstall the front turn signal / hazard light at the upper

position.

(A) Red

(B) Yellow

(D) Pink

[Mid mount type ROPS]

3. Attach the front winker stay LH (1) and rearview mirror

stay (2) with the M8 x 25 bolts (3).

4. Attach the front winker stay RH with the M8 x 25 bolts

(3).

5. Attach the front combination lights (4) and wire

harness (5) to the front winker stay with the star

washers (6) and M6 nuts (7). [Both sides]

6. Connect the combination light cable (8) to the wire

harness (9). [Both sides]

Inhaltsverzeichnis

Andere Kubota Rasenmäher Handbücher

Kubota

Kubota GR2020G Bedienungsanleitung

Kubota

Kubota WSM F2880 Bedienungsanleitung

Kubota

Kubota V2203-M Leitfaden

Kubota

Kubota ZG332 Bedienungsanleitung

Kubota

Kubota GR1600-II Bedienungsanleitung

Kubota

Kubota ZD221 Bedienungsanleitung

Kubota

Kubota zd 331 Bedienungsanleitung

Kubota

Kubota GZD21-2 HD Bedienungsanleitung

Kubota

Kubota GR1600EC Gebrauchsanweisung

Kubota

Kubota ZD1011 Bedienungsanleitung

Kubota

Kubota GZD15-II Bedienungsanleitung

Kubota

Kubota Z751KWi Bedienungsanleitung

Kubota

Kubota ZG222A-AU Bedienungsanleitung

Kubota

Kubota wsm RCK54-75B Gebrauchsanweisung

Kubota

Kubota wsm RCK54-24B-EC Gebrauchsanweisung

Kubota

Kubota Z231BR-AU Bedienungsanleitung

Kubota

Kubota ZD21N-EC Gebrauchsanweisung

Kubota

Kubota Z411 Bedienungsanleitung

Kubota

Kubota RCK60B-22BX Bedienungsanleitung

Kubota

Kubota W 621 HTC Bedienungsanleitung

Kubota

Kubota ZG222A Bedienungsanleitung

Kubota

Kubota ZD1211 Bedienungsanleitung

Kubota

Kubota BX25D-AU Bedienungsanleitung

Kubota

Kubota F2890E Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
