Kuryakyn 8446 Bedienungsanleitung

STANDARD HYPERCHARGER 8446

Page 1

THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN

RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.

This indication alerts you to the fact that ignoring the contents described herein may negatively affect product per-

formance and functionality or damage the product itself or the product to which it is being attached.

ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:

1 Hypercharger Assembly with Hardware Bag Containing:

(3)1/4”-20 X 1-5/8” (2) #6-32 X 3/8” (2) #6 Washers—NOT USED

1 Dual Velocity Ring in Bag Inside Hypercharger Assembly

1 K&N Air Filter

1 Hardware Kit including:

1 Hose Fitting

1 Rubber Hose

3 1/4”-20 x 5/8” Socket Head Cap Screws

1 Gasket with Adhesive

2 Gaskets w/o Adhesive

1 Installation Instructions

YOU WILL ALSO NEED:

Set of Hex Wrenches, Socket Set with Ratchet

These installation instructions contain important information. Ensure that the end user receives this copy and is

aware of its importance for future use.

Avoid damage to the motorcycle. Protect painted surfaces with a soft cloth or blanket.

Ensure proper clearance between the Hypercharger and the fuel tank BEFORE operating the motorcycle.

8446-12HD-0715

Thank You For Choosing Küryakyn!

Protect yourself and others from potential injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices

regarding the installation, use, and care of this product.

THIS PRODUCT IS NOT LEGAL FOR SALE OR USE ON POLLUTION CONTROLLED VEHICLES.

THE END USER’S SAFETY DEPENDS UPON PROPER INSTALLATION OF THIS PRODUCT. IF A STEP IN

THESE INSTRUCTIONS IS NOT WITHIN YOUR CAPABILITIES OR YOU DO NOT HAVE THE CORRECT

TOOLS, HAVE YOUR DEALER PERFORM THE PROCEDURE. IMPROPER INSTALLATION OF THIS

PRODUCT COULD RESULT IN DEATH OR SERIOUS INJURY.

ACCIDENTAL VEHICLE START-UP COULD CAUSE DEATH OR SERIOUS INJURY, REMOVE THE MAIN

FUSE BEFORE PROCEEDING.

INSTALLATION MAY REQUIRE CONTACT WITH THE ENGINE AND EXHAUST SYSTEM; ENSURE THAT

IT HAS FULLY COOLED BEFORE BEGINNING TO PREVENT INJURY.

FUEL VAPORS ARE VERY FLAMMABLE! PERFORM THIS INSTALLATION IN A WELL VENTILATED AR-

EA AWAY FROM SPARKS AND OPEN FLAMES. FUEL VAPORS MAY IGNITE CAUSING AN EXPLOSION

THAT CAN LEAD TO SERIOUS INJURY OR DEATH.

This is a complete air cleaner kit (CV bolt pattern) that can be used with adapters, brackets or mounting kits to

cover applications for which we do not offer a complete kit.

This Hypercharger can be used in a variety of air cleaner applications using a proper mounting bracket (available at

www.küryakyn.com) and vacuum source .

Page 2

STEP 1 Read and understand all steps in the instructions before starting the installation. Park the

motorcycle on a hard, level surface and turn IGN OFF. Allow the engine and exhaust system

to cool. Remove the main fuse.

STEP 2 Refer to PIC 1. Locate the Hypercharger Back Plate. Insert the three 1/4”–20 X 5/8” socket

head cap screws through the mounting holes in the back plate from the inside. Remove and

discard the adhesive backing from the gasket; align and press into place on the backside of

the Hypercharger.

STEP 3 Refer to PIC 2. Align the black plastic Dual Velocity ring with the vent hole in the Hyper-

charger back plate. Press it all the way into place. The ring will “snap” into place.

STEP 4 Refer to PIC 1 and 2. Align the K&N air filter with the raised lip on the back plate.

STEP 5 Locate the hardware kit that was with the Back Plate. Align the Front Cover over the back

plate/filter; ensure that the front cover cut-out fits over the filters; loosely secure it to the back

plate with the three 1/4”-20 X 1-5/8” fasteners. Thread one of the #6-32 X 3/8” fasteners

through the top and bottom butterfly caps and into the front cover. Tighten the #6-32 X 3/8”

fasteners securely. Tighten the 1/4”-20 X 1-5/8” fasteners securely.

STEP 6 Refer to PIC 3. Attach the vacuum hose to the vacuum pod fitting on the back of the Hyper-

charger; it is pointing downward.

STEP 7 Double check the tightness of all fasteners, re-install the main fuse, check for hose clearance

and check throttle for correct operation, making sure it returns properly, before starting bike.

Follow K&N recommendations for proper use and cleaning of the air filter

element.

K&N Filter Care Kit (p/n 85 available at kuryakyn.com)

Proper tuning is important. Carbureted bikes should be re-jetted and fuel injected bikes should be tuned

with a TTS MasterTune tuning system (calibrations available at www.kuryakyn.com) or Vance & Hines FP3

(calibrations available at http://fp3.vanceandhines.com/download) by an experienced tuner, on a dyno, with

an exhaust gas analyzer.

It is the end user’s responsibility to ensure that all fasteners (including pre-assembled) are tightened before

operation of the motorcycle. Kuryakyn will not provide warranty coverage on products or components lost or

damaged due to improper installation or lack of maintenance. Periodic inspection and maintenance are

required on all fasteners.

FAILURE OF THE THROTTLE TO RETURN COULD RESULT IN

LOSS OF CONTROL CAUSING SERIOUS INJURY OR DEATH.

PIC 3 ATTACH

VACUUM

HOSE HERE

SHOWN REMOVED

FOR CLARITY

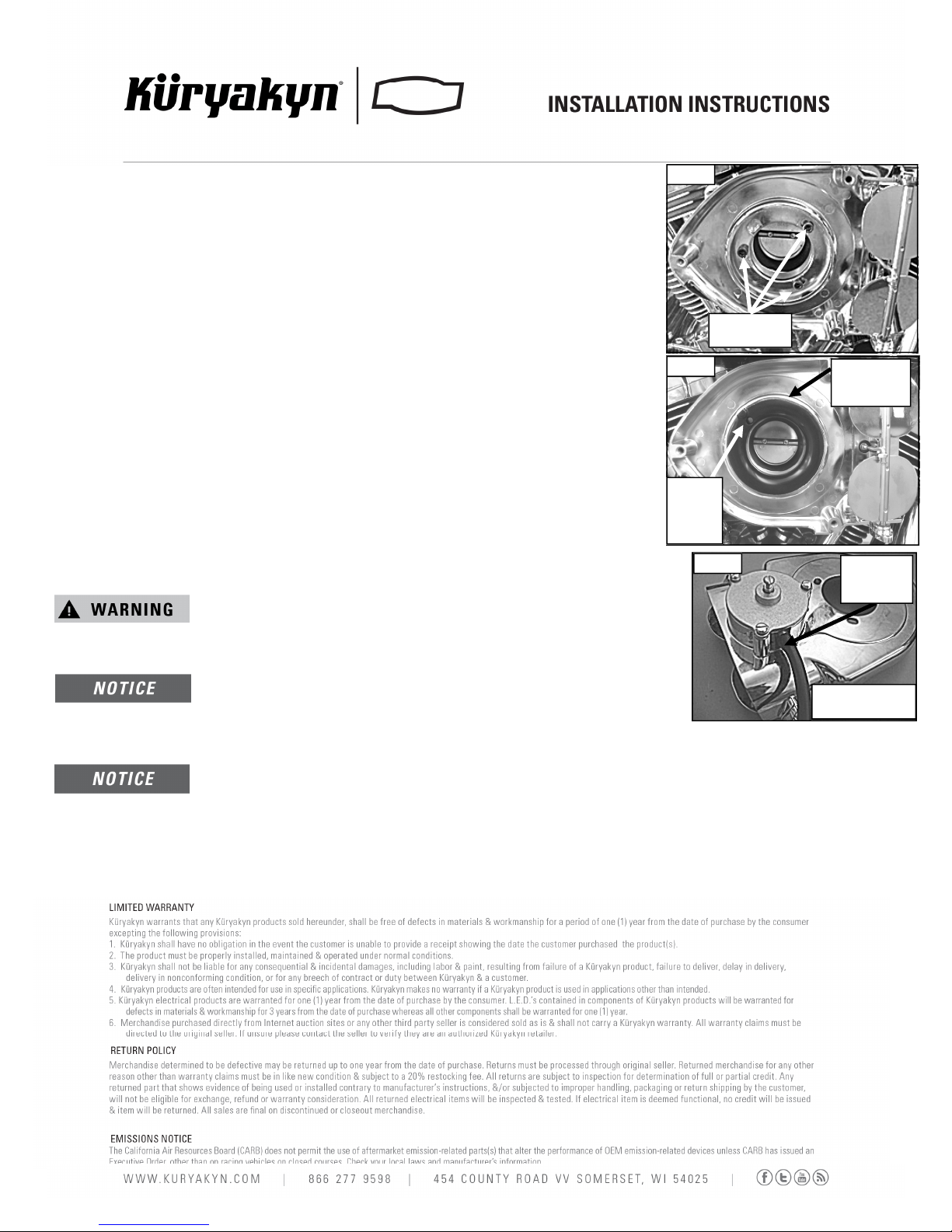

PIC 1

PIC 2

USE THESE

THREE HOLES

VENT

HOLE AT

O’CLOCK

K&N FILTER

FITS AROUND

THIS LIP
