Kurzweil M-1 Bedienungsanleitung

1. Layering Two Sounds .........

Chapter 4 Selecting Sounds ...............

1. Selecting Sounds ...............

Chapter 5 Layering ............................

Chapter 6 Splitting .............................

1. Splitting the Keyboard ........ 15

Recording a Performance ....

Chapter 10 Recording ........................

Chapter 11 Demo Songs .....................

Listening to Demo Songs ......

Chapter 16 Specifications .................... 28

Chapter 7 Functions .......................... 17

1. Function Mode ................... 17

2. Selecting a Function ........... 17

Chapter 9 Rhythm List .................... 20

Chapter 15 Demo Song List ................ 27

Contents

Main Features ..........................

Main Buttons ............................

1. Piano Assembly ...................

2. Applying Power ....................

3. Setting the Volume .............

Chapter 2 Main Features ...................

Chapter 1 Front Panel ........................

Chapter 3 Piano Assembly .................

11 Chapter 12 Pedals .................................

1. Pedals ..................................

2. Using the Pedals ................

Chapter 13 MIDI ....................................

1. MIDI Channel ......................

2. Connecting to a Computer

1. Using Headphones ............

2. Aux In ..................................

3. Aux Out ...............................

Chapter 14 Connection ........................

4. MP3 Aux In .........................

Chapter 8 Rhythm .............................. 18

1. Selecting a Rhythm ............. 18

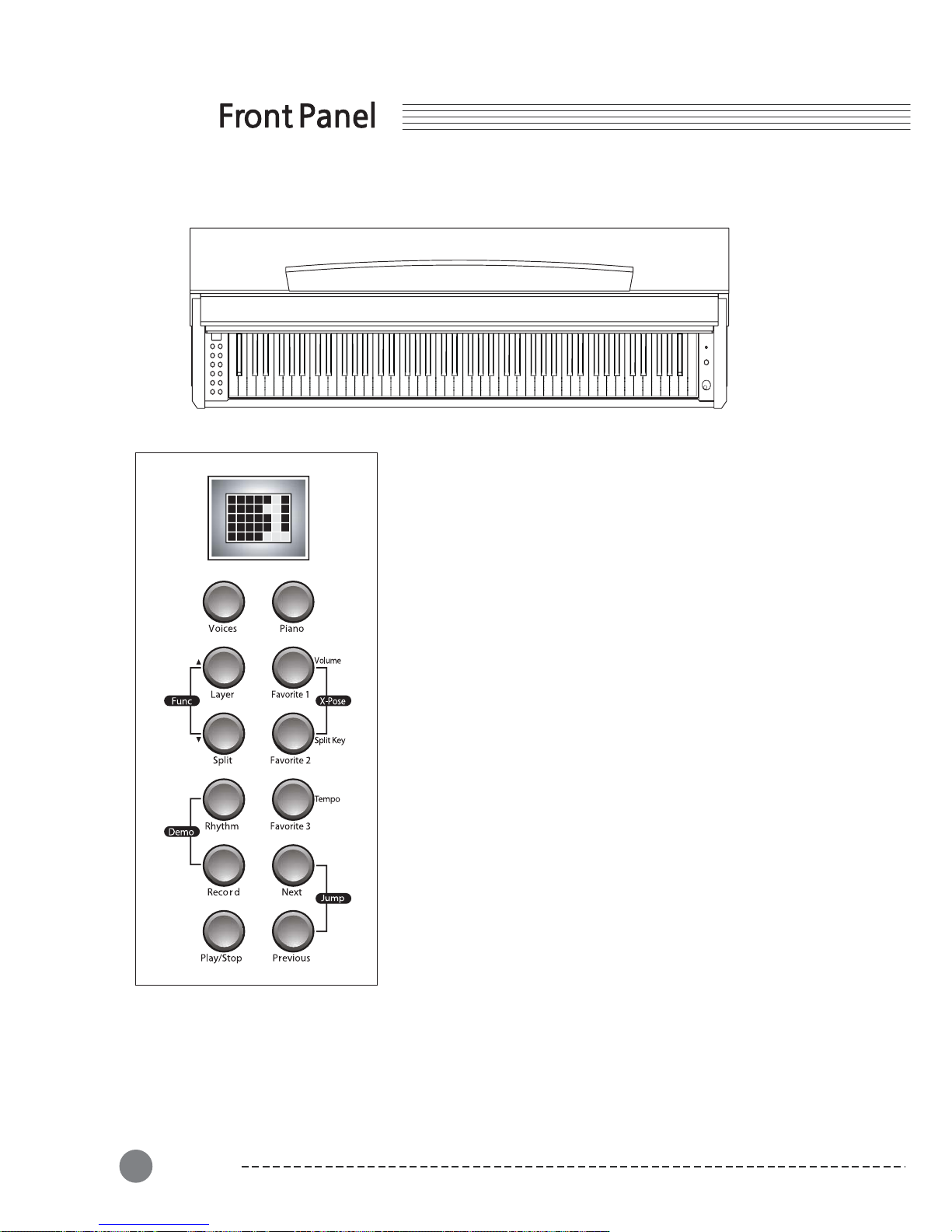

Chapter 1

Main Buttons

(1) Voice button

Select among the 20 voices with the [Voices] button.

Piano

(4) Rhythm button

Select among the 29 rhythms with the [Rhythm] button.

(5) Layer button

You can layer two voices and play them simultaneously to

create a thicker and richer sound.

(6) Split button

For playing different voices on the left-hand and right-hand

section of the keyboard.

(7) Demo Songs

Select among the 50 demonstration songs.

(8) Function button

You may set functions like Tune, Tempo, Metronome, etc.

(9) Record button

For recording your keyboard performance.

(10) Play/Stop button

These control playback of or stop the demonstration songs

and your recorded songs.

(2) button

Always selects "1 GRAND PIANO" sound.

(3) Favorite 1,2,3 buttons

Provides quick access to 3 user selected or modified voices.

(11) Next button

Select the next higher Voice, Rhythm, or Demo Song, etc.

(12) Previous button

Select the next lower Voice, Rhythm, or Demo Song, etc.

8Front Panel

■

USB MIDI

■

88 note fully weighted Graded Hammer action keyboard

3 Pedals (Sustain, Sostenuto, Soft)

10 Touch sensitivity settings

Stereo Audio Input, Output

2 Headphone jacks

5x7 Dot scrolling matrix LED

20 Voices

Layer, Split mode

Transpose, Tune functions

MP3 Aux In

Recording function

Thank you for purchasing the KURZWEIL's Digital Piano. We recommend that you

read this manual carefully so that you can fully take advantage of the advanced

and convenient functions of the KURZWEIL's Digital Piano.

Main Features

Chapter 2

Main Features 7

■

29 Rhythm patterns

①

⑥

②

⑦

③

⑧

④

EA EA

678 9 10

⑨

Chapter 3

8Piano Assembly

Check that all of the following items are present.

Keyboard

Side panel of stand (Left)

Side panel of stand (Right)

Pedal box

Screws for side panel and keyboard (25mm)

Screws for side panel and pedal box (25mm)

Screws for side panel and rear panel

Screws for rear panel

Please check the quantity of related part number.

Part Name Part Name

Q'ty Q'ty

⑤

EA EA

Rear panel Cord holder

④

Chapter 3

Piano Assembly 9

- Assembly should be carried out by at least two persons.

- Assemble the stand on a hard and flat floor with ample space.

- Be sure to use the included screws, and insert screws of the correct size in the correct

hole locations. Use of incorrect screws can damage the product.

1. Stand Assembly

Attach the pedal cord holders to the rear panel

as shown, then clip the cord into the holders

1) Side Panel and Pedal Box assembly

2) Rear Panel assembly

1. Place the pedal box on the left side

panel and use screws to fasten

the side panel.

2. Place the pedal box on the right side

panel and use screws to fasten

the side panel.

3. You can find the pedal cable in the

pedal box . Untie and straighten out

the bundled pedal cable.

1. Fit into the rear panel's hole in the side

panel brackets and then use the screws

to fasten the rear panel.

2. Use the screws to fasten the bottom

of the rear panel.

8Piano Assembly

3) Mounting the keyboard

1. Place the keyboard on the stand and fit into the holes in the side panel brackets.

2. Fasten the keyboard to the side panel using screws .

3. Insert the pedal cable plug into the pedal jack located on the bottom of the keyboard.

4. Rotate the pedal adjuster until it comes in firm contact with the floor surface.

If the adjuster is not in firm contact with the floor, the pedals will wobble and may

malfunction.

Insert the pedal

cord plug to the

pedal jack from

the rear.

Pedal Adjuster
