MOUNTING GUIDE

FOR THE

SOLAR PHOTOVOLTAIC POWER MODULES

Please read this guide carefully before installing the modules.

KYOCERA

2011.11.1

KD series modules may be attached to a support structure by the following methods. Detailed mounting method is

described in ‘mounting table’. When installing modules in snowy area, an appropriate countermeasure has to be taken to

prevent possible damages to the lower side frame by slipping snow (e.g. attach supporting parts to the lowest modules.).

Any damage caused by snow or such countermeasure is not covered under warranty.

For optimal performance in all applications, clearance between the module frame and the mounting surface is required to

allow cooler ambient air to circulate around the back of the module and to avoid the module and / or wiring damage.

The minimum spacing of 2” (50 mm) is required between PV module and the mounting surface around the perimeter of PV

module. There should also be a clearance of at least .13” (3.2 mm) between the individual modules to allow heat-related

expansion.

BOLTING: Utilizing 5/16” or 8 mm steel hardware structure through the existing .35” (9 mm) diameter mounting holes in the

module frame and then through KD series modules mounting holes on the support structure.

Tighten the screws with adequate torque (usually 132 in-lb).

Support structure should have enough strength to keep the mounting span.

Refer to the below table for the position of PV module mounting holes.

CLAMPING: Fasten modules firmly with the clamps which must not be deformed by wind load or snow load, nor cause the

module fall off by using torque values specified by structure manufacturers.

Minimum 40mm clamping width, and minimum 9mm overlap onto frame are necessary.

Clamps also must not shade the sunlight incidence on glass surface.

Clamp material must be either stainless steel or anodized aluminum.

Support structure should have enough strength to keep the mounting span.

Refer to the below table for the permissible clamping range.

KD135GX-LFBS~KD245GX-LFB

KKM-SM-0717-1

Mounting table-1

Long side

Bolting

Top down

clamp

KD235GX-LFB

KD240GX-LFB

KD245GX-LFB

1100mm

100mm 100mm 100mm 100mm

281mm

281mm 1100mm

: Permissible

clamping range

1100mm

100mm 100mm 100mm 100mm

281mm 281mm 1100mm

KKM-SM-0717-1

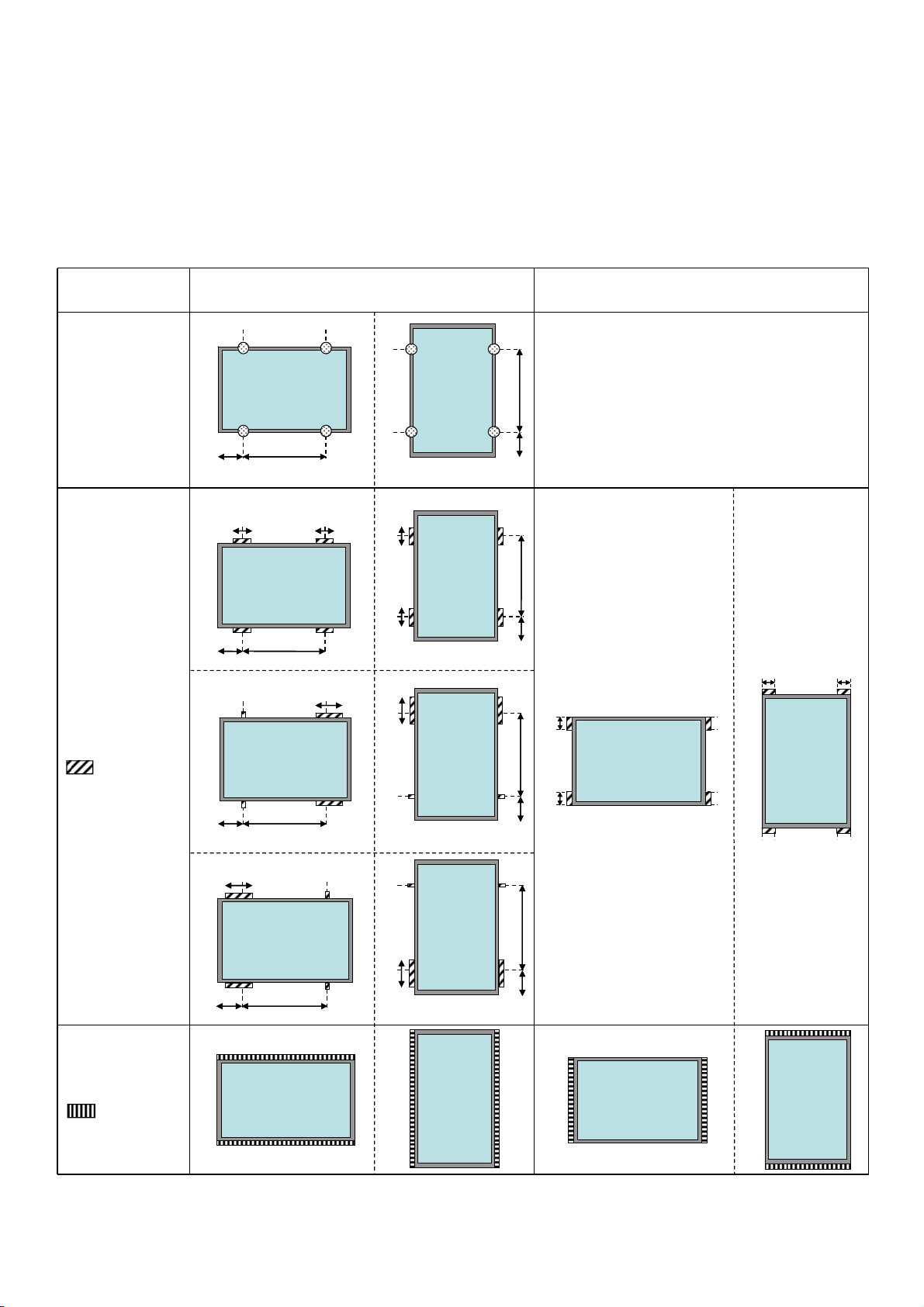

Mounting table-2 KD215GX-LFBS

KD220GX-LFBS

Long Side Short Side

Bolting

TopDown

Clamp

Continuous

Clamp

943mm

100mm 100mm 100mm 100mm

278.5mm 943mm

100mm 100mm 100mm 100mm

278.5mm

943mm

100mm 100mm 100mm 100mm

278.5mm 943mm

100mm 100mm 100mm 100mm

278.5mm

100mm 200mm

943mm278.5mm

100mm 200mm

943mm278.5mm

100mm 200mm

943mm278.5mm

100mm 200mm

943mm278.5mm

200mm 100mm

943mm

278.5mm

200mm 100mm

943mm

278.5mm

200mm 100mm

943mm

278.5mm

200mm 100mm

943mm

278.5mm

943mm278.5mm 943mm278.5mm

continuous clamp

Permissible

clamping range

150mm

150mm 150mm

150mm

150mm 150mm

150mm

KKM-SM-0717-1

Mounting table-3 KD135GX-LFBS

KD140GX-LFBS

Bolting

Permissible

clamping range

100mm

278.5mm 943mm

100mm 100mm

278.5mm 943mm

100mm

278.5mm 943mm

100mm 100mm

278.5mm 943mm

100mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

200mm

278.5mm 943mm

943mm

278.5mm 943mm

278.5mm

943mm

278.5mm 943mm

278.5mm

Long Side ShortSide

150mm 150mm

TopDown

Clamp

Continuous

Clamp

continuous clamp

KKM-SM-0717-1
