HIGH EFFICIENCY MULTICRYSTAL PHOTOVOLTAIC MODULE

KD200-60 P Series

Cutting Edge Technology

As a pioneer with 35 years in solar, Kyocera demonstrates

leadership in the development of solar energy products.

Kyocera’s

Kaizen

Philosophy, commitment to continuous

improvement, is shown by repeatedly achieving world

record cell efﬁciencies.

Quality Built In

• UV stabilized, aesthetically pleasing black anodized frame

• Supported by major mounting structure manufacturers

• Easily accessible grounding points on all four

corners for fast installation

• Proven junction box technology with PV wire to

work with transformerless inverters

• Quality locking plug-in connectors to provide safe &

quick connections

Reliable

• Superior built-in quality

• Proven superior field performance

• Tight power tolerance

Warranty

• Kyocera standard 20 year power output warranty

and 5 year workmanship warranty applies in USA

• Extended warranties available per project

requirements

• Kyocera standard 20 year power output warranty

and 2 year workmanship warranty applies

outside of USA

• Refer to Kyocera warranty policy for details

NEC 2008 Compliant UL 1703, ISO 9001 and ISO 14001

Certiﬁed and Registered Class C

Also available:

UL Listing

QIGU.E173074

QUALIFIED FOR “BUY AMERICAN”

Manufactured in San Diego, California

Standard Test Conditions

KD230GX-LPB KD235GX-LPB

Pmax 230 235 W

Vmp 29.8 29.8 V

Imp 7.72 7.89 A

Voc 36.9 36.9 V

Isc 8.36 8.55 A

Ptolerance* +5/-3 +5/-3 %

ELECTRICAL SPECIFICATIONS

Nominal Operating Cell

Temperature Conditions (NOCT)

TNOCT 47.9 47.9 OC

Pmax 163 166 W

Vmp 26.4 26.4 V

Imp 6.18 6.31 A

Voc 33.3 33.3 V

Isc 6.78 6.93 A

Temperature Coefﬁcients

Pmax -1.04 -1.07 W/oC

Voc -0.133 -0.133 V/oC

Isc 0.00502 0.00513 A/oC

Operating

Temp -40~90 -40~90 OC

System Design

Series Fuse Rating 15 A

Maximum DC System Voltage (UL) 600 V

Kyocera reserves the right to modify these specifications without notice.

All specification at 25°C. cell temperature, 1.5 AM and 1000W/m2.

NEC 2008 Compliant

UL 1703 Listed

KYOCERA SOLAR, INC. 800-223-9580 toll-free 800-523-2329 fax www.kyocerasolar.com

102210

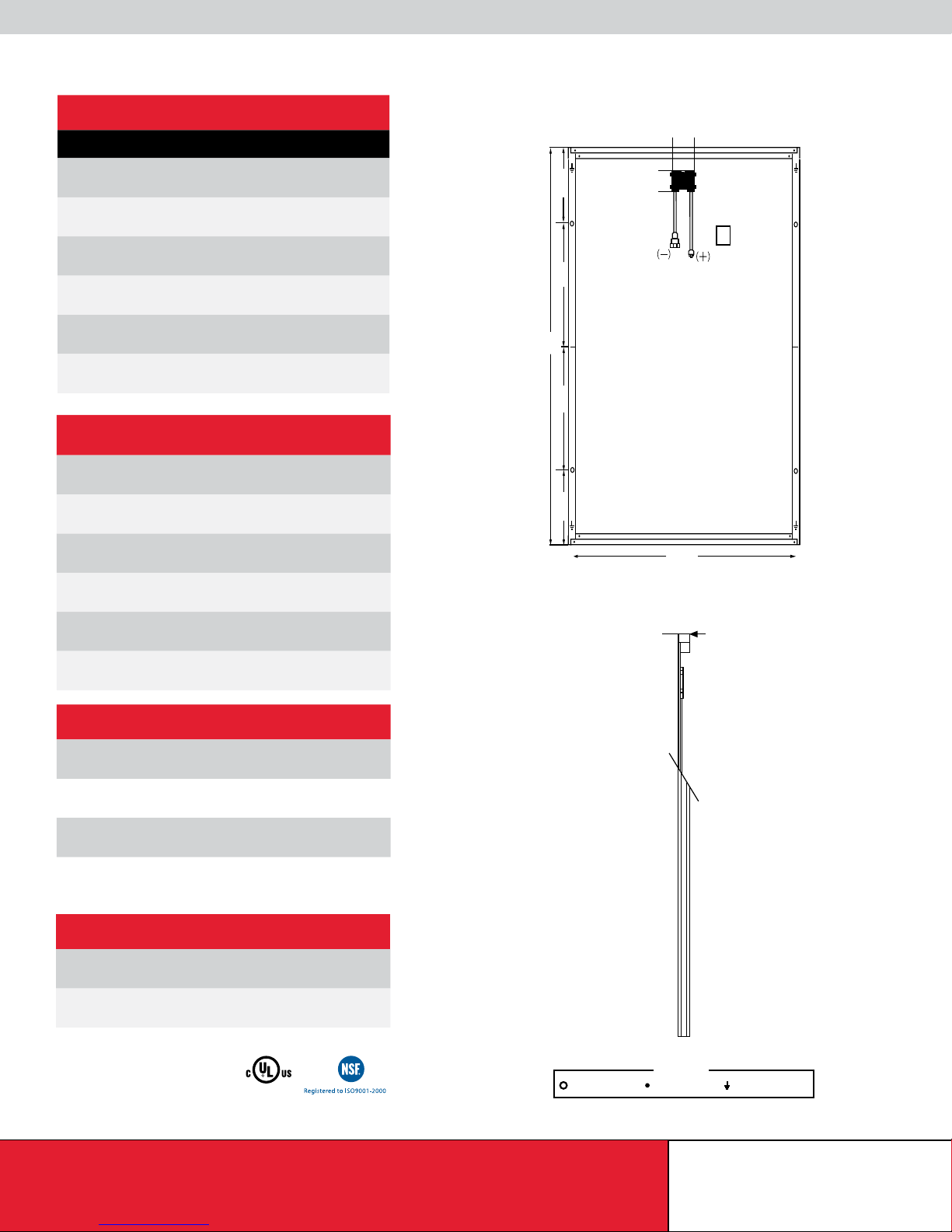

MECHANICAL SPECIFICATIONS

MOUNtINg HOLEs gROUNDINg HOLEs

DRAINAgE HOLEs

Legend

1.8in

46mm

CABLE w/

CONNECtOR

JUNCtION

BOx

4.25in

108mm

4.13in

105mm

40.55in/1030mm

32.68in/830mm

37.99(±0.1)in

990±2.5mm

Weight: 46.3lbs (21.0kg)

11.06in

281mm

11.06in

281mm

21.65in

550mm

21.65in

550mm

65.43in

1662mm

KD200-60 P Series
