Kyocera KD135SX-UPU Bedienungsanleitung

NEC 2008 Compliant

UL1703, Class C

CLASS I, DIV II

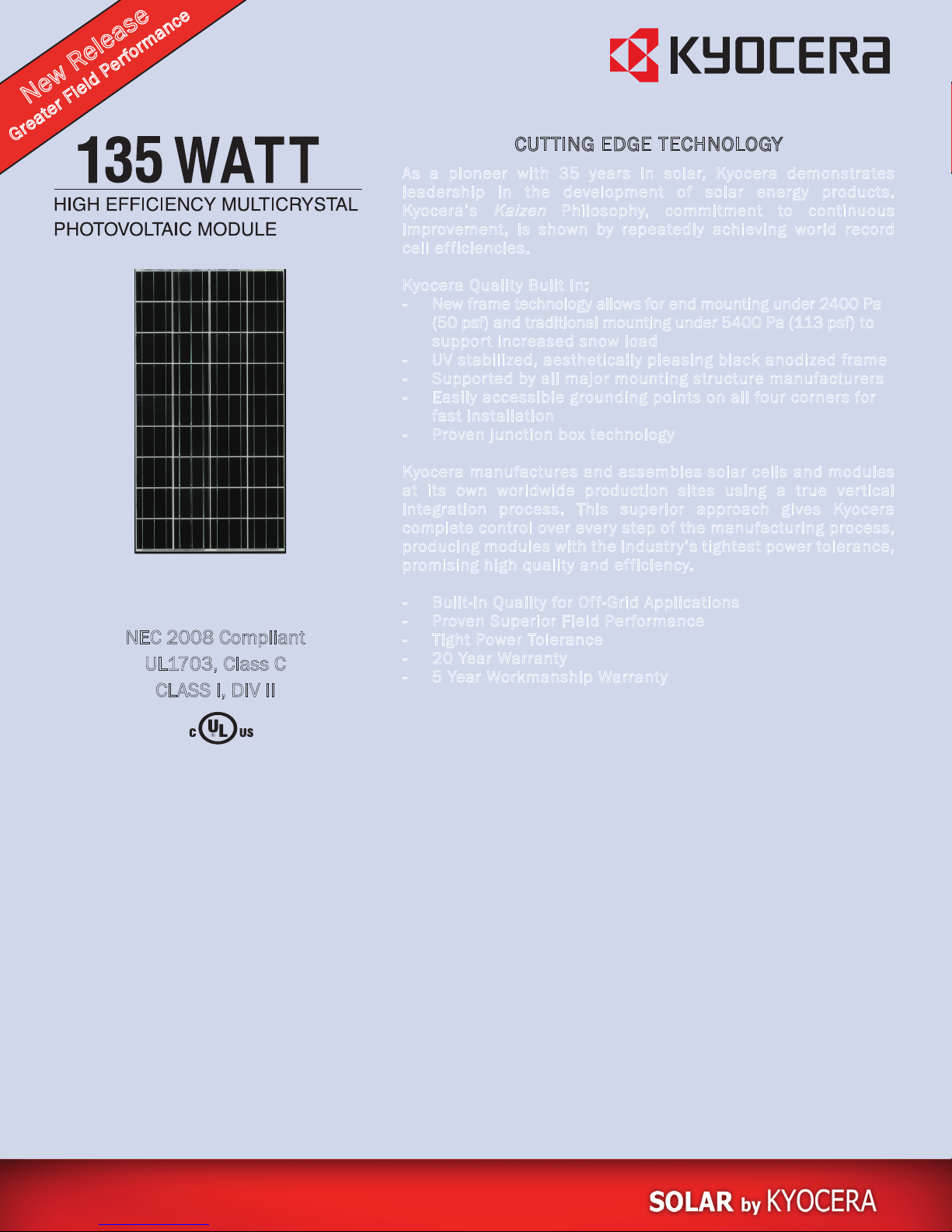

CUTTING EDGE TECHNOLOGY

As a pioneer with 35 years in solar, Kyocera demonstrates

leadership in the development of solar energy products.

Kyocera’s

Kaizen

Philosophy, commitment to continuous

improvement, is shown by repeatedly achieving world record

cell efficiencies.

Kyocera Quality Built In:

- New frame technology allows for end mounting under 2400 Pa

(50 psf) and traditional mounting under 5400 Pa (113 psf) to

support increased snow load

- UV stabilized, aesthetically pleasing black anodized frame

- Supported by all major mounting structure manufacturers

- Easily accessible grounding points on all four corners for

fast installation

- Proven junction box technology

Kyocera manufactures and assembles solar cells and modules

at its own worldwide production sites using a true vertical

integration process. This superior approach gives Kyocera

complete control over every step of the manufacturing process,

producing modules with the industry’s tightest power tolerance,

promising high quality and efficiency.

- Built-In Quality for Off-Grid Applications

- Proven Superior Field Performance

- Tight Power Tolerance

- 20 Year Warranty

- 5 Year Workmanship Warranty

KD135SX-UPU

New Release

Greater Field Performance

ISO 9001 and ISO 14001 Certied and Registered

www.kyocerasolar.com

800-223-9580 toll free 800-523-2329 fax

KD135SX-UPU

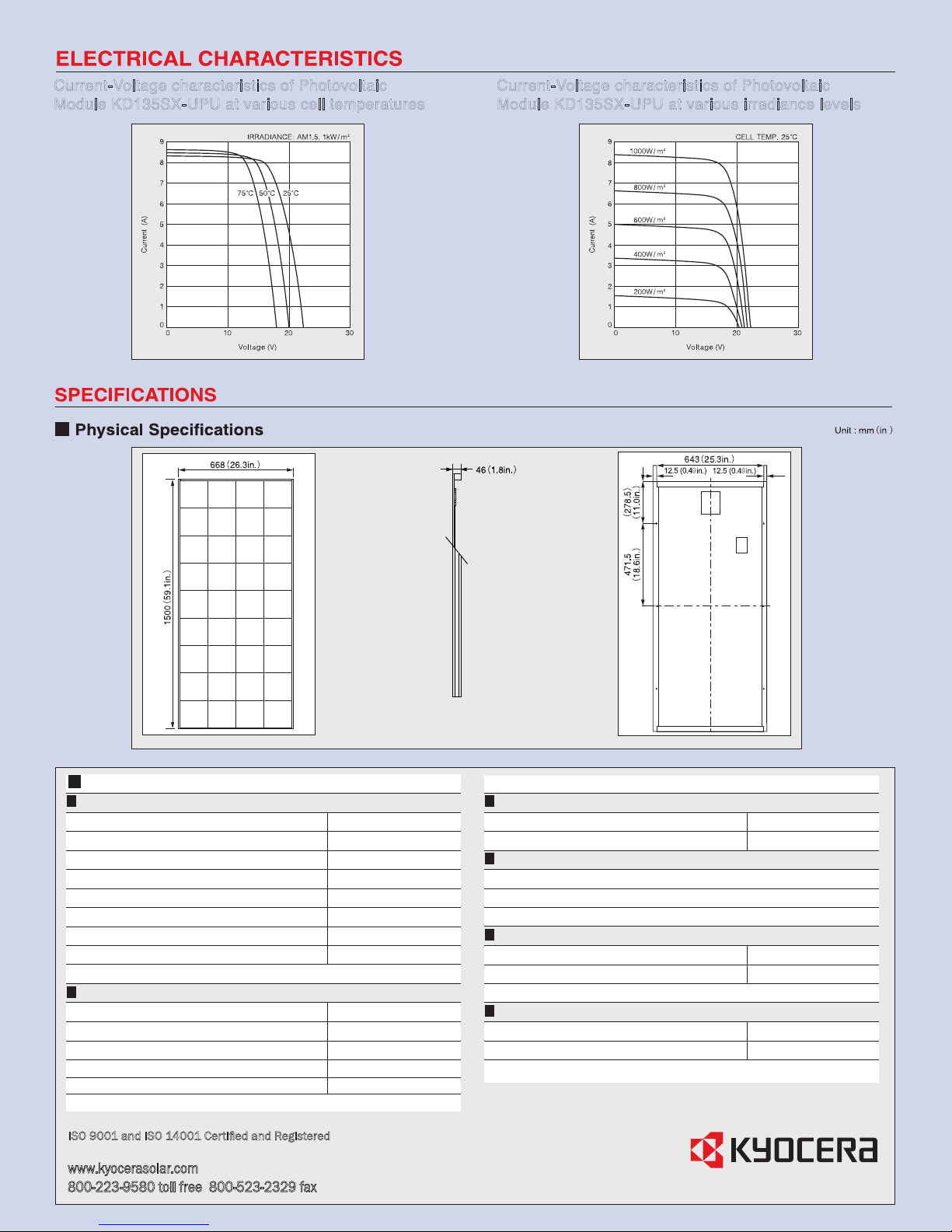

Current-Voltage characteristics of Photovoltaic

Module KD135SX-UPU at various cell temperatures

Current-Voltage characteristics of Photovoltaic

Module KD135SX-UPU at various irradiance levels

Cells

Number per Module 36

Module Characteristics

Length X Width X Depth

1500mm(59.1in)x668mm(26.3in)x46mm(1.8in)

Weight 12.5kg(27.5lbs.)

Junction Box Characteristics

Length X Width X Depth

150mm(5.9in)x140mm(5.5in)x37.2mm(1.5in)

IP Code IP65

Others

*Operating Temperature –40˚~90˚C

Maximum Fuse 15A

*This temperature is based on cell temperature.

Speciﬁcations

Electrical Perfomance under Standard Test Conditions (*STC)

Maximum Power (Pmax) 135W (+5%/–5%)

Maximum Power Voltage (Vmpp) 17.7V

Maximum Power Current (lmpp) 7.63A

Open Circuit Voltage (Voc) 22.1V

Short Circuit Current (Isc) 8.37A

Max System Voltage 600V

Temperature Coefcient of Voc –8.0x10-2 V/˚C

Temperature Coefcient of Isc 5.02x10-3 A/˚C

*STC : Irradiance 1000W/m2, AM1.5 spectrum, cell temperature 25˚

Electrical Performance at 800W/m2, *NOCT, AM1.5

Maximum Power (Pmax) 95W

Maximum Power Voltage (Vmpp) 15.7V

Maximum Power Current (lmpp) 6.10A

Open Circuit Voltage (Voc) 20.0V

Short Circuit Current (Isc) 6.79A

*NOCT (Nominal Operating Cell Temperature) :47.9˚C
