Operating Instructions

General Information.......................................................................................................2

1.1

General Safety Notes..............................................................................................2

1.2

Intended Use...........................................................................................................2

1.3

Conformity with EU Regulations..............................................................................2

Transportation and Storage..........................................................................................2

Installation and Commissioning ..................................................................................2

3.1

Devices with Diaphragm Seal .................................................................................2

3.2

Mechanical Installation............................................................................................3

3.3

Mount / dismount display ........................................................................................3

3.4

Electrical Connection ..............................................................................................3

3.5

Device orientation ...................................................................................................4

3.6

Adjustment of the display contrast ..........................................................................4

Operation........................................................................................................................4

4.1

Maintenance / Service.............................................................................................4

Disassembly...................................................................................................................5

User Manual...................................................................................................................6

6.1

Basics of the Operating Concept.............................................................................6

6.2

Display Mode / Measured Value Display.................................................................7

6.3

Menue Mode / Operating Menue...........................................................................10

6.4

The Menue Tree....................................................................................................13

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 2/24

1 General Information

This document contains necessary information for the proper installation and use of this

device. In addition to this instruction, be sure to observe all statutory requirements, appli-

cable standards, the additional technical specifications on the accompanying data sheet

(see www.labom.com) as well as the specifications indicated on the type plate.

1.1 General Safety Notes

The installation, set up, service or disassembly of this device must only be done by

trained, qualified personnel using suitable equipment and authorized to do so.

Warning

Media can escape if unsuitable devices are used or if the installation is not

correct.

Danger of severe injury or damage

Ensure that the device is suitable for the process and undamaged.

1.2 Intended Use

The device is intended to measure pressure of gases, vapors and liquids as specified in

the data sheet.

1.3 Conformity with EU Regulations

The CE-marking on the device certifies its compliance with the applicable EU Directives for

placing products on the market within the European Union.

You find the complete EU Declaration of Conformity (document no. KE_048) at

www.labom.com.

2 Transportation and Storage

Store and transport the device only under clean and dry conditions preferably in the origi-

nal packaging. Avoid exposure to shocks and excessive vibrations.

Permissible storage temperature: -40…80 °C

3 Installation and Commissioning

Ensure that the device is suitable for the intended application with respect to pressure

range, overpressure limit, media compatibility, temperature range and process connection.

After the mechanical installation and electrical connection is completed, the device is

ready for operation as soon as the power supply is switched on.

3.1 Devices with Diaphragm Seal

Remove the protective cap or protective wrapping from the diaphragm only just before in-

stallation to prevent contamination or damage.

The diaphragm must not be touched. Do not place the device on its diaphragm. Even

small scratches or deformations may negatively influence the zero point or other charac-

teristics of the device.

Pressure transmitter and diaphragm seal are a closed system that must not be separated.

You can find further information about diaphragm seals in the document TA_031 on

www.labom.com.

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 3/24

3.2 Mechanical Installation

Use gaskets, if required, that are suitable for the process connection and resistant to the

media.

Before starting operation, check the process connection carefully for leaks under pressure.

You can use the device in any mounting position. Normally the transmitter is adjusted for a

vertical mounting position. A different mounting position in combination with a small nomi-

nal range might cause a zero point offset. In this case a zero point adjustment might be

necessary.

3.3 Mount / dismount display

In order to dismount the display, turn off the device cover and pull out the display. The

three small studs at the outer diameter of the display (all 120°) facilitate removal.

The display cable can be disconnected either at the display or at the clamp module. When

reconnecting the cable, please take polarity (red lead) into account. Otherwise the cable

will not fit into the plug.

When mounting the display, you can choose its orientation. Complete the process by firmly

reattaching the cover.

3.4 Electrical Connection

Complete the mechanical installation before you connect the device electrically.

Set up all electrical connections while the voltage supply is switched off.

Output (2-wire) 4...20 mA (20...4 mA)

Permissible supply voltage U

= 12…30 VDC

Permissible load R

≤(U

- 12 V) / 22 mA

Circular connector M12 Cable gland

( )

(+)

(-)

n.c.

Figure 1: Options for the electrical connection

Pay attention to the following points regarding electrical connections via cable gland:

−The display can be dismounted as described in Chapter 3.3. Use a small screwdriv-

er to press the spring of the terminal block completely downwards before inserting

the cable. Otherwise, it is not possible to ensure a safe electrical connection.

−Do not forget to tighten the cable gland after the electrical connection is finalised.

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 4/24

3.5 Device orientation

The case can be turned in relation to the process connection as well as the display in rela-

tion to the case.

Turning the case in relation to the process connection (±170°) allows to choose the posi-

tion of the electrical connection. Turning the display in relation to the case allows to

choose the viewing angle independently of the position of the electrical connection.

3.6 Adjustment of the display contrast

The display contrast can be adjusted.

Press and hold the ESC key and use the arrow keys to adapt the contrast.

The setting is saved and the contrast screen closes as soon as the ESC key is released.

4 Operation

During operation, take care that the device remains within its intended pressure and tem-

perature ranges. No other monitoring is necessary.

Permissible ambient temperature: -20…80 °C

Optionally, you can order devices with an extended ambient temperature range

of -40...80 °C.

4.1 Maintenance / Service

When properly installed in accordance with applicable specifications, this device is

maintenance-free. However, we recommend an annual recalibration of the device.

In case of damage or defects, the customer can replace the following elements:

−Display module

−Cable glands (if applicable)

For defects to other components, repairs must be performed in the factory.

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 5/24

5 Disassembly

When measuring hot media, make sure that the device has cooled down prior to any dis-

mounting or wear appropriate protective clothing to avoid burns.

Switch off the power supply to the device before disconnecting the electrical connections.

Once this is done, the device may be mechanically removed.

Warning

Opening pressurized lines might cause severe injuries.

Danger of severe injuries or damage



Relieve the process pressure before attempting to remove the device.

Shut off the pressure supply for all feed lines to the device and relieve the

pressure in them.

Warning

Hazardous deposits and residues might remain on opened process connec-

tions and removed devices.

Danger of injury



After the device has been removed, seal off the measuring point and

mark the open process connection accordingly. Consider a possible dan-

ger due to residues when handling the removed device.

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 6/24

6 User Manual

The device can be configured via the display module as well as the HART protocol. The

following pages describe operation and configuration of the device using the display mod-

ule.

An overview of the menue structure can be found on the last page of this document.

6.1 Basics of the Operating Concept

The display module consists of a dot-matrix

display with 80x128 pixels as well as a

4-button control panel.

The four buttons below the display allow an

intuitive operation of the device. The gen-

eral functionality of the buttons is identical in

all operating modes.

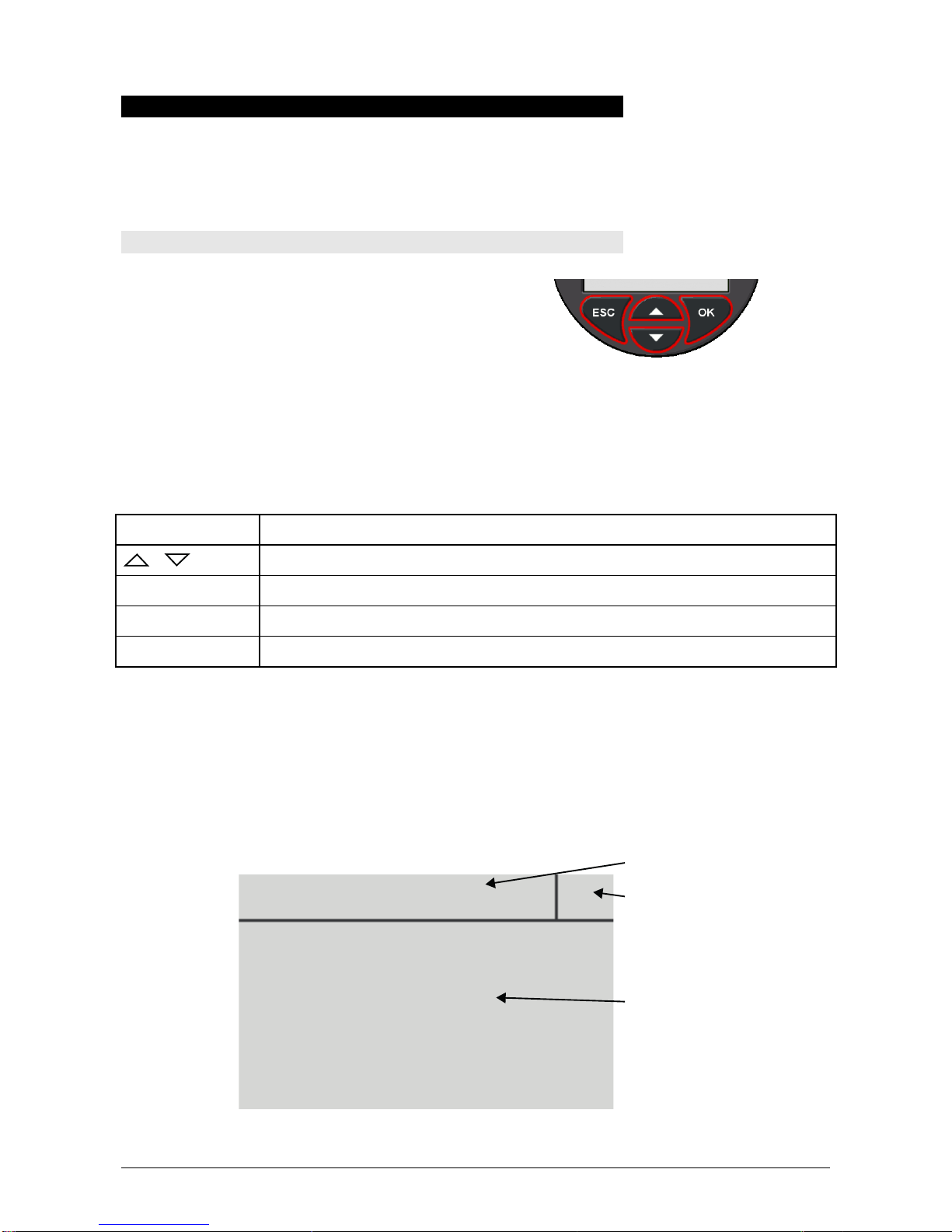

Figure 2: Control elements

If you press and hold the up or down button, it will automatically be triggered multiple

times. This allows to easily navigate through longer selection lists. If you press and hold

the ESC button, you always return to the measured value display.

Button Function

/ Select function, increase/decrease value

OK Confirm selected function or selected value

ESC Cancel action

ESC long Return to measured value display

Table 1: General button functions

The structure of the display is the same in every operating mode. The display area is di-

vided into three zones:

−Header

−Icon indicating device status

−Data area

Header

Icon

Data area

Figure 3: Display structure

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 7/24

The icon for the device status (see 6.2.3) is displayed in each operating mode. The con-

tents of the header and the data area depend on the operating mode:

Display of measured value

−Header: Icon description, if applicable. Otherwise "Value"

−Data area: Measured values and parameters according to the selected display

mode (see 6.2.4)

Display of device data (see 6.2.1)

−Header: Title for the displayed device data

−Data area: Device data

Operating menue

−Header: Selected menue item

−Data area: Submenue or dialogue during setting procedure

6.2 Display Mode / Measured Value Display

After applying the supply voltage and completion of the initialisation, the device switches to

the display mode. In the display, the currently measured value is shown.

If the measured value is larger than the displayable number due to setting a fixed decimal

point or an inappropriate unit, the largest displayable number is shown flashing. In this

case please select a different setting of the decimal point or a different unit.

In display mode you can review the device data, enter the menue or lock/unlock the

menue.

Button Function

/ Scroll through the pages with device data

ESC Return to measured value display

OK Go to the operating menue

ESC+OK long Activate / deactivate menue lock (see 6.3.2)

Table 2: Button functions in display mode

6.2.1 Quick Access to Device Data

You can access a number of device parameters directly from the measured value display

using the / -buttons. This allows a quick overview of the device configuration.

With the -button you can display variable data (min-/max-values), with the -button

static information such as configuration data.

From any screen of the device data, you can enter the operating menue with OK and go

back to the measured value display by pressing ESC.

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 8/24

The sequence of the screens with device data is as follows:

−Min-/Max values (pressure and sensor temperature)

−----- Measured value (starting point) ---

−Pressure measur. (gauge/abs, nominal range, damping)

−Current output (characteristic curve, limits, measuring range)

−HART data (address, tag, descriptor)

−Identification (device ID, order number, serial number)

−Module information (hardware and software versions, serial numbers)

6.2.2 Locking the Menue

You can lock the menue with a key combination at the device. Press and hold the ESC-

key and press then OK to activate the menue lock. Hold down both keys until the display

confirms that the menue lock has been activated. You can still access the device data but

the menue is now locked.

An active menue lock is indicated by the header text „Write protection“ in combination with

the lock icon.

Use the same key combination to unlock the menue again.

6.2.3 Icons indicating device status

In the top right corner of the display, depending on the device status an NE107-conform

icon is displayed. The following icons are defined:

Error/failure Critical error, alarm current is activated

The error description is indicated in the display. It restarts

after confirming the error.

Warning Temperature or pressure limits are exceeded.

Limit reached The output current reached the pre-set upper or lower cur-

rent limit.

Function control

The output current corresponds to the measured value or

current simulation, but not to the applied pressure value.

Write protection

The write protection of the device was activated via HART

or with the key combination in the display.

Table 3: Icons for device state

The list of icons is sorted in descending priority. Only the icon with the highest priority is

shown. The two most important icons for fault and/or warning are flashing when displayed.

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 9/24

6.2.4 Display layouts

You can configure the layout of the measured value display as well as the displayed infor-

mation individually. There are four different layouts available:

Designation

Layout Description Example

Four values

1st value

2nd value 3rd value

4th value

Under the main value, three additional

values are shown. The 4th value can

use the entire display width.

Three val-

ues

1st value

3rd value

2nd value

Under the main value, two additional

values are shown. Both of them can

use the entire display width.

Two values

1st value

2nd value

Two values are shown in the same

size, one under the other.

Large dis-

play

1st value

2nd value unit

The main value is shown at the maxi-

mum size (best readability from a dis-

tance). One additional value can also

be shown.

Table 4: Display layouts

You can define what information shall be shown in the layout’s placeholders.

You can select the 1st value (main value) from the following data:

1. Pressure with the selected unit

2. Pressure in per cent of the measuring range

3. Pressure in milliampere

For all further values, you can additionally choose from the following data:

−Bar graph

−Sensor temperature

−Device ID (see 6.4.9.1)

−HART tag

−HART descriptor

When information (such as the device ID) cannot be displayed in a short layout placehold-

er, "###" appears on the screen. Then select another layout or assign the value to a longer

layout placeholder.

You can configure the display mode in the menue "Display" submenue "Display mode"

(see 6.4.4.2).

BA_080 Rev 1J8 Pressure transmitter PASCAL CV4 Page 10/24

6.3 Menue Mode / Operating Menue

Press OK in the measured value display to go to the operating menue. Then the main

menue appears in the display.

In the operating menue you can navigate in the menues by using the arrow buttons. The

selected menue item is indicated by triangles on the left and right. The OK button selects

the menue item or switches to the corresponding submenue. You can return to the higher-

level menue by pressing ESC. From the main menue, pressing ESC returns to the meas-

ured value display.

From every position in the operating menue, you can return to the measured value display

by pressing and holding the ESC button (for at least one second).

ESC

ESC OK

ESC

ESC long

Figure 4: Navigating the operating menue

In long menues and selection lists, a scroll bar on the left side shows the position of the

currently selected item.

Menue items that open a setting dialogue differ from submenues by three trailing points,

e.g. "Lower range …" (select via setting dialogue) and "System" (select via submenue).

If no button is pressed in menue mode for five minutes, the device automatically returns to

the display mode without saving any values.

Button Function

Scroll up in the menue, increase value/position in list

Scroll down in the menue, decrease value/position in list

OK Select menue, confirm value/list entry

ESC Cancel the data entry or menue selection, return to the next higher

menue

ESC long Cancel menue mode, return to display mode

Table 5: Button functions in the operating menue

Andere Handbücher für PASCAL CV4

Inhaltsverzeichnis

Andere Labom Sender Handbücher

Labom

Labom CX2001 series Bedienungsanleitung

Labom

Labom PASCAL CV Bedienungsanleitung

Labom

Labom PASCAL CV4 Bedienungsanleitung

Labom

Labom COMPACT ECO CA1 0 Series Bedienungsanleitung

Labom

Labom CI4 Series Bedienungsanleitung

Labom

Labom C 1 Series Bedienungsanleitung

Labom

Labom CK5 Series Bedienungsanleitung

Labom

Labom PASCAL CS Bedienungsanleitung

Labom

Labom PASCAL Ci4 LEVEL Bedienungsanleitung

Labom

Labom CI4 Series Bedienungsanleitung

Labom

Labom CI4 Series Bedienungsanleitung

Labom

Labom CK5 Series Bedienungsanleitung

Labom

Labom COMPACT CB6 Series Bedienungsanleitung

Labom

Labom PASCAL DELTA P CI133 Bedienungsanleitung

Labom

Labom CX6001 Series Bedienungsanleitung

Labom

Labom CG201x series Bedienungsanleitung

Labom

Labom PA2530 Series Bedienungsanleitung

Labom

Labom PASCAL CS21 0 Series Bedienungsanleitung

Labom

Labom UNIVERSAL CA CA21 0 Series Bedienungsanleitung

Labom

Labom MiniTherm GV4730 Series Bedienungsanleitung

Labom

Labom CV4110 Bedienungsanleitung

Labom

Labom CI4 Series Bedienungsanleitung

Beliebte Sender Handbücher anderer Marken

NIVELCO

NIVELCO EasyTREK SCA-300 Series Betriebsanleitung

Honeywell

Honeywell 5816WMBR Bedienungsanleitung

Kamstrup

Kamstrup READy MTU Betriebsanleitung

Omega

Omega ZW Series Bedienungsanleitung

ABB

ABB Field 264H Leitfaden

Alinco

Alinco DJ-V17T Bedienungsanleitung

Dejero

Dejero EnGo 3x Bedienungsanleitung

Rosemount

Rosemount 4600 Bedienungsanleitung

Speaka Professional

Speaka Professional 2342740 Bedienungsanleitung

trubomat

trubomat GAB 1000 Bedienungsanleitung

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Bedienungsanleitung

Rondish

Rondish UT-11 Bedienungsanleitung

MG 10JRE Bedienungsanleitung

Burkert

Burkert 8177 Bedienungsanleitung

Firetide

Firetide HotPort 3203 Handbuch

Tele Radio

Tele Radio T9-02 Bedienungsanleitung

Rotronic

Rotronic HygroFlex HF3 Series Bedienungsanleitung

Jamara

Jamara FCX6 Pro Tel Bedienungsanleitung
