Lantronix Xpress-Pro SW 92000 Bedienungsanleitung
Part Number 900-505
Revision A May 2007
XPress-Pro SW 92000
User Guide
XPress-Pro SW 92000 2
Copyright & Trademark
© 2005, Lantronix. All rights reserved. No part of the contents of this book may be
transmitted or reproduced in any form or by any means without the written permission of
Lantronix. Printed in the United States of America.
Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The
Open Group. Windows 95, Windows 98, Windows 2000, and Windows NT are
trademarks of Microsoft Corp. Netscape is a trademark of Netscape Communications
Corporation.
Contacts
Lantronix Corporate Headquarters
15353 Barranca Parkway
Irvine, CA 92618, USA
Phone: 949-453-3990
Fax: 949-453-3995
Technical Support
Online: www.lantronix.com/support
Sales Offices
For a current list of our domestic and international sales offices, go to the Lantronix web
site at www.lantronix.com/about/contact .
XPress-Pro SW 92000 3
Contents
1: Preface 4
Plug-and-Play Solution _______________________________________________ 4
2: Product Overview 5
Hardened Compact Switch ____________________________________________ 5
Package Contents ___________________________________________________ 5
Product Highlights ___________________________________________________ 5
Front Panel Display __________________________________________________ 6
Physical Ports ______________________________________________________ 7
Connectivity ____________________________________________________________ 7
3: Installation 8
Selecting a Site for the Switch __________________________________________ 8
DIN Rail Mounting ___________________________________________________ 8
Connecting to Power _________________________________________________ 9
12VDC DC Jack _________________________________________________________ 9
Redundant DC Terminal Block Power Inputs___________________________________ 9
Alarms for Power and Port Failure __________________________________________ 10
Connecting to Your Network __________________________________________ 11
Cable Type & Length ____________________________________________________ 11
Cabling _______________________________________________________________ 11
A: Specifications 12
B: Connector Pinouts 13
XPress-Pro 92000 SW User Guide 4
1: Preface
A member of the growing family of rugged switches, this switch addresses a need for a
smaller switch. This switch provides an affordable solution for rugged and outdoor
environment, transportation road-side cabinet, industrial floor shop, multitenant
dwellings or Fiber To The Home (FTTH) applications. Capable of operating at
temperature extremes of -34°C to +74°C, this is the switch of choice for harsh
environments constrained by space.
Plug-and-Play Solution
The switch is a plug-and-play Fast Ethernet Switch in compact size. It doesn't have
any complicated software to set up.
This manual describes how to install and use the hardened compact Ethernet Switch.
This switch integrates full wire speed switching technology. This switch brings the
answer to complicated hardened networking environments.
To get the most out of this manual, you should have an understanding of Ethernet
networking concepts.
In this manual, you will find:
Features on the switch
Illustrative LED functions
Installation instructions
Specifications
XPress-Pro 92000 SW User Guide 5
2: Product Overview
Hardened Compact Switch
Package Contents
When you unpack the product package, you shall find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately to
your authorized reseller.
This Switch
User’s Manual
External power adapter & Power Cord (Optional)
Product Highlights
Meets NEMA TS2 Environmental requirements such as temperature, shock,
and vibration for traffic control equipment.
Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial
environment.
Support 802.3/802.3u/802.3X.
Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto MDI/MDIX.
Support 2K MAC addresses.
Provides 96K bytes memory buffer.
2:Product Overview
XPress-Pro 92000 SW User Guide 6
Alarms for power and port failure by relay output.
Operating voltage and Max. current consumption: 12VDC @ 0.99A, 24VDC @
0.55A, 48VDC @ 0.39A. Power consumption: 18.72W Max.
Power Supply: Redundant DC Terminal Block power inputs or 12VDC DC
JACK with 124-240VAC external power supply.
Supports Din-rail mounting installation.

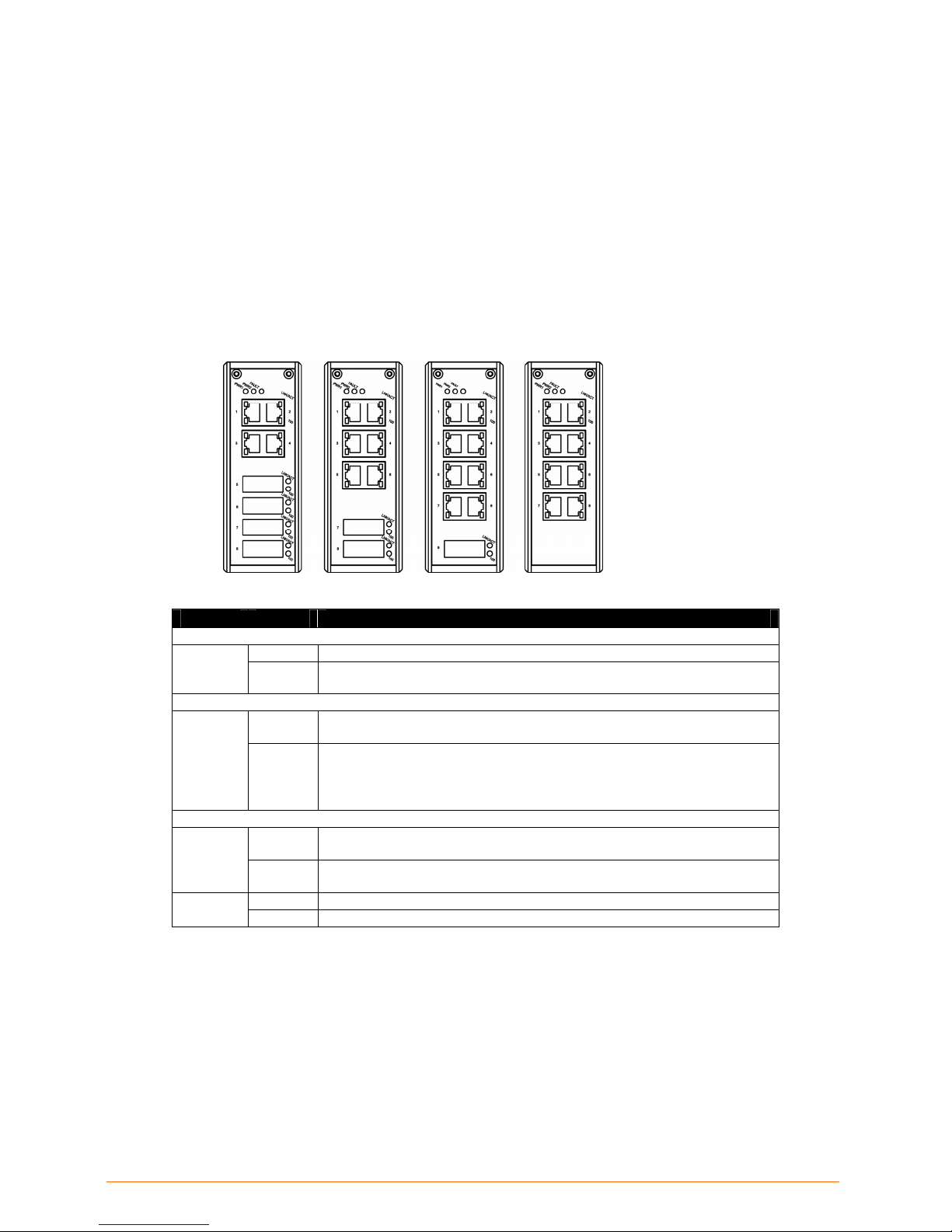

Front Panel Display
LED State Indication
POWER
Steady Switch is properly connected to power and turned on.PWR1
PWR2
(Green) Off Switch is not connected to power and is turned off.
FAULT
Steady Power failure occurred.
Port failure occurred (when port fault alarm dip switch is enabled).
FAULT
(Red) Off
Power failure is not occurred.
Port failure is not occurred (when port fault alarm dip switch is enabled).
3. Port fault alarm dip switch is disabled.
10/100TX or 100FX
Steady A valid network connection established.
LNK stands for LINK.
LNK/ACT
(Green) Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Steady Light solid yellow for a port transferring at 100Mbps.100
(Yellow) Off The port is transferring at 10Mbps If this LED is dark.
2:Product Overview
XPress-Pro 92000 SW User Guide 7

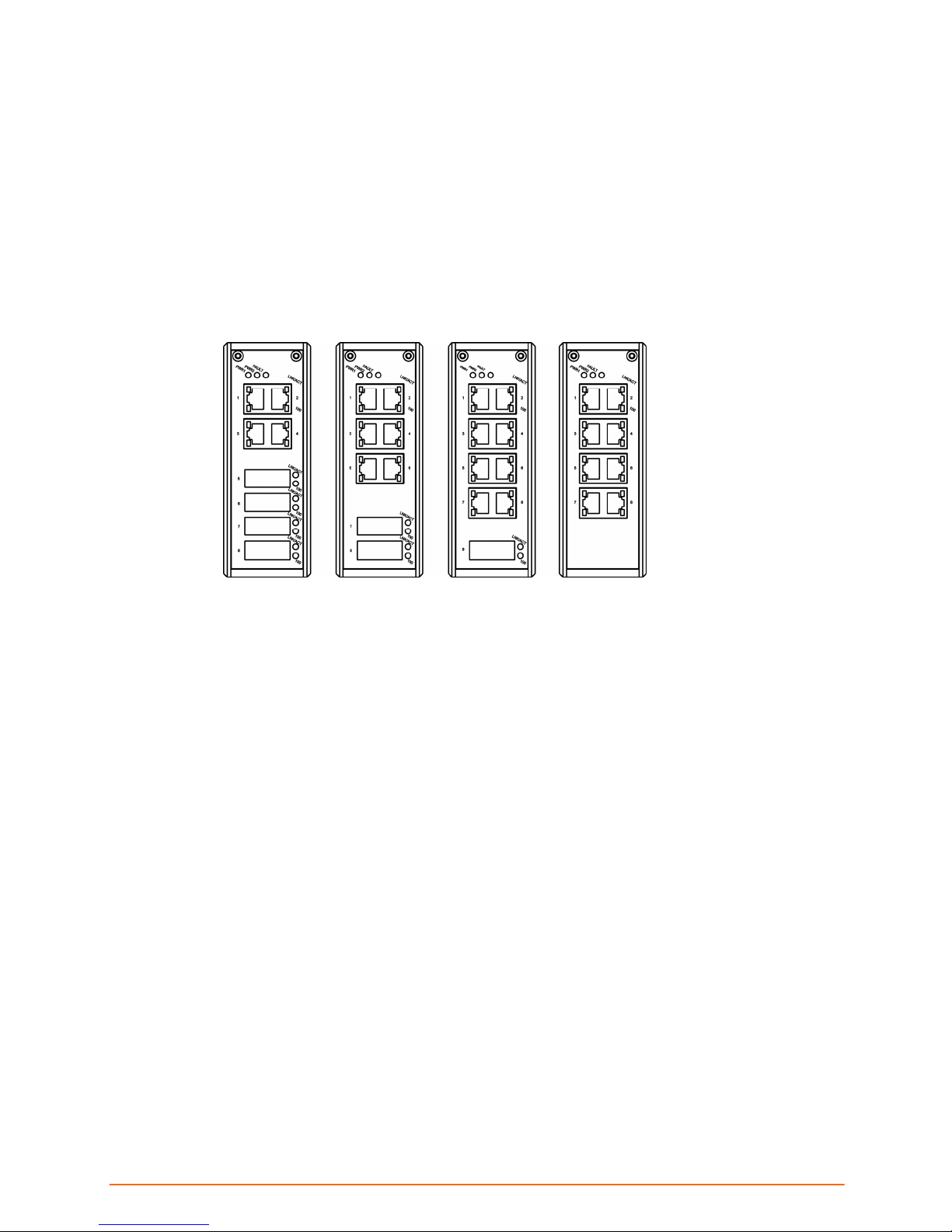

Physical Ports
This switch provides:
Eight 10/100BaseTX ports
Eight 10/100BaseTX ports + one 100BaseFX port
Six 10/100BaseTX ports + two 100BaseFX ports
Four 10/100BaseTX ports + four 100BaseFX ports
Connectivity
RJ-45 connectors
SC, ST, VF-45 or MT-RJ connector on 100BaseFX fiber port.
XPress-Pro 92000 SW User Guide 8
3: Installation
This chapter gives step-by-step instructions about how to install the switch:
Selecting a Site for the Switch
As with any electric device, you should place the switch where it will not be subjected
to extreme temperatures, humidity, or electromagnetic interference. Specifically, the
site you select should meet the following requirements:
The ambient temperature should be between -34 to 74 degrees Celsius.
The relative humidity should be less than 95 percent, non-condensing.
Surrounding electrical devices should not exceed the electromagnetic field
(RFC) standards.
Make sure that the switch receives adequate ventilation. Do not block the
ventilation holes on each side of the switch
The power outlet should be within 1.8 meters of the switch.

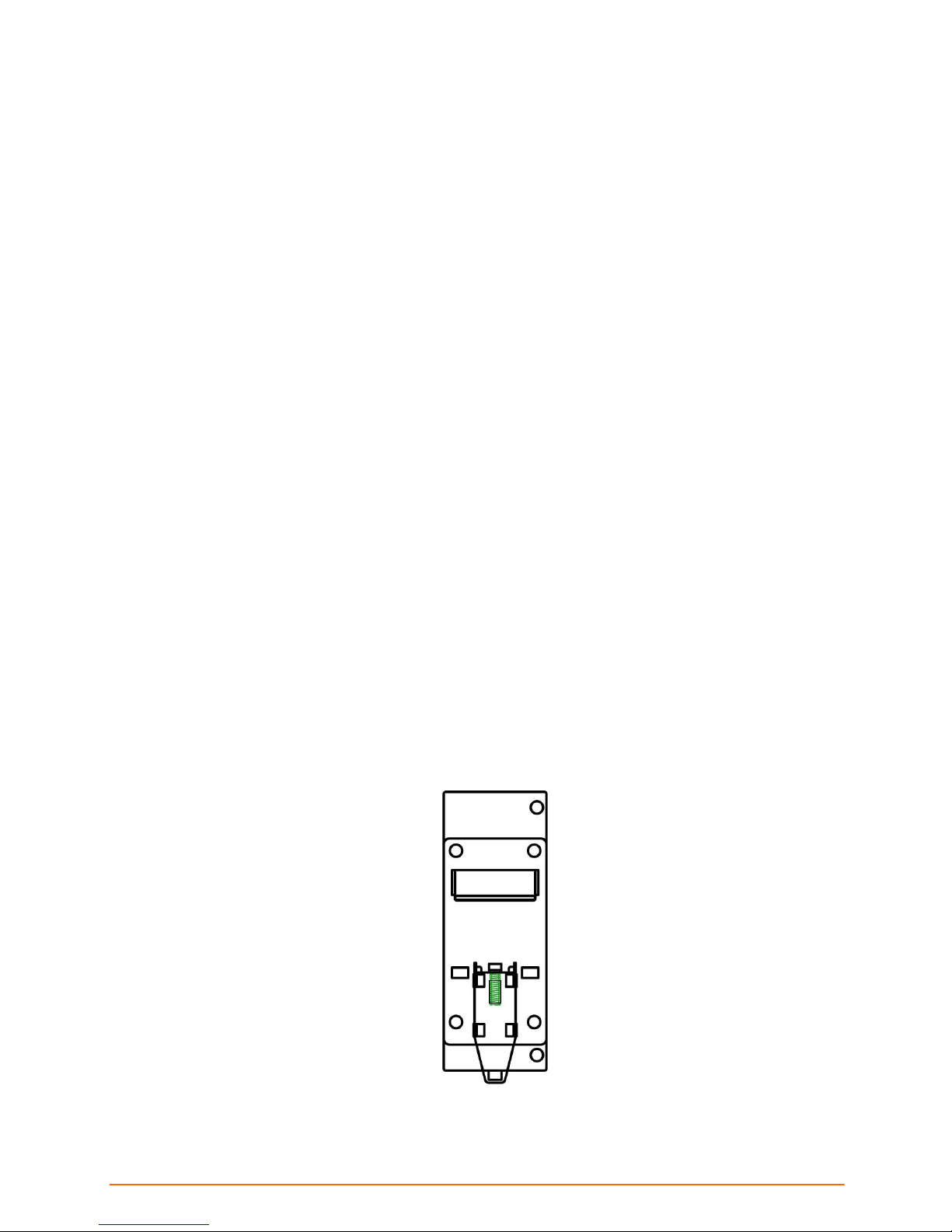

DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of the switch.
Installation: Place the switch on the DIN rail from above using the slot. Push the front
of the switch toward the mounting surface until it audibly snaps into place.
Removal: Pull out the lower edge and then remove the switch from the DIN rail.
3:Installation
XPress-Pro 92000 SW User Guide 9
Connecting to Power
Redundant DC Terminal Block Power Inputs or 12VDC DC Jack:

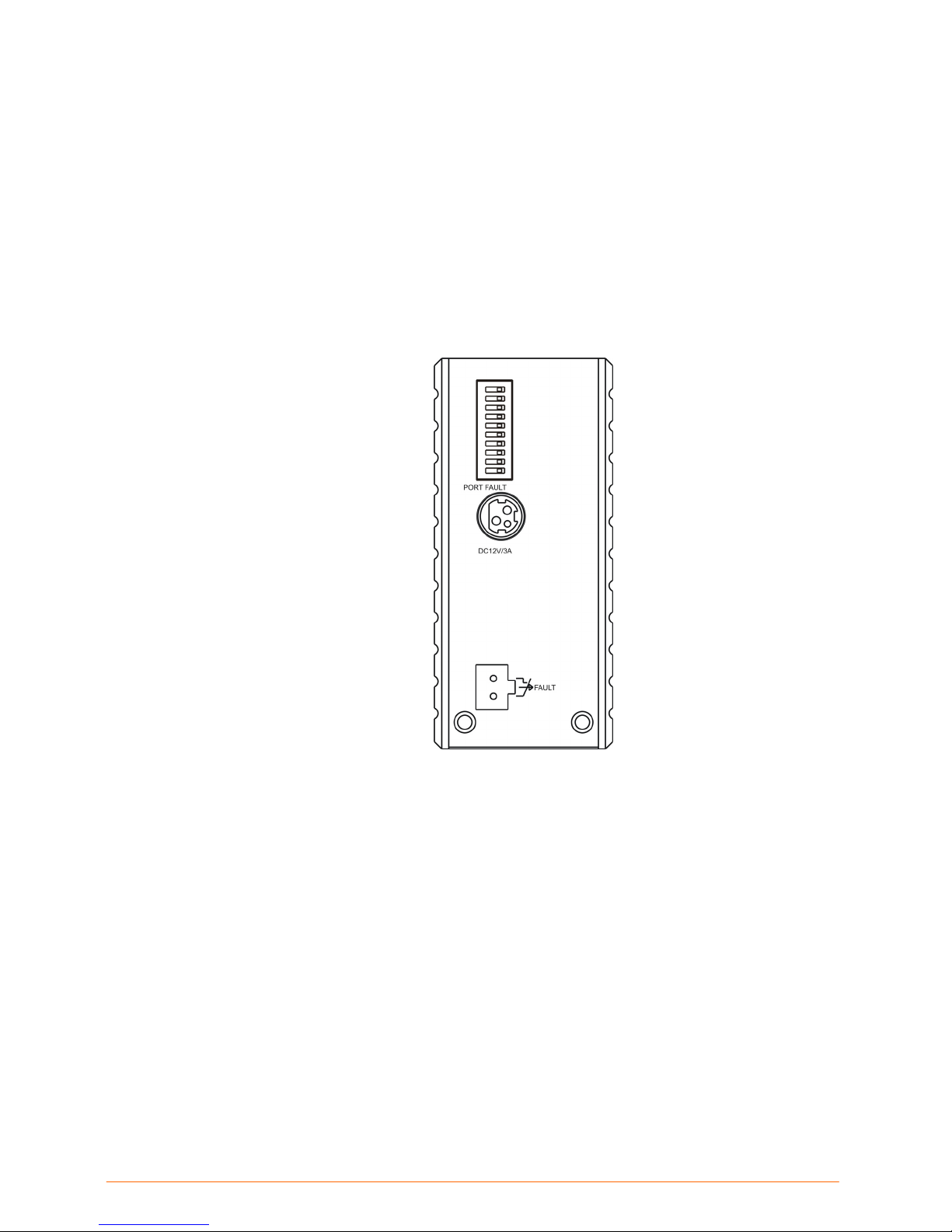

12VDC DC Jack
1. Connect the supplied AC to DC power adapter to the receptacle on the topside of the
switch.
2. Connect the power cord to the AC to DC power adapter and attach the plug into a
standard AC outlet with the appropriate AC voltage.

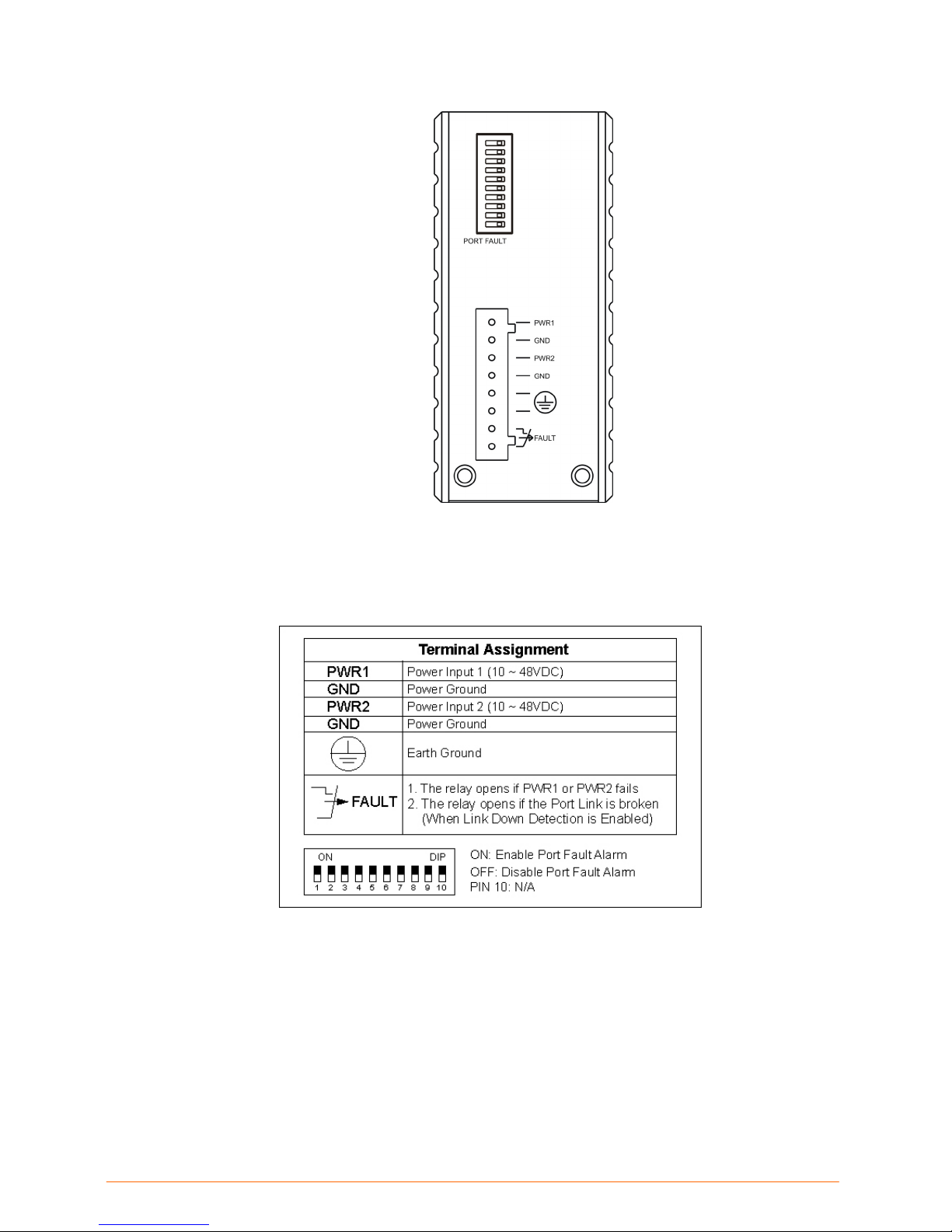

Redundant DC Terminal Block Power Inputs
There are two pairs of power inputs can be used to power up this device. You only
need to have one power input connected to run the switch.
Connect the DC power cord to the plug-able terminal block on the switch, and then
plug it into a standard DC outlet.
Disconnect the power cord if you want to shut down the switch.
3:Installation
XPress-Pro 92000 SW User Guide 10
Alarms for Power and Port Failure
1. There are two pins on the terminal block are used for power failure detection. It
provides the normally closed output when the power source is active. Use this as a
dry contact application to send a signal for power failure detection.
Note: The relay output is normal open position when there is no power to the switch. Please do not connect
any power source to this terminal to prevent the shortage to your power supply.
