Larson Electronics EXPCMR-IP-POE Series Bedienungsanleitung

IP Camera Network Setup Guide

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 1 of 10

USER MANUAL

AND

QUICK START GUIDE

Network IP Cameras

EXPCMR-IP-POE SERIES

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 2 of 10

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to

avoid danger or property loss.

The precaution measure is divided into ‘Warnings’and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to

prevent serious injury or death. Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

This installation should be made by a qualified service person and should conform

to all the local codes.

Pleaseinstallblackouts equipment into the power supply circuit for convenient

supply interruption.

If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by unauthorized repairor

maintenance.)

Make sure the supply voltage is within the voltage rating.

Ensure that the marked T rating is less than the ignition temperature of the

hazardous atmosphere.

DO NOT operate in ambient temperatures above those indicated on the product

nameplate.

DO NOT operate if the lens, cord, seals, housing, receptacles, etc. are cracked or

damaged. If so, discontinue use and contact manufacturer for replacement parts.

All fasteners should be properly seated.

IP Camera Network Setup Guide

TO AVOID EXPLOSION:

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 3 of 10

Cautions:

Make sure the power supply voltage is correct before using the camera.

Do not drop the camera or subject it to physical shock.

Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an

extended period of time, put on the lens cap to protect the sensor from dirt.

Do not aim the camera lens at the strong light such as sun or incandescent lamp.

The strong light can cause fatal damage to the camera.

The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser

beam.

Do not place the camera in extremely hot, cold temperatures (the operating

temperature should be between -30°C ~ 60°C), and do not expose it to high

electromagnetic radiation.

To avoid heat accumulation, good ventilation is required for a proper operating

environment.

Keep the camera away from water and any liquid during installation.

While shipping, the camera should be packed in its original packing.

Notes:

For the camera supports IR, you are required to pay attention to the following

precautions to prevent IR reflection:

Dust or grease on the dome cover will cause IR reflection. Please do not remove

the dome cover film until the installation is finished. If there is dust or grease on

the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.

Make certain the installation location does not have reflective surfaces of objects

too close to the camera. The IR light from the camera may reflect back into the

lens causing reflection.

The foam ring around the lens must be seated flush against the inner surface of

the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera

body so that the foam ring and the dome cover are attached seamlessly.

IP Camera Network Setup Guide

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 4 of 10

The Explosion Proof Network IP cameras are usually installed on a network in either of two ways:

Connected to the internal switch of a network video recorder (NVR): In this configuration, Ethernet cables connect

the camera directly to an NVR back panel. The NVR automatically "Activates" the camera and configures the camera's

network parameters to establish a communications link between them. In the diagram below, IP Cam A is connected to

the NVR which activates the camera and sets up its network parameters.

Connected to a PoE Network switch: In this configuration, Ethernet drop cables connect the camera to a network

switch. The network utility, SADP Tool, is used to "Activate" the camera and configure the camera's network parameters

so that the camera can communicate across the network. In the diagram below, IP Cam B and IP Cam C are connected to

the router, and are activated with the SADP Tool on Computer B.

In the diagram above, NOTE that:

Computer A cannot directly access any devices within the router firewall (with a browser) unless the device

activated and setup with network parameters compatible with the router, and the router is configured for port

forwarding to the device.

Computer Bwith SADP Toolis used to activate cameras connected directly to the router (IP Cam B, IP Cam C)

and setup their network parameters. After devices on the router are activated and configured for the network,

Computer Bcan access each device using Internet Explorer or by reloading the page in Internet Explorer mode

in the Edge browser.

This guide provides generic instructions for activating and setting up the network parameters for new cameras Connected

to the network switch using the SADP Tool. The examples shown herein activate a camera and configure its network

settings. Currently, the procedure is identical for all new network attached IP cameras.

About the SADP Tool

The SADP Tool is a PC-based network utility for discovery of compatible devices on an IP network. It provides an easy

way to activate devices, configure camera and record network configuration settings, and set device passwords. It can be

installed on a Microsoft Windows operating system that has access to the IP network where your devices are installed.

IP Camera Network Setup Guide

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 5 of 10

Step 1. Install the SADP Software

1. Download the SADP Tool from the website: https://www.larsonelectronics.com/images/upload/SADPTool.zip. At

the time this document was published, the file is named: SADPTool.zip and is 115 MB.

2. Un-zip the file on a computer with Microsoft Windows (Windows 7 or newer) that is connected to the LAN where

your camera is connected.

3. Run the file contained in the zip file: SADPTool.exe. Follow the on-screen instructions to install the file.

NOTE : Be sure to allow the software administrative access or it will not work properly.

4. Open the SADPTool application. When the application opens, it automatically “discovers” and lists all compatible

devices on the LAN. The discovery of devices can take several minutes. See below.

Step 2. “Activate” Inactive Camera

NOTE: Cameras are activated when shipped with the default IP Address of 192.168.3.xxx. The last set of

numbers in your IP address will be random, but will always be in the 192.168.3.xxx subnet. Network settings

may be changed in the SADP Tool. See Step 3. Modify Network Parameters

DEFAULTS: Username: admin Password: 12345abc!

When a camera is first installed, or reset to its factory configuration, it must be “Activated” before it can be used. In the

SADP Tool, “Inactive” devices have a Security status of Inactive. A device is “Activated” when a password is

assigned to the admin username of the device.

In the example below, a camera is activated and configured for its network.

IP Camera Network Setup Guide

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 6 of 10

1. Scan through the list of devices the SADP Tool discovered for the Inactive device you want to activate (see

below). Click on the device in the list to highlight it, and then click the select box to check it.

2. In the Device Activation window, create a password for the admin (administrator) username:

a. In the Device Activation window, enter a password for admin in the New Password field. Use a

combination of uppercase, lowercase alphabetic characters and numbers to create a “Strong” password.

The rating is shown beneath the field. See above.

b. Enter the admin password again in the Confirm field, and then click Activate.

c. Record your admin password for reference later.

CAUTION: If you lose your admin (administrator) password, you cannot configure the device or restore it to its factory

settings. To reset you password, call your support organization for specific instructions.

IP Camera Network Setup Guide

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 7 of 10

1. In the list of devices discovered, find the device you want to change the network settings for, click the select

box to check it, and then see the Modify Network Parameters window. See below.

2. In the Modify Network Parameters window, edit the correct network parameters, and then enter the admin user

password in the field at the bottom.

a. Enable DHCP: You can select Enable DHCP to acquire compatible network settings from a DHCP server

installed on the LAN. However, these settings can be changed by the DHCP server. Since it is

recommended to use a static IP address, you can use DHCP to acquire compatible network settings, and

then uncheck Enable DHCP and save that configuration to retain the new network parameters.

b. In the example below, the IPv4 address was changed to 192.168.3.100, and the IPv4 Gateway was

changed to 192.168.3.1. These settings were determined to be compatible with the network switch and

other devices that share the same network.

3. Click Modify to save your settings.

Step 3. Modify Network Parameters

IP Camera Network Setup Guide

Step 4. Login to the camera

Microsoft Internet Explorer is used to access your camera remotely. Internet Explorer must run as an Administrator to use

all features available through a remote login to the camera.

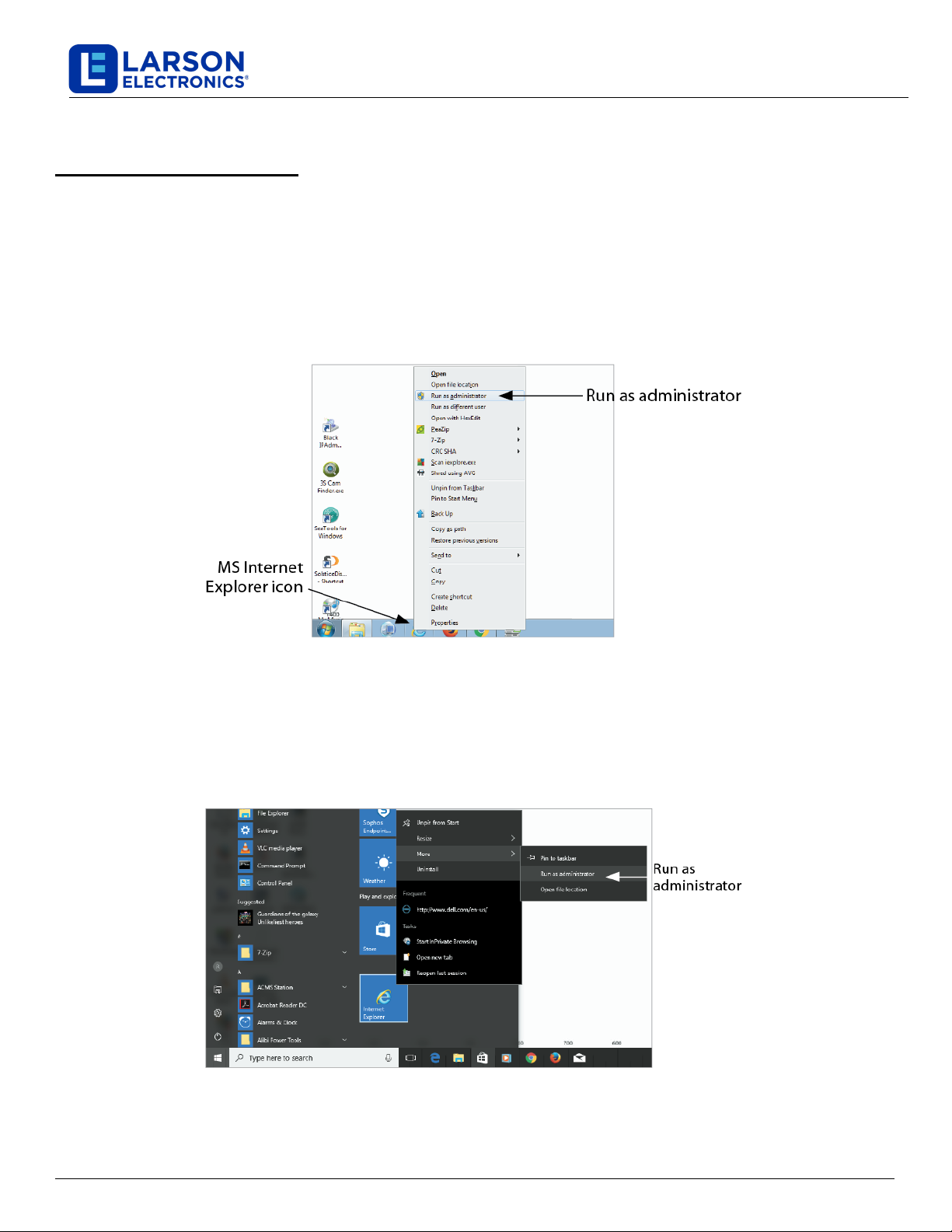

Setting MS Internet Explorer to run as an Administrator

Windows 7: To run Internet Explorer as an Administrator:

1. Find or create an IE icon on your computer desktop.

2. Hold down the shift key, and then right-click on the IE icon.

3. Click Run as Administrator in the pop-up menu.

Windows 10: To run IE as an Administrator:

1. Find IE in the start menu. Usually this is found in the Windows Accessories group.

2. Pin the entry to Start.

3. Right click on the Internet Explorer tile, and then select More | Run as administrator.

To login to the camera from a computer on the same LAN:

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 8 of 10

IP Camera Network Setup Guide

1. Open your IE browser and enter the IP address of the camera in the URL field. In the example below, the IP

address of the camera is 192.168.3.100.

2. In the login window, enter admin for the User Name and password you created in the Password field, then click

3. If this is the first time you are logging into a camera, you may see the message in the following screen. If this

appears, follow the sub-steps below.

a. Click on the message to install the plugin.

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 9 of 10

IP Camera Network Setup Guide

b. In the message bar at the bottom of the screen, click Run. Follow the on-screen instructions to install

WebComponents. When the following screen opens, click Finish.

The Live View screen with the camera video image should appear.

For more information about the IE browser interface to your camera, go to LarsonElectronics.com for the latest IP Camera

User Manual for your camera.

NOTE:Most IP cameras have a Reset button for returning the camera configuration to its factory settings. The reset

button needs to be pressed with the camera disconnected from power. Continue holding the reset button down and plug

the camera back into power and continue to hold the reset button for an additional 30 - 45 seconds.

NOTE: For more details on using the functions of this camera, refer to the instruction manual for the Camera Management

Software (CMS) you are using.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS. SHOULD FURTHER

INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT SALES@LARSONELECTRONICS.COM OR BY PHONE

AT 1- FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

877-348-9680

Larson Electronics, LLC Phone: (877) 348-9680 Fax: (903) 498-3364 www.larsonelectronics.com 10 of 10

IP Camera Network Setup Guide

Inhaltsverzeichnis

Andere Larson Electronics Sicherheitskamera Handbücher

Larson Electronics

Larson Electronics EXPCMR-NDAA-IP-POE Series Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-WIP-RPS-OZ-2MP-BC Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-CER-IP-POE-4MP-IR-FLX.23-JB.3.SFC Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-ALG-1080P-1227 Bedienungsanleitung

Larson Electronics

Larson Electronics ATEX-EXPCMR-IP-POE-2MPIR-108D Bedienungsanleitung

Larson Electronics

Larson Electronics IDCMR-SL-IP-POE-4MP Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-ALG-1080P-12V Bedienungsanleitung

Larson Electronics

Larson Electronics HAL-CRM-CRNM-ALG-1080P-12V Bedienungsanleitung

Larson Electronics

Larson Electronics IDCMR-IP-POE-4MP Bedienungsanleitung

Larson Electronics

Larson Electronics IDCMR-ALG-OZ-IC-1080P Bedienungsanleitung

Larson Electronics

Larson Electronics IDCMR-SRMT-IP-POE-4MP Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-ALG-1080P-IC-M-16.7-25-L21.20-1227 Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-CER-IP-POE-4MP-IR-V3 Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-ALG-HDSD-1080P-12VDC Bedienungsanleitung

Larson Electronics

Larson Electronics IDCMR-IP-POE-DMIP Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-ALG-1080P-24V Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-ALG-1080P-IC-16.7-25-L21.20-1227 Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-IP-POE-DPTZ Bedienungsanleitung

Larson Electronics

Larson Electronics EXPCMR-IP-POE-4MP-IR-FLX.23-JB.3.SFC Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
