HL-85-LED-CPR-NC

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 1of 3

10 Million Candlepower LED Spotlight

36 Watt - Pistol Grip - 1600 Foot Beam - 3200 Lumens - Pigtail w/ Deutsch

Connector

Instruction Manual

Thank you for your purchase of the Larson Electronics.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE HL-85-LED-CPR-NC MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE

AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OF THIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES OR DEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BE REPLACED BEFORE RESUMING USE.

The HL-85-LED-CPR-NC super bright handheld 10 million candlepower spotlight from Larson Electronics is lightweight, ultra rugged,

and features a comfortable ergonomic design. This unit uses seven high output Cree LEDs and an advanced reflector and lens

configuration to generate 3,200 lumens with a beam reach of over 1,600 feet while drawing only 36 watts of power. Equipped with a

cigarette plug that operates on 12-24 V DC, this IP67 rated waterproof spotlight is ideal for hunting, camping, marine and boating use as

well as for first responders and emergency services. The HL-85-LED-CPR-NC features a continual on/off switch that requires one press

to stay on and another press to turn off.

WIRING

Each light comes with a pigtail terminated in a Deutsch connector.

Standard pigtail(flying leads) wiring

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 12/24V DC.

HL-85-LED-CPR-NC

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2of 3

Warning: Check product label for correct input voltage!

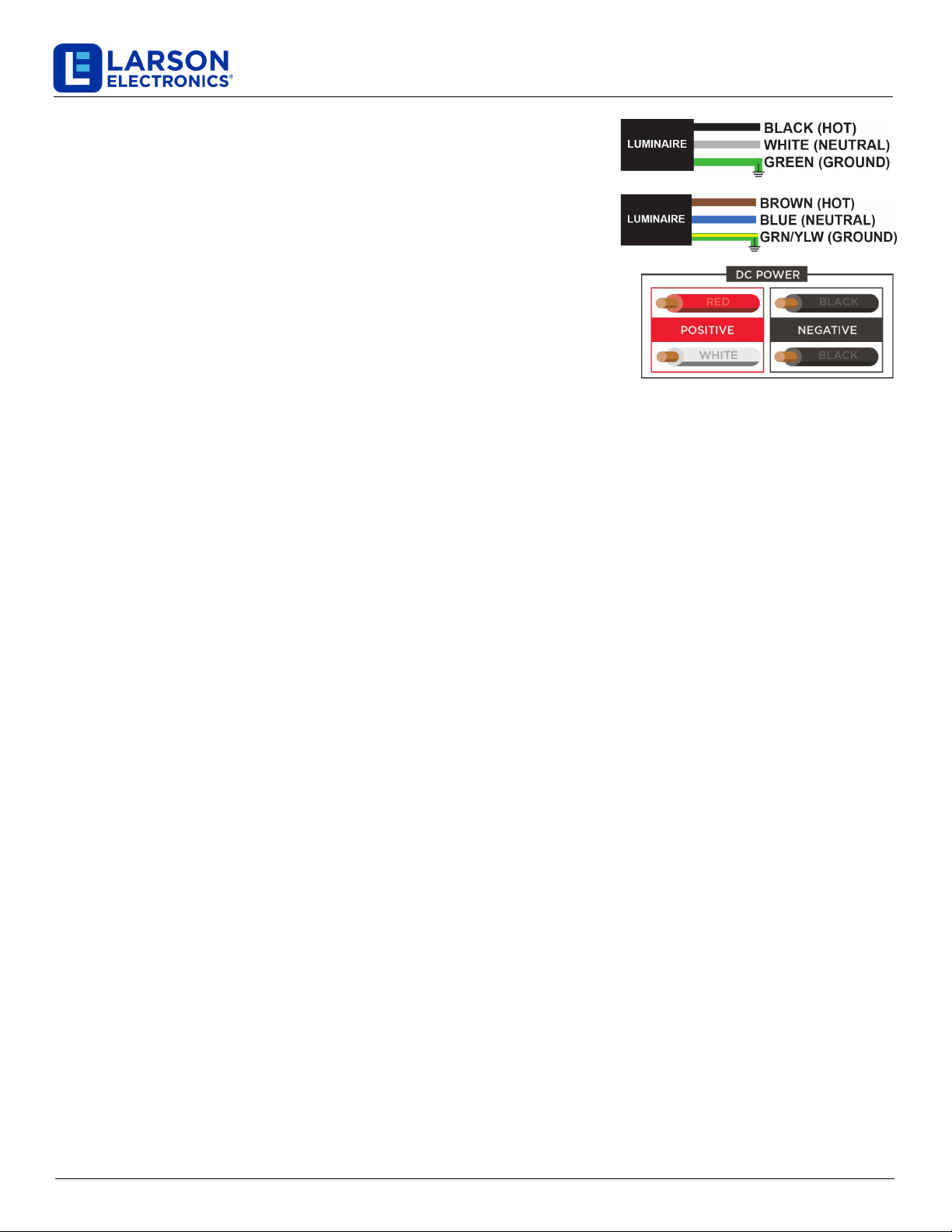

Attach supply line wires to the appropriate light fixture wires as shown

in thediagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

Low Voltage DC

Connect power to power supply outputting low voltage to 12/24 Volts DC. This

variable voltage allows greater versatility without affecting light output. Ensure

deutsch connectors are properly connected (If applicable)

DETACHABLE CORDS

•Cord is attached via a weatherproof 2-pin Deutsch connector.

•The cord is detachable by depressing the tab on the top of the connectors. This enables the

operator to remove and store the light while leaving the cord connected to the power source.

•Additional or replacement cords can be ordered from our website. Contact us or visit LarsonElectronics.com for more

information.

ON/OFF SWITCH OPERATION

The HL-85-LED-CPR-NC LED handheld spotlight features a continual on/off switch. This means that the spotlight will stay

on after a single button press and remain on until the power button is pressed again. Operators simply press the button

once and will have a continual source of high-intensity LED light for their illumination needs until the on/off switch is pressed

again to turn the light off. There is no need to keep pressure on the on/off switch at all times when light is desired unlike

other spotlight models on the market that feature a trigger type switch. This operation of the on/off switch makes the HL-85-

LED-CPR-NC an easy to use and convenient source of portable LED light.

CREE SPECIFIC

This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree

LEDs generate a robust 55.5 lumens per watt effective lumen output and have a 70% lumen retention at 50,000 hours,

giving them better efficiency and operational life than traditional light sources.

MAINTENANCE

Caution: To avoid personal injury, disconnect power to the light and allow the unit to cool down before

performing maintenance.

Warning: No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens will void

the warranty.

1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend routine

checks to be made on a yearly basis. Frequency of use and environment should determine this. It is

recommended to follow an Electrical Preventive Maintenance Program as described in NFPA 70B:

Recommended practice for Electrical Equipment.

2. The lens should be cleaned periodically as needed to ensure continued photometric performance.

Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use mild soap or a liquid

cleaner.

3. Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or

contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.

4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

HL-85-LED-CPR-NC

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 3of 3

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The HL-85-LED-CPR-NC is designed to provide years of reliable performance. Should the need for replacement parts

arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
