Lectrosonics M170 Bedienungsanleitung

M170

Belt Pack Transmitter

OPERATING INSTRUCTIONS

and trouble-shooting guide

LECTROSONICS, INC.

Rio Rancho, NM

INTRODUCTION

Thank you for selecting the M170 Series transmitter. The M170 Series transmitters operate on high

band frequencies from 150 MHz to 216 MHz. It is offered in five different versions to meet your specific

needs. This manual covers all five versions.

Only the M170 series transmitters are covered in this manual. Receivers are covered in separate

manuals. All versions of the M170 Series transmitters will operate with any Lectrosonics high band

VHF receiver. A frequency matched transmitter/receiver combination makes up a "wireless system".

If you are new to wireless microphones, you will discover a new freedom of movement and level of

convenience. If you are an experienced wireless user, you will be pleased with the versatility and

superior performance of the M170 design.

TABLE OF CONTENTS

INTRODUCTION .......................................... 1

GENERAL DESCRIPTION ................................... 3

M170 VARIATIONS ........................................ 4

CONTROLS AND FUNCTIONS ................................ 5

BATTERY INSTRUCTIONS ................................... 7

OPERATING INSTRUCTIONS ................................. 7

TROUBLESHOOTING ....................................... 9

SERVICE AND REPAIR ..................................... 10

RETURNING UNITS FOR REPAIR ............................. 10

M170-BGO ............................................... 11

SPECIFICATIONS AND FEATURES ............................ 12

WARRANTY ........................................ Back cover

M170 Series transmitters are FCC type accepted under the following Parts:

Part 90 (150-172 MHz)

Part 74 (174-216 MHz)

GENERAL DESCRIPTION

The M170 Series transmitter is offered in five versions. The standard model is the M170. The

M170-LS, M170-XLR, M170-BGO, and the M170-CTM are modifications of the standard M170.

The M170 and M170-LS transmitters use the microphone cord for the antenna. The M170-XLR uses

the hand-held microphone for the antenna. This feature eliminates the need for the "dangling wire"

antenna found on many transmitters. The walnut body of the M170-CTM is securely attached to a

machined aluminum plate which serves as the antenna ground plane and as mass to absorb vibration.

The M170 Series transmitters use a crystal controlled oscillator and temperature compensation circuitry

to ensure that the transmitter does not drift over time or with age.

To suppress audible noise, a "compandor" noise reduction circuit is used which is compatible with all

Lectrosonics 170 series or 185 series receivers. In addition, the input limiting circuit will absorb 12 dB

of overload without distortion. The audio circuitry is extremely quiet, with low distortion for natural

reproduction of either voice or music. The wide input adjustment range of M170 Series transmitters

allows the use of virtually any microphone on the market and with line level inputs such as tape

recorders or musical instruments.

The M170 Series transmitters operate from a replaceable standard 9 Volt alkaline battery. A precision

battery test circuit continuously monitors the battery voltage. A highly visible LED glows as long as the

battery voltage is high enough to operate the transmitter. A 9 Volt alkaline battery will provide up to 15

hours of operation.

The electret microphone input jack provides 5 Volts DC positive bias for all Lectrosonics electret

microphones. Many other electret microphones may be adapted to the M170 Series by making simple

wiring changes in the microphone connector.

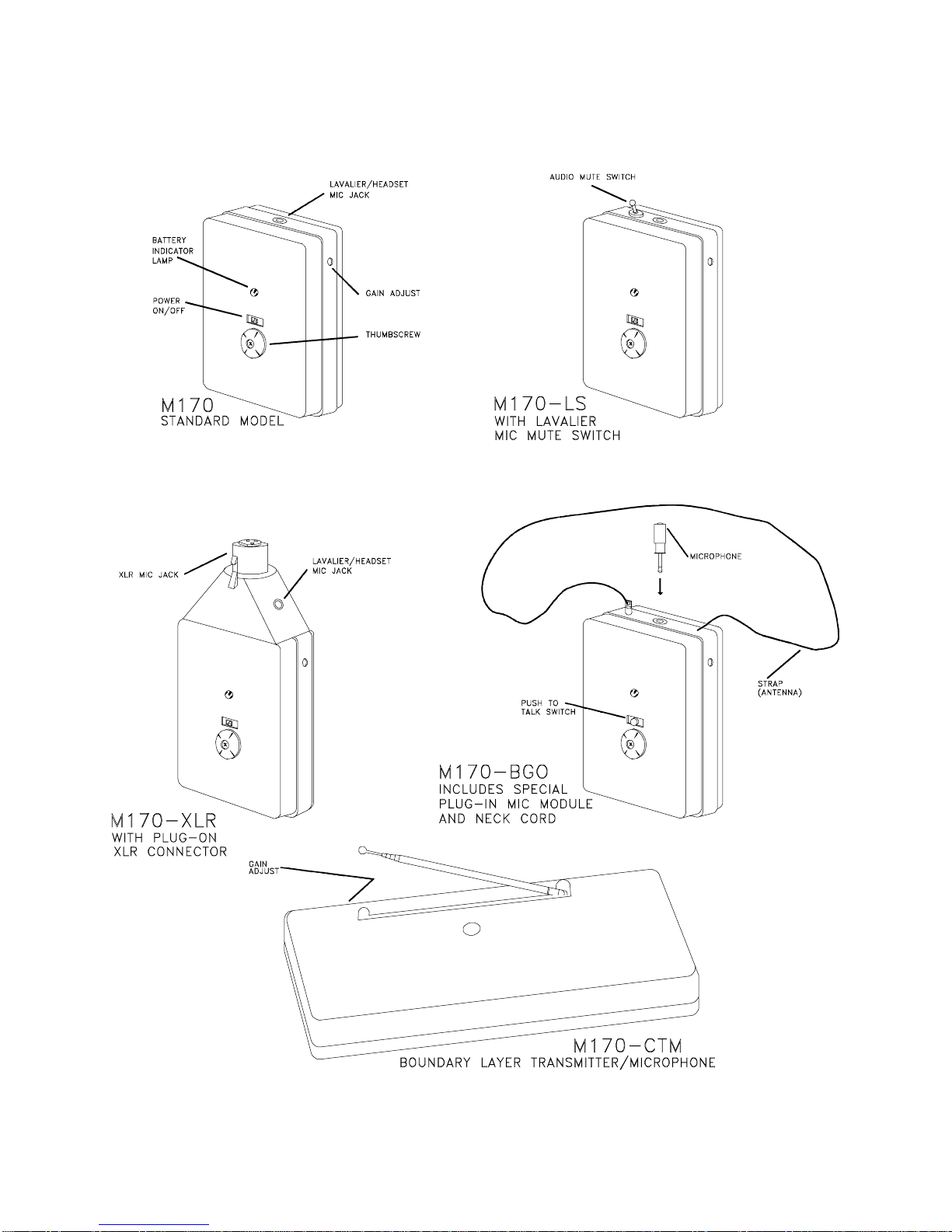

M170 VARIATIONS

CONTROLS AND FUNCTIONS

The MIC JACK is a locking micro jack that supplies "phantom power" for electret microphones such as

the Lectrosonics M130, M140 and the HM142V and HM152V headset models. Insert the microphone

cord plug into the jack and rotate it clockwise to lock it. It is important that the plug be securely locked,

since the microphone cord serves as the antenna for the transmitter.

The POWER ON/OFF switch turns the power on and off. The switch should be left in the off position

when the transmitter is not in use. When the switch is in the on position, the battery will be drained

even though the transmitter is not being used. The ON/OFF switch on the M170-CTM is located on the

bottom of the unit.

The BATTERY INDICATOR LAMP will light when the transmitter is turned on and will stay lit as long

as the battery is good. As the battery voltage drops, the lamp will grow dim and finally go out. Turn

the M170-CTM upside down to check the battery lamp.

The THUMBSCREW is turned counter-clockwise to remove the side cover to allow battery replacement.

The GAIN ADJUST is a recessed screwdriver adjustment used to match the gain of the transmitter to

different microphones, individual voices or other audio inputs such as tape deck outputs. The gain

adjust hole on the M170-CTM is located in the walnut body along the back side of the unit.

The AUDIO MUTE SWITCH (M170-LS only) is a toggle type on-off switch used to shut off the audio

signal without shutting off the RF carrier of the transmitter. To turn the sound on, push the switch

handle toward the microphone jack. This feature is useful for users who may want to converse with

someone close at hand without the main audience hearing the remarks.

CONTROLS AND FUNCTIONS (cont’d.)

The XLR MIC JACK (M170-XLR only) is a standard 3-pin audio connector (Switchcraft A3F) that will

accept standard hand-held microphones with balanced or unbalanced outputs. The transmitter may be

plugged directly onto hand-held microphones or worn on the belt when used with lavalier or headset

microphones. The M170-XLR input is designed for best performance with balanced, low impedance

(50 to 600 Ohms) dynamic microphones, but will work with high impedance mics. If your microphone

has selectable impedance, set or wire it for 150 to 200 Ohms, or set it to the "low impedance" position.

Some older types of hand-held dynamic microphones did not have a balanced output. These

microphones will not work properly with the M170-XLR transmitter unless the microphone output is on

pin 2 and pin 3 is connected to pin 1 (audio ground).

The M170-BGO was designed specifically for use by bingo halls. A carrying strap acts as the antenna

and allows the user to wear the unit around their neck. The microphone plugs directly into the top of

the unit. The transmitter is activated by pushing the button on the side panel and holding the button in

while you speak. A standard lavalier microphone can be substituted for the plug-in microphone if you

wish to wear the transmitter on your belt rather than around your neck. When the transmitter is worn

on your belt, the neck strap (the antenna) must not be wrapped around the transmitter.

The M170-CTM is a conference table microphone/transmitter ideally suited for board room applications.

A high quality, very sensitive, omni-directional electret microphone is flush-mounted in the top of the

walnut body and wired internally to an M170 transmitter.

BATTERY INSTRUCTIONS

The battery you use in the M170 Series transmitter should be a 9 Volt alkaline, available almost

everywhere. An alkaline battery will provide 12 to 15 hours of operation. Carbon zinc batteries, even if

marked "heavy duty" will only provide about 4 hours of operation. Make sure your batteries are marked

"alkaline."

The BATTERY LAMP will light when the transmitter is turned on and will stay lit as long as the battery

is good. As the battery voltage drops, the lamp will grow dim and finally go out. Even after the lamp

goes out, there may still be up to an hour or more of operating time remaining. When the battery

voltage is too low for proper transmitter operation, the sound from the wireless system may be

intermittent or totally absent. When the transmitter is first turned on, the lamp may light for a short

while even with a bad battery. It is good practice to check the brightness of the lamp after the

transmitter has been on for several minutes and to note the brightness frequently during use.

To replace the battery, turn the thumbscrew counter-clockwise 2 or 3 turns until you can lift off the side

cover. To remove the battery, hook your fingernail under the base of the battery, press toward the

contacts and lift the base of the battery out of the compartment. It is difficult to install the battery

backwards. Observe the large and small holes in the battery contact pad before inserting a new

battery. Insert the contact end of the battery first, making sure the contacts are aligned with the holes

in the contact pad, and then press the other end of the battery into the compartment.

OPERATING INSTRUCTIONS

This section covers adjustments to the transmitter that must be made before the wireless microphone

system is placed into operation. The step-by-step procedures are listed in the order in which they

should be performed:

1) Turn the wireless receiver power on and make any required preliminary adjustments in accordance

with instructions in the receiver operating instructions.

2) Plug the microphone into the transmitter. If you are using a lavalier or headset microphone, rotate

the plug clockwise to make sure the connection is locked.

3) Turn the transmitter power on and verify that the red lamp on it lights. If the lamp is very dim or

does not light, replace the battery.

4) Observe that the RF lamp on the receiver control panel is lit. This verifies that the receiver is

receiving a useable radio signal from the transmitter.

5) Position the microphone on your person in the location it will be used during actual operation. If a

headset microphone is being used, adjust the headband for a comfortable fit with the "gooseneck" to

the left side of your head. Position the microphone element at the corner of the mouth and rotate

the white volume control fully clockwise. The headset is designed to be worn over the head, but can

also be worn around the neck. Do not position the microphone pickup directly in front of your mouth

as this may cause unwanted noise from breath pops as you speak.

OPERATING INSTRUCTIONS (cont’d.)

6) A small screwdriver is supplied with the transmitter. The screwdriver is used to adjust the audio gain

of the transmitter to match your microphone and your voice. The GAIN ADJUST is located on the

side of the transmitter as shown on page 3. The adjustment is made while observing the modulation

level lamps on the receiver control panel:

a) Speak at the voice level you will be using during actual operation.

b) While speaking, adjust the transmitter gain until the green modulation lamp on the receiver (may

be marked "-20") is lit or flickers and the red modulation lamp blinks only on the loudest words.

Raise and lower your voice while observing the lamps. The red lamp should blink only

occasionally.

NOTE

The modulation lamps on some receivers are marked or colored differently than just

described. Consult the operating manual for the receiver in use.

7) You may now adjust the receiver output level (wireless microphone or mic volume, level, or volume

attenuator) to the desired audio output level. Consult your receiver manual if you are not sure of the

location of these controls.

The GAIN ADJUST is used only to adjust for proper modulation level lamp indications. DO NOT use it

to adjust the audio output level of the receiver. Different voices and different microphones will usually

require readjustment of the transmitter gain control, so check the adjustment frequently. If several

different people will be using the transmitter, and there is not time to make the adjustment for each

individual, adjust it for the loudest voice.

TROUBLESHOOTING

Before going through the following chart, be sure that you have a good battery in the transmitter. It is

important that you follow these steps in the sequence listed.

SYMPTOM POSSIBLE CAUSE

TRANSMITTER BATTERY LED OFF 1) Unit turned off. Check front panel on/off slide

switch.

2) Battery is inserted backwards.

3) Battery is dead.

NO TRANSMITTER MOD LEVEL LEDs 1) Gain control turned all the way down.

2) Battery is in backwards. Check power LED.

3) Mic capsule is damaged or malfunctioning.

RECEIVER RF LAMP OFF 1) Transmitter not turned on.

2) Transmitter battery is dead.

3) Receiver antenna missing or improperly positioned.

4) Transmitter and receiver not on same frequency.

Check labels on transmitter and receiver.

5) Operating range is too great.

NO SOUND AND RECEIVER MOD LEVEL LEDs ARE OFF

1) Transmitter audio muted (M170-LS only)

NO SOUND BUT RECEIVER MOD LEVEL LEDs ARE ON

1) Receiver audio is muted. Refer to receiver

manual.

2) Receiver audio output is disconnected or cable is

defective or mis-wired.

3) Sound system or recorder input is turned down.

DISTORTED SOUND 1) Transmitter gain (audio level) is too high. Speak or

sing into the transmitter and check mod level

lamps on the receiver (see page 7).

2) Receiver output may be mis-matched with the

sound system or recorder input.

3) Excessive wind noise or breath "pops."

HISS AND NOISE -- AUDIBLE DROPOUTS 1) Transmitter gain (audio level) too low.

2) Receiver antenna missing or obstructed.

3) Operating range too great.

EXCESSIVE FEEDBACK 1) Transmitter gain (audio level) too high. Check gain

adjustment and/or reduce receiver output level

(see page 7).

2) Transmitter too close to speaker system.

3) Move transmitter closer to the user’s mouth.

SERVICE AND REPAIR

If your system malfunctions, you should attempt to correct or isolate the trouble before concluding that

the equipment needs repair. Make sure you have followed the setup procedure and operating

instructions. Check out the inter-connecting cords and then go through the TROUBLE SHOOTING

section in the manual

We strongly recommend that you do not try to repair the equipment yourself and do not have the local

repair shop attempt anything other than the simplest repair. If the repair is more complicated than a

broken wire or loose connection, send the unit to the factory for repair and service. Don’t attempt to

adjust any controls inside the units. Once set at the factory, the various controls and trimmers do not

drift with age or vibration and never require readjustment. There are no adjustments inside that will

make a malfunctioning unit start working.

LECTROSONICS service department is equipped and staffed to quickly repair your equipment.

In-warranty repairs are made at no charge in accordance with the terms of the warranty. Out of

warranty repairs are charged at a modest flat rate plus parts and shipping. Since it takes almost as

much time and effort to determine what is wrong as it does to make the repair, there is a charge for an

exact quotation. We will be happy to quote approximate charges by phone for out of warranty repairs.

RETURNING UNITS FOR REPAIR

You will save yourself time and trouble if you will follow the steps below:

A. DO NOT return equipment to the factory for repair without first contacting us by letter or by phone.

We need to know the nature of the problem, the model number and the serial number of the

equipment. We also need a phone number where you can be reached 8 am to 4 pm (Mountain

Standard Time).

B. After receiving your request, we will issue you a return authorization number (R.A.). This number

will help speed your repair through our receiving and repair departments. The return authorization

number must be clearly shown on the outside of the shipping container.

C. Pack the equipment carefully and ship to us, shipping costs prepaid. If necessary, we can provide

you with the proper packing materials. UPS is usually the best way to ship the units. Heavy units

should be "double-boxed" for safe transport.

D. We also strongly recommend that you insure the equipment, since we cannot be responsible for

loss of or damage to equipment that you ship. Of course, we insure the equipment when we ship

it back to you.

Mailing address: Shipping address:

Lectrosonics, Inc. Lectrosonics, Inc.

PO Box 15900 581 Laser Rd.

Rio Rancho, NM 87174 Rio Rancho, NM 87124

USA USA

Telephones:

Regular: (505) 892-4501

WATS: (800) 821-1121

FAX: (505) 892-6243

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Lectrosonics Sender Handbücher

Lectrosonics

Lectrosonics SMWB Bedienungsanleitung

Lectrosonics

Lectrosonics LMa Bedienungsanleitung

Lectrosonics

Lectrosonics IFBT4-VHF Bedienungsanleitung

Lectrosonics

Lectrosonics UM 200C Bedienungsanleitung

Lectrosonics

Lectrosonics UM700 Bedienungsanleitung

Lectrosonics

Lectrosonics M2T-X Series Bedienungsanleitung

Lectrosonics

Lectrosonics SMDWB series Bedienungsanleitung

Lectrosonics

Lectrosonics LT Series Bedienungsanleitung

Lectrosonics

Lectrosonics UM400 Bedienungsanleitung

Lectrosonics

Lectrosonics HMa Bedienungsanleitung

Lectrosonics

Lectrosonics MM400B Bedienungsanleitung

Lectrosonics

Lectrosonics DBu Bedienungsanleitung

Lectrosonics

Lectrosonics SMDa Bedienungsanleitung

Lectrosonics

Lectrosonics IFBT4/X Bedienungsanleitung

Lectrosonics

Lectrosonics HHa-941 Bedienungsanleitung

Lectrosonics

Lectrosonics H175DC Bedienungsanleitung

Lectrosonics

Lectrosonics UH400 Bedienungsanleitung

Lectrosonics

Lectrosonics SMWB Bedienungsanleitung

Lectrosonics

Lectrosonics SMV-941 Series Bedienungsanleitung

Lectrosonics

Lectrosonics UM450 Bedienungsanleitung

Lectrosonics

Lectrosonics UT400 Bedienungsanleitung

Lectrosonics

Lectrosonics Digital Hybrid Wireless DBu Bedienungsanleitung

Lectrosonics

Lectrosonics HMa Bedienungsanleitung

Lectrosonics

Lectrosonics LM Bedienungsanleitung

Beliebte Sender Handbücher anderer Marken

NIVELCO

NIVELCO EasyTREK SCA-300 Series Betriebsanleitung

Honeywell

Honeywell 5816WMBR Bedienungsanleitung

Kamstrup

Kamstrup READy MTU Betriebsanleitung

Omega

Omega ZW Series Bedienungsanleitung

ABB

ABB Field 264H Leitfaden

Alinco

Alinco DJ-V17T Bedienungsanleitung

Dejero

Dejero EnGo 3x Bedienungsanleitung

Rosemount

Rosemount 4600 Bedienungsanleitung

Speaka Professional

Speaka Professional 2342740 Bedienungsanleitung

trubomat

trubomat GAB 1000 Bedienungsanleitung

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Bedienungsanleitung

Rondish

Rondish UT-11 Bedienungsanleitung

MG 10JRE Bedienungsanleitung

Burkert

Burkert 8177 Bedienungsanleitung

Firetide

Firetide HotPort 3203 Handbuch

Tele Radio

Tele Radio T9-02 Bedienungsanleitung

Rotronic

Rotronic HygroFlex HF3 Series Bedienungsanleitung

Jamara

Jamara FCX6 Pro Tel Bedienungsanleitung
