Lefroy Brooks CW-4076 Montageanleitung
INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
CW-4076
WHITE LEVER ARCHIPELAGO THERMOSTATIC VALVE TRIM ONLY,
TO SUIT M1-4200 ROUGH
2
Contents
Dimensions 3
Instalation Procedure 4
Parts List 7
Fault Finder 8
Safety Tips, Care and Maintenance 9
Guarantee 10
2 3/16"
(55mm)
1 5/8"
(42mm)
Ø6 3/4"
(Ø171mm)
3 1/4"
(82.5mm)
Ø3"
(Ø76mm)
Ø1 7/8"
(Ø48mm)
Ø15/16"
(Ø24.5mm)
7/16"
(10.5mm)
3 3/4"
(94.5mm)
1 7/8"
(48mm)
9/16"
(14mm)
3
Dimensions in Inches (& Millimetres)
Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without
notice as part of the company’s product development process.
Hot supply
Outlet
Cold supply
1
2
34
wall surface
87mm-112mm
Ø145mm-Ø150mm
Note: Plaster guard
Keep a distance of 7mm at least
from the wall surface to the front
of the plaster guard so that the
trim kit can be fitted successfully.
4
Steps 1-4
InstallationProcedure
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
1Position valve into the wall as the figure instructed.
2Connect Water Supply Piping.
3Cut a hole on the wall surface for fitting the trim kit. The hole dimension is as shown in figure 3.
4Throw away the protective caps only when the building construction is completed and you are
ready to fit the trim kit. Take out the stopper.
8
6
5
7
A
5
InstallationProcedure Steps 5-8
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
5Take out the stopper.
6Turn on the flow controller. Turn the thermostatic cartridge till you get the water temperature at
38°.
Suggestion: attach a hose to the outlet and guide water to basin or a receiver to get the
temperature and prevent it from wetting the floor.
7Fix the stopper and make sure its “A” plane as mentioned is horizontal and on the left side.
8Fix the adjusting ring.
12
11
109
6
InstallationProcedure Steps 9-12
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
9Install the canopies.
10 Fix the front plate with screws.
11 Fix the canopy with screw. When it is fixed, the temperature-limit-button is in horizontal position.
12 Install handle assembly with set screws.
1 Slotted head (008291)
2 Set screw (292556)
3 End cap (109377)
4 Lever seat (205002)
5 Set screw (075018)
6 Adaptor (205003)
7 Screw (008994)
8 Button (036292)
9 Spring (005157)
10 Pin (003147)
11 Canopy (018204-50)
12 O-ring (004623R)
13 Ceramic ring (023660)
14 Canopy (018394)
15 Adjusting ring (104295)
16 Screw (008101)
17 Front plate (006225)
18 Seal (013007)
19 Screw bolt (017094)
20 Handle sleeve (108924)
21 Handle-end cap (109376)
22 Set screw (065086)
23 Allen key (031003)
14
12
15
11
7
9
8
10
5
22
17
18
23
16
4
123
19
20
21
13
6
7

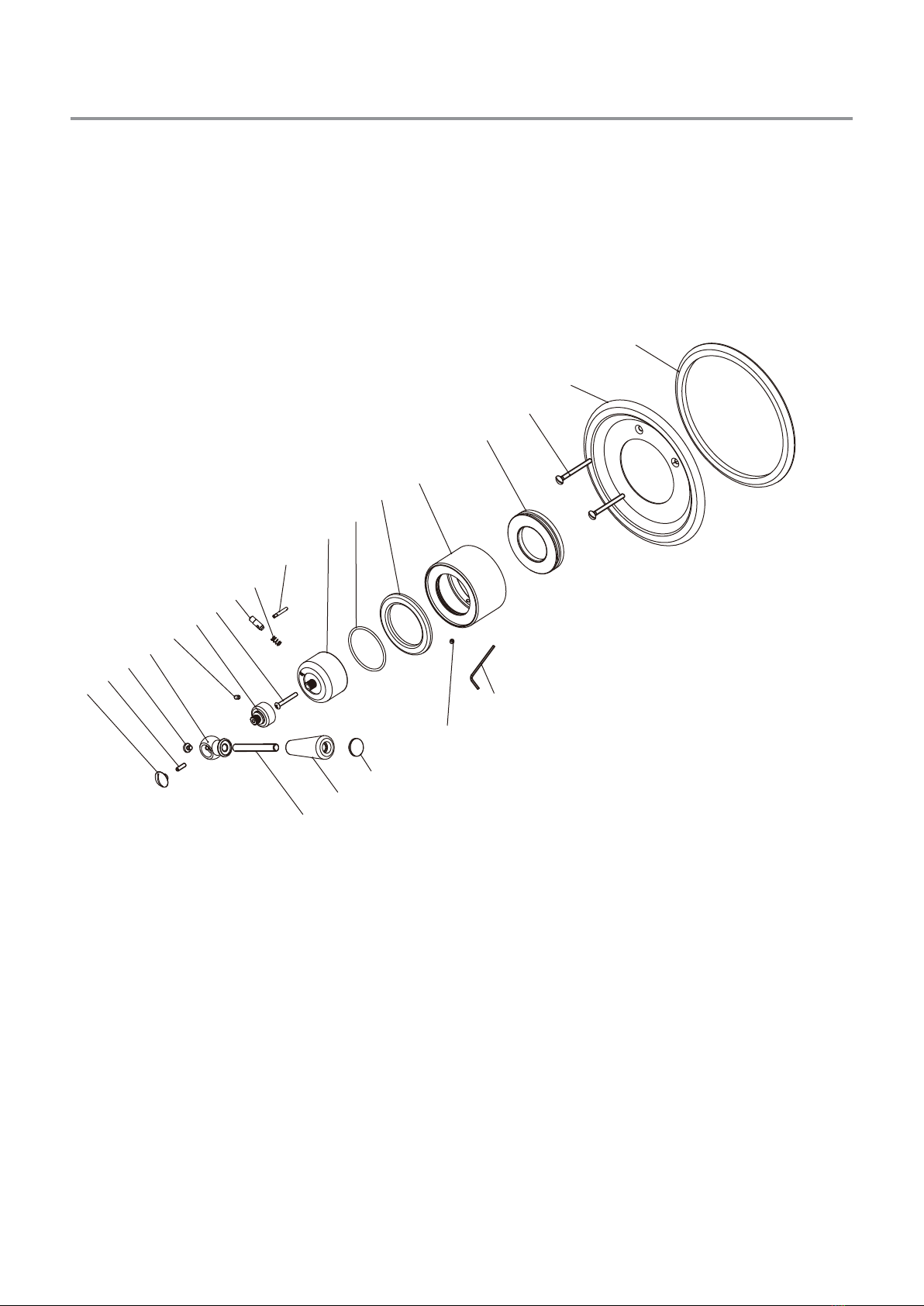

PartsList Exploded view
8
FaultFinder
Fault Cause Rectification
Wobbling of handle. The fixing screw comes loose. Check for fixing screw and
re-tighten it properly.
Wobbling of canopy. The canopy comes loose. Check and tighten the canopy.
9
SafetyTips,CareandMaintenance
Safety Tips
If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to
applying flame, otherwise you will void the warranty.
Cover drain openings to avoid losing small parts.
When cutting or soldering pipe, use safety glasses to protect your eyes.
Important Points
Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release
built-up pressure.
Overtightening nuts may cause damage.
Wrap all threaded connections with pipe tape available at your local plumbing supply store.
Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber.
Please note:
When there is a difference in water pressure between hot and cold supplies to the mixing valve, the
pressures should be equalized by a plumber in accordance with best practice and legislation.
Maintenance
Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as
these will dull the finish and void your warranty.
Routine Maintenance
The frequency and extent of attention required will vary according to prevailing site and operational
conditions, however a 12 monthly maintenance schedule is recommended.
If the product has operated satisfactorily for some time, but performance has been degraded, please
check the Fault Finder section to identify the problem.
Maintenance Check List
s 7ORNORDAMAGEDSEALSANDWASHERS
s $AMAGEDSEALFACES
s 4HREADWEAR
s )NCORRECTADJUSTMENT
s #OMPONENTFAILURE
s $EBRISORLIMESCALEBUILDUP
10
Guarantee
Guarantee of Quality
This product is guaranteed against faulty materials and workmanship for 12 months from date
of purchase. For the guarantee to be valid, the unit must be installed by a competent person, in
accordance with the instruction booklet.
Any part found to be defective during the guarantee period, will (at our option) be repaired or
replaced, free of charge, provided the unit has been installed, and properly used in
accordance with the instruction booklet.
Our products correspond to the valid technical and water supply standards as well as the relevant
approvals requirements. We guarantee them to be free of design and production faults at the time
of delivery and that with correct use and care in accordance with our printed instructions they will
function reliably.
Guarantee period
sThe guarantee is valid in private homes for 5 years from the purchase date. Proof of purchase
has to be provided when making a guarantee claim.
sBy use in commercial or institutional applications the guarantee is valid for 1 year after first use.
To make a guarantee claim, proof of purchase or, the beginning of use is required.
Not Covered by this Guarantee
Damage or defects arising from incorrect installation, improper use or lack of maintenance.
Installed product damaged in transit Consequential loss, damage or product removal and installation
costs.
Lefroy Brooks is not responsible for any on site labour charges.
