LEGRAND CONNECTRAC Bedienungsanleitung

INSTALLATION GUIDE

Instructions to install Express Kit on top of any flooring surface

WWW.CONNECTRAC.COM02182021 PAGE 1

EXPRESS KIT - On top of any flooring surface

2.7

EXPRESS

COMPONENTS

Typical for each wireway installation

WWW.CONNECTRAC.COM02182021 PAG E 2

EXPRESS KIT - On top of any flooring surface

WALL

BASE TRIM

Finishes cable

opening at wall

BOTTOM TRACK

Screws to concrete

Aluminum - trimmed to length

END COMPONENT

Slots into bottom track

Secured with set screws

POWER SYSTEM

Receptacle device

TOP CAP

Snaps into bottom track

Aluminum - trimmed to length

WIRE MANAGEMENT CLIPS

Secures cabling in wireway

QUESTIONS? CALL US AT 877.480.5637 Overview Video available at:

https://vimeo.com/412915841

WWW.CONNECTRAC.COM02182021 PAG E 3

EXPRESS KIT - On top of any flooring surface

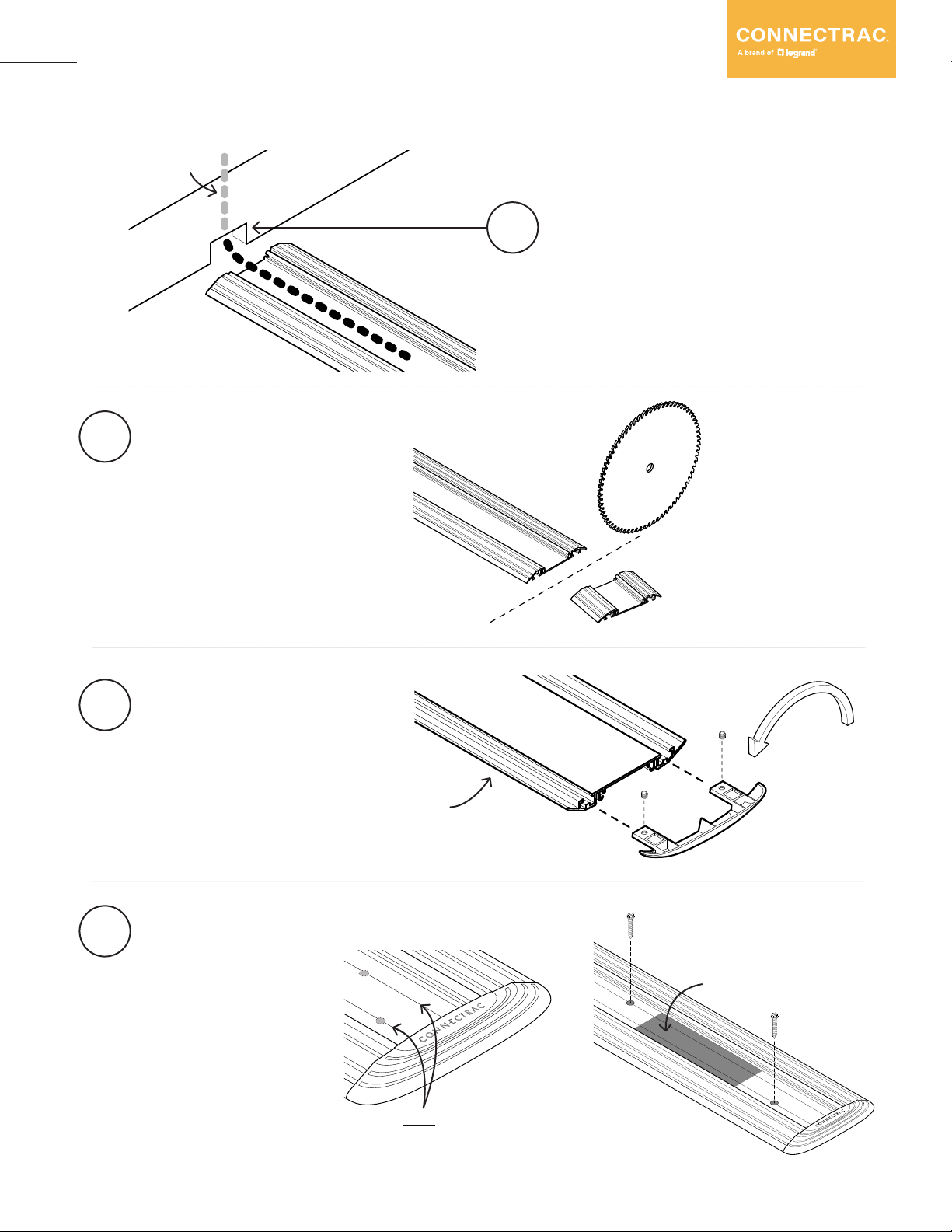

1CUT A 1”x 2” HOLE IN WALL

This opens the path for cables

to go from the wireway into the wall.

Also cut the steel stud track and flatten it.

2EVALUATE YOUR SPACE

If the length of your wireway fits

into your space, proceed to Step 3.

As an option, the bottom track can

be trimmed to whatever length you

need by using an aluminum-cutting

saw blade.

3ATTACH END COMPONENT

Flip the bottom track upside down,

insert the end component, and

tighten the set screws.

Measure where you will

place the device (it can go

anywhere in the wireway).

Screw the bottom track to

the floor - we recommend

staggering one screw

every 18”-24”.

4PLAN FOR DEVICE & FASTEN DOWN TRACK

Path of cabling

You must use the grooves on either side

of the bottom track to stagger screws

CAUTION

Do not cut the top cap yet!

Don’t put screws where you

need to place the device.

(Allow 10” for device).

CAUTION

FLIP!

Upside-down

bottom track

INSTALLATION IN 9 STEPS

WWW.CONNECTRAC.COM02182021 PAG E 4

EXPRESS KIT - On top of any flooring surface

POWER

DOWN

CENTER

DATA TO EITHER SIDE

PLACE CABLING INTO WIREWAY

Once the pre-wired conduit is placed, lay the cables to each side of conduit.

5STRAIGHTEN AND FLATTEN CONDUIT

It’s important to make sure the conduit is flat and not twisted inside the wireway so that the top cap

fits appropriately. There is a red line marking the top of the conduit - make sure it’s always facing up!

RED LINE UP!

WIRE MANAGEMENT CLIPS

To protect cables and to make it easier to install the top cap,

snap the clip into the grooves on both sides of the bottom track.

WWW.CONNECTRAC.COM02182021 PAG E 5

EXPRESS KIT - On top of any flooring surface

7ABOUT THAT HOLE IN THE WALL

The Wall Base Trim covers it up:

Use mounting tape to stick the backplate

against the wall base, making sure to align

the legs in the aluminum bottom track.

Use screws for additional support.

Set aside the frontplate until after the

top cap is installed, then snap the front-

plate onto the backplate.

Tape backplate

Alternate wall application:

WWW.CONNECTRAC.COM02182021 PAG E 6

EXPRESS KIT - On top of any flooring surface

MEASURE

FROM WALL

TO THIS

NOTCH

MEASURE

END TO END

INSTALLING THE WIREWAY TOP CAP

The top cap is designed to hold down the receptacle device without using screws.

There will be 2 cuts in the top cap.

2) For the second cut, measure from the end of the wireway to the end of the device

(minimum length 2”). Then snap those top cap pieces into your wireway.

1) For the first cut, measure between the wall

and the metal notch on the receptacle device.

WWW.CONNECTRAC.COM02182021 PAG E 7

EXPRESS KIT - On top of any flooring surface

INSTALLING RECEPTACLE DEVICE COVER

The last step is to terminate any data cabling, and attach the cover to the electrical device.

Snap in Keystones

WWW.CONNECTRAC.COM02182021 PAG E 8

EXPRESS KIT - On top of any flooring surface

2STAGGER THE BOTTOM TRACK AND THE TOP CAP

Oset the bottom track joints from the top cap joints. This helps strengthen the assembly.

1USE INCLUDED COUPLERS

Insert as shown, then tighten set screws.

Stagger joints at

least six inches

HOW TO ADD A 6’ EXTENSION
