Read this guide carefully before using your smartphone.

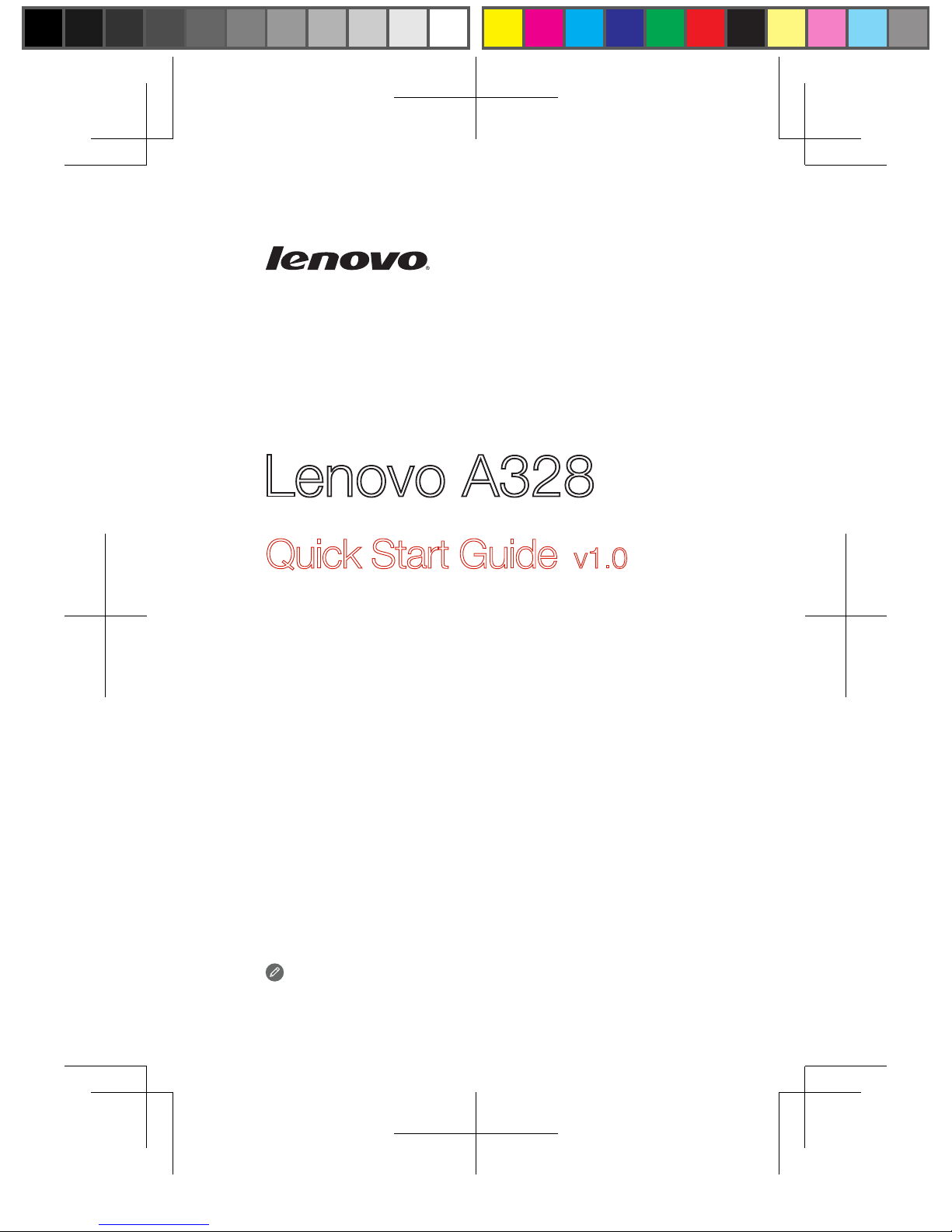

Quick Start Guide v1.0

Lenovo A328

Lenovo A328 QSG EN 110_74mm V1.01 1 6/20/2014 6:44:58 PM

Model: Lenovo A328 System: Android

Bluetooth 4.0; WLAN 802.11 b/g/n; WCDMA, GSM; GPS

Battery: 2000 mAh

Model and system

①Depending on the measuring method, the dimensions and weight

might vary slightly.

Display

Battery

Processor

①Dimensions and weight

Camera

Wireless Communication

Height: 132 mm (5.2 inches) Width: 68.5 mm (2.69 inches)

Depth: 10.8 mm (0.425 inch) Weight: 140 g (0.328 lb)

Processor: MTK MT6582M

Quad Core

1.3GHz

Type: CMOS

Pixels: 5.0 megapixels (back) + 2.0 megapixels (front)

Size: 4.5 inches Screen: 2-touch

Resolution: 854 × 480 pixels LCD type: TN

Technical speciﬁcations

Lenovo A328 QSG EN 110_74mm V1.02 2 6/20/2014 6:44:58 PM

First glance

Microphone

Flashlight

Micro USB

connector

Speaker On/Off button

Volume buttons

Receiver

Front-facing

camera

Rear-facing

camera

Headset

connector

Lenovo A328 QSG EN 110_74mm V1.03 3 6/20/2014 6:44:58 PM

You must insert the SIM card provided by your carrier to use cellular

services. Set up your smartphone as shown.

SIM1

SIM2

Step 1. Open the back cover.

Step 2. Insert the SIM cards and

the memory card.

Tip: Insert the (U)SIM card into

SIM1 slot and SIM card

into SIM2 slot.

Step 3. Install the battery.

a. Align the battery

connectors on the battery

with the pins in the

battery compartment.

b. Push the battery down

into place.

Step 4. Install the back cover.

Always turn off your smartphone ﬁrst before you insert or remove a

SIM card. Insert or remove a SIM card with your smartphone on may

damage your SIM card or smartphone permanently.

SIM2

SIM1

SIM2

Preparing your smartphone

Lenovo A328 QSG EN 110_74mm V1.04 4 6/20/2014 6:44:58 PM

Turning on or turning off your smartphone

Turn on: Press and hold the On/Off button until

the Lenovo logo appears.

Turn off: Press and hold the On/Off button for a

few seconds, then tap Power off.

Restart: Press and hold the On/Off button for a

few seconds, then tap Restart.

Your smartphone has a rechargeable battery. For more information

about battery safety, see the “Rechargeable battery notice” in the

Important Product Information Guide shipped with your smartphone.

Low battery power Fully charged Charging

Charge the battery as shown.

Method 1.

Method 2.

Connect your smartphone to a power outlet using the

cable and USB power adapter that come with your

smartphone.

Connect your smartphone to a computer using the cable

that comes with your smartphone.

Charging the battery

Lenovo A328 QSG EN 110_74mm V1.05 5 6/20/2014 6:44:58 PM

Radio and Telecommunications Terminal Equipment

Directive

This product is in compliance with the essential requirements

and other relevant provisions of the Radio and Telecommuni-

cations Terminal Equipment Directive, 1999/5/EC.

European Union conformity

HQ60111132000

Printed in China

First Edition (August 2014) © Copyright Lenovo 2014.

Learning more

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the

United States, other countries, or both.

Other company, product, or service names may be

trademarks or service marks of others.

To learn more information about your Lenovo smartphone and

obtain the latest smartphone manuals, go to:

http://support.lenovo.com/.

Getting support

For support on network service and billing, contact your

wireless network operator. For instructions on how to use your

device, go to: http://support.lenovo.com/.

Lenovo A328 QSG EN 110_74mm V1.06 6 6/20/2014 6:44:58 PM
