Lenovo A706 Bedienungsanleitung
User Manual
Model: Lenovo A706
Read this manual carefully
before operating the handset
Lenovo Mobile Phone
English
2
Technical Parameters
Product WCDMA digital mobile phone
Model Lenovo A706
System Android 4.1.2
Size Approximately 136.3 mm ×69.3 mm ×10.4mm
Weight Approximately 138g (including battery)
Standby Time Max 120 hours*
Battery Capacity 2000 mAh
NOTES:*May vary depending on local signal strength.
3
Initial Setup Procedure

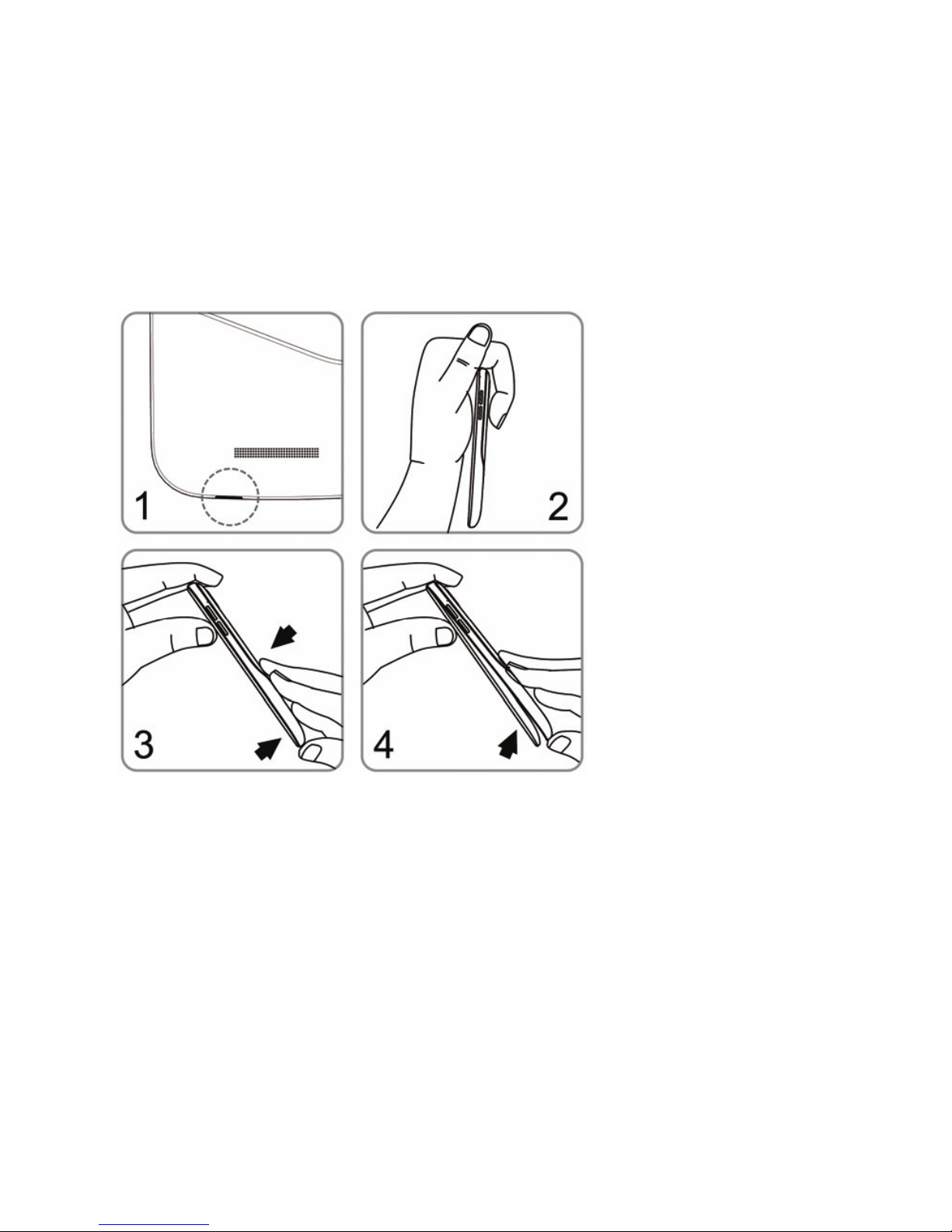

Removing and mounting battery cover
To remove the cover, perform the following procedure as shown in the
figure.
1. Find the recess in the lower-left corner.
2. Hold the top of your mobile phone.
3. Lift up from the recess.
4. Open the cover.
To mount the battery cover, gently fit and press it onto phone body until it
completely clicks into place.
4
Charging the phone
Inserting the SIM card
5
Inserting the memory card
6
Port Assignment and Button Layout
KEY Description
1 HOME KEY Can return to the idle interface.
2 MENU KEY Can enter the commonly used, the
characteristic and more menus.
3 BACK KEY Can return to the superior menu.
4 VOLUME KEY According to the volume switch increase
or decrease volume.
5 POWER ON/OFF
Short click this button to lock screen
function, long press the key to power
on/off the phone.
4
7
Applications Overview
Icon Name Note
Browser
Browses websites. The web browser in this unit
can access the Internet via the WIFI network for
business and personal use.
Email Receives/Sends and views mails by linking
directly to your mailbox.
Gallery
Browses and edits images. In an image
full-screen page it supports slideshow functions
and such operations as, Share, Set as, and
Details.
Contacts Allows you to add or delete contacts and edit or
delete particulars of a contact.
Calendar
Creates new events, toggles the day view, the
week view and the month view, and enables the
event reminder function.
8
Gravity sensor
Auto rotate screen according to the rotation of the device. To unlock the
screen direction: Menu > Settings > Display > Auto-rotate screen.
After launching one application, you can rotate the screen to your
preferred direction.
9
Precautions and Tips for A706 Safety and
Maintenance
When using mobile phone, please abide by the following.
zRead the user manual thoroughly before using your mobile phone.
zDo not turn on your mobile phone if use is prohibited or may cause
interference or danger.
zYour mobile phone should be switched off while on airplanes. If the
alarm or schedule settings can cause the mobile phone to turn on
automatically when it is in “off” mode, the settings should be checked
to ensure they have been deselected before boarding.
zWhen using your mobile phone, keep it away from hot or high-voltage
environments, such as electric appliances or cooking equipment.
zTo prevent fire, turn off your mobile phone in areas containing
flammable objects, such as filling stations and fuel storage.
zDo not hold your mobile phone when driving. Do not place your
phone above an air bag in a car or any area that may be occupied by
an expanded air bag. You may get hurt if the phone is impacted by a
strong force by the air bag expanding.
zOnly Lenovo approved batteries, chargers and accessories may be
used. Lenovo is not responsible for any consequences due to the use
of accessories from a third party.
zDo not disassemble your mobile phone.
zWhen your mobile phone is close to other electronic devices,
interference may occur. Keep your mobile phone away from other
electronic devices, such as televisions, radios, personal computers,
pacemakers, hearing aids, medical equipment, etc. Do not store your
phone near credit cards or magnetic fields. In hospitals or other
10
special areas, use your mobile phone in accordance with the site’s
regulations.
zMechanically vibrating or shaking the mobile phone may cause
damage. Do not knock your phone screen with a sharp item.
zUsing a cell-phone case or plastic case may damage the surface of
your phone.
zDo not use solvents (such as benzene, diluents, alcohol, etc.) to wipe
the mobile phone's cover. Similarly, do not bring your phone into
contact with corrosive chemicals or detergents. Only a clean, soft
cloth should be used to gently wipe your phone.
zAvoid exposing the mobile phone to the sun or placing it in a smoky
or dusty environment.
zKeep your mobile phone dry. It should never be used in a high
humidity environment, such as a bathroom. Your mobile phone is not
waterproof and should not be exposed to rain or other moisture.
zIf an external antenna is used on your mobile phone, do not touch the
antenna. Only the original antenna should be used. Your phone may
be damaged by using any other antenna.
zWhen pulling out the charger plug from your mobile phone, hold and
pull the plug outwards. Do not jerk the power cord.
zDo not depend only on your mobile phone as the sole communication
equipment for an emergency, such as a medical rescue.
zTo prevent hazards, place your mobile phone in a safe location out of
reach of children.
Be aware of heat generated by your mobile phone
When your Mobile phone is turned on or the battery is charging, some
parts might become hot. The temperature that they reach depends on the
amount of system activity and the level of charge in the battery. Extended
