User’s Guide
LT1421 Wide Flat Panel Monitor
Product number
1452-DB6
First Edition ( 2011)
LENOVO products, data, computer software, and services have been developed exclusively at private expense and
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted
rights to use, reproduction and disclosure.
LIMITED AND RESTRICTED RIGHTS NOTICE: IF products, data, computer software, or services are delivered
pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to
restrictions set forth in Contract No. GS-35F-05925.
CopyrightLenovo2011. i
06
CopyrightLenovo2011.
All rights reserved.
1452-DS6
Contents
Safety information ……………………………………………………………………iii
Chapter 1. Getting started ……………………………….…………………………1-1
Shipping contents ………………………………………………………………………………………..…1-1
Product overview ………………………………………………………………………………………..… 1-2
Types of adjustments ……………………………………………………………………………………... 1-2
User controls ……………………………………………………………………………………………… 1-2
Cable lock slot ……………………………………………………………………………………………. 1-3
Setting up your monitor ……………………………………………………………………………………... 1-3
Connecting and turning on your monitor ………………………………………………………………… 1-3
Registering your option ……………………………………………………………………………………... 1-6
Chapter 2. Adjusting and using your monitor…………………………………………..2-1
Comfort and accessibility …………………………………………………………………………………… 2-1
Arranging your work area………………………………………………………………………………... 2-1
Quick tips for healthy work habits……………………………………………………………………….. 2-2
Accessibility information ………………………………………………………………………………… 2-2
Understanding power management…………………………………………………………………………. 2-3
Caring for your monitor ………………………………………………………………………………………2-3
Chapter 3. Reference information ………………………………………………..……..3-1
Monitor specifications ………………………………………………………………………………………..3-1
Troubleshooting ………………………………………………………………………………………………3-2
Getting further help ... ……………………………………………………………….……………………. 3-2
Service information ……………………………………………………………………………………….. 3-3
Appendix A. Service and Support …………………………………………..…………...A-1
Online technical support ………………………………………………………………………..……………. A-1
Telephone technical support ………………………………………………………………………..………... A-1
Worldwide telephone list …….…………………………………………………………………….………A-1
Appendix B. Notices ………………………………………………………………….……B-1
Recycling information………………………………………………………………………………………….B-2
Trademarks …………………………………………………………………………………………………… B-3
Turkish statement of compliance……………………………………………………………………………….B-4
Copyright Lenovo 2011.ii
Chapter 4. Working with LT1421 Wide USB Monitor ………….………………..….…..4-1
………………………………………………………………………………………..4-1
……...…………………………………………………………4-7
……………………………………………………………….………….………….4-10
Driver Installation
USB Monitor Display Information settings
Additional Information
3AFETY INFORMATION
ǰ ¢ ǯ
ǰ ³ä ³ǯ
0REDINSTALAC¤TOHOTOPRODUKTUSIPRECTETEPR¤RUCKUBEZPECNOSTN¤CHINSTRUKC¤
® Ğǰ è Ĵ ǯ
Ĵ §§ Ĵǰ ¢ ǯ
Ȃ ǰ £ ··ǯ
ǯ
Ĵǰ £ ££ǯ
Ğǯ
ǻ¢ Ǽ è Ĵ ǯ
ǰ ³ä ³ǯ
à ǯ
Måt tålfsifutjogpsnbujpofo joobo ev jotubmmfsbs efo iås qspevlufo/
ii
i
sUmGanBt’manli¥tl¥n; muneBlcab;epIþmbBa©ÚlkmμviFI
Prije instaliranja ovog proizvoda obavezno pročitajte sigurnosne upute.
General Safety guidelines
For tips to help you use your computer safety, go to:
http://www.lenovo.com/safety
Ț ¢ ŘŖ11.
Chapter 1. Getting started
This User’s Guide contains detailed information on the ThinkVision LT1421 Wide
Flat Panel Monitor. For a quick overview, please see the Setup Poster that was
shipped with your monitor.
Shipping contents

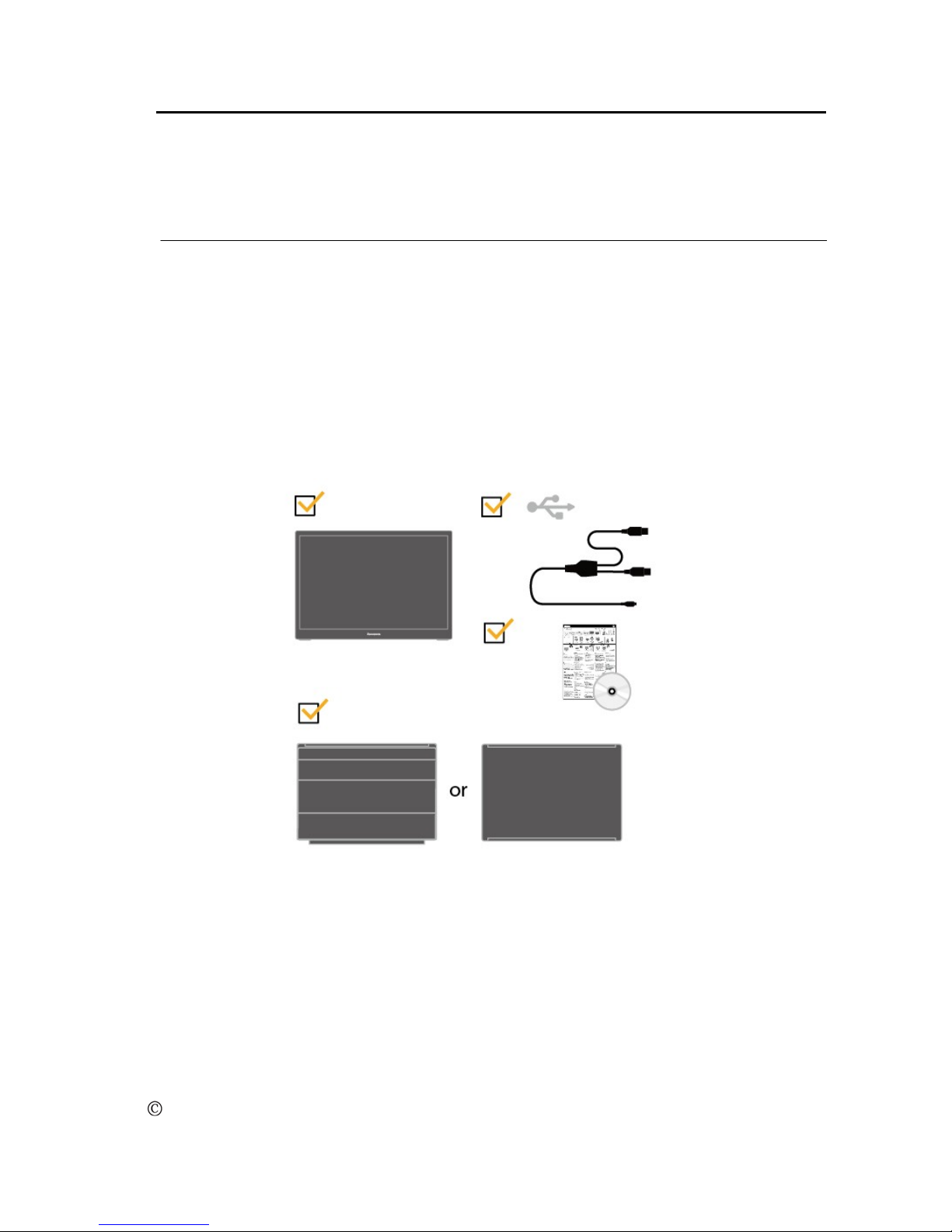

The product package should include the following items:
●
●
●
●
Information Flyer
●
USB Cable
Copyright Lenovo 2011. 1-1
®
Flat Panel Monitor
Reference and Driver CD
Protective Case or Screen Protector (Alternative)
Product overview
This section will provide information on adjusting monitor positions, setting user
controls, and using the cable lock slot.
Types of adjustments
Tilt
Please see the illustration below for an example of the tilt range.
1-2 LT1421 Wide Flat Panel Monitor User’s Guide
User controls
Your monitor has brightness control on the back which are used to adjust the display.
Chapter 1. Getting started 1-3
Cable lock slot
Your monitor is equipped with a cable lock slot located on the rear of your monitor
Please follow the instructions that came with the cable lock to attach it.
Setting up your monitor
This section provides information to help you set up your monitor.
Connecting and turning on your monitor
Note: Be sure to read the Safety Information located in the Monitor Safety, troubleshooting
and Warranty Guide before carrying out this procedure.
1. Power on the computer.
1-4 LT1421 Wide Flat Panel Monitor User’s Guide
Connect the USB cable to the USB port of the back of the monitor and the other two
endsto the appropriate USB portson your computer
3.
.How to work with LT1421 Wide
USB monitor , please see " Chapter 4".
2.To install the monitor driver, insert the Reference and Driver CD, click Install
driver, and follow the on-screen instructions.
For detailed Setup steps,please see " Chapter 4".
Chapter 1. Getting started 1-5
4. Using the convertible protective case or screen protector.
A convertible protective case or a screen protector is attached to the USB monitor to help
protect it during transportation or storage.
The protective case also can be used as the stand
instead. Here is the illustrations
as follows:
When using:
1) Case assembly and be used as a stand:
2) Case detaching and using the monitor stand itself.
If protective case is attached:
(1)
1-6 LT1421 Wide Flat Panel Monitor User’s Guide
Registering your option
Thank you for purchasing this Lenovo product. Please take a few moments to
register your product and provide us with information that will help Lenovo to
better serve you in the future. Your feedback is valuable to us in developing
products and services that are important to you, as well as in developing better
ways to communicate with you. Register your option on the following Web site:
http://www.lenovo.com/register
Lenovo will send you information and updates on your registered product unless
you indicate on the Web site questionnaire that you do not want to receive further
information.
®
On storage or transportation:
If screen protector is attached:
(2)
The screen protector is just used to protect the screen from damage when storage or
transportation.
Screen protector assembly and detaching:
Place the case cover to the front of the monitor.
