Lenovo ThinkSystem SD665 V3 Neptune DWC Bedienungsanleitung

ThinkSystem SD665 V3 Neptune DWC Tray

System Configuration Guide

Machine Types: 7D9

Note

Before using this information and the product it supports, be sure to read and understand the safety

information and the safety instructions, which are available at:

http://thinksystem.lenovofiles.com/help/topic/safety_documentation/pdf_files.html

In addition, be sure that you are familiar with the terms and conditions of the Lenovo warranty for your server,

which can be found at:

http://datacentersupport.lenovo.com/warrantylookup

First Edition (December 2022)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services

Administration (GSA) contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-

05925.

Contents

Contents . . . . . . . . . . . . . . . . . i

Safety . . . . . . . . . . . . . . . . . . iii

Safety inspection checklist . . . . . . . . . . . iv

Chapter 1. Ser er components . . . . . 1

Front view . . . . . . . . . . . . . . . . . . 1

Top view . . . . . . . . . . . . . . . . . . 2

KVM breakout cable . . . . . . . . . . . . . . 2

System-board layout . . . . . . . . . . . . . . 3

System-board connectors . . . . . . . . . . 3

System-board switches . . . . . . . . . . . 4

CIe slot numbering . . . . . . . . . . . . . . 5

System LEDs and diagnostics display . . . . . . . 6

Troubleshooting by system LEDs and diagnostics

display . . . . . . . . . . . . . . . . . . . 6

Front LEDs . . . . . . . . . . . . . . . . 6

External Diagnostics Handset . . . . . . . . 7

System Management Module 2 (SMM 2)

LEDS . . . . . . . . . . . . . . . . . 13

ower supply LEDs . . . . . . . . . . . 15

DWC power supply LEDs . . . . . . . . . 16

Drip sensor LED . . . . . . . . . . . . . 17

System-board LEDs . . . . . . . . . . . 18

Chapter 2. Parts list . . . . . . . . . . 21

ower cords . . . . . . . . . . . . . . . . 24

Chapter 3. Unboxing and setup . . . . 25

Solution package contents . . . . . . . . . . 25

Identify the solution and access the Lenovo

XClarity Controller . . . . . . . . . . . . . . 25

Solution setup checklist . . . . . . . . . . . 28

Chapter 4. System configuration . . . 31

Set the network connection for the Lenovo XClarity

Controller . . . . . . . . . . . . . . . . . 31

Set front USB port for Lenovo XClarity Controller

connection. . . . . . . . . . . . . . . . . 32

Update the firmware . . . . . . . . . . . . . 33

Configure the firmware . . . . . . . . . . . . 36

Memory module configuration . . . . . . . . . 37

SU configuration . . . . . . . . . . . . . . 37

Deploy the operating system. . . . . . . . . . 38

Back up the server configuration . . . . . . . . 39

Appendix A. Getting help and

technical assistance . . . . . . . . . . 41

Before you call . . . . . . . . . . . . . . . 41

Collecting service data . . . . . . . . . . . . 42

Contacting Support . . . . . . . . . . . . . 43

Appendix B. Documents and

supports . . . . . . . . . . . . . . . . 45

Documents download . . . . . . . . . . . . 45

Support websites . . . . . . . . . . . . . . 45

Appendix C. Notices. . . . . . . . . . 47

Trademarks . . . . . . . . . . . . . . . . 48

Important notes . . . . . . . . . . . . . . . 48

Electronic emission notices . . . . . . . . . . 48

Taiwan region BSMI RoHS declaration . . . . . . 49

Taiwan Region import and export contact

information . . . . . . . . . . . . . . . . 49

ii ThinkSystem SD665 V3 Neptune DWC Tray System Configuration Guide

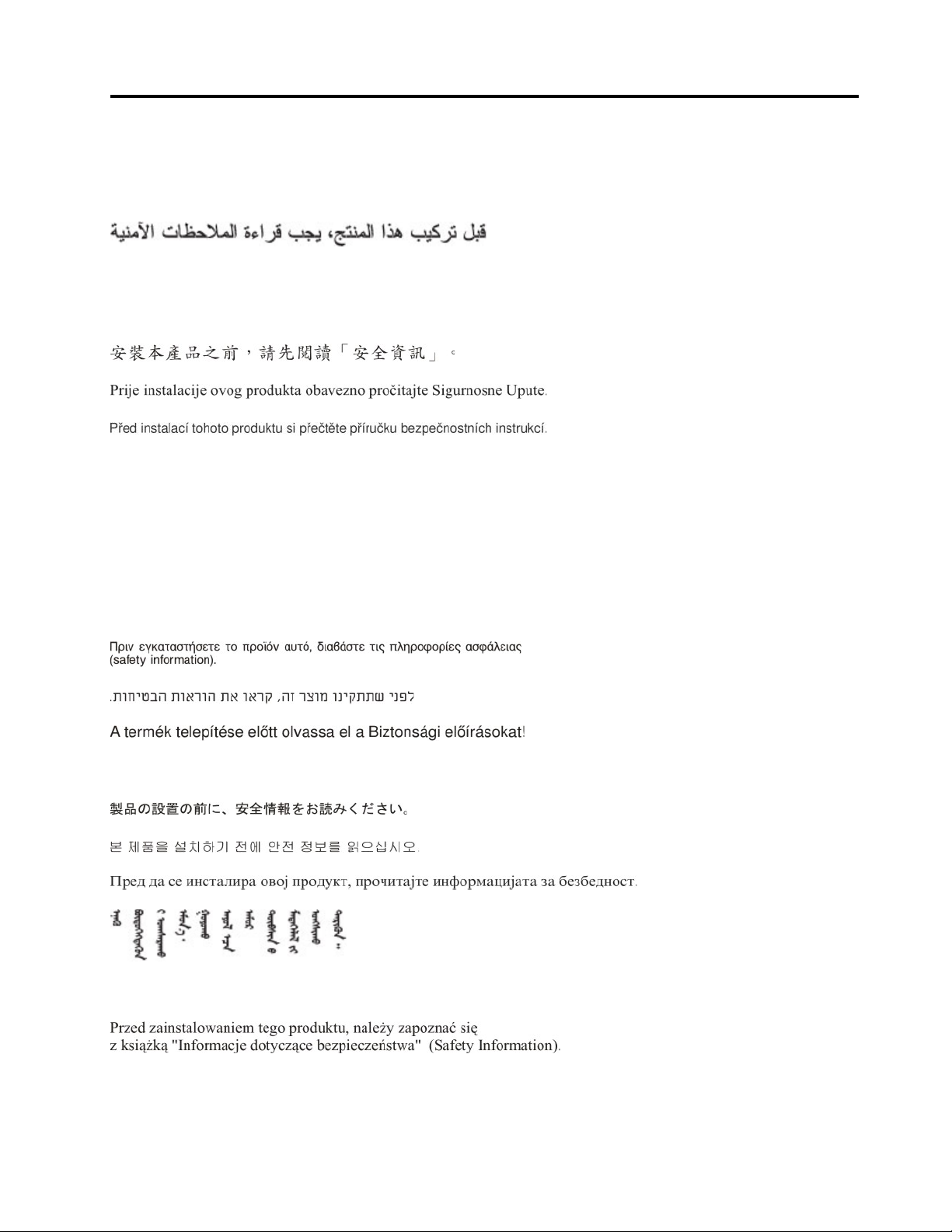

Safety

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

在安装本产品之前，请仔细阅读 Safety Information （安全信息）。

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.

Avant d'installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses rodukts die Sicherheitshinweise lesen.

rima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.

Antes de instalar este produto, leia as Informações sobre Segurança.

Antes de instalar este producto, lea la información de seguridad.

Läs säkerhetsinformationen innan du installerar den här produkten.

Safety inspection checklist

Use the information in this section to identify potentially unsafe conditions with your server. As each machine

was designed and built, required safety items were installed to protect users and service technicians from

injury.

Note: The product is not suitable for use at visual display workplaces according to §2 of the Workplace

Regulations.

Note: The set-up of the server is made in the server room only.

CAUTION:

This equipment must be installed or ser iced by trained personnel, as defined by the NEC, IEC 62368-

1 & IEC 60950-1, the standard for Safety of Electronic Equipment within the Field of Audio/Video,

Information Technology and Communication Technology. Leno o assumes you are qualified in the

ser icing of equipment and trained in recognizing hazards energy le els in products. Access to the

equipment is by the use of a tool, lock and key, or other means of security, and is controlled by the

authority responsible for the location.

Important: Electrical grounding of the server is required for operator safety and correct system function.

roper grounding of the electrical outlet can be verified by a certified electrician.

Use the following checklist to verify that there are no potentially unsafe conditions:

1. Make sure that the power is off and the power cord is disconnected.

2. Check the power cord.

• Make sure that the third-wire ground connector is in good condition. Use a meter to measure third-

wire ground continuity for 0.1 ohm or less between the external ground pin and the frame ground.

• Make sure that the power cord is the correct type.

To view the power cords that are available for the server:

a. Go to:

i ThinkSystem SD665 V3 Neptune DWC Tray System Configuration Guide

http://dcsc.lenovo.com/#/

b. Click Preconfigured Model or Configure to order.

c. Enter the machine type and model for your server to display the configurator page.

d. Click Power ➙ Power Cables to see all line cords.

• Make sure that the insulation is not frayed or worn.

3. Check for any obvious non-Lenovo alterations. Use good judgment as to the safety of any non-Lenovo

alterations.

4. Check inside the server for any obvious unsafe conditions, such as metal filings, contamination, water or

other liquid, or signs of fire or smoke damage.

5. Check for worn, frayed, or pinched cables.

6. Make sure that the power-supply cover fasteners (screws or rivets) have not been removed or tampered

with.

i ThinkSystem SD665 V3 Neptune DWC Tray System Configuration Guide

Chapter 1. Ser er components

This section contains information about each of the components associated with the server.

Front iew

The following illustration shows the controls, LEDs, and connectors on the front of the solution.

Notes:

• SD665 V3 tray contains two nodes; one left node and one right node (when viewed from front of

enclosure). Both are compute nodes.

• Up to six SD665 V3 trays can be installed in the DW612S 6U enclosure.

The following illustrations show the controls, LEDs, and connectors on the front of each tray.

Note: The illustrations in this document might differ slightly from your hardware.

Figure 1. SD665 V3 tray

Table 1. SD665 V3 tray indicators, controls, and connectors

1 Compute node / Left node (odd bay

numbers)

7 External Diagnostics Handset connector. See “External

Diagnostics Handset” on page 7 for more information.

2 Compute node / Right node (even bay

numbers)

8 Front operator panel LEDs. See “Front LEDs” on page 6.

3 CIe slot 2 or drive bay 2/3. See “Hardware

replacement procedures” in User Guide or

Hardware eplacement Guide for for

component replacement.

9 NMI button.

ress this button to force a nonmaskable interrupt to the processor.

You might have to use a pen or the end of a straightened paper clip

to press the button. You can also use it to force a blue-screen

memory dump. Use this button only when you are directed to do so

by Lenovo Support.

4CIe slot 1 or drive bay 0/1. See “Hardware

replacement procedures” in User Guide or

Hardware eplacement Guide for for

component replacement.

10 1 Gb RJ45 Ethernet port with share-NIC feature for Lenovo

XClarity Controller. See “Front LEDs” on page 6 for more

information.

Lenovo XClarity Controller connection is mutually exclusive between

RJ45 Ethernet connector and 25Gb SF 28 ort 1.

Table 1. SD665 V3 tray indicators, controls, and connectors (continued)

5 25 Gb SF 28 Ethernet port ( ort 1) with

share-NIC feature for Lenovo XClarity

Controller. See “Front LEDs” on page 6 for

more information.

Lenovo XClarity Controller connection is

mutually exclusive between RJ45 Ethernet

connector and 25Gb SF 28 ort 1.

11 KVM breakout cable connector

The KVM breakout cable includes VGA connector, serial port

connector, and USB 3.0 (5 Gbps) / 2.0 connector. XCC mobile

management is supported by USB connector on the KVM breakout

cable.

6 25 Gb SF 28 Ethernet port ( ort 2). See

“Front LEDs” on page 6 for more information.

12 ull-out information tab with Lenovo XClarity Controller network

access label. See “Identify the solution and access the Lenovo

XClarity Controller” on page 25 for more information.

Top iew

This section contains information on the top view of the solution.

Figure 2. Compute node top view

Table 2. Components on the compute node top view

1 System board 6 M.2 drive backplane

2 Water loop quick connect 7 CIe 5.0 x16 slot 2 or drive bay 2/3

See “Hardware replacement procedures” in User Guide

or Hardware eplacement Guide for for component

replacement.

3 ower distribution board 8 CIe 5.0 x16 slot 1 or drive bay 0/1

See “Hardware replacement procedures” in User Guide

or Hardware eplacement Guide for for component

replacement.

4 rocessor cold plates 9 Front cam handle

5 Memory module cooling tube

KVM breakout cable

Use this information for details about the KVM breakout cable.

2ThinkSystem SD665 V3 Neptune DWC Tray System Configuration Guide
