Installation and maintenance

R251

A.V.R.

LEROY-SOMER 4092 en - 11.2006 / a

SAFETY MEASURES

Before using your machine for the first time,

it is important to read the whole of this

installation and maintenance manual.

All necessary operations and interventions

on this machine must be performed by a

qualified technician.

Our technical support service will be

pleased to provide any additional

information you may require.

The various operations described in this

manual are accompanied by

recommendations or symbols to alert the

user to potential risks of accidents. It is vital

that you understand and take notice of the

following warning symbols.

This A.V.R. is incorporated in a machine

marked CE.

Warning symbol for an operation

capable of damaging or destroying the

machine or surrounding equipment.

Warning symbol for general danger to

personnel.

Warning symbol for electrical danger to

personnel.

Note : LEROY-SOMER reserves the right

to modify the characteristics of its products

at any time in order to incorporate the latest

technological developments.

The information contained in this document

may therefore be changed without notice.

WARNING

This manual concerns the alternator A.V.R. which you have just purchased.

We wish to draw your attention to the contents of this maintenance manual. By

following certain important points during installation, use and servicing of your A.V.R.,

you can look forward to many years of trouble-free operation.

CALL US TODAY

1-888-POWER-58

REQUEST A QUOTE

[email protected]

SHOP ONLINE

www.genpowerusa.com

CALL US TODAY

1-888-POWER-58

REQUEST A QUOTE

[email protected]

SHOP ONLINE

www.genpowerusa.com

Installation and maintenance

R251

A.V.R.

4092 en - 11.2006 / a

LEROY-SOMER

SUMMARY

1 - SUPPLY .............................................................................................................................4

1.1 - SHUNT excitation system............................................................................................4

2 - R251 A.V.R. .......................................................................................................................5

2.1 - Characteristics .............................................................................................................5

2.2 - U/F fonction and LAM..................................................................................................5

2.3 - R251 A.V.R. option......................................................................................................5

2.4 - LAM Characteristics ....................................................................................................6

2.5 - Typical effects of the LAM ...........................................................................................7

3 - INSTALLATION - COMMISIONING ..................................................................................8

3.1 - Electrical checks on the AVR.......................................................................................8

3.2 - Settings........................................................................................................................8

3.3 - Electrical faults.............................................................................................................9

4 - SPARE PARTS................................................................................................................10

4.1 - Designation................................................................................................................10

4.2 - Technical support service..........................................................................................10

Any maintenance or breakdown operations on the A.V.R. are to be done by personnel

trained on commisioning, servicing and maintenance for the electrical and mechanical

elements.

This document is the property of:

MOTEURS LEROY SOMER.

It may not be reproduced in any form without prior authorization

All brands and models have been registered and patents applied for.

CALL US TODAY

1-888-POWER-58

REQUEST A QUOTE

[email protected]

SHOP ONLINE

www.genpowerusa.com

CALL US TODAY

1-888-POWER-58

REQUEST A QUOTE

[email protected]

SHOP ONLINE

www.genpowerusa.com

Installation and maintenance

R251

A.V.R.

LEROY-SOMER 4092 en - 11.2006 / a

1 - SUPPLY

1.1 - SHUNT excitation system

The SHUNT excitation alternator is auto-

excited with a R 251 voltage regulator.

The regulator controls the excitation

current according to the alternator’s output

voltage. With a very simple conception, the

SHUNT excitation alternator does not have

a short circuit capacity.

The R 251 is a R 250 with a specific

excitation ceiling = 4 A during 30 s (set for

the dedicated single phase alternator with

type M or M1).

4 x holes Ø 5.8 x

50 x 115 mm

140 mm

75 mm

SHUNT SYSTEM T3

Varistor

5+ 6-

STATOR : 4 wires (marking T1 to T4)

R 251

110

E+ E-

60Hz

65Hz

57Hz

47.5Hz

50Hz

KNEE

SPECIAL

LAM

OFF

13%

25%

LAM

KNEE

LAM OFF

ST4

Option

FREQ. & L.A.M. CONFIG.

VOLTSTAB

MAIN FIELD

Field

Induced

Frequency selector 50 Hz

/ 60 Hz for U/F fonction

and LAM adjustement

Slow fuse

250V 8 A

Voltage

Stability

External potentiometrer

for voltage adjusting

CALL US TODAY

1-888-POWER-58

REQUEST A QUOTE

[email protected]

SHOP ONLINE

www.genpowerusa.com

CALL US TODAY

1-888-POWER-58

REQUEST A QUOTE

[email protected]

SHOP ONLINE

www.genpowerusa.com

Installation and maintenance

R251

A.V.R.

4092 en - 11.2006 / a

LEROY-SOMER

2 - R251 A.V.R.

2.1 - Characteristics

- Voltage regulation: around ± 0,5 %.

- Supply range/voltage detection 85 to 139 V

(50/60Hz).

- Rapid response time (500 ms) for a

transient voltage variation amplitude of

± 20 %.

- Voltage setting P1.

- Stability setting P2.

- Supply protected with an 8 A fuse, slow

action (supports 10 A for 10 s).

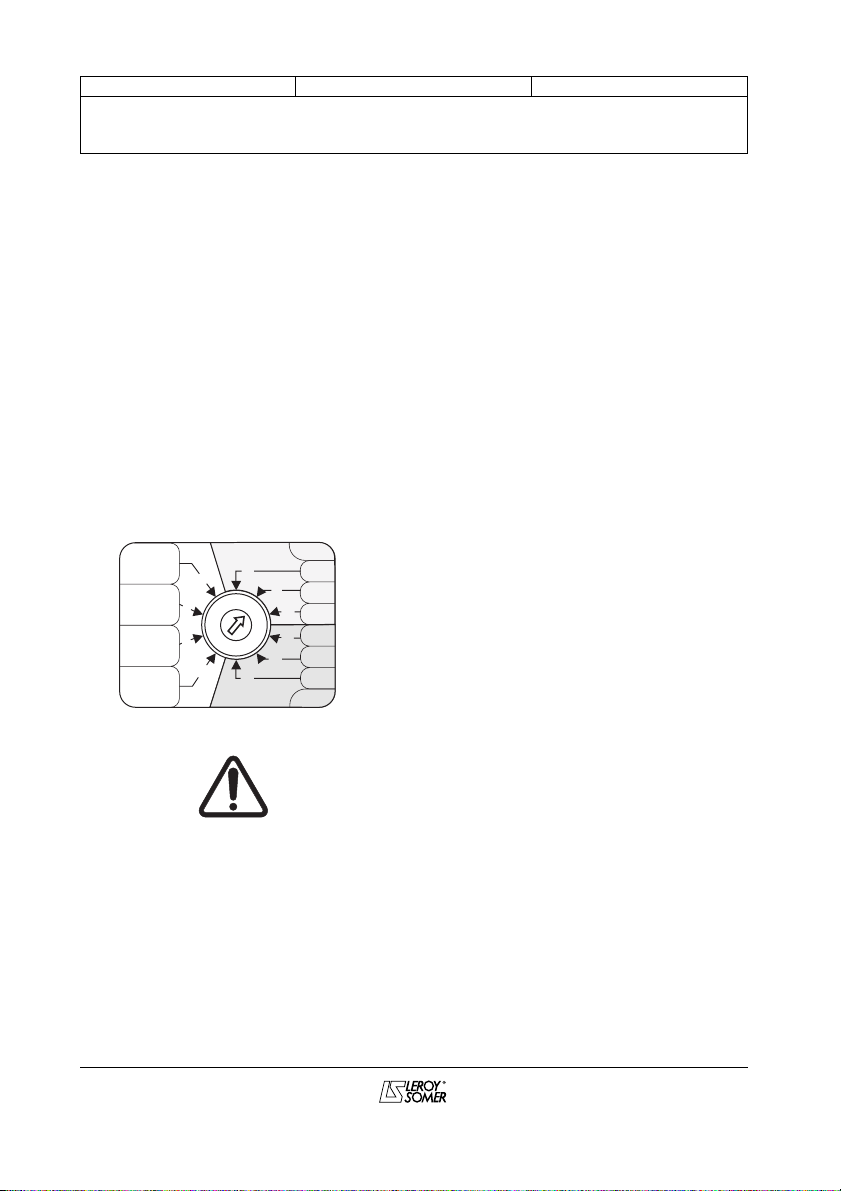

2.2 - U/F Fonction and LAM

The threshold position (50 Hz - 60 Hz) to

action the U/F fonction as well as the LAM

setting type is selected using the

potentionmeter.

WARNING: The jumper settings must

correspond to the rated operating

frequency (see the nameplate on the

alternator).

Risk of destruction for the alternator.

The threshhold position and LAM fonction

settings are done with the jumper.

Operating at 50 Hz: (U/F gradient)

0: threshold at 48 Hz without LAM for

impacts between 30 and 40% of the rated

load.

1: threshold at 48 Hz with LAM 13% for

impacts between 40 and 70% of the rated

load.

2: threshold at 48 Hz with LAM 25% for

impacts > 70% of the rated load.

Operating at 60 Hz: (U/F gradient)

3: threshold at 58 Hz without LAM for

impacts between 30 and 40% of the rated

load.

4: threshold at 58Hz with LAM 13% for

impacts 40 and 70% of the rated load.

5: threshold at 58Hz with LAM 25% for

impacts > 70% of the rated load.

Specific operating

6: threshold at 57Hz without LAM for speed

variations at a steady state > 2 Hz

7: threshold at 65Hz without LAM for

variable speed and tractelec / gearlec (U/F

gradient).

8: special: the factory setting 48Hz 2U/F

gradient ; a special programme is possible

on request. This programme must be

specified before ordering, during the

project study.

9: threshold at 47.5 Hz without LAM for

speed variations at a steady state > 2 Hz

2.3 - R251 A.V.R. option

Wireless potentiometer for voltage setting,

1000 Ω/ 0,5 W min: setting range ± 5 %.

- Remove the ST4 jumper.

60Hz

65Hz

57Hz

47.5Hz

50Hz

KNEE

SPECIAL

LAM

OFF

13%

25%

LAM

KNEE

LAM OFF
