LevelOne Infinity IEC-1200 Bedienungsanleitung

IEC-1200

10/100 Industrial Media Converter w/ 15.4W PoE PSE

SC MM 2KM -10 to 60C

Quick Installation Guide

v1.00‐1209

IEC-1200 Page 1

Overview

LevelOne IEC-1200 is an industrial Fast Ethernet media converter

with IP30 ingress protection case. This converter is designed to be

mounted on an industrial standard DIN-rail, plus the clearly visible

status LEDs provide simple monitoring of port link activity.

Power over Ethernet

This converter is Power Sourcing Equipment (PSE), and it is fully

complied with IEEE 802.3af PoE standard at maximum 15.4W power

budget per port. It helps to save infrastructure wiring costs

dramatically by eliminating electric wiring and less UPS needed.

Cost Effective

This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)

temperature that offers optimal suitability for industrial

applications at low cost while maintaining all components built to

withstand harsh environment applications without compromise

reliability and stability.

Plug & Play

This Industrial Media Converter is designed for the demanding

industrial environments at businesses in need of instant

connectivity with no setup or configure required, truly plug and

play.

IEC-1200 Page 2

Features

Provides 1-port 10/100Base-TX plus 1-port 100Base-FX

100Base-FX Multimode fibre for the link up to 2 kilometres

IEEE802.3af PoE PSE with 15.4W power budget

10/100Mbps Full/Half duplex, Auto-negotiation, Auto-MDI/MDIX

Complies with IEC61000-6-2 EMC Generic standard immunity for

industrial environment

228K bits buffer memory

-10C to 60C (-14F to 140F) operating temperature

Supports DIN-rail mounting installation

Package Contents

IEC-1200

Quick Installation Guide

IEC-1200 Page 3

LED Status

LED Status Description

Power 1, 2

Steady Power On

Off Power Off

PoE

Steady Power Device (PD) is connected

Off Power Device (PD) is disconnected

Link/ACT

Steady Network connection is established

Flashing Transmitting or Receiving data

Off No connection occurred

IEC-1200 Page 4

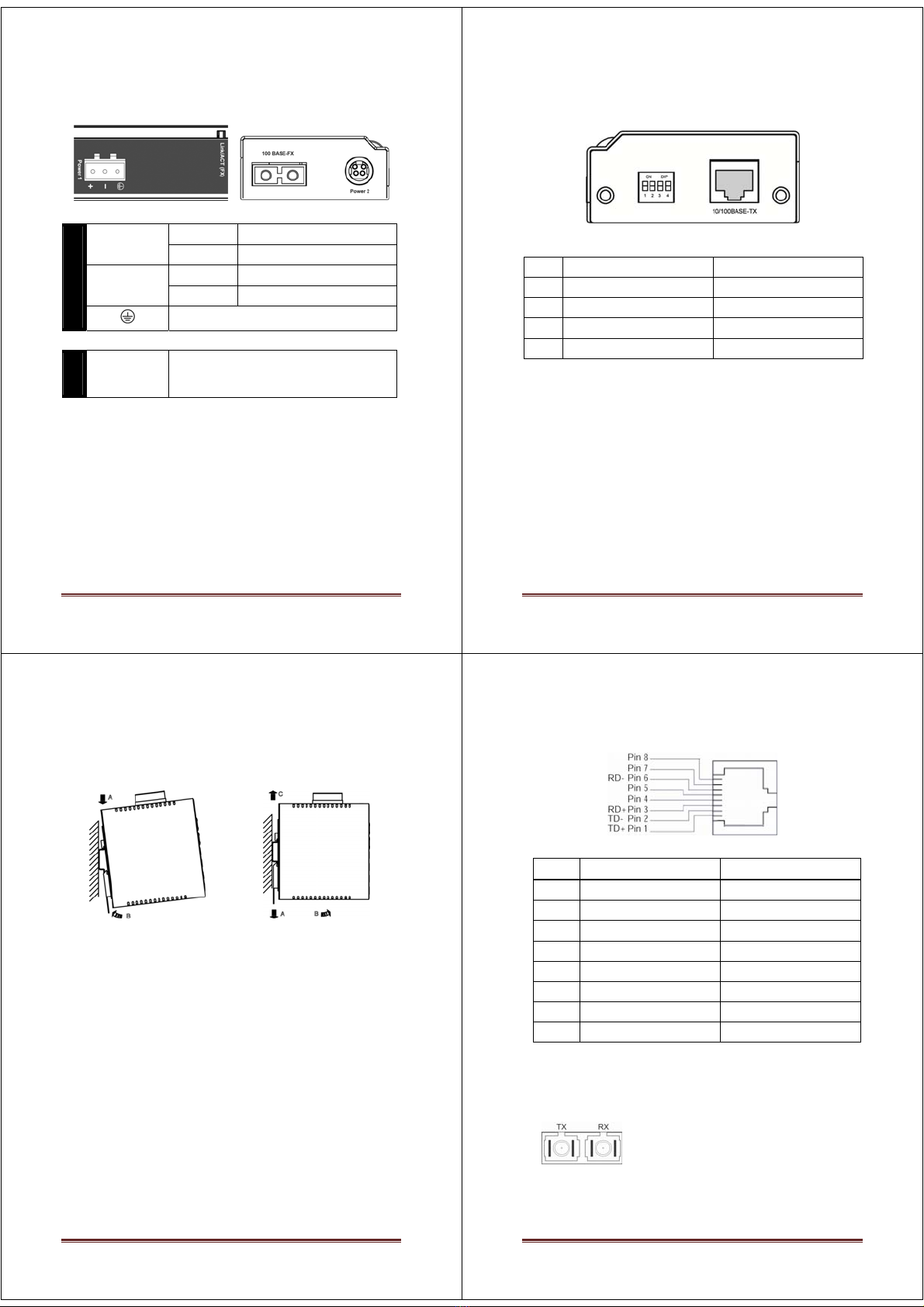

Power Input

Terminal Block

Power 1

(48VDC)

+ 48VDC

– Power Ground

Power 1

(-48VDC)

+ RTN

– 48VDC

Earth Ground

DC Jack

Power 2 48VDC

Note

Both Terminal and DC Jack power inputs can be used to power up

this Industrial PoE Media Converter. Redundant power supplies

function is supported.

IEC-1200 Page 5

DIP Switch

DIP On Off

1 Enable Force mode for TX port Enable Auto mode for TX port

2 Force to 10Mbps on TX port Auto 10/100Mbps on TX port

3 Half Duplex on TX port Full Duplex on TX port

4 LFPT is enabled LFPT is disabled

Note:

LFPT: Link Forward Pass Through

Disconnect the power before change the DIP switch settings

IEC-1200 Page 6

DIN Rail Mount

Assembly: Place the switch on the DIN rail from above using the

slot. Push the front of the switch toward the mounting surface

until it audibly snaps into place

Start-up: Connect the supply voltage to start up the switch via

the terminal block (or DC JACK)

Dismantling: Pull out the lower edge and then remove the switch

from the DIN rail.

IEC-1200 Page 7

10/100Base-TX Connector

Pin Standard Port Uplink Port

1 Output Transmit Data + Input Receive Data +

2 Output Transmit Data - Input Receive Data -

3 Input Receive Data + Output Transmit Data +

4 NC NC

5 NC NC

6 Input Receive Data - Output Transmit Data -

7 NC NC

8 NC NC

100Base-FX Connection

he Tx (transmit) port of device I is

connected to the Rx (receive) port

of device II, and the Rx (receive)

port of device I to the Tx (transmit)

port of device II.
