Lexmark X544 Betriebsanleitung

X54x Series

Maintenance Guide

August 2009 www.lexmark.com

Contents

Maintaining the printer................................................................................3

Storing supplies.........................................................................................................................................3

Checking the status of supplies.................................................................................................................3

Checking the status of supplies from the printer control panel.........................................................................3

Checking the status of supplies from a network computer................................................................................3

Ordering supplies......................................................................................................................................4

Ordering toner cartridges...................................................................................................................................4

Ordering imaging kits..........................................................................................................................................5

Ordering a waste toner bottle............................................................................................................................5

Replacing supplies.....................................................................................................................................6

Replacing the waste toner bottle........................................................................................................................6

Replacing a black imaging kit..............................................................................................................................9

Replacing a black and color imaging kit............................................................................................................15

Replacing a toner cartridge...............................................................................................................................21

Replacing a developer unit................................................................................................................................22

Cleaning the exterior of the printer........................................................................................................28

Cleaning the scanner glass......................................................................................................................29

Moving the printer..................................................................................................................................29

Before moving the printer.................................................................................................................................29

Moving the printer to another location............................................................................................................30

Shipping the printer..........................................................................................................................................30

Contents

Maintaining the printer

Periodically, certain tasks are required to maintain optimum print quality.

Storing supplies

Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you

are ready to use them.

Do not expose supplies to:

•Direct sunlight

•Temperatures above 35°C (95°F)

•High humidity above 80%

•Salty air

•Corrosive gases

•Heavy dust

Checking the status of supplies

A message appears on the display when a replacement supply item is needed or when maintenance is required.

Checking the status of supplies from the printer control panel

You can check the status of printer supplies by printing a menu settings page:

1Make sure the printer is on and Ready appears.

2From the printer control panel, press .

3Press the arrow buttons until Reports appears, and then press .

4Press the arrow buttons until Menu Settings Page appears, and then press .

Checking the status of supplies from a network computer

Note: The computer must be connected to the same network as the printer.

1Type the printer IP address into the address field of your Web browser.

Note: If you do not know the IP address of the printer, print a network setup page and locate the IP address in the

TCP/IP section.

2Click Device Status. The Device Status page appears, displaying a summary of supply levels.

Maintaining the printer

Ordering supplies

To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies

dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the place

where you purchased the printer.

Note: All life estimates for printer supplies assume printing on letter- or A4-size plain paper.

Ordering toner cartridges

When 88 Cyan Cartridge Low, 88 Magenta Cartridge Low, 88 Yellow Cartridge Low, or 88

Black Cartridge low appears, order a new cartridge.

When 88 Replace Cyan Cartridge, 88 Replace Magenta Cartridge, 88 Replace Yellow

Cartridge, or 88 Replace Black Cartridge appears, you must replace the specified toner cartridge.

Part name Part number C540, C543, and X543 series C544, X544, and X546 series

Black Return Program Toner

Cartridge

C540A1KG

Cyan Return Program Toner

Cartridge

C540A1CG

Magenta Return Program

Toner Cartridge

C540A1MG

Yellow Return Program Toner

Cartridge

C540A1YG

Black High Yield Return

Program Toner Cartridge

C540H1KG

Cyan High Yield Return

Program Toner Cartridge

C540H1CG

Magenta High Yield Return

Program Toner Cartridge

C540H1MG

Yellow High Yield Return

Program Toner Cartridge

C540H1YG

Black High Yield Toner

Cartridge

C540H2KG

Cyan High Yield Toner

Cartridge

C540H2CG

Magenta High Yield Toner

Cartridge

C540H2MG

Yellow High Yield Toner

Cartridge

C540H2YG

Black Extra High Yield Return

Program Toner Cartridge

C544X1KG Not supported

Cyan Extra High Yield Return

Program Toner Cartridge

C544X1CG Not supported

Maintaining the printer

Part name Part number C540, C543, and X543 series C544, X544, and X546 series

Magenta Extra High Yield

Return Program Toner

Cartridge

C544X1MG Not supported

Yellow Extra High Yield

Return Program Toner

Cartridge

C544X1YG Not supported

Black Extra High Yield Toner

Cartridge

C544X2KG Not supported

Cyan Extra High Yield Toner

Cartridge

C544X2CG Not supported

Magenta Extra High Yield

Toner Cartridge

C544X2MG Not supported

Yellow Extra High Yield Toner

Cartridge

C544X2YG Not supported

Black Extra High Yield Return

Program Toner Cartridge

C546U1KG Not supported

Black Extra High Yield Toner

Cartridge

C546U2KG Not supported

Ordering imaging kits

When Replace black and color imaging kit or Replace black imaging kit appears, order a

replacement imaging kit.

Part name Part number

Black and Color Imaging Kit C540X71G

Black Imaging Kit C540X74G

Ordering a waste toner bottle

When 82 Replace Waste Toner appears, order a replacement waste toner bottle. The waste toner bottle

must be replaced when 82 Replace Waste Toner appears.

Part name Part number

Waste toner bottle C540X75G

Maintaining the printer

Replacing supplies

Replacing the waste toner bottle

Replace the waste toner bottle when 82 Replace waste toner appears. The printer will not continue printing

until the waste toner bottle is replaced.

1Unpack the replacement waste toner bottle.

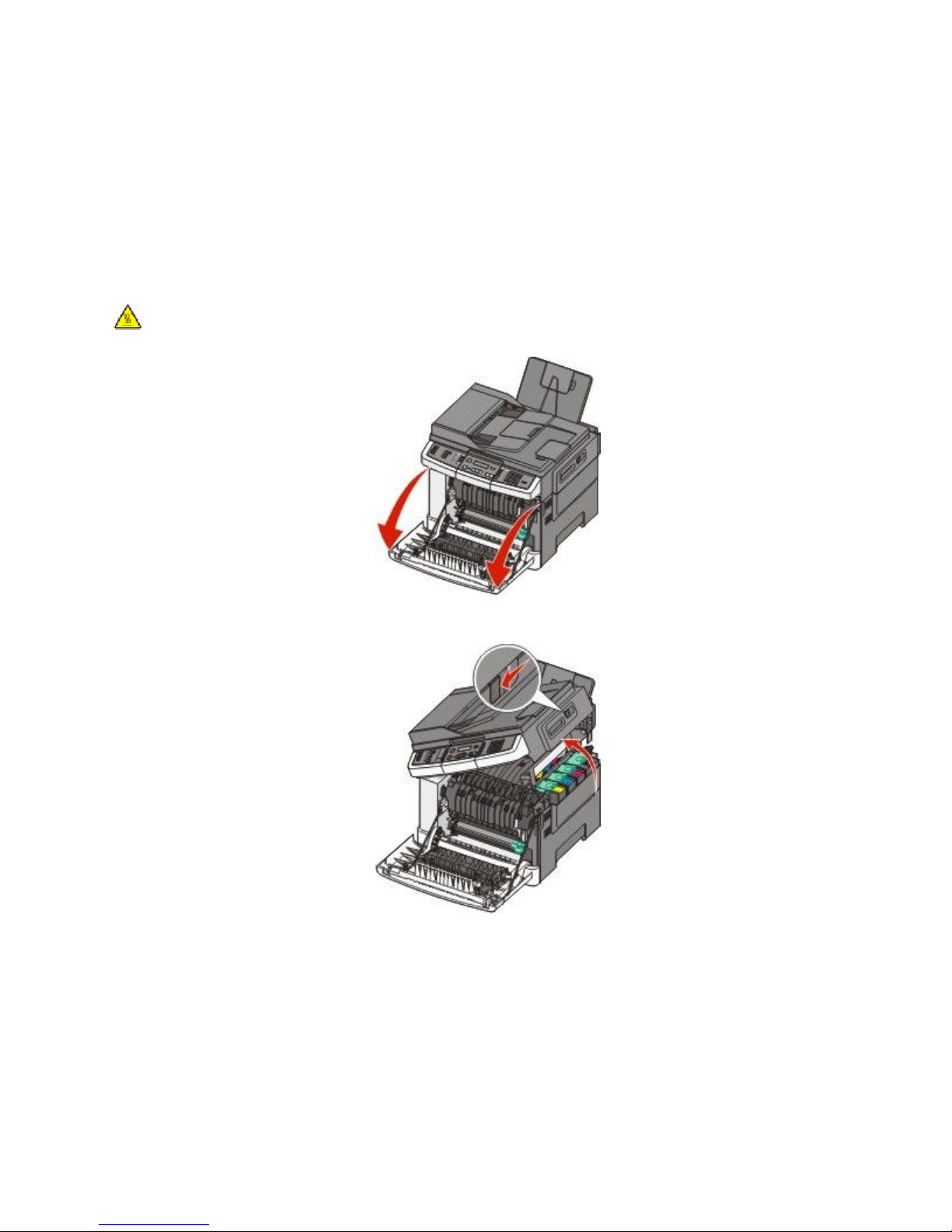

2Grasp the front door at the side handholds, and then pull it toward you.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

3Open the top door.

Maintaining the printer

4Remove the right side cover.

5Press the green levers on each side of the waste toner bottle, and then remove it.

6Place the waste toner bottle in the enclosed packaging.

7Insert the new waste toner bottle.

Maintaining the printer

8Replace the right side cover.

9Close the top door.

10 Close the front door.

Maintaining the printer

Replacing a black imaging kit

Replace the black imaging kit when Replace Black Imaging Kit appears.

1Grasp the front door at the side handholds, and then pull it toward you.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

2Open the top door.

Maintaining the printer

3Remove the toner cartridges by lifting the handles, and then gently pulling away from the imaging kit.

4Remove the right side cover.

5Press the green levers on each side of the waste toner bottle, and then remove it.

Maintaining the printer
