Doc No.: Rev. 001 Page 1 of 17

Disassembly of Waste Electrical and Electronic Equipment (WEEE) Manual

EU Waste Electronic and Electrical Equipment Directive require producers to provide information of the different electronic

and electrical materials and components found in their products at its end-of-life, and disassembly references to treatment

and recycling facilities.

The disassembly information for this product has been prepared for use by a recognized treatment or recycling facility and

is not intended to be used by others.

1. Product information

2. Materials and components list for selective treatment

3. Disassembly tools

4. Disassembly references

The following information is intended only for the use of treatment and recycling facilities.

All disassembly instructions should be performed with the power switch in the OFF position. Disconnect the power cord

from the wall outlet and from the printer before continuing. If there are any other devices attached to the printer, then turn

them off as well, and unplug any cables going into the printer.

1. Product information

Model name(s)—Indicate all model name(s) within the product family

Model name

Lexmark MS810 series –

Lexmark MS810n, Lexmark MS810dn, Lexmark MS810dtn, Lexmark MS810de (Lexmark M5155, Lexmark

M5163), Lexmark MS811n, Lexmark MS811dn, Lexmark MS811dtn, Lexmark MS812dn, Lexmark MS812dtn,

Lexmark MS812de (Lexmark M5170)

* Add rows as needed

2. Materials and components list for selective treatment

Items

Quantity

Notes

Polychlorinated biphenyls (PCB) containing capacitors

N/A

Mercury containing components, such as switches or

backlighting lamps

N/A

Batteries

Lithium Manganese Dioxide coin cell

located on the system controller card

Printed circuit boards greater than 10 cm2

Plus one (1) for MS810dtn, MS811dtn,

MS812dtn models (locations illustrated

in 4.2)

Toner cartridges, liquid and pasty, as well as colour

toner

Located inside front cover

Doc No.: Rev. 001 Page 2 of 17

Plastic containing brominated flame retardants

3 Fans;

Sensors;

8 Fuser

parts

Fan(s) and Sensors (locations

illustrated in 4.2)

Plastic parts located in the fuser

assembly marked with recycle code

that includes "FR17"or “FR16”

Asbestos waste and components which contain

asbestos

N/A

Cathode ray tubes

N/A

Chlorofluorocarbons (CFC), Hydrochlorofluorocarbons

(HCFC) or Hydrofluorocarbons (HFC), Hydrocarbons

(HC)

N/A

Gas discharge lamps

N/A

Liquid Crystal Display (LCD) greater than 100 cm2and

those back-lighted with Gas discharge lamps

MS812de LCD located inside OP

panel

External electrical cables

Power cord located on the back lower

left quadrant

Components containing refractory fibres

N/A

Components containing radioactive substances

N/A

Electrolyte capacitors containing substances of

concern1

Capacitor(s) located on Power Supply

(locations illustrated in 4.2)

1With (height > 25 mm, diameter > 25 mm or proportionately similar volume)

3. Disassembly tools

4. Disassembly references

4.1. Removal procedure(s)

MS710, MS810 WEEE removal

WEEE materials and components removal procedures are available upon request.

Contact: recycling@lexmark.com

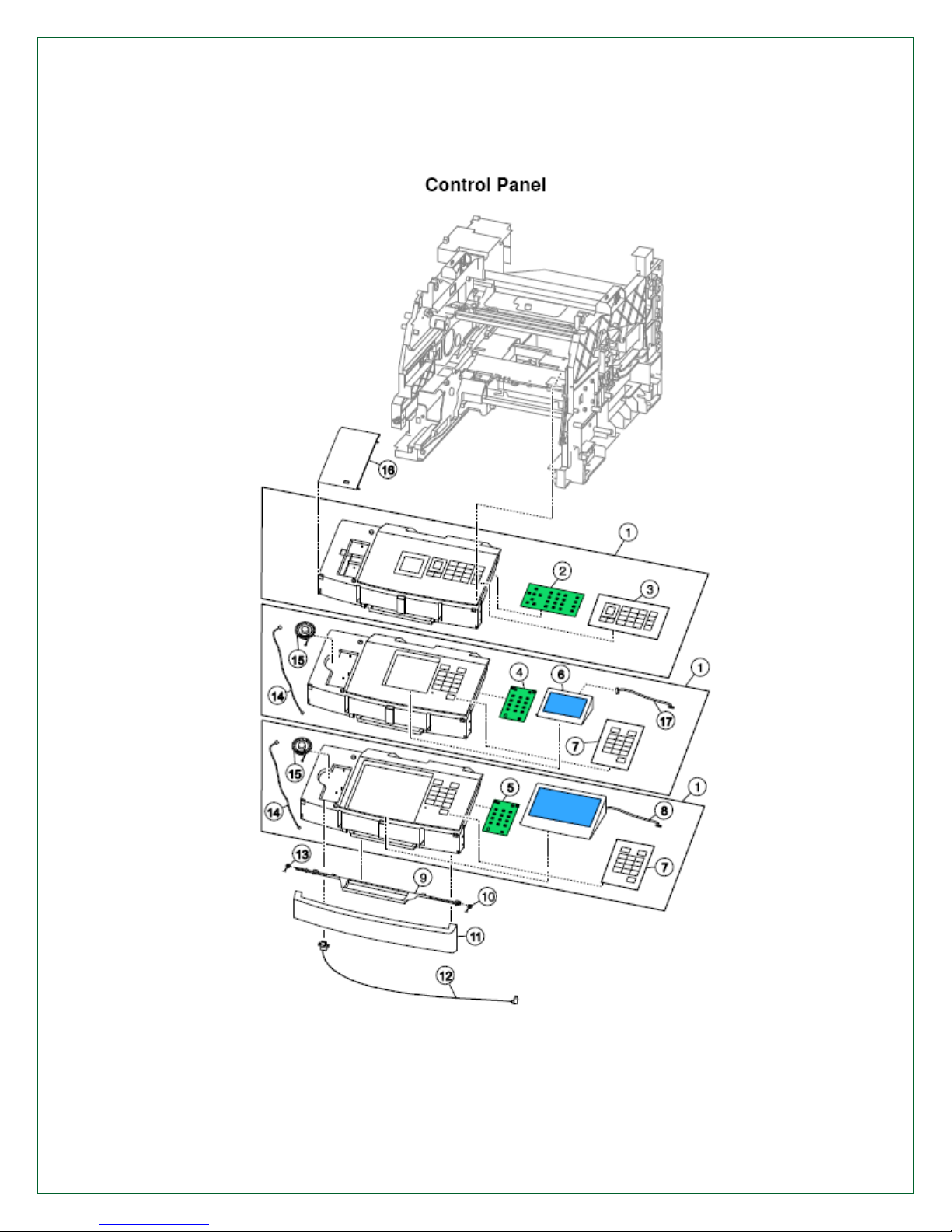

4.2. Graphical illustration of material’s and component’s location

See next page

Item

#2 Phillips screwdriver, magnetic

Wire cutter

E-clip puller or small flat-head screwdriver

Standard slotted head screwdriver

Doc No.: Rev. 001 Page 3 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 4 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 5 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 6 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 7 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 8 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 9 of 17

MS710, MS810 Series

Location

Doc No.: Rev. 001 Page 10 of

MS710, MS810 Series

Location
