Lexmark W820 Kurzanleitung

Lexmark W820

4025-XXX

Extracted From Service Manual

Edition: July 2002

The following paragraph does not apply to any country where such provisions are inconsistent with local law:

LEXMARK INTERNATIONAL, INC. PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the

programs described may be made at any time.

Comments may be addressed to Lexmark International, Inc., Department D22A/032-2, 740 West New Circle Road,

Lexington, Kentucky 40550, U.S.A or e-mail at ServiceInfoAndTraining@Lexmark.com. Lexmark may use or distribute any

of the information you supply in any way it believes appropriate without incurring any obligation to you. You can purchase

additional copies of publications related to this product by calling 1-800-553-9727. In other countries, contact your point of

purchase.

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States

and/or other countries.

PostScript is a registered trademark of Adobe Systems Incorporated.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the

Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc., Lexington, KY

U.S.A. P/N 12G3663

7-1 Parts Catalog

4025-XXX

7. Parts Catalog

How to Use This Parts Catalogg

•The callout numbers shown in each parts illustration correspond to the parts list

numbers for that illustration.

•The capital letters “C,”“E,”"KL," and “S”shown in an illustration stand for C-ring,

E-ring, Clamp, and Screw, respectively.

•NS: (Not Shown) in the Asm-Index column indicates that the part is procurable but is

not pictured in the illustration.

Printer serial number labels are on the rear of the printer and inside the front cover.

7-2 Service Manual

4025-XXX

Assembly 1: Top Cover Assembly

7-3 Parts Catalog

4025-XXX

Assembly 1: Top Cover Assembly

Asm-

Index Part

Number Units Description

1-1 12G4000 1COVER PRINTER, TOP

-2 12G4001 1STOP, PAPER

-3 12G4002 1COVER, CONNECTOR

-4 12G4003 1OP PANEL ASSEMBLY

-5 12G4004 1COVER, FUSER

-6 12G4005 1FAN, FUSER

-7 12G4186 1DAMPER ASM, PAPER

7-4 Service Manual

4025-XXX

Assembly 2: Front Cover

7-5 Parts Catalog

4025-XXX

Assembly 2: Front Cover

Asm-

Index Part

Number Units Description

2-1 12G4009 1DUCT, AIR

-2 12G4012 1KIT,TRAY 2 MOUNTING

-3 12G4008 1COVER, PRINTER INNER FRONT

-4 12G4006 1COVER PRINTER, FRONT

-5 12G4007 1HINGE, COVER

-6 12G4011 1STRAP, COVER SUPPORT

-7 12G4010 1SWITCH, INTERLOCK ASSEMBLY

7-6 Service Manual

4025-XXX

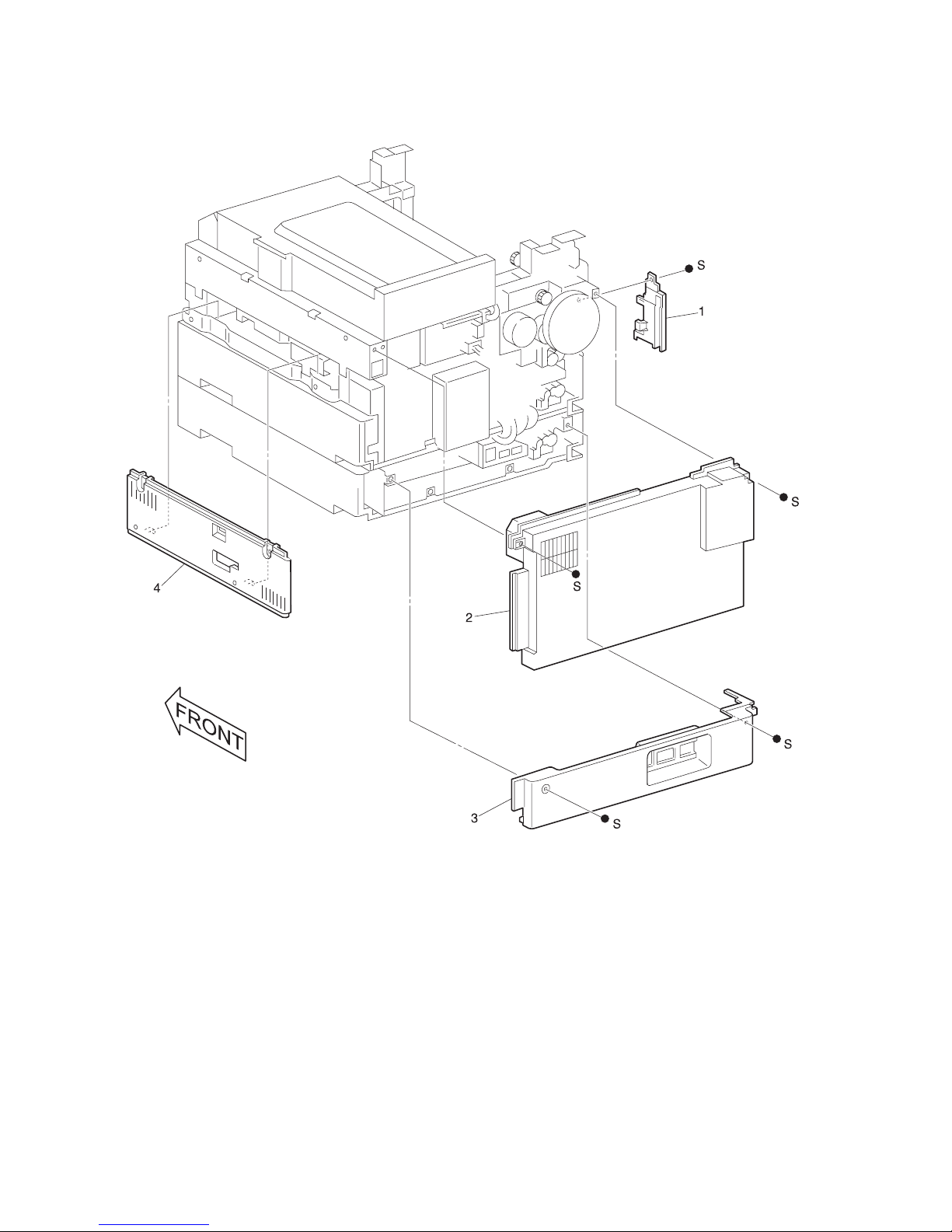

Assembly 3: Rear, Left, and Right Covers

7-7 Parts Catalog

4025-XXX

Assembly 3: Rear, Left, and Right Covers

Asm-

Index Part

Number Units Description

3-1 12G4013 1COVER, PRINTER INNER LH

-2 12G4015 1COVER ASM, PRINTER REAR UPPER

-3 12G4016 1COVER PRINTER, REAR LOWER

-4 12G4014 1COVER, PRINTER RH

7-8 Service Manual

4025-XXX

Assembly 4: Tray Unit - Paper Stack
