OWNER’S MANUAL
LED TV
22MA33D
26MA33D
24MN33D
29MN33D
Please read this manual carefully before operating the your TV and
retain it for future reference.
ENGLISH
LG LED TV applies LCD screen with LED backlights.
2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
8 Parts and buttons
10 Lifting and moving the TV
11 Setting up the TV
11 - Attaching the Stand
15 - Mounting on a table
16 - Tidying cables
17 - Detaching the Stand
19 - Mounting on a wall
21 WATCHING TV
21 Turning the TV on for the first time
23 MAKING CONNECTIONS
23 Connecting an antenna
24 Connecting to a HD receiver, DVD, VCR
player or Gaming device
24 - HDMI connection
25 - HDMI to DVI connection
26 - Component connection
27 - Composite connection
28 Connecting to a USB
29 Connecting to a PC
30 - HDMI connection
31 - HDMI to DVI connection
32 - RGB connection
33 REMOTE CONTROL
35 CUSTOMIZING SETTINGS
35 Accessing main menus
36 USING THE USER GUIDE
36 Accessing User Guide menu.
36 - Using the TV menu
36 - Using the Remote Control
37 MAINTENANCE
37 Cleaning Your TV
37 Screen and frame
37 Cabinet and stand
37 Power cord
38 Preventing “Image burn” or “Burn-in” on
your TV screen
39 TROUBLESHOOTING
39 General
40 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
ENGLISH
4INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A 10 mm
*B 18 mm
A
B
A
B
ENGLISH
6ASSEMBLING AND PREPARING
(See p.33, See p.34)

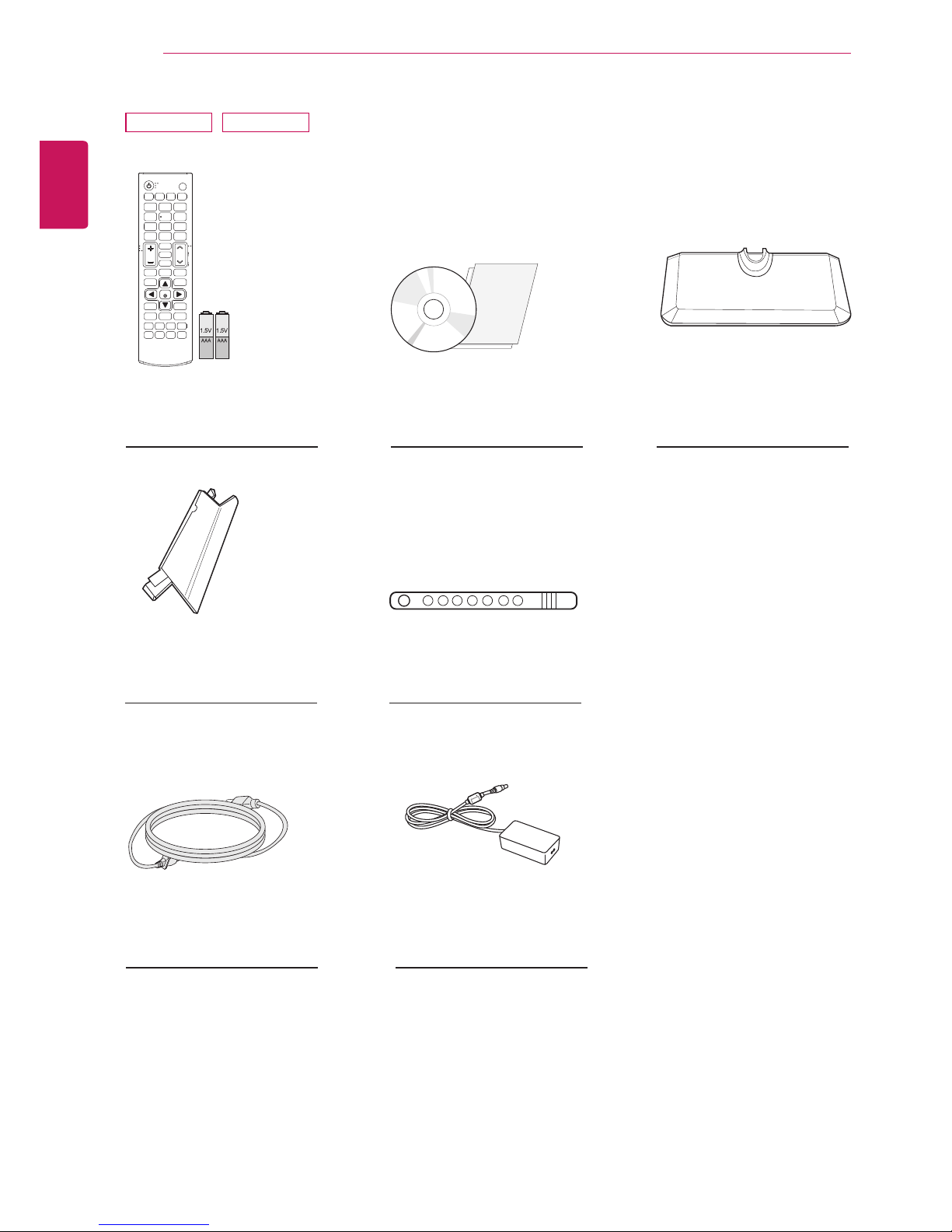

22MA33D 24MN33D
Remote control /
Batteries (AAA)
CD (Owner's Manual) /
Cards
Stand Body
(See p.16)
Cable Tie
Power Cord AC-DC Adapter
Stand Base
(See p.15) (See p.15)
(See p.11, See p.17)
(See p.11, See p.17)
ENGLISH
7
ASSEMBLING AND PREPARING
(See p.33, See p.34)
(See p.16)
26MA33D 29MN33D
Remote control /
Batteries (AAA)
CD (Owner's Manual) /
Cards
Cable Tie
Power Cord AC-DC Adapter
Stand Base
(See p.13, See p.18)
(See p.15) (See p.15)
(See p.13, See p.18)
Screws for Assembly
2 EA
(See p.13, See p.18)
Stand Body
ENGLISH
8ASSEMBLING AND PREPARING

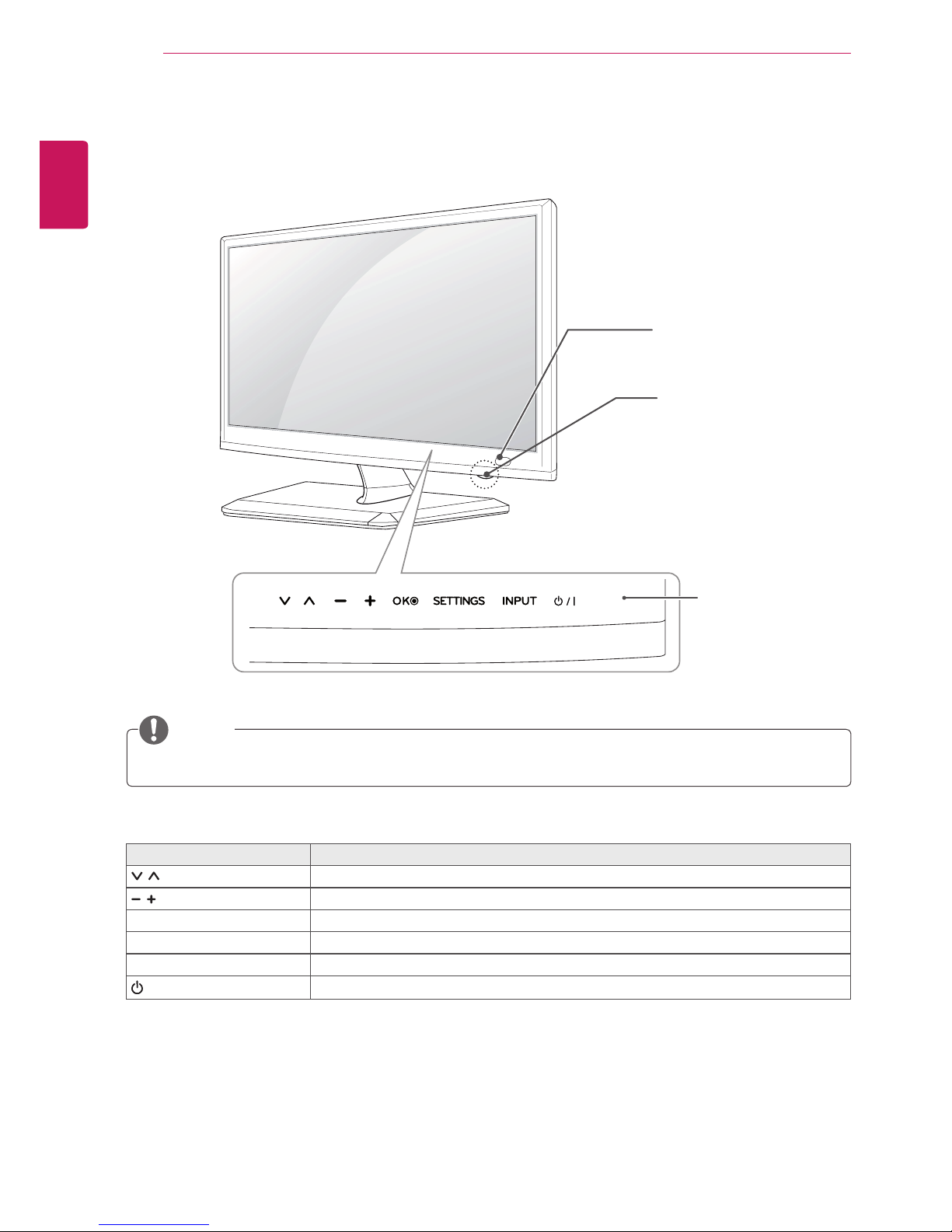

Parts and buttons
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch buttons Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ ITurns the power on or off.
Remote Control Sensor
Standby Light
Lighting On:
When Power is turned off
Lighting Off:
When Power is turned on
Touch Buttons
ENGLISH
9
ASSEMBLING AND PREPARING
Connection panel (See p.23)
or
(Depending on the
model)
ENGLISH
10 ASSEMBLING AND PREPARING
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.
Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
