Colour Television

OWNER’S MANUAL

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this infor-

mation to your dealer when you require service.

Model number :

Serial number :

Contents

Installation 3

Location and function of controls 4

Remote control handset

Battery installation / Front panel

Basic operation 7

On and off / Programme selection

Volume adjustment / Quick view

Mute function

On screen language selection (option)

On screen menus 8

Menu selection

Setting up TV stations 9

Auto programme tuning

Manual programme tuning

Programme edit

Favourite programme

Calling the programme table

Picture adjustment 15

PSM (Picture Status Memory)

CSM (Colour Status Memory)

Picture adjustment / Eye (option)

Turbo picture selection (option)

Sound adjustment (option) 17

SSM (Sound Status Memory) / Sound adjustment

X-WAVE (Wireless Sound) (option)

Turbo sound selection (option)

Sound output selection (option)

Stereo/Dual reception (option)

NICAM reception (option)

Time setting 20

Setting the clock

Setting the On/Off timer

Auto off

Other functions 21

TV and AV modes / Auto AV switching (option)

Child lock / Blue back (option)

Games (option) / Sleep timer

Connection of external equipment 24

Aerial socket

Audio/Video in/out sockets (option)

Euro scart socket (option)

S-video/Audio in sockets (S-AV) (option)

Component in sockets (option)

Headphone socket (option)

Troubleshooting check list 27

Installation

Power

This set operates on an AC mains supply, the voltage is as indicat-

ed on the label on the back cover. Never apply DC power to the set.

In the event of thunderstorms or powercuts, please pull out the aer-

ial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or

moisture.

Do not place anything containing liquid on top of the set, this may

cause a fire or could give an electric shock.

Service

Never remove the back cover of the set as this can expose you to

very high voltage and other hazards. If the set does not operate

properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked +75 Ωon the back

cover. For the best reception an outdoor aerial should be used.

Location

Position your set so that no bright light or sunlight falls directly onto

the screen. Care should be taken not to expose the set to any

unnecessary vibration, moisture, dust or heat. Also ensure that the

set is placed in a position to allow a free flow of air. Do not cover

the ventilation openings on the back cover.

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MENU (or INDEX)

selects a menu.

selects an index page in the teletext mode (only TELETEXT

models). (option)

4. EYE/*(option)

switches the eye function on or off.

5. / (Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

scans programmes automatically.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

accepts your selection or displays the current mode.

6. Q.VIEW

returns to the previously viewed programme.

7. PSM (Picture Status Memory)

recalls your preferred picture setting.

8. FAVOURITE

selects a favorite programme.

9. TURBO PICTURE / SOUND BUTTON (option)

selects Turbo picture and sound.

Location and function of controls

( )

POWER MUTE

123

456

789

MENU/INDEX

TV/AV

EYE/

Q.VIEW

LIST

I / II /

( )

OK VOLVOL

PSM SSM/ SLEEP

PICTURE SOUND

TURBO/

FAVOURITE

Location and function of controls

10. MUTE

switches the sound on or off.

11. TV/AV

selects TV or AV mode.

switches the set on from standby.

12. I/II/*(option)

selects the language during dual language broadcast. (option)

selects the sound output.

13. LIST

displays the programme table.

14. SLEEP

sets the sleep timer.

15. SSM/*(Sound Status Memory) (option)

recalls your preferred sound setting.

16. SURROUND (ºº/*) (option)

selects surround sound.

*: No function

COLOURED BUTTONS : These buttons are used for teletext (only

TELETEXT models) or programme edit.

Battery installation

The remote control handset is powered by two AAA type batteries.

To load the batteries, turn the remote control handset over and

open the battery compartment. Install two batteries as indicated by

the polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

POWER MUTE

1 2 3

4 5 6

7 8 9

MENU/INDEX

TV/AV

EYE/

Q.VIEW

LIST

I / II /

( )

OK VOLVOL

PSM SSM/ SLEEP

PICTURE SOUND

TURBO/

FAVOURITE

Front panel

Shown is a simplified representation of front or side panel.

Here shown may be somewhat different from your set.

1. MAIN POWER (ON/OFF)

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby mode.

dims when the set is switched on.

3. REMOTE CONTROL SENSOR

Note : Only use the supplied remote control handset. (When

you use others, they’ll be not able to function.)

4. MENU

selects a menu.

5. OK

accepts your selection or displays the current mode.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

6. AUDIO(or AUDIO-L/R)/VIDEO IN SOCKETS (AV2) (option)

Connect the audio/video out sockets of external equipment to

these sockets.

7. HEADPHONE SOCKET (option)

Connect the headphone plug to this socket.

8. TURBO SOUND/PICTURE (option)

switches Turbo sound or Turbo picture on or off.

9. EYE (option)

adjusts picture according to the surrounding conditions.

Note : Shown is a simplified representation of front or side panel.

Here shown may be somewhat different from your set.

Location and function of controls

VIDEO

(L/MONO)

AUDIO

(R)

VIDEO

AUDIO

! !

VIDEO

(L/MONO)

AUDIO

(R)

VIDEO

AUDIO

ON/OFF rMENU OK F VOL GE PR DVIDEO (L/MONO)-AUDIO-(R) !P-TURBO-S

1 2 3 4 5 6 7 8 9

TURBO

ON/OFF rMENU OK F VOL GE PR DVIDEO AUDIO !SOUND PICTURE

1 2 3 4 5 6 7 8 9

1 2 3 4 5 9

PR D

ON/OFF rMENU F VOL VOLGOK

PR E

(Side panel)

ON/OFF rMENU OK F VOL GE PR DVIDEO (L/MONO)-AUDIO-(R) !S-TURBO-P

1 2 3 4 5 6 7 89

Basic operation

On and off

1. Press the main power button to switch the set on.

2. If the set is in standby mode, press the POWER, DD/ EE, TV/AV

or NUMBER buttons on the remote control handset to switch it

on fully.

3. Press the POWER button on the remote control handset.

The set reverts to standby mode.

4. Press the main power button again to switch the set off.

Note : If, while the set is switched on, the mains plug is discon-

nected the set will switch to standby or power on when the mains

plug is replaced in the mains power socket.

Programme selection

You can select a programme number with the DD/ EEor NUMBER

buttons.

Volume adjustment

Press the FF/ GGbutton to adjust the volume.

Quick view

Press the Q.VIEW button to view the previous programme you

were watching.

Mute function

Press the MUTE button. The sound is switched off and the display

appears.

You can cancel it by pressing the MUTE, FF/ GG, SSM/*, I/II/*,

TURBO SOUND button.

On screen language selection (option)

The menu can be displayed on the screen in desired language.

First select your language.

1. Press the MENU button and then DD/ EEbutton to select the

Special menu.

2. Press the GGbutton to select Language.

3. Press the GGbutton and then DD/ EEbutton to select your desired

language.

All the on screen displays will appear in the selected language.

Press the OK or FFbutton to select the Special menu.

4. Repeatedly press the MENU button to return to normal TV

viewing.

POWER MUTE

1 2 3

4 5 6

7 8 9

TV/AV

Q.VIEW

I / II /

( )

OK VOLVOL

SSM/

SOUND

TURBO/

The dialogue between you and your set takes place on screen with

an operator menu. The buttons required for the operating steps are

also displayed.

Menu selection

1. Press the MENU button and then DD/ EEbutton to display each menu.

2. Press the GGbutton and then DD/ EEbutton to select a menu item.

3. Press the GGbutton to display the sub menu or the pull-down menu.

4. Change the setting of an item in the sub or pull-down menu with

FF/ GGor DD/ EE.

You can move to the higher level menu with OK or FFbutton and

to move to the lower level menu press the GGbutton.

Note :

a. In mono models, the Sound menu does not appear.

b. In some models,

Turbo Pic.

will not display in the Picture menu.

c. In some models,

Turbo.Snd.

AVL

Balance

Woofer

X-WAVE

Treble

Bass

will not display in the Sound menu.

d. In some models,

Language

Blue back

Game

Booster

will not display in the Special menu.

On screen menus

( )

OK VOLVOL

TV programme

Auto

prog. {

Manual {

Prog.

edit {

Favourite

{

)O}i{OOKOMENU

System {

Storage {

Normal {

Turbo {

DeleteOOOCopy

MoveOOOOOSkip

Station menu

Storage {

System {

Channel {

Fine {

Search {

Name {

System {

Storage {

()O}i{OOKOMENU

(

)O}i{OOKOMENU

(

)O}i{OOKOMENU

(

PSM {

Turbo

Pic. {

CSM {

Contrast {

Brightness {

Colour

{

Sharpness

{

)O}i{OOKOMENU

Picture menu

(

SSM {

Turbo

Snd. {

AVL {

Balance {

Woofer {

Treble {

Bass {

X-WAVE

{

)O}i{OOKOMENU

Sound menu

(

Clock {

Off

time {

Auto

off {

)O}i{OOKOMENU

Time menu

(

Language {

Input {

Blue

back {

Child

lock {

)O}i{OOKOMENU

Special menu

(

OOOO

Setting up TV stations

Up to 100 TV stations can be stored by programme numbers (0 to 99).

Once you have preset the stations, you will be able to use the DD/ EE

or NUMBER buttons to scan the stations you programmed.

Stations can be tuned using automatic or manual modes.

Note : In some models up to 200 TV stations can be stored.

Auto programme tuning

All stations that can be received are stored by this method. It is rec-

ommended that you use auto programme during installation of this set.

1. Press the MENU button to select the Station menu.

2. Press the GGbutton and then DD/ EEbutton to select Auto prog..

3. Press the GGbutton to display the Auto prog. menu.

4. Press the GGbutton. Select a TV system with the DD/ EEbutton

on the System pull-down menu;

BG : (Asia/New Zealand/M.East/Africa/Australia)

I: (Hong Kong/South Africa)

DK : (East Europe/China/Africa/CIS)

M : (USA/Korea/Philippines) (option)

5. Press the OK or FFbutton.

6. Press the DD/ EEbutton to select Storage.

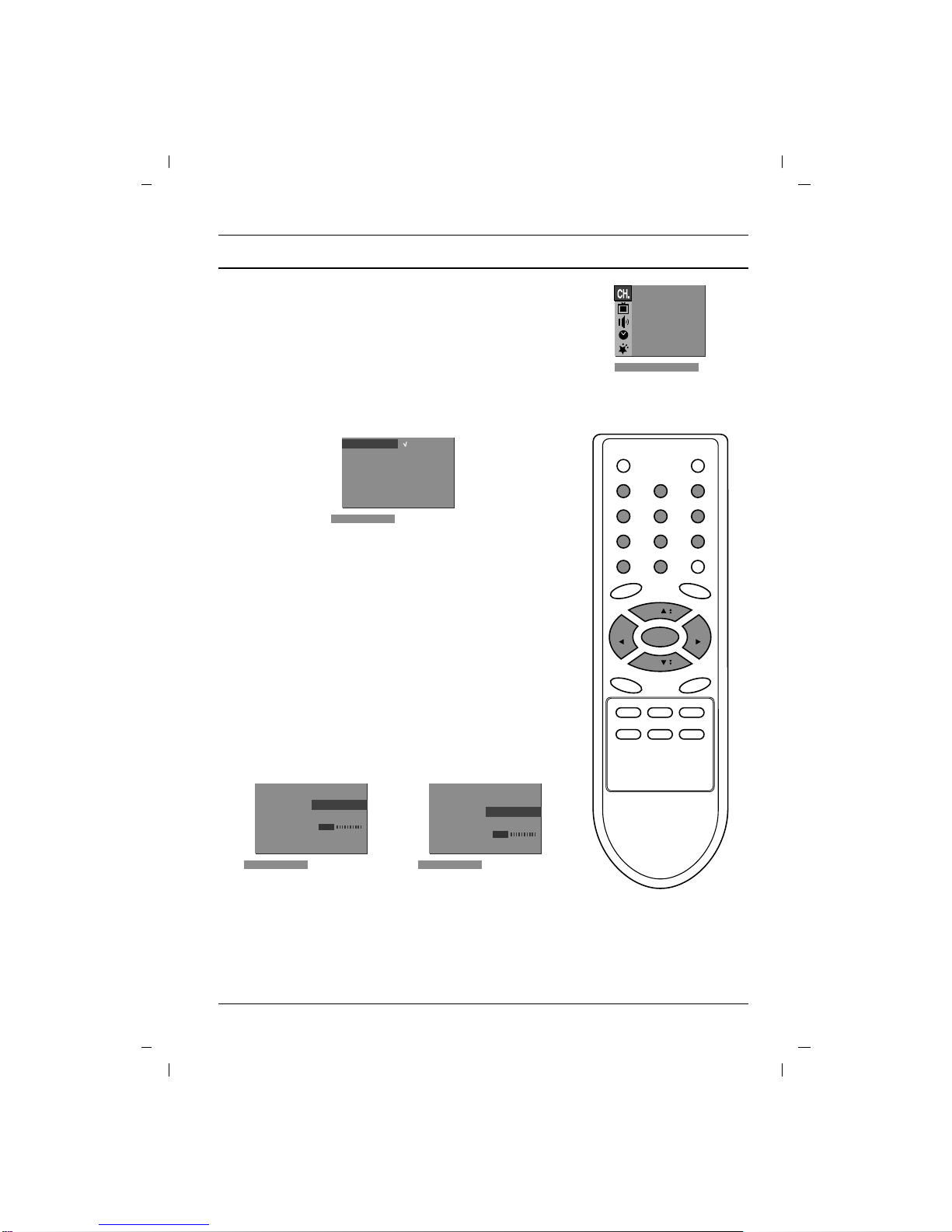

7. Press the GGbutton. Select the beginning programme number

with the FF/ GGbutton or NUMBER buttons on the Storage

from pull-down menu. Any number under 10 is entered with a

numeric ‘0’(or ‘00’) in front of it, i.e. ‘05’(or ‘005’) for 5.

8. Press the OK button.

9. Press the DD/ EEbutton to select Normal or Turbo.

Option: In some models, you can only select Start.

Note :

Turbo

is faster than

Normal

and in some models, these

searches will automatically store all receivable stations.

b. If the programmed station has poor quality sound, select the

system again in the

Manual

menu.

10. Press the GGbutton to begin auto programming.

All receivable stations are stored.

To stop auto programming, press the MENU button.

When auto programming is completed, the Prog. edit menu

appears on the screen. See the ‘Programme edit’section to edit

the stored programme.

11. Repeatedly press the MENU button to return to normal TV

viewing.

1 2 3

4 5 6

7 8 9

( )

OK VOLVOL

(Normal search) (Turbo search)

Auto

prog. {

Manual {

Prog.

edit {

Favourite

{

)O}i{OOKOMENU

(

System {

Storage {

Normal {

Turbo {

System { BG

)O}i{OOKOMENU

(

System {

Storage {

Normal {

Turbo { 00C0010(BG)

OO7OOO36%

System {

Storage {

Normal {

Turbo { 00C0010(BG)

OO7OOO36%

Setting up TV stations

Auto programme scan

To automatically scan the pictures of stored programmes, press

theDD( ) or EE( ) button for about 3 seconds. The picture of stored

programmes appears on the screen one by one.

To stop auto programme scanning, press any button except VCR

buttons.

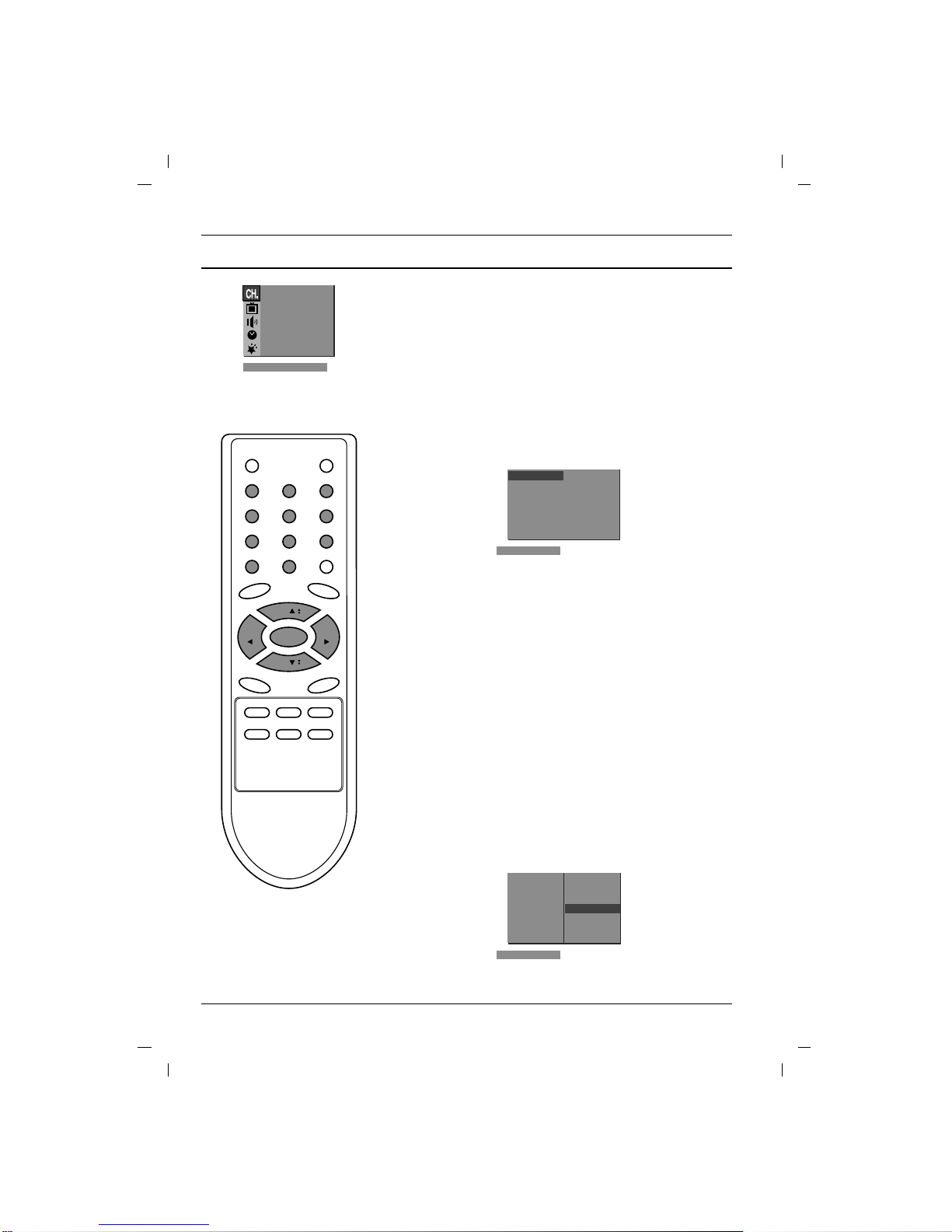

Manual programme tuning

Manual programme lets you manually tune and arrange the sta-

tions in whatever order you desire. Also you can assign a station

name with five characters to each programme number.

1. Press the MENU button to select the Station menu.

2. Press the GGbutton and then DD/ EEbutton to select Manual.

3. Press the GGbutton to display the Manual menu.

4. Press the DD/ EEbutton to select Storage.

5. Press the GGbutton to select the programme number. Select the

desired programme number (0 to 99) with the FF/ GGbutton or

NUMBER buttons on the Storage pull-down menu.Any number

under 10 is entered with a numeric ‘0’

(or

‘00’

)

in front of it, i.e.

‘05’

(or

‘005’

)

for 5.

6. Press the OK button.

7. Press the DD/ EEbutton to select System.

8. Press the GGbutton. Select a TV system with the DD/ EEbutton

on the System pull-down menu;

BG : (Asia/New Zealand/M.East/Africa/Australia)

I: (Hong Kong/South Africa)

DK : (East Europe/China/Africa/CIS)

M : (USA/Korea/Philippines) (option)

9. Press the OK or FFbutton.

10. Press the DD/ EEbutton to select Channel.

11. Press the GGbutton. Press the DD/ EEbutton to select V/UHF

or Cable on the Channel pull-down menu.

If possible, select the channel number directly with the number

buttons. Any number under 10 is entered with a numeric ‘0’

(or

‘00’

)

in front of it, i.e. ‘05’

(or

‘005’

)

for 5.

12. Press the OK or FFbutton.

13. Press the DD/ EEbutton to select Search.

14. Press the GGbutton. Press the FF/ GGbutton to commence

searching on the Search pull-down menu. If a station is found

the search will stop.

15. Press the OK button to store it. The display Stored will appear.

16. To store another station, repeat steps 4 to 15.

17. Repeatedly press the MENU button to return to normal TV

viewing.

1 2 3

4 5 6

7 8 9

( )

OK VOLVOL

Auto

prog. {

Manual {

Prog.

edit {

Favourite

{

)O}i{OOKOMENU

(

Storage {

System {

Channel {

Fine {

Search {

Name {

Storage { 2

)O}i{OOKOMENU

(

Storage {

System {

Channel {

Fine {

Search {

Name {

{{{

Stored

Andere Handbücher für LCD Colour Television

Inhaltsverzeichnis

Andere LG Fernseher Handbücher

LG 42LB5800 Bedienungsanleitung

LG 43LF513A Bedienungsanleitung

LG 21FC2RG Bedienungsanleitung

LG 42PC1D Series Bedienungsanleitung

LG UltraGear 24GN600 Bedienungsanleitung

LG NANO99 Series Bedienungsanleitung

LG 50QNED80 Series Bedienungsanleitung

LG 26LH1DC3 Installationsanleitung

LG 21FJ4AB/RB Bedienungsanleitung

LG RL-29FB51RQ Bedienungsanleitung

LG 19LV2500 Bedienungsanleitung

LG 50UQ9000PSD Bedienungsanleitung

LG 32LC7D Series Bedienungsanleitung

LG 26LN460U Bedienungsanleitung

LG Flatron L3200TF Bedienungsanleitung

LG LCD Colour Television Bedienungsanleitung

LG 29FS4RL Bedienungsanleitung

LG 37LC2D Series Bedienungsanleitung

LG 42LF6529 Bedienungsanleitung

LG RT-42PX20 Bedienungsanleitung

LG 32LM3400 Bedienungsanleitung

LG 32LT560H Bedienungsanleitung

LG 28TK420S Bedienungsanleitung

LG 55SK9000PUA Kurzanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
