STEPPER

USER’S MANUAL

Product may vary slightly from the item pictured

due to model upgrades

Thank you for your purchase! Please take a moment to familiarize yourself with this user’s

manual. Please Keep it with your sales receipt for future reference.

Safety Notice – PLEASE READ THIS FIRST!

Keep children and pets away from the machine at all times. DO NOT leave children

ALONE with the machine.

If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

Place the exercise bike on a large mat over a clear, flat surface. DO NOT leave it near

water or outdoors.

Always wear appropriate sports clothing when exercising. Spots or aerobic shoes are

also required.

Use the machine only for its intended use as described in this manual. DO NOT use

any other accessories not recommended by the manufacturer.

DO NOT place any sharp objects around the exercise bike.

Handicapped or disabled persons should not use the machine without the presence of

a qualified health professional or physician.

Before exercising, always do stretching first.

10.

NEVER use the machine if it is not functioning properly.

11.

Make sure to attach the AC adaptor to the console, as the console can not work

without it..

12.

If you observe any damage or wear on the main plug or on any section of the mains

lead please have these replaced immediately by a qualified electrician – do not

attempt to change or repair these yourself.

Risk of electric shock. Dry location use only.

For your information, please pay attention to the following electronically specification of

the machine:

a. The rated power input is 6W;

b. Power voltage supply is 220-240V;

c. Output is 6V, DC 500mA;

d. Rated frequency is 50-60Hz.

Warning: Before beginning this or any exercise program, consult your physician first.

This is especially important for individuals over the age of 35 or persons with pre-existing

health problems. Read all instructions before using. The manufacturer assumes no

responsibility for personal injury or property damage sustained by or through the use of

this product.

Explode Diagram

Parts list：

No. Description Q’ty. Spec.

1. main frame 1

2. handlebar post 1

3. upper body arm 2

4. handlebar 2

5. middle handlebar 1

6. slide tube 2

7. connecting tube 2

8. pedal leg 2

9. connecting tube 2

10. connecting tube 2

11. crank bushing sleeve 2

12. rear stabilizer 1

13. front stabilizer 1

14. idler bracket 1

15. crank 2

16. alnuminumm alloy tube 1

17. bolt 2 M8×L73×l20

18. screw 2 M8×75，S6

19. arc washer 4 Φ8.5×1.5×Φ25×R33.5

20. ball-head nut 2 M8

21. bolt 2 M8X30,S6

22. spring washer 10 d8

23. arc washer 4 Φ8.5×1.5×Φ19×R30

24. bolt 12 M8×16,S6

25. elastic spacer for bearing 2 d017x1

26. wave washer 1 d17

27. nut 2 M10×1.25

28. bearing 2

29. flywheel shaft 1

30. bolt 4 M6×15

31. nylonnut 4 M6

32. spring washer 4 d6

33. Nylon nut 20 M8

34. Washer 16 d8

35. spring 1 78×Ф18×Ф3

36. tensioner 2 M6×36

37. flywheel 1

38. nut 2 M10×1

39. screw 6 M8×20,S6

Parts list：

No. Description Q’ty. Spec.

40. screw 12 M8×28

41. screw 7 M8×15,S5

42. nylon nut 4 B0.5×20×H8,S19

43. nylon nut 2 M10

44. washer 4 Φ13xФ26x2

45. flat washer 4 Φ38×1×Φ26

46. washer 2 Φ40×2×Φ8.5

47. washer 4 φoutter32×φinner8.4×2

48. washer 20 d8x1.5

49. washer 2 d10x1.5

50. screw 4 M5X50

51. bushing 4 Ф外28.6×24.6×Ф内16.1

52. spacer 12 Φoutter12xФinner8x7

53. bolt 2 M8×40

54. bushing 2 Φ18×3×Φ22

55. wheel 2

56. PU wheel 12 Φ34.8x11

57. side shield 1

58. hub cover 2

59. middle cover 2

60. stabilizer cover 1

61. rubber ring 1

62. pedal 1

63. front stabilizer endcap 2

64. rear stabilizer endcap 2

65. driving belt 1

66. belt wheel 1 Ф240

67. Idler; 1

68. plastic cover 2 sets

69. trimmer line 1 1

70. console 1

71. trimmer line 2 1

72. handle pulse 2

73. bushing 2 Φ16×Φ33×63.5

74. bolt 4 M8×L33×80×□8

75. knob 2

76. sensor 1

77. plastic cover 1

78. handlebar endcap 2

79. foam grip 2 Φ27×350×Φ35

Parts list：

No. Description Q’ty. Spec.

80. foam grip 2 Ф23×520×Ф32

81. rubber cap 2 S18

82. rubber cap 2 S16

83. inductor line 2

84. endcap 2

85. endcap 4

86. endcap 4

87. endcap 4

88. bearing bushing 4 PA

89. pedal leg bushing 8 Φ31xΦ16.2xL23

90. bushing 4 Φ31xΦ16.2xL23

91. endcap 2 65×54×34

92. endcap 2 65×40×24

93. screw 2 ST3×10

94. motor 1

95. screw 4 M4×10

96. screw 7 ST4.2×18

97. handlebar cover 2 sets

98. upper handlebar post cover 1 set

99. water bottle holder 1

100. water bottle 1

101. lower handlebar post cover 1 set

102. washer 4 d4

103. srcew 4 M4×12

104. end cap 2

105. end cap 1

Assembly:

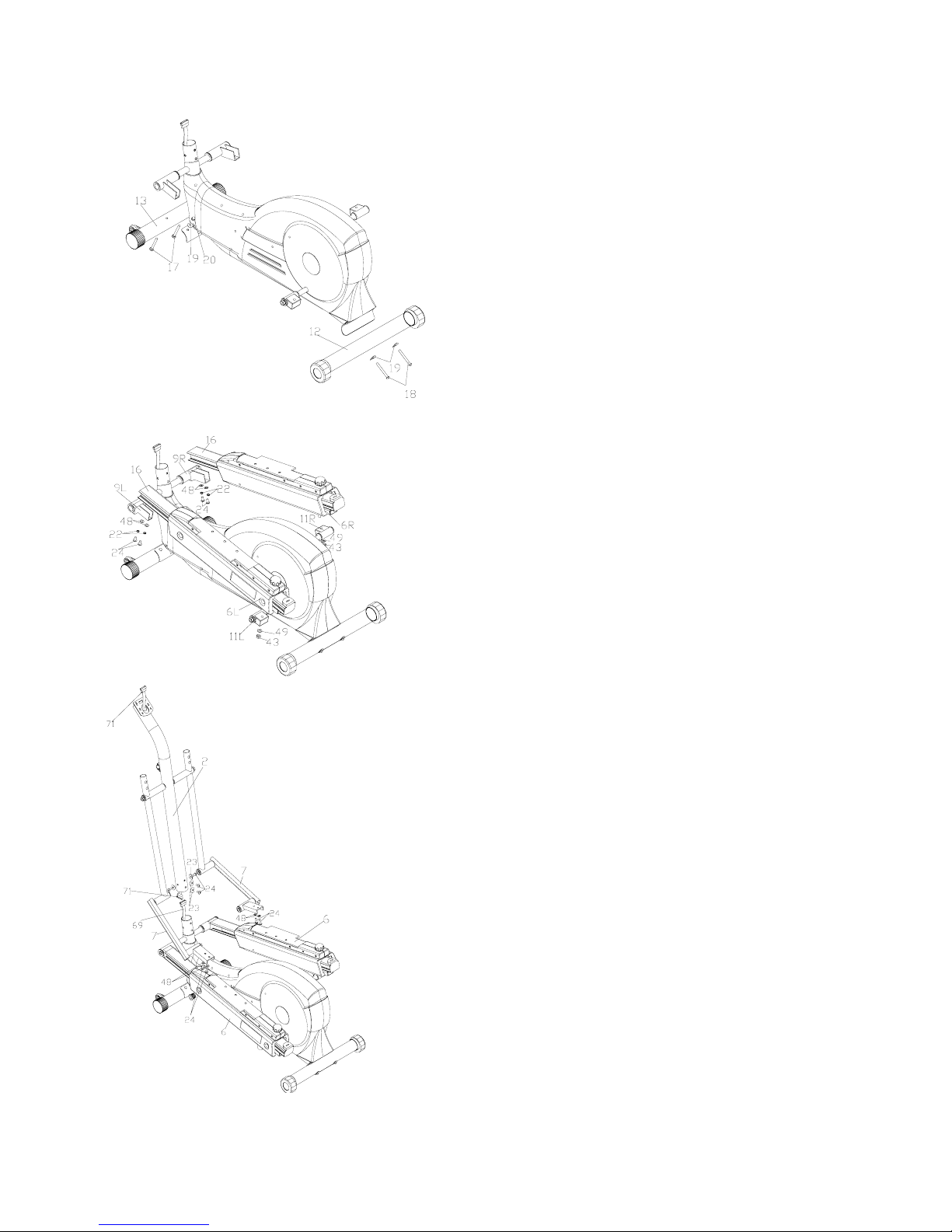

Step 1: Attach the front stabilizer

(13) to main frame (1) by the bolts

(17), arc washers (19) and ball-head

nuts (20). Then attach the rear

stabilizer (12) to main frame (1) by

screws (18) and acr washers (19).

Step 2: Remove the washers (48),

spring washers (22) and bolts (24)

on the connecting tube (9L/9R) and

the washers (49), nylon nuts (43) on

the slide tube (6L/6R). Insert

alnuminumm alloy tube (16) into

sliding stem joint (9L/9R) and

alnuminumm alloy tube (16) to

certain angle so that the bolt on the

slide tube (6L/6R) can be connected

to the crank bushing sleeve

(11L/11R) and smoothly insert into

the hole on it. Use the washers (49),

nylon nuts (43) to attach the slide

tube (6L/6R) and the crank bushing

sleeve (11L/11R).

Connect the alnuminumm alloy tube

(16) to connecting tube (9L/9R) by

washers (48), spring washers (22)

and bolts (24).

Step 3: Insert the trimmer line 1 (69)

through handlebar post (2), and

connect Trimmer line 2 (71) then

insert handlebar post (2) into main

frame (1), assemble the handle bar

post (2) and main frame (1) by bolts

(24) and arc washer (23).

Rotate the connecting tube (7) and

attach the connecting tube (7) onto

slide tube (6) by bolts (24) and the

washers (48).

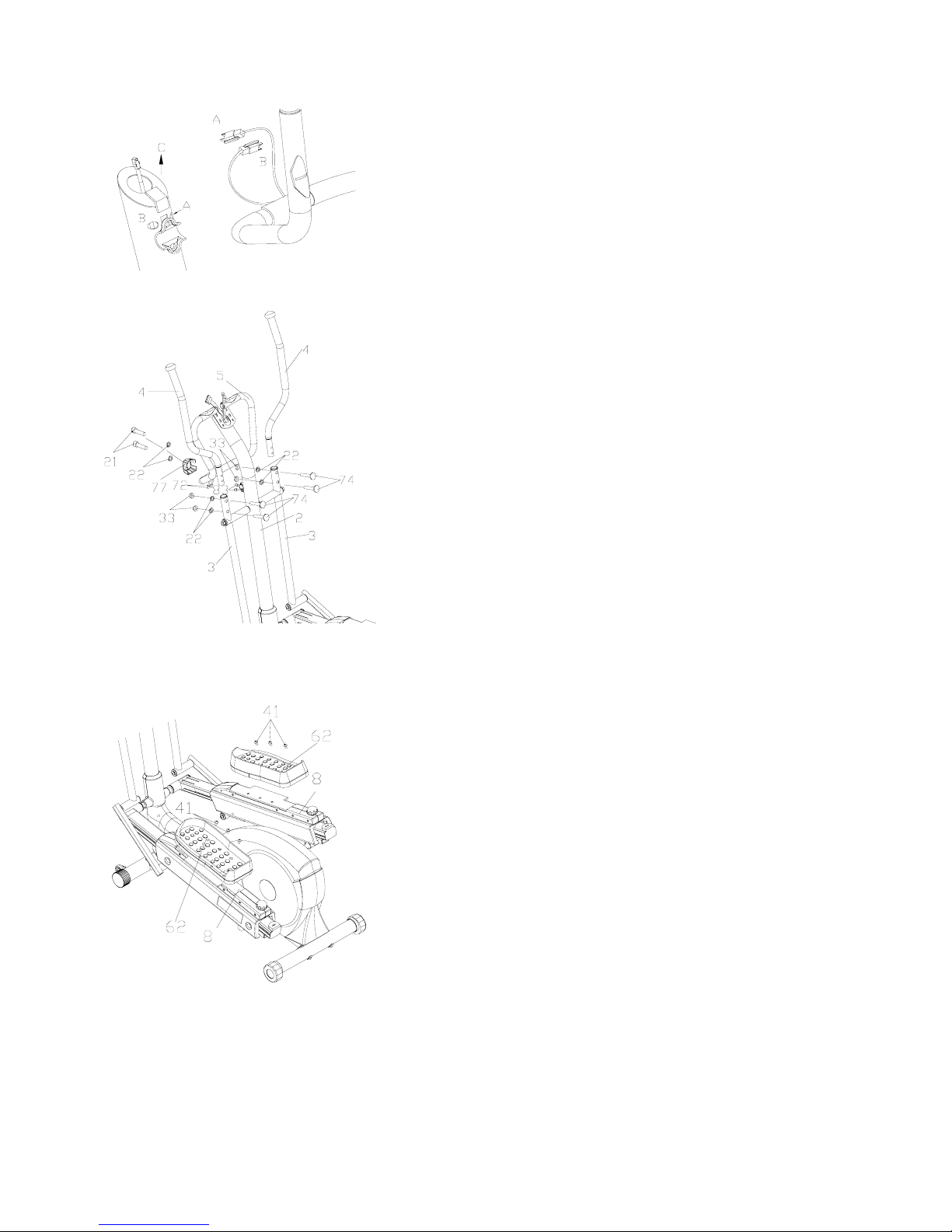

Step 4: Insert the lines A and B to

holes of A and B and then out in

the direction of C as shown in the

left.

Fix middle handlebar (5) onto the

handlebar post (2) with plastic

cover (77), spring washer (22) and

bolts (21). At the same time,

connect left and right handlebars

(4L and 4R) and upper body arms

(3L and 3R) with bolts (74), spring

washers (22) and nylon nuts (33).

Step 5: Connect pedals (62L and

62 R) and pedal legs (8L and 8R)

with screws (41).

Step 8: Make sure that all the part of the bike are properly tightened..

Note:

Please keep the specification and installing tools for in case of need of adjustment or

repair in the future.

Step 6: Use the screws (96) to fix

the handlebar covers (97R&L),

upper handlebar post cover (98)

and lower handlebar post cover

(101) to the tubes as shown in the

left.

Then attach the water bottle

holder (99) to the handlebar post

(2) by the screws (96). Put the

water bottle (100) into its holder

(99).

Step 7：Joint the induction lines as

shown in the left and then attach

the console (70) onto the meter

frame of handlebar post (2) with

the screws (103) and washers

(102).

COMPUTER OPERATION

Function:

1.Program: 21 programs as following

A: 1 Manual Program

B:10PresetProgramProfile:

P1: ROLLING P2: VALLEY P3: FATBURN P4: RAMP P5: MOUNTAIN

P6: INTERVAL P7: CARDIO P8: ENDURANCE P9: SLOPE P10: RALLY

C: 1 Watt Control Program

D: 4 Heart Rate Control Program:

55%H.R, 75%H.R, 90%H.R and TARGET H.R

E: 4 User Setting Programs: CUSTOM1 to CUSTOM4

F: 1 Body Fat Measuring Program

2. Record the user's data of GENDER, HEIGHT, WEIGHT and AGE even cut off the power.

3. Dot matrix display showing your current status.

4. Simulative ECG measuring the heart rate

5. Display Speed (RPM), TIME, DIST., CAL., WATT, PULSE, LEVEL at the same time.

6. The computer will turn off automatically if there is no operation, speed signal and pulse

signal over 4 minutes. Meanwhile, it will store your current exercise data and turn the

loading resistance to the minimum. Once you press any button or in motion, the computer

will turn on automatically.
