LIFELINE AMPLIFICATION SYSTEMS

PORTABLE AMPLIFICATION SYSTEM

41 MEANS DRIVE, SUITE A ❚PLATTEVILLE, WI 53818 800.236.4327 ❚608.348.7918 FAX ❚WWW.LIFELINEAMP.COM

User Guide

The Patriot Portable Amplification

System is one of the best sounding

portable systems available today. The

Patriot has many applications where quality

sound in a small portable package is needed.

The Patriot has many features that are

unique to the portable amplification system

market.You will see the benefits and hear

the clarity that comes from this uniquely

designed system, from the moment you

turn the system on.

This User Guide has been designed to

provide you with product features, trouble-

shooting tips, and important things to

remember and understand about your

Patriot system. Our goal at Lifeline

Amplification Systems is to design high

quality systems with superior sound that

is easy for the customer to operate. If at

anytime you have questions concerning

the Patriot system, please feel free to call

us toll free at: 800-236-4327.

Thank you for purchasing the best

in portable amplification systems —

The Patriot!

EQUIPMENT

•Wireless Transmitter

•LB-1 9-Volt Rechargeable Battery (used in

the wireless transmitter)

•CM-2 Collar Mic with SMC-2 cable

•Amplifier/Speaker/Receiver/Battery Unit

•BG-1 Bag

OPTIONAL WAYS TO ORDER THE PATRIOT:

•HM-1 Headset Mic or SM-2 Lapel Mic

in place of CM-2 Collar Mic

WARRANTY

All items in the Patriot (including parts,

labor, accessories, batteries, etc.) are under

a full one-year warranty.

Lifeline Amplification Systems Inc. will

repair and/or replace, at our option, any unit

that does not function properly within the

warranty time period. Units under warranty

needing repair work or replacement should

be returned to Lifeline Amplification

Systems freight prepaid. All units under

warranty will be returned (freight prepaid)

to the customer. Product misuse, neglect,

or abuse is not covered under warranty.

REPAIR/CLEANING

Most problems can be solved with the trou-

bleshooting guide in the back of this user

guide. If you are having problems after look-

ing at the troubleshooting guide, call us toll

free at 800-236-4327 and we would be

happy to help you. Patriots sent to Lifeline

Amplification Systems for repair should

include a ship to address, bill to address,

contact name and phone number along with

the symptoms of what is wrong with the

Patriot. You may also fill out a service order

form (available online) and send the unit to:

Lifeline Amplification Systems

Attention: Service Department

41 Means Drive, Suite A

Platteville, WI 53818

WE SUGGEST THAT YOUR SYSTEM

BE CLEANED A MINIMUM OF EVERY

TWOYEARS. Please contract us for a price

quote and shipping instructions.

INTRODUCTION

EnjoyYour PATRIOT

Portable Amplification System

41 MEANS DRIVE, SUITE A ❚PLATTEVILLE, WISCONSON 53818

If you have questions

at any time about

your Patriot Portable

Amplification System,

please call us toll-free:

1-800-236-4327

The Patriot is available in 35 VHF

frequencies.

1. MICROPHONE CABLE INPUT JACK

This jack is used for any 1/8"

microphone cable.

2. ON/OFF AND STANDBY SWITCH

The switch on the transmitter has three

positions: off, standby, and on. With the

transmitter ON (and the amplifier/speaker is

turned on) sound will come through the

amplifier/speaker. An initial “pop” sound

may be heard when turned to the ON posi-

tion. When the switch is turned to STANDBY

this mutes the microphone however still

powers the transmitter. When the switch is

in the STANDBY position the unit will not

broadcast however it will drain the battery.

As a general rule, use STANDBY when the

system will be used within a 15 minute time

period. If not in use more than 15 minutes,

the transmitter should be turned OFF to

conserve battery life.

3. POWER INDICATOR LIGHT

The light on the top of the transmitter will

shine red when the transmitter is in the

STANDBY mode. It will shine green when

the transmitter is in the ON position. If the

light does not come on when the switch is

turned to STANDBY or ON, check the battery.

4. GAIN CONTROL

This is a gain control for output of the

microphone. Turning the knob clockwise

increases the volume of the mic. Turning it

counter clockwise decreases the microphone

volume. This should only be adjusted when

all other gain/volume options have been tried.

5. BATTERY COMPARTMENT

The wireless transmitter uses one 9-volt

Nickel Metal Hydride rechargeable battery.

DO NOT USE ANY OTHER RECHARGE-

ABLE 9-VOLT BATTERY. Average battery

life is six hours.

6. CHARGING JACK

This charging jack is used to charge the

battery without having to take the battery

out of the transmitter. The charger that is

provided will charge the transmitter and

the amplifier/speaker pack.

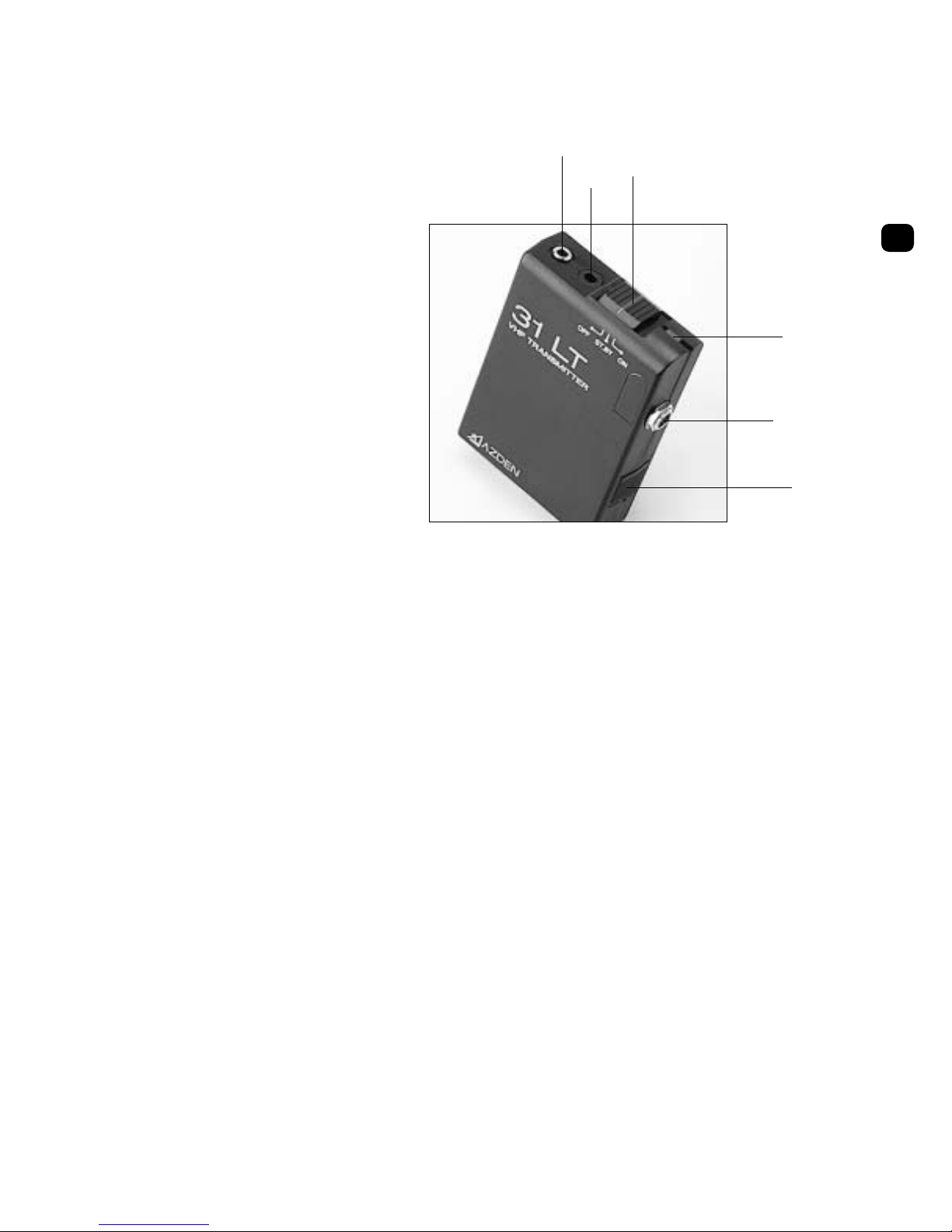

Transmitter

800.236.4327 ❚608.348.7918 FAX ❚WWW.LIFELINEAMP.COM

Amplifier/Receiver

7. VOLUME CONTROL

This controls the overall volume of both the

wireless unit and the audio input jack.

8. BATTERY JACK

This is the input jack for the battery. Be

sure the battery plug is firmly plugged

into this jack.

(continued)

41 MEANS DRIVE, SUITE A ❚PLATTEVILLE, WISCONSON 53818

1. SPEAKER

This is a specialized speaker that is designed

specifically for the Patriot.

2. ON/OFF SWITCH

When the switch is in the up position the

unit is ON (light on the switch will come on).

When the switch is down the unit is OFF

and the light on the switch will go off.

3. CHARGER LIGHT

This light will turn on when the charger is

plugged into the charge jack and the charger

power supply is plugged into electricity.

4. CHARGING JACK

This is used to charge the battery. ONLY

USE THE CHARGER THAT IS PROVIDED

BY LIFELINE AMPLIFICATION

SYSTEMS. The light on the charger will

indicate READY when the battery is fully

charged.

5. AUDIO JACK

This jack will accept any mono RCA plug.

The intention of this jack is for plugging in

a compact disc player, tape player, boom

box, etc. The wireless WILL operate with

the unit plugged into this jack. For volume

of audio jack see number 7 on this page.

6. BATTERY

This is an eight cell battery specially designed

for the Patriot. DO NOT ATTEMPT TO

USE ANY OTHER BATTERY PACK

WITH THE UNIT. This battery pack should

last 6-8 hours depending on the volume

needed, source of material (talking, CD

music, etc.). PART NO. FOR REORDERING

IS PTLB-2 BATTERY.

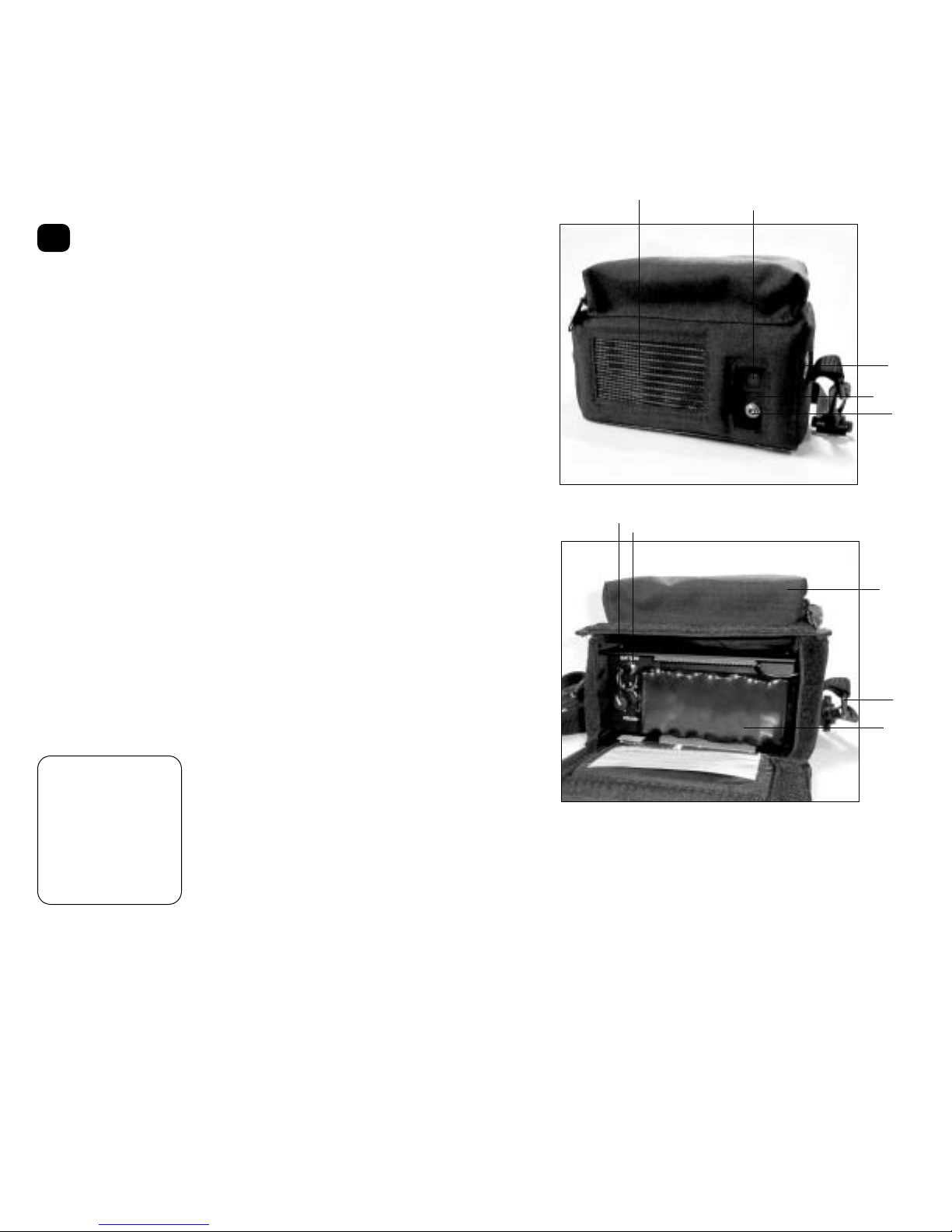

Receiver (Front)

Receiver (Back)

If you have questions

at any time about

your Patriot Portable

Amplification System,

please call us toll-free:

1-800-236-4327

(Amplifier/Receiver continued)

9. RECEIVER

The receiver is installed inside the metal

enclosure. The receiver frequency must

match the frequency of the transmitter.

10. STRAP

This strap is adjustable to the length desired.

The strap can also be detached if needed.

11. POUCH

This pouch can hold the transmitter if neces-

sary for easy carrying.

*The amplifier/speaker and wireless can be

turned on and used while charging. You

may hear a very small buzz in the speaker

when you attempt to use the Patriot when

charging the battery. The Patriot can safely

be used in this manner.

1. POWER SUPPLY

This power supply needs to be plugged into

electricity for the charger to operate. The

opposite end of the power supply (the end

not plugged into electricity) needs to be

firmly plugged into the charger.

2. AMPLIFIER/RECEIVER PLUG

This plug needs to be inserted into the

amplifier/speaker to charge. It is labeled

AMP/SPEAKER. The CHARGING or

READY light will light up (see numbers 4

and 5) when this is plugged in.

3. TRANSMITTER PLUG

This plug needs to be inserted into the

transmitter for charging. It is labeled

TRANSMITTER.

4. CHARGING LIGHT

The CHARGING light will light up if the

amplifier/speaker and transmitter plug is

inserted in the appropriate place and the

batteries on either unit are not fully charged.

5. READY LIGHT

The READY light will appear when the

batteries on the amplifier/receiver and the

transmitter are completely charged. This is

a trickle charger so the batteries will not be

charging once the units are fully charged.

This will prevent overcharging of the batter-

ies and a longer battery life. Even though

it’s a trickle charge, it is still not recom-

mended to have charger plugged into the

amp/speaker or transmitter for more than

seven days. FOR REORDERING PURPOSES

THE CHARGER PART NO. IS PTLC-2.

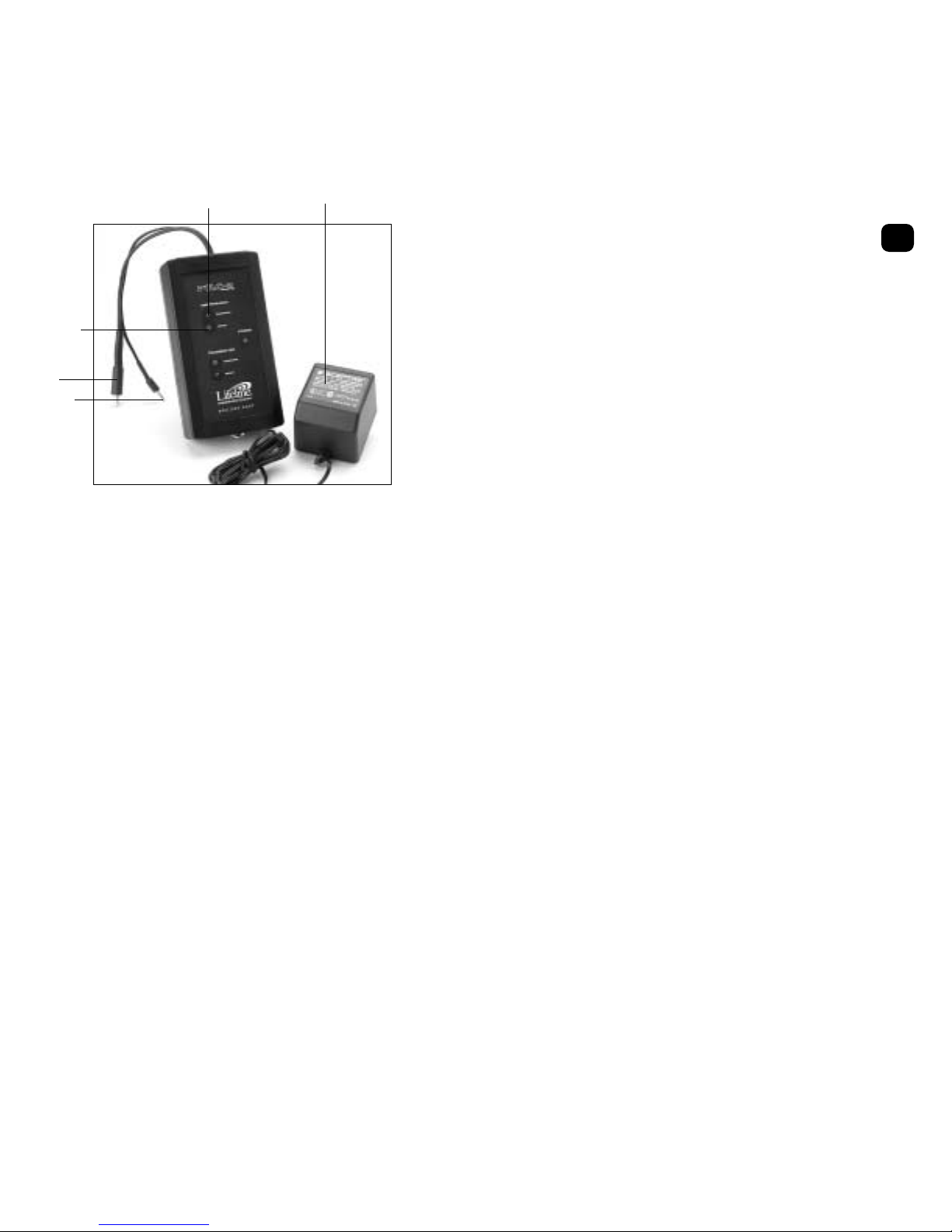

Charger

800.236.4327 ❚608.348.7918 FAX ❚WWW.LIFELINEAMP.COM

Charger

1. CHARGE THE BATTERIES IN BOTH THE

TRANSMITTER AND THE AMPLIFIER/SPEAKER

UNTIL THE CHARGER READS READY.

To properly charge the batteries follow

these instructions:

A) Plug the charger power supply into an

electrical outlet.

B) Check and make sure the battery is

plugged into the amplifier/speaker.

C) Insert the 9-volt rechargeable battery

(included in the system) into the

transmitter.

D) Plug the charger end labeled AMPLIFIER/

SPEAKER into the amplifer/speaker

unit. The CHARGING light should

appear on the charger. The charging light

on the amplifier/speaker should light up

as well.

E) Plug the end labeled TRANSMITTER

into the transmitter.

F) Charge the batteries until the READY

light lights up. Unplug the transmitter

and the amplifier/speaker plugs. You can

leave the power supply plugged into the

electrical outlet. No harm can be done

with the charger plugged into electricity

and the ends exposed.

2. SET THE VOLUME CONTROL ON THE BACK

OF THE AMPLIFIER/SPEAKER TO NUMBER 4

(11 o’clock position). This is a good starting

volume.

3. SET THE AMPLIFIER/SPEAKER TO THE

LOCATION WHERE THE UNIT WILL BROAD-

CAST FROM.

4. TURN THE AMPLIFIER/SPEAKER UNIT ON.

The LED in the switch should light up.

5. INSERT THE PLUG FOR THE COLLAR MIC

INTO THE TRANSMITTER.

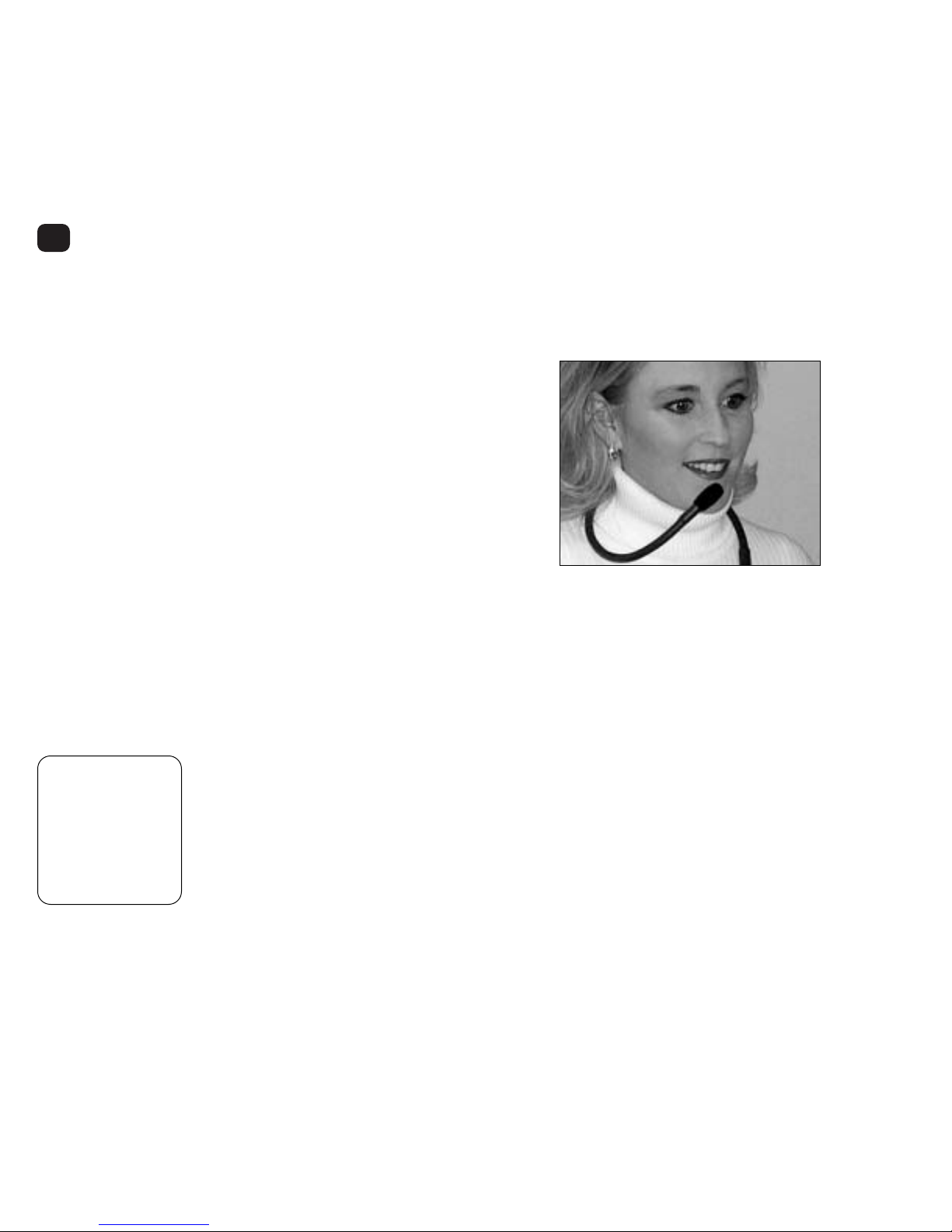

6. PLACE THE COLLAR MIC AROUND YOUR

NECK and adjust the microphone so that it is

no more than 3 inches from your mouth.

7. TURN THE TRANSMITTER SWITCH TO THE

ON POSITION. A soft, audible "pop" may be

heard through the speaker. This is normal.

Turn the transmitter off to save

battery power if the user is not going to

operate the system for more than 15

minutes. Turn the transmitter to STANDBY

if the user is going to operate the system

within a 15 minute time period but currently

does not want to broadcast.

8. THE USER SHOULD NOW BE BROAD-

CASTING. You can adjust the VOLUME

on the back of the amplifier/speaker to the

proper volume setting. At any time during

operation you can plug in an audio input such

as a compact disc player, tape deck, etc.

SETTING UP YOUR SYSTEM

Operation OfYour

System The First Time

41 MEANS DRIVE, SUITE A ❚PLATTEVILLE, WISCONSON 53818

If you have questions

at any time about

your Patriot Portable

Amplification System,

please call us toll-free:

1-800-236-4327

Troubleshooting Guide

Check the transmitter. Is the power indicator light, on top of the

transmitter GREEN? If there is no green light on

top of the transmitter, then the battery needs to be

recharged or replaced. If the light is RED, turn

the transmitter switch from STANDBY to ON.

Average battery life is six hours.

Check the amplifier/speaker. Is the light on the ON/OFF switch on the

amplifier/ speaker lighted? If this is not on then

check the following:

1) Is the switch in the upwards or ON position?

2) Is the battery plugged into the battery jack in

the back of the amplifier/speaker?

3) Has the battery been recharged more than 250

times or is it more than two years old? Typical

life of a battery is 250-500 recharges. There is a

number on the battery. The first number is the

month and the second number is the year the

battery was purchased. This will help determine

the life of the battery.

Check the charger. When charging the amplifier/speaker and the

transmitter, is the charging light lighted? If no

READY or CHARGING light is lighted check to

make sure both plugs are properly inserted into

the transmitter and amplifier/speaker AND make

sure the charger is plugged into electricity. The

power supply must be properly plugged in to charge.

Adjust the collar mic, headset mic or lapel mic... ...so that the collar or headset mic is no more than

3 inches from your lips OR the lapel mic is no

more than 6 inches from your lips. If more volume

is needed, increase the volume on the amplifier/

speaker or increase the volume with the gain

control on the transmitter.

Adjust or change the location... ...of the amplifier/speaker. Feedback is caused

with the human voice goes through a microphone,

through an amplifier/speaker, and back through

the microphone causing a loop.

Attempt to lower the gain control... ...on the transmitter and increase the gain on the

amplifier/speaker.

(continued)

IF YOUR SYSTEM EXPERIENCES FEEDBACK...

IF YOUR SYSTEM IS NOT WORKING...

800.236.4327 ❚608.348.7918 FAX ❚WWW.LIFELINEAMP.COM

41 MEANS DRIVE, SUITE A ❚PLATTEVILLE, WI 53818 800.236.4327 ❚608.348.7918 FAX ❚WWW.LIFELINEAMP.COM

Call Lifeline Amplification Systems. A change in frequency may be needed.

Check the battery in the transmitter. Make sure the battery in the transmitter is fully charged.

Try a 9-volt Energizer or Duracell battery.

NEVER charge an Energizer or Duracell battery.

Check the microphone cable. Wiggle the microphone cable. If the unit cuts in and

out while this cable is being moved you need to

replace the cable.

If you have questions

at any time about

your Patriot Portable

Amplification System,

please call us toll-free:

1-800-236-4327

Troubleshooting (continued)

IF YOUR SYSTEM PICKS UP SOMETHING OTHER

THAN THE VOICE OF THE USER...

IF YOUR SYSTEM CUTS IN AND OUT...

Inhaltsverzeichnis

Andere Lifeline Verstärker Handbücher

Lifeline

Lifeline freedom 2 Bedienungsanleitung

Beliebte Verstärker Handbücher anderer Marken

ASTRO

ASTRO HVO V40 P Bedienungsanleitung

Marantz

Marantz SUPERSCOPE BLA-545 Montageanleitung

NAD

NAD CI980 Bedienungsanleitung

Technics

Technics SE-CH770 Bedienungsanleitung

Harman Kardon

Harman Kardon HK6300 Bedienungsanleitung

NAD

NAD T975 Bedienungsanleitung

McIntosh

McIntosh MA6850 Bedienungsanleitung

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Bedienungsanleitung

Viatron

Viatron Autrix Bedienungsanleitung

GME

GME GA9800 Bedienungsanleitung

Atlas

Atlas CP700 Bedienungsanleitung

Roland

Roland KC-1000 Bedienungsanleitung

Pyle

Pyle PFMRA350BW Bedienungsanleitung

Advantage

Advantage S-250 Bedienungsanleitung

IRT Electronics

IRT Electronics DVA-3007 Bedienungsanleitung

Dimavery

Dimavery BA-100 Series Bedienungsanleitung

Sony

Sony XM-S400D Bedienungsanleitung

Schertler

Schertler ROY X Bedienungsanleitung
